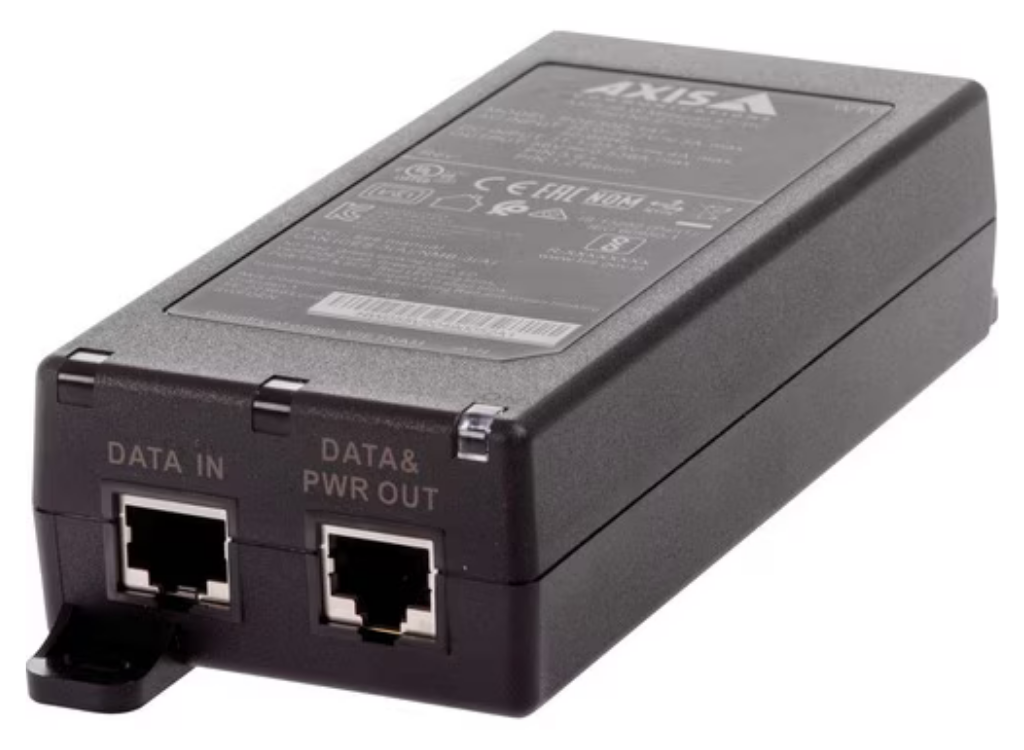

Axis PoE Injector - 24 V AC Input - 56 V DC Output - Gigabit Ethernet Input Port(s) | 02208-001
SKU: 02208-001
£89.88 (Excl. VAT)
- Description
- Specifications
-
Axis PoE Injector - 24 V AC Input - 56 V DC Output - Gigabit Ethernet Input Port(s) | 02208-001
AXIS 30 W Midspan AC/DC is ideal for installations where mains power is not an option. With a power input of either 10-28 V DC or 24 V AC, it can deliver up to IEEE 802.3at (30 W) to your network device. AXIS 30 W Midspan AC/DC is plug-and-play and compatible with all Axis PoE devices which require up to 30 W power.
24 V AC can be needed in harsh environments where new cabling or installations are not possible and you need to retrofit box, dome or PTZ cameras.
10-28 V DC can be used where battery back-up is needed or for solar-powered installations. Or when the network device is built in another equipment and is powered directly from it, for example, in an ATM.
-
Category Feature Specification Input Ports Port 1 Gigabit Ethernet Port 2 Gigabit Ethernet Output Ports Type PoE Additional Information DC Input Voltage 10 to 28V DC AC Input Voltage 24 ±20% VAC Connectors Shielded RJ45, EIA568A & 568B, 3-pin AC/DC connector Sustainability PVC-free, Halogen-free Display and Indicators PoE LED Compatibility Type Network Device Certifications & Standards Compliance IEEE 802.3af, IEEE 802.3at Safety IS 13252, IEC/EN/UL 62368-1 Environmental Standards IEC 60068 series EMC EN 55024, EN 55032 Class A, FCC Part 15 Subpart B Class A, CISPR 32 Class A, VCCI Class A, KC KN32/35, RCMAS/NZS, EAC Environmental Environmentally Friendly Yes Power Input Voltage 24 V AC Max Output Power 30 W Max Output Voltage 56 V DC Product Details Type PoE Injector Manufacturer Part Number 02208001 Manufacturer Axis Communications Model 30 W Midspan AC/DC Brand Name AXIS Physical Weight 233 g Mount Type Wall/Shelf/DIN Rail-mountable Height 164 mm Width 65 mm Depth 37 mm Color Black
