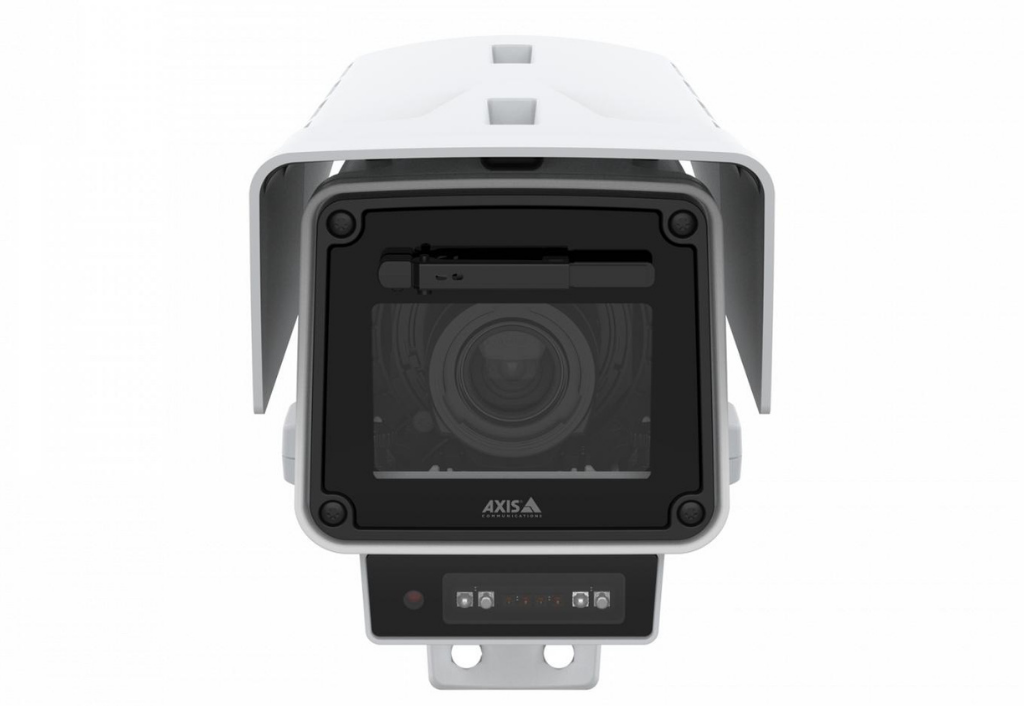

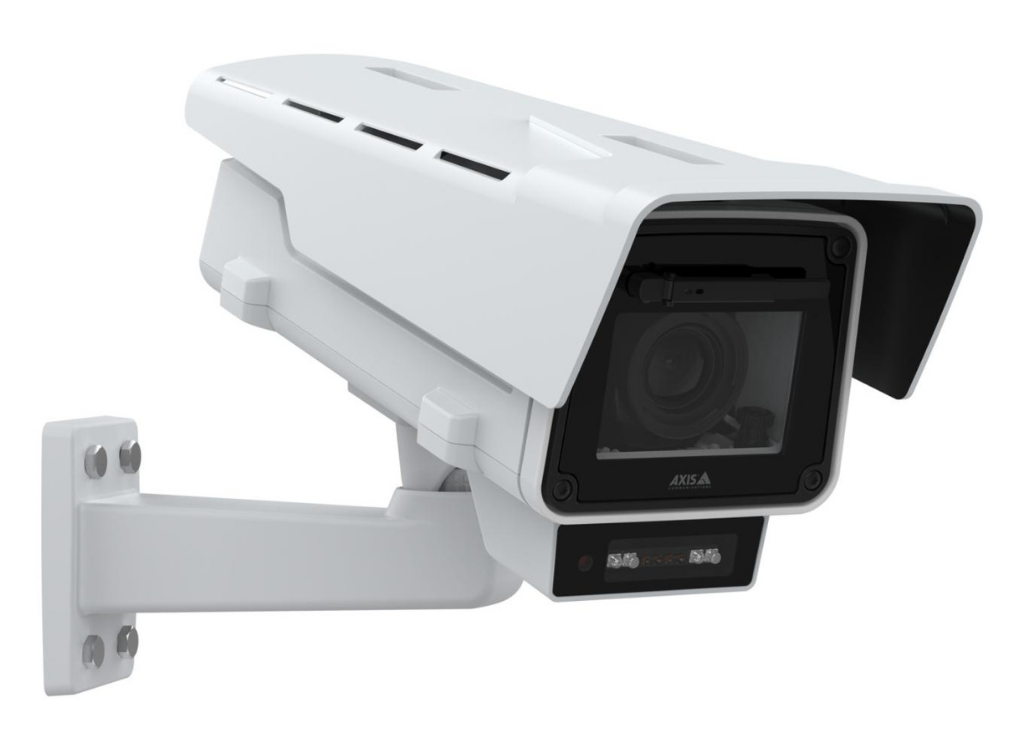

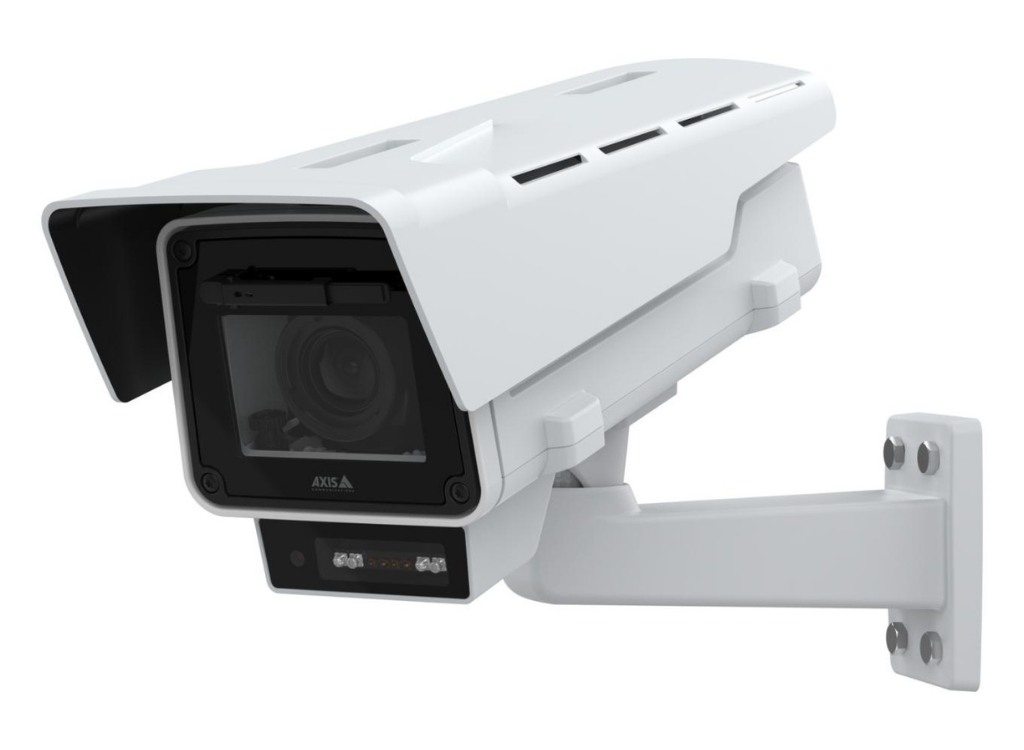

Axis Q1656-LE Outstanding Performance in 4 MP Box Camera
With premium Q-line functionality and exceptional video quality even in poor light, AXIS Q1656-LE is based on the latest Axis system-on-chip (SoC) and offers support for powerful analytics based on deep learning on the edge.
The best of the best
AXIS Q1656-LE delivers exceptional video quality even in poor light conditions. This premium Q-line camera offers impressive performance with 4 MP resolution at up to 60 fps. With a 1/1.8” sensor, it provides the best possible image quality no matter what. Plus, a built-in wiper guarantees great images even in snow and rain. It includes Lightfinder 2.0 to capture outstanding forensic images in low light scenes. And, the built-in camera rails allow you to easily adjust or change the lens to a larger tele lens or i-CS lens. Furthermore, it includes a power-efficient IR White LED illumination.
Powerful analytics capabilities
This high-performance camera is based on ARTPEC-8, the latest Axis system-on-chip (SoC). Featuring a deep learning processing unit (DLPU), it eliminates the need for expensive servers and allows for a faster and more scalable system. Plus, it improves processing capabilities so you can collect and analyze even more data than before - on the edge. AXIS Object Analytics offers detection and classification of humans, vehicles, and types of vehicles—all tailored to your specific needs. Furthermore, with support for ACAP version 4, you can add value to your system with tailor-made applications based on deep learning on the edge available from Axis and our partners.
Reliable and secure
Designed for easy and reliable installation, AXIS Q1656-LE is enclosed in a robust, impact-resistant IK10-rated casing. With IP66, IP67, NEMA 4X, and NEMA TS2 ratings, this water-resistant, weatherproof camera can also withstand winds up to 60 m/s. Including remote zoom and focus and support for PoE and redundant DC power, it offers flexible installation and maintenance. Plus, your data is safeguarded in the event of a power outage. It also includes surge protection (railway standard) and an intrusion switch for secure operation. Furthermore, built-in cybersecurity features prevent unauthorized access and safeguard your system.
-
Category |
Property Description |
Property Value |
Image Sensor |
Image sensor |
CMOS |
|
Image sensor size |
1/1.8" |
|
Lightfinder |
Lightfinder 2.0 |
|
Wide dynamic range |
Forensic WDR |
|
Min illumination/light sensitivity (Color) |
0.05 lux |
|
Min illumination/light sensitivity (B/W) |
0.01 lux |
Video |
Max video resolution |
2688x1512 |
|
Max frames per second |
50/60 |
|
Electronic image stabilization |
Yes |
Lens |
Focal length |
3.9 - 10 mm |
|
Horizontal field of view |
113-47 ° |
|
Vertical field of view |
60-27 ° |
|
Lens mount |
CS |
|
Replaceable lens |
Yes |
Compression |
Zipstream |
Yes |
|
H.264 |
Baseline, High, Main |
|
H.265 |
Yes |
|
Motion JPEG |
Yes |
Audio |
Audio Support |
Yes |
Network |
PoE Class |
4 |
|
Wireless |
– |
Security |
Signed OS |
Yes |
|
Secure boot |
Yes |
General |
Remote focus |
Yes |
|
Remote zoom |
Yes |
|
Built-in IR |
Yes |
|
Local storage (memory card slot) |
Yes |
|
Operating temperature |
-40 to 60 °C |
|
Outdoor Ready |
Yes |
|
Vandal rating |
IK10 Except for front window IK08 |
|
IP rating |
IP66, IP67 |
|
Designed for repaint |
Yes |
|
Sustainability |
BFR/CFR free, PVC free |
Power |
Power (max) |
25.5 W |
|
Power (average) |
11.2 W |
|
DC input voltage |
10-28 V |
-
