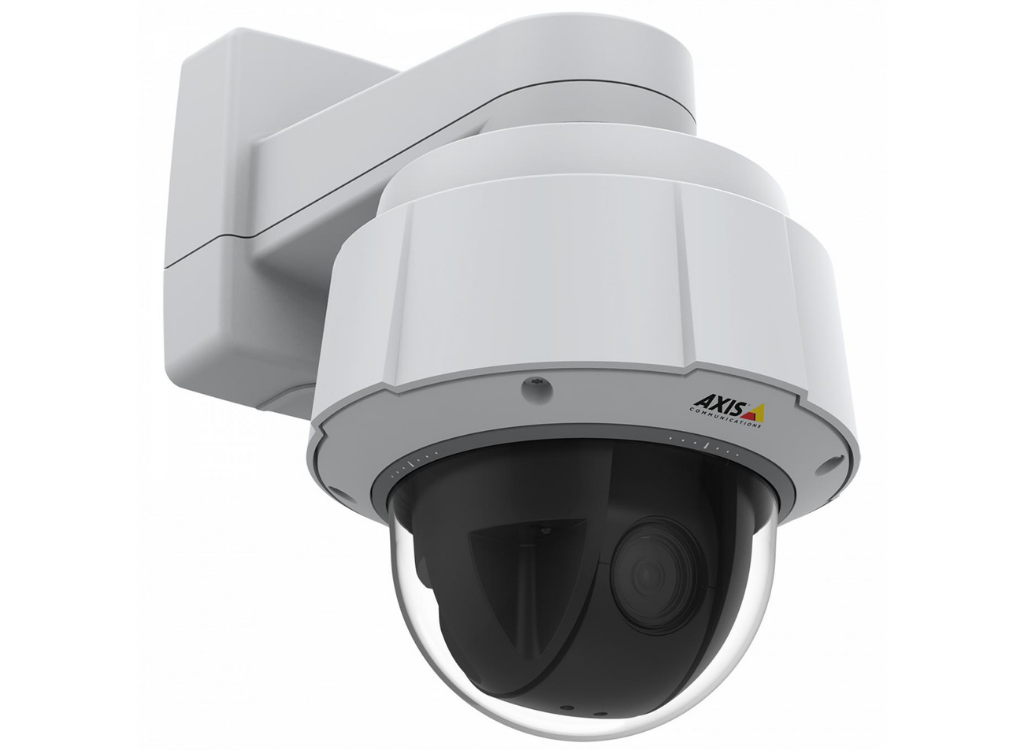

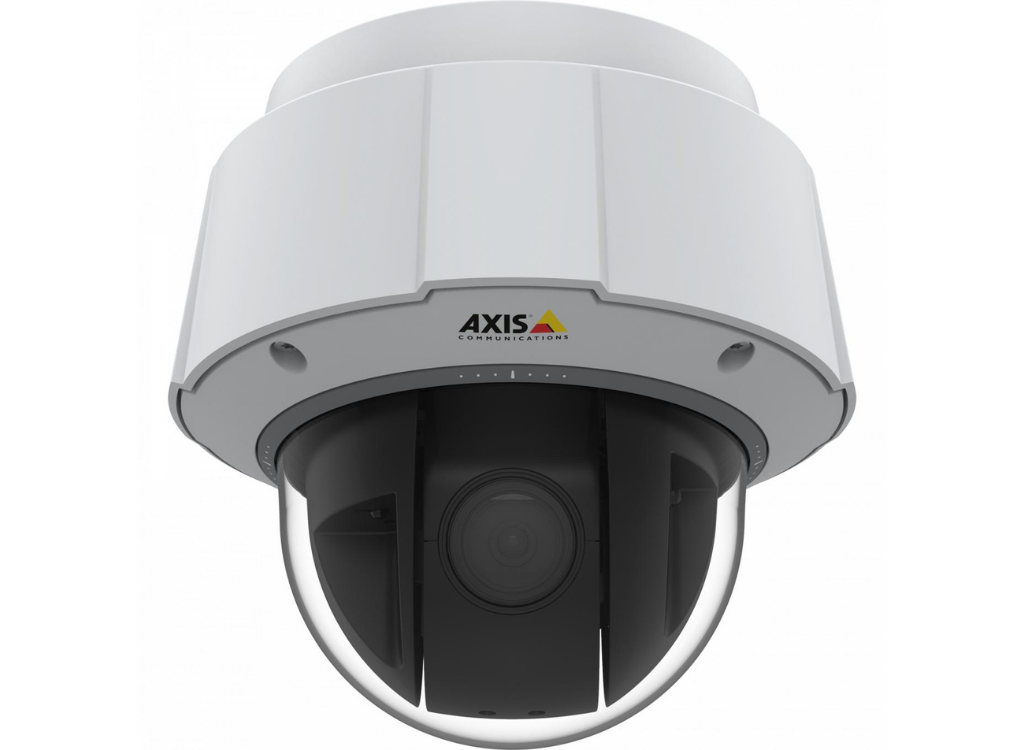

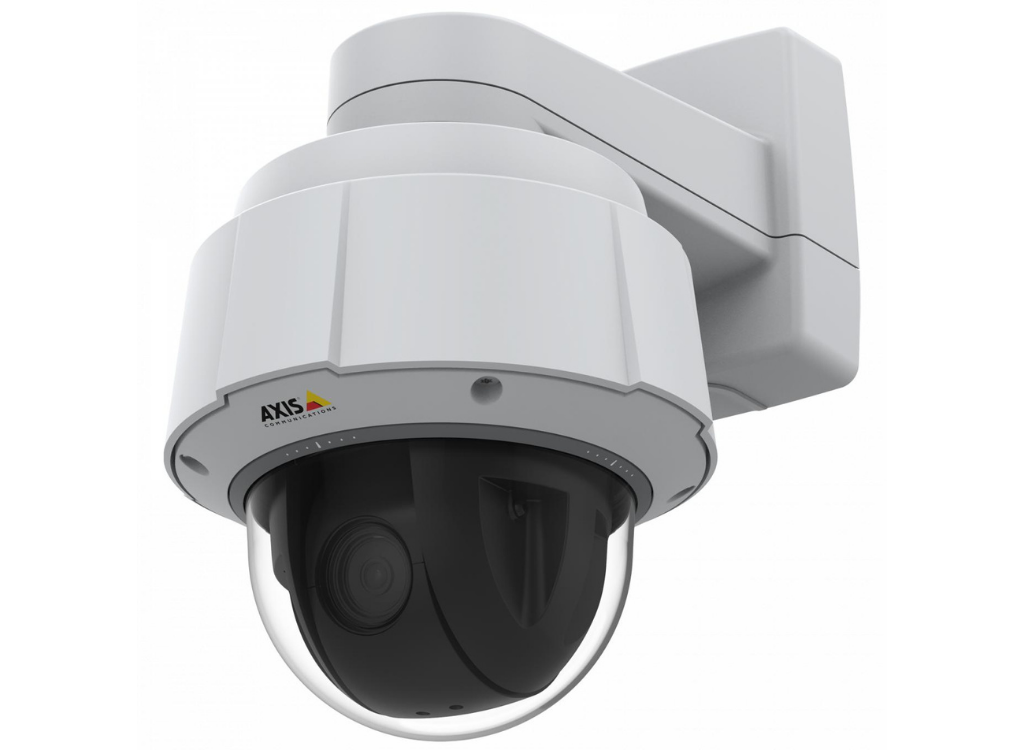

Axis Q6074-E Outdoor-Ready PTZ Network Camera With HDTV 720P And 30x Optical Zoom
This robust, high-performance PTZ camera offers superior light-sensitivity for clear, sharp overviews and excellent details in demanding light conditions. It’s ideal for mission-critical surveillance in wide, outdoor areas such as cities, industrial and critical infrastructure applications. Featuring the new generation Axis chip, it includes enhanced security features such as signed firmware and secure boot.
Superior details in demanding light conditions
AXIS Q6074-E offers HDTV 720p resolution that delivers superior video quality and 30x optical zoom for excellent details. It features Axis Lightfinder 2.0 which captures low-light images with more saturated colors and sharper images of moving objects. And, Zipstream with support for H.264 and H.265 preserves all the important forensic detail you need, while significantly lowering bandwidth and storage requirements.
Whenever, wherever it’s needed
This high-performance outdoor PTZ camera with IP66/67, NEMA 4X, and IK10-ratings is protected from dust, rain, snow and impacts. Arctic temperature control ensures startup from a deeply frozen state and operation in temperatures ranging from -40 °C to 50 °C (-40 °F to 122 °F). Autotracking 2 with click and track functionality and an orientation aid allows for active object tracking and quick orientation. AXIS Q6075-E comes with AXIS Guard Suite analytics for detecting motion, intrusion and loitering. Furthermore, where privacy must be kept, privacy masking with mosaic lets you pixelate whole areas such as a neighboring property.
Keeping you secure
This high-performance camera is packed with advanced security functionality to prevent unauthorized access and safeguard your system. Signed firmware and secure boot guarantees that the firmware hasn’t been compromised and ensures only authorized firmware is installed. And if needed, secure boot guarantees the camera is completely free of malware after a factory default. For added peace of mind, it includes a Trusted Platform Module (TPM) that is FIPS 140-2 level 2 certified. This module ensures secure storage of all cryptographic keys and certificates even in the event of a security breach.
-
Camera Property Description |
Property Value |
Lightfinder |
Lightfinder 2.0 |
Min illumination/ light sensitivity (Color) |
0.1 lux |
Min illumination/ light sensitivity (B/W) |
0.002 lux |
Image sensor |
CMOS |
Image sensor size |
1/2.8" |
Wide dynamic range |
WDR |
General Property Description |
|
Built-in IR |
– |
OptimizedIR |
– |
Local storage (memory card slot) |
Yes |
Operating temperature |
-50 to 50 °C |
Outdoor Ready |
Yes |
Vandal rating |
IK10 |
IP rating |
IP66, IP67 |
Designed for repaint |
Yes |
Analytics Property Description |
|
Autotracking version |
Autotracking 2 |
Orientation aid |
orientation aid PTZ |
Video Property Description |
|
Max video resolution |
1280x720 |
Max frames per second |
50/60 |
Day and Night functionality |
Yes |
Electronic image stabilization |
Yes |
Lens Property Description |
|
Focal length |
4.25-127.5 mm |
Horizontal field of view |
63.8-2.6 ° |
Vertical field of view |
38.0-1.47 ° |
Pan, Tilt, Zoom Property Description |
|
Optical zoom |
30 |
Pan range |
360 endless |
Tilt range |
220 |
Guard tour |
preset position tour |
Digital zoom |
12 |
Compression Property Description |
|
Zipstream |
Yes |
H.264 |
Baseline, High, Main |
H.265 |
Yes |
Motion JPEG |
Yes |
Audio Property Description |
|
Audio Support |
Yes |
Built-in microphone |
- |
System Integration Property Description |
|
Audio detection |
– |
Active tampering |
– |
Alarm inputs/outputs |
– |
Network Property Description |
|
PoE Class |
High PoE |
Security Property Description |
|
Signed OS |
Yes |
Secure boot |
Yes |
TPM |
Yes |
-
