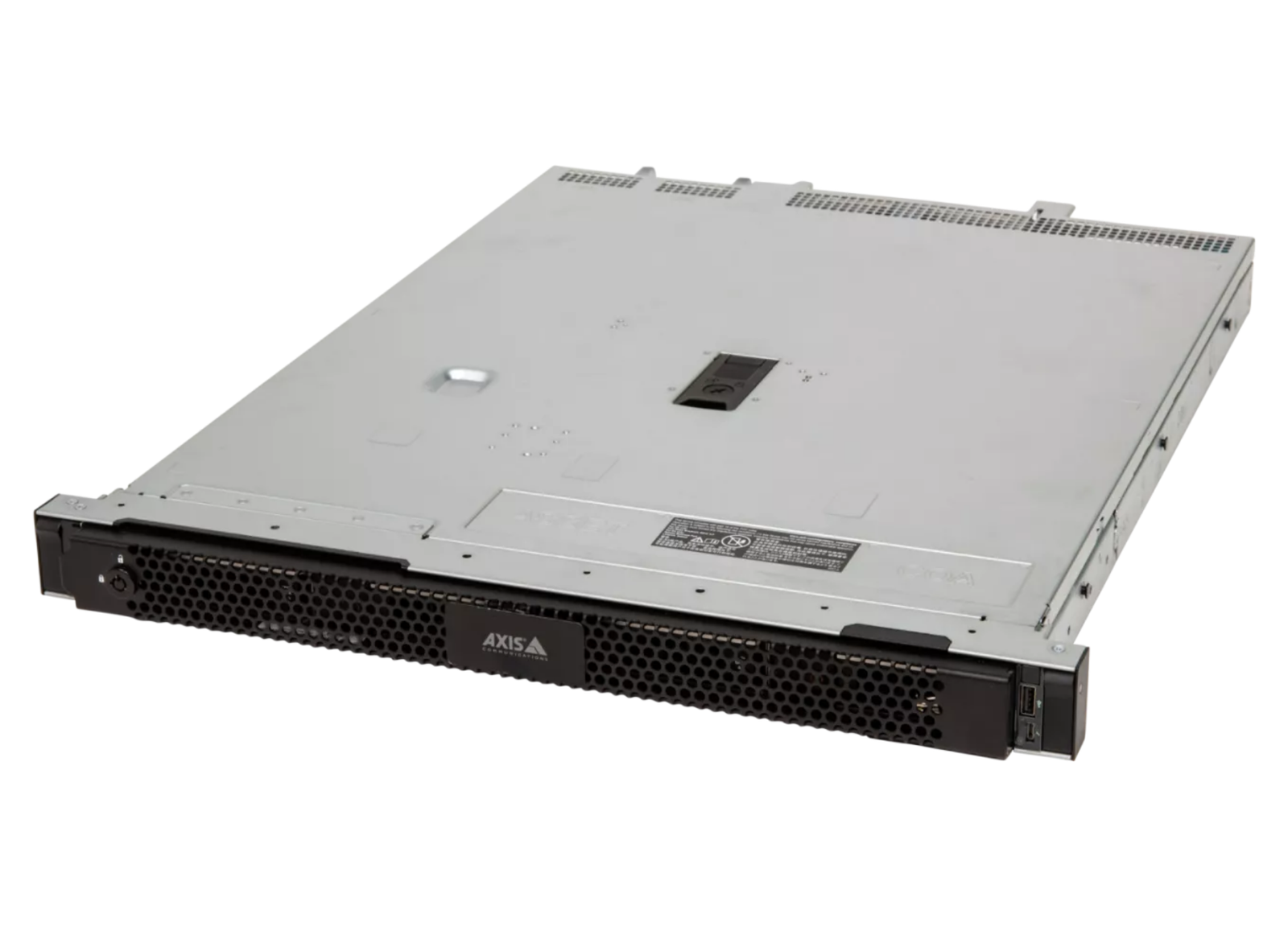

This out-of-the-box, ready-to-use recording server features powerful components for top-class performance. And it’s easy to scale and expand your system as your needs grow.
Top class performance and reliability
Featuring powerful components, this high-performance recording server offers support for powerful applications and features. Thanks to a RAID controller with high cache memory, it minimizes the risk of recording gaps, downtime, and data loss. This secure device complies with government policies and uses a Trusted Platform Module (TPM) that is FIPS 140-2 level 2, which increases the security of the product and ensures recorded video is stored encrypted on the hard drive. And, if the system crashes, built-in operating system recovery stored on the device ensures data can be quickly recovered.
Flexible, scalable solution
AXIS S1232 Rack is ideal for demanding applications. With great scalability, it’s easy to expand your system as it grows without the need for additional hardware. It includes 32 AXIS Camera Station Pro licenses and provides 10 AXIS Audio Manager Pro licenses when installing the software to the server. You can expand your system up to a recording bitrate of 512 Mbit/s (approximately 64 channels) . Plus, with multiple RAID configurations (levels 0/1/5/6/10), it provides flexible system storage and redundancy based on your specific requirements. AXIS S1232 Rack is available in two variants with a choice of storage: either 16 TB or 32 TB.
Quality and ease-of-use
This reliable recording server comes preloaded with AXIS Camera Station Pro licenses and pre-configured software, so there’s no need to spend time selecting, configuring, and testing hardware. Plus, with services such as Keep Your Hard Drive and Next Business Day Onsite Support, as well as a 5-year warranty, you can depend on Axis for first-class quality, reliability, and support. Part of an Axis end-to-end solution, all supported products are available in one price list for a one-stop-shop experience. Furthermore, with an intuitive installation wizard and AXIS Recorder Toolbox, AXIS S1232 eliminates installation problems to help ensure every customer installation is trouble-free.
| Form factor | Rack 1U | AXIS Camera Station Pro licenses included | 32 |
| AXIS Audio Manager Pro licenses included | 10 | System storage (TB) * | 16 / 32 TB |
| Total HDD bays | 4 | Free HDD bays | 0 |
| HDDs included | 4 | Supported RAID level | 0, 1, 5, 6, 10 |
| Default RAID level | 5 | PoE total output power | - |
| Power over Ethernet Plus | - | Validated video channels | 64 |
| Validated recording bitrate (Mbit/s) | 500 | Operating system | Microsoft Windows 11 IoT Enterprise LTSC 2024 |
| Description | Downloads |
|---|---|
| Datasheet | Download |
