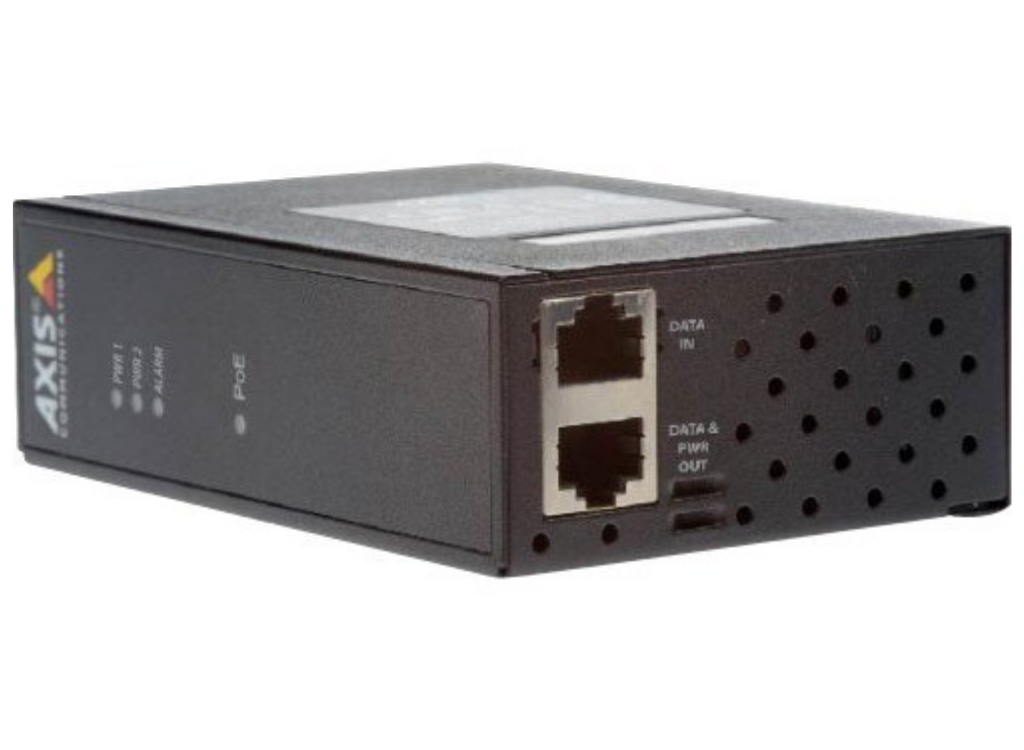

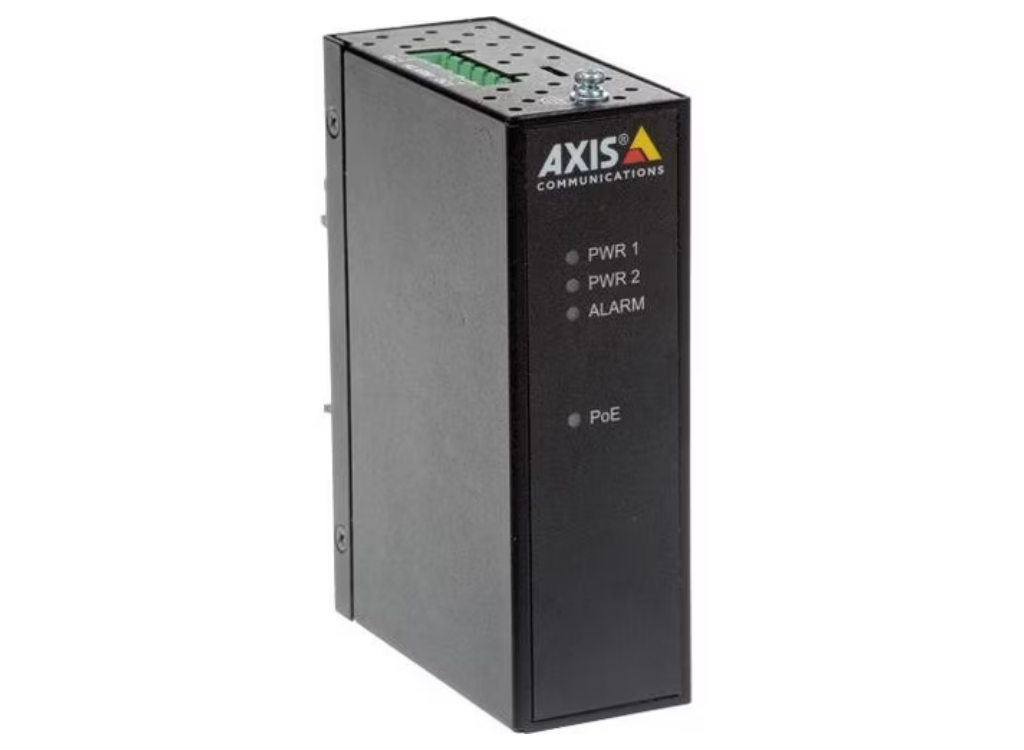

AXIS T8144 60 W Industrial Midspan is an industrial grade 1-port midspan offering an easy, fast and cost-effective solution for powering network products. With a wide operating temperature, from -40 °C to 75 °C (-40 °F to 167 °F), AXIS T8144 is robust in harsh environments. A typical configuration would be to enable PoE to a non-PoE based system (switch, 3G/4G router, or wi-fi access point) creating a compact and effective solution.
AXIS T8144 is ideal for mounting in cabinets or on DIN rail, has dual DC inputs for power redundancy and supports all PoE devices.
| Category | Feature | Specification |
|---|---|---|
| Compatibility | Axis Products | A1001, A9161, A9188-VE, C1410, D2110-VE, F34, F41, F44, I8016-LVE, M1065-L, M1134, M1135, M1135-E, M1137, M1137-E, M1145-L, M2025-LE, M2026-LE, P1214, P1214-E, P1224-E, P1244, P1245, P1254, P1264, P1265, P1275, P1375, P1375-E, P1377, P1377-LE, P1378, P1378-LE, P1435-LE, P1455-LE, Q1615, Q1645, Q1647, Q1659, Q1798-LE, M3015, M3016, M3037-PVE, M3057-PLVE, M3058-PLVE, M3064-V, M3065-V, M3066-V, M3067-P, M3068-P, M3075-V, M3077-PLVE, M3115-LVE, M3116-LVE, M3205-LVE, M3206-LVE, M4206-LV, M4206-V |
| Certifications & Standards | Compliance | EC/EN/UL 62368-1, EMC, EN 55024, EN 55032 Class A, FCC Part 15 Subpart B Class A, VCCI Class A, RCM AS/NZS CISPR32 Class A, ICES-003 Class A, EAC |
| Input Ports | Port 1 | 1 x 10/100/1000Base-T |
| Input Ports | Port 2 | 1 x 10/100/1000Base-T |
| Output Ports | Port 1 | 1 x 10/100/1000Base-T |
| Output Ports | Port 2 | 1 x 10/100/1000Base-T |
| Product Type | PoE Injector | |
| Manufacturer Part Number | 01154001 | |
| Manufacturer | Axis Communications | |
| Product Model | T8144 | |
| Product Name | T8144 60 W Industrial Midspan | |
| Brand Name | AXIS | |
| Input Voltage | Range | 20 V DC - 60 V DC |
| Maximum Output Power | 60 W | |
| Maximum Output Voltage | 55 V DC | |
| Weight (Approximate) | 315 g | |
| Form Factor | Cabinet/DIN Rail | |
| Height | 36 mm | |
| Width | 78 mm | |
| Depth | 111 mm | |
| Product Color | Black | |
| Color Family | Black |
