T8415 WIRELESS INSTALLATION TOOL

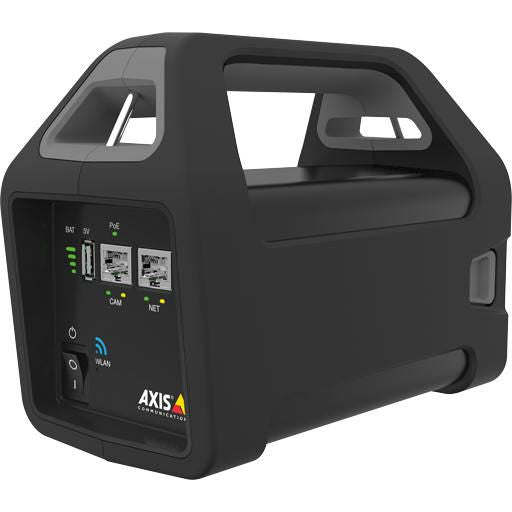

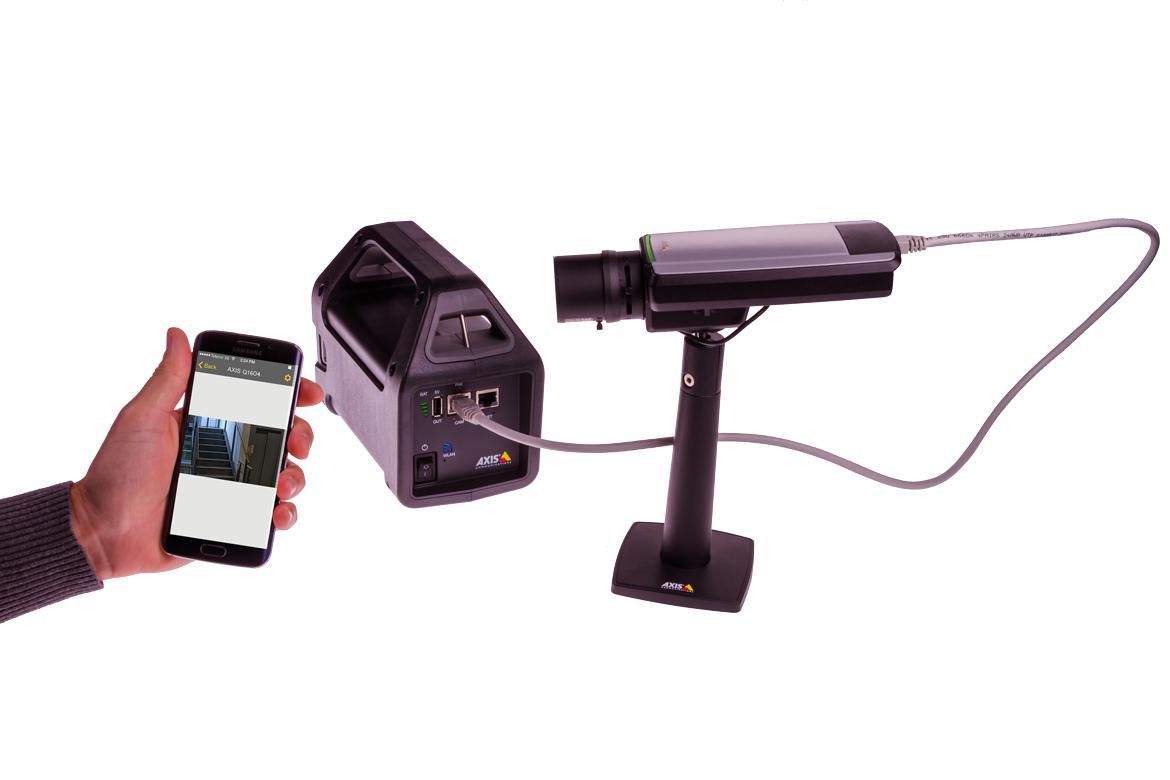

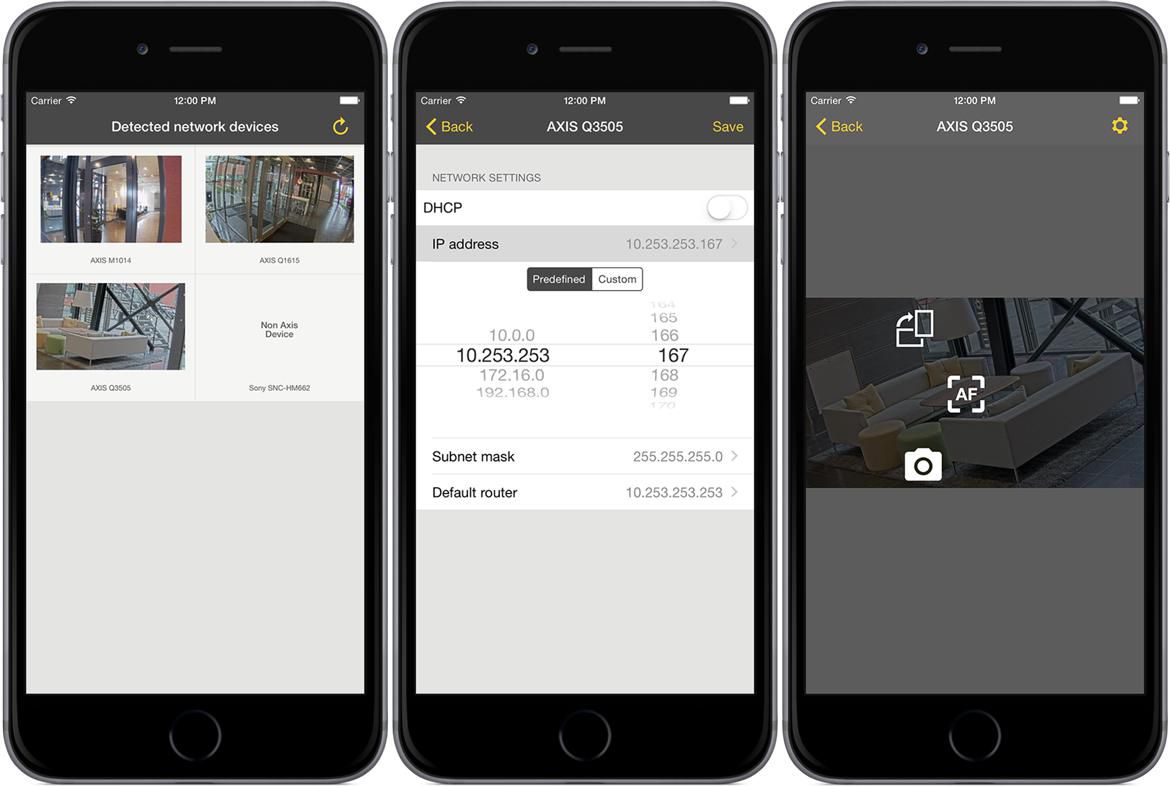

AXIS T8415 Wireless Installation Tool is a battery-powered handheld device that connects directly to a camera and displays live video. With its powerful battery, the tool can power up an Axis PoE camera up to 30 W for hours. The built-in Wi-Fi function in AXIS T8415 connects within seconds to an installer’s smartphone or tablet so the camera’s live view can be accessed in a convenient manner. Basic camera functions, such as focus, IP address and image rotation can be adjusted via the smartphone. Free-of-charge app on the smartphone (iOS or Android) downloadable from the App Store or Google Play.
| Category | Feature | Details |
|---|---|---|
| Battery | Battery Type | UN2800 - Wet, non-spillable electric storage |
| Battery Capacity | 3400 mAh | |
| Battery Technology | Sealed Lead Acid (VRLA) | |
| Battery Voltage | 12 V | |
| Display | Display | No |
| Ethernet LAN Features | Cabling Technology | 10/100-BaseT(X) |
| Ethernet LAN | Yes | |
| Ethernet LAN Data Rates | 10/100 Mbit/s | |
| Features | Housing Material | ABS (Acrylonitrile butadiene styrene) |
| Mobile OS Supported | Android 4.1 to 5.1, iOS 7.0 to 9.0 | |
| Product Colour | Black/Grey | |
| Legal Information | EU ECCN Code | N/A |
| US ECCN Code | EAR99 | |
| Network | Security Algorithms | WPA2-PSK |
| Supported Network Protocols | WS - Discovery | |
| Operational Conditions | Operating Humidity | 20 - 80% |
| Operating Temperature | 0 - 50°C | |
| Storage Humidity | 20 - 80% | |
| Storage Temperature | -30 - 70°C | |
| Package Dimensions | Depth (package) | 24 cm |
| Gross Weight (package) | 3.11 kg | |
| Height (package) | 20.5 cm | |
| Width (package) | 40 cm | |
| Packaging Content | AC Adapter Included | Yes |
| Carrying Straps | Yes | |
| Ports & Interfaces | DC-in Jack | Yes |
| USB Connector Type | USB Type-A | |
| Power | Power over Ethernet (PoE) | Yes |
| Power Source Type | Battery / PoE / USB | |
| Product Dimensions | Net Weight (Product) | 3 kg |
| Depth | 10 cm | |
| Height | 20.5 cm | |
| Width | 15 cm | |
| Wireless LAN Features | Bandwidth (First) | 5 GHz |
| Bandwidth (Second) | 2.4 GHz | |
| Channels Quantity | 44 Channels | |
| Wi-Fi | Yes | |
| Wi-Fi Standards | 802.11b / 802.11g / Wi-Fi 4 (802.11n) / Wi-Fi 5 (802.11ac) | |
| Vendor Information | Brand Name | Axis |
| Warranty | 5 Years | |
| Categories | Main Category | Surveillance & Security |
| Subcategory 1 | Peripherals | |
| Subcategory 2 | Camera Testers |
| Description | Downloads |
|---|---|
| Axis T8415 Wireless Installation Tool | 5506-231 DataSheet | Downloads |
| Axis T8415 Wireless Installation Tool | 5506-231 Installation Guide | Downloads |
