This easy-to-install network switch is optimized for surveillance solutions. With a unique web graphic user interface, it offers a topology for easy overview and management of all devices in the system.
Easy to install and configure

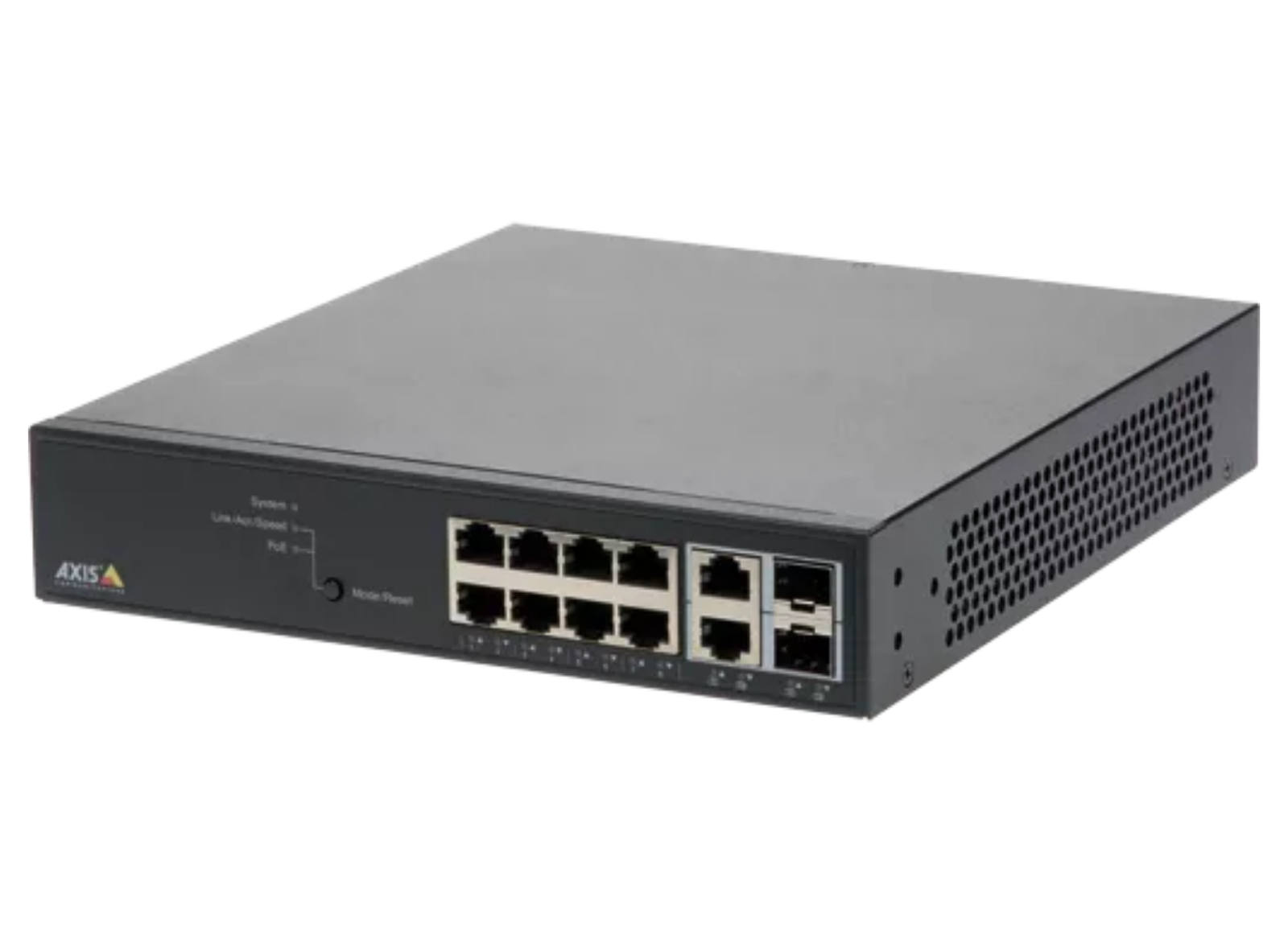

AXIS T8508 PoE+ Network Switch is easy to install using standard Axis tools as AXIS IP Utility and AXIS Device Manager. It comes with an individual password, easy to use setup wizard, and a comprehensive set of configuration tools. For instance, an integrated DHCP server for automatic assignment of IP addresses. It also allows for even more advanced network configuration such as VLAN, QoS, Security, and Spanning tree to further optimize the total solution.
Discrete, compact, and fan-less
This fan-less 8 port switch is designed for installation in noise sensitive environments. The compact design enables discreet installations. And it can be rack mounted with AXIS T85 Rack Mount Kit A.
Perfect match for Axis surveillance solutions
AXIS T8508 is made for the surveillance industry and is a perfect complement to Axis network video recorders such as AXIS Camera Station S12 Series. This to simplify further setup and installation of the surveillance systems.
Total overview of your devices
Featuring a unique web user interface, this switch offers a graphic topology for an overview of all devices in the system. With access to all information, statuses, and notifications about your connected devices, you can easily manage all devices, reboot cameras in the system, monitor network traffic, perform cable diagnostics, and much more.
Cost-efficient ownership
With a one-time purchase cost, no service fees, and Axis as your single point of contact, AXIS T8508 offers cost-efficient ownership. This product comes with 5 years warranty and 24/5 first-class support, so you can rest assured that you’ll receive assistance wherever you are, whenever you need it. Furthermore, to ensure an optimal power budget, each port of an Axis switch supports PoE class 3, with some offering up to 60 W per port. Additional power can also be added by connecting midspans.
| Network Function | DHCP server included, VLAN | Security | Password protection, IP address filtering, HTTPS encryption, IEEE 802.1X network access control, ACL, Private VLANs, DHCP Snooping |
| Network Protocols | IPv4, IPv6, HTTP, HTTPS, QoS, Bonjour, UPnP, SNMP v1/v2c/v3, DNS, NTP, TCP, UDP, IGMP, ICMP, DHCP, ARP, SSH, STP, RSTP, MSTP, LLDP, LLDP-MED, TFTP, SMTP, BPDU | Throughput | 14.9 Mpps |
| Switching Capacity | 20 Gbps | MAC Table | 8 K |
| Jumbo Frames | 9216 Bytes | Casing | Metal |
| Color | Black | Environment | Indoor |
| Dimensions | WxDxH: 220 x 242 x 44 mm (8.6 x 9.52 x 1.73 in) | Weight | 2.1 kg (4.63 lbs) |
| Power Requirements | 100–240 V AC, 50/60 Hz | PoE Class | Power over Ethernet Plus (PoE+) IEEE 802.3at Type 2 Class 4 |
| PoE Output | Port 1 to 8: Up to 30 W; Power budget: 130 W | PoE Ports | RJ45 10Base-T/100Base-TX/1000Base-T (8x) |
| Uplink | Combination port RJ45/SFP 100Base-TX/1000Base-T (2x) | Power Connector | Power connector port |
| Surge Protection | 6kV on all network ports and AC lines | Operating Conditions | 0 °C to 50 °C (32 °F to 122 °F), humidity 10–90% RH non-condensing |
| Storage Conditions | -10 °C to 70 °C (14 °F to 158 °F), humidity 5–95% RH non-condensing | EMC Approvals | EN 55032 Class A, EN 55035, FCC part 15 Subpart B Class A, VCCI Class A, RCM AS/NZS CISPR 32 Class A, ICES-003 Class A |
| Safety | IEC/EN/UL 62368-1 | Management Software | AXIS Device Manager |
| Included Accessories | Installation Guide, drill template, power cord, rubber feet (4x) | Optional Accessories | AXIS T85 Rack Mount Kit A |
| Warranty | 5-year warranty |
| Description | Downloads |
|---|---|
| Datasheet | Download |
