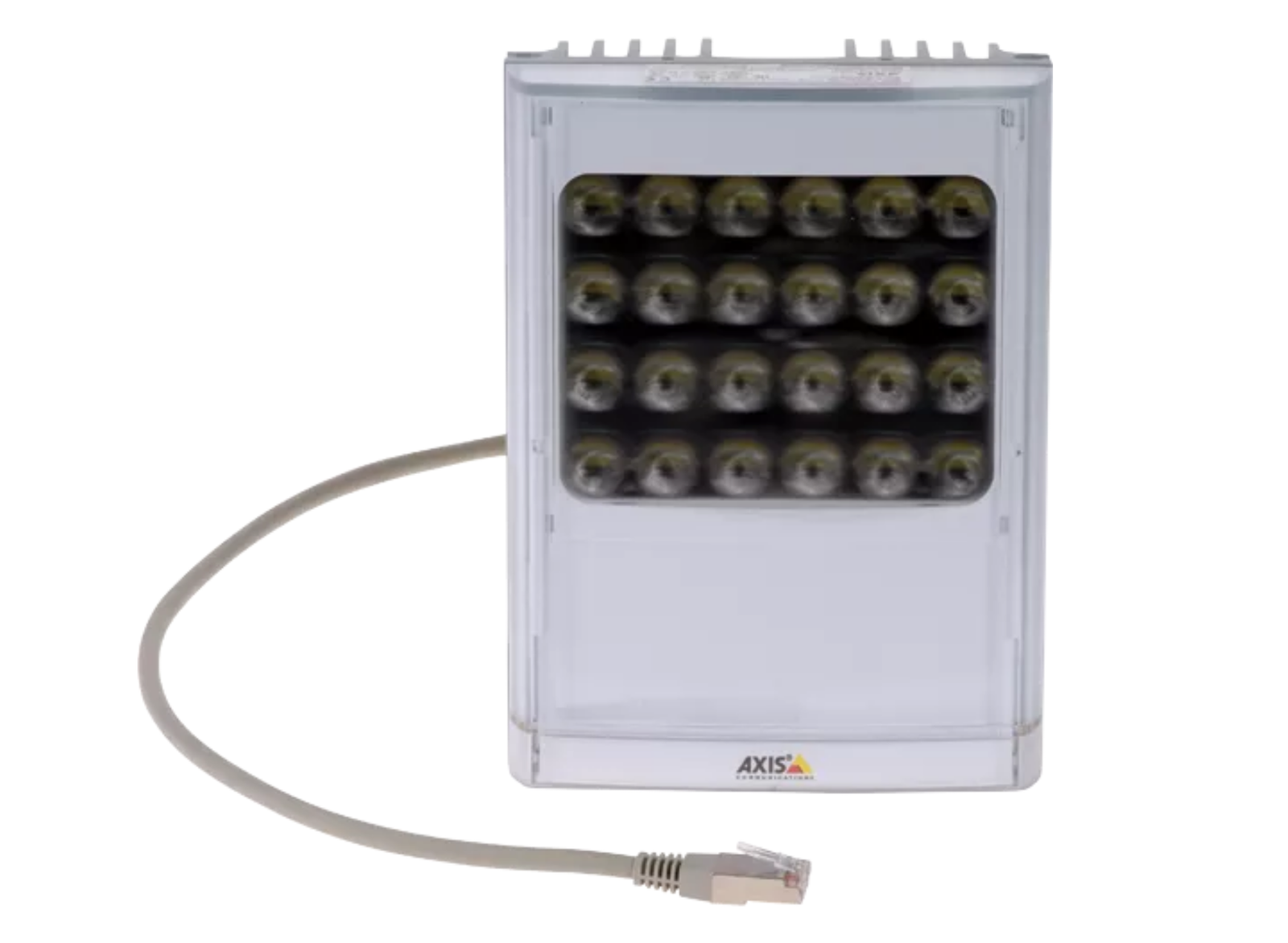

Axis T90D35 PoE W-LED Illuminator with Flexible Beam Angle
SKU: 01218-001
£636.99 (Excl. VAT)
- Description
- Specifications
- Downloads
-
Optimized Lighting Coverage for Network Camera Installations
Simplify your solution with PoE-powered illuminator
AXIS T90D35 PoE W-LED Illuminator offers a quick and reliable installation with a plug-and-play twisted pair cable. Create a flexible and cost-effective system by connecting the PoE illuminator with any PoE midspans or switches from Axis.Optimized to match your camera’s field of view
Based on the latest LED technology, AXIS T90D35 PoE W-LED delivers more light where it is needed. It generates longer white LED illumination distance, minimize light wastage, and prevent overexposure of foreground objects. With interchangeable lenses, the angle of illumination can be optimized to match your network camera's field of view. AXIS T90D35 PoE W-LED Illuminator comes with a pre-mounted 10º diverging lens, and it includes diverging lenses of 35º, 60º and 80º beam angle. Moreover, an optional 120º diverging lens is available. -
Models AXIS T90D35 W-LED Illuminator, AC/DC variant; AXIS T90D35 W-LED Illuminator, PoE variant Compatible Products All Axis network cameras Distance Standard lens 10° x 10°: 180 m (591 ft); 35° x 10°: 95 m (312 ft); 60° x 25°: 50 m (164 ft); 80° x 30°: 35 m (115 ft); optional 120° x 50°: 25 m (82 ft) AC/DC Variant Power Power input: 12–24 V AC/DC; AC frequency: 50-60 Hz; Maximum light: 42 W; Standby mode: 0.3 W PoE Variant Power High Power over Ethernet, max 60 W; Maximum light: 47 W; Standby mode: 4.5 W AC/DC Control Technology Integrated push buttons or remote control: power level, photocell sensitivity, telemetry link for remote activation, timer PoE Control Technology Integrated push buttons or remote control: power level, photocell sensitivity, timer Type 6000 K Luminous Power 3727 lm Angle Without diverging lenses: 10°; With diverging lenses: 35°, 60°, 80°, 120° Casing Aluminum and polycarbonate Color White and silver Display and Indicators Indicator LEDs Environment Indoor and outdoor Mounting Wall, ceiling, pole, fixed box camera housing Operating Conditions -50 °C to 50 °C (-58 °F to 122 °F), Humidity 10–100% RH (condensing) Storage Conditions -50 °C to 70°C (-58 °F to 158 °F) EMC FCC Part 15.107 and 15.109 Class B, ICES-003 Issue 6 Class B, EN 55032 Class B, RCM AS/NZS CISPR 32 Class B, VCCI Class B, EN 55015, EN 55024, EN 50130–4, EN 61547 Safety IEC/EN 60598-1, IEC/EN 62471 (risk group 2), C22.2 No 250.0–08, UL 2108, UL 8750 Environmental Ratings IEC/EN 60529 IP66, IEC/EN 62262 IK09 Dimensions 135 x 180 x 68 mm (5 x 7 x 3 in) Cable Length 2.5 m (8.2 ft) Weight 1.65 kg (3.61 lb) Included Accessories Three diverging lenses with different beam angles: 35°, 60° and 80°; IP66 cable coupler (for PoE variant only) Optional Accessories AXIS T90B Remote Control, AXIS WL Diverging Lens C 120°, AXIS T90 Wall-and-Pole Mount, AXIS T90 Single Bracket, AXIS T90 Multi Bracket, AXIS T8134 60 W Midspan, AXIS T8124–E Outdoor Midspan 60 W 1–port, AXIS T8125 AC 24 V Midspan 60 W 1–port, AXIS T8144 60 W Industrial Midspan, AXIS T8504–E Outdoor PoE Network Switch, Mains adaptor PS-24, Power Supply PS24 240 W Warranty 5-year warranty -
Description Downloads Datasheet Download
