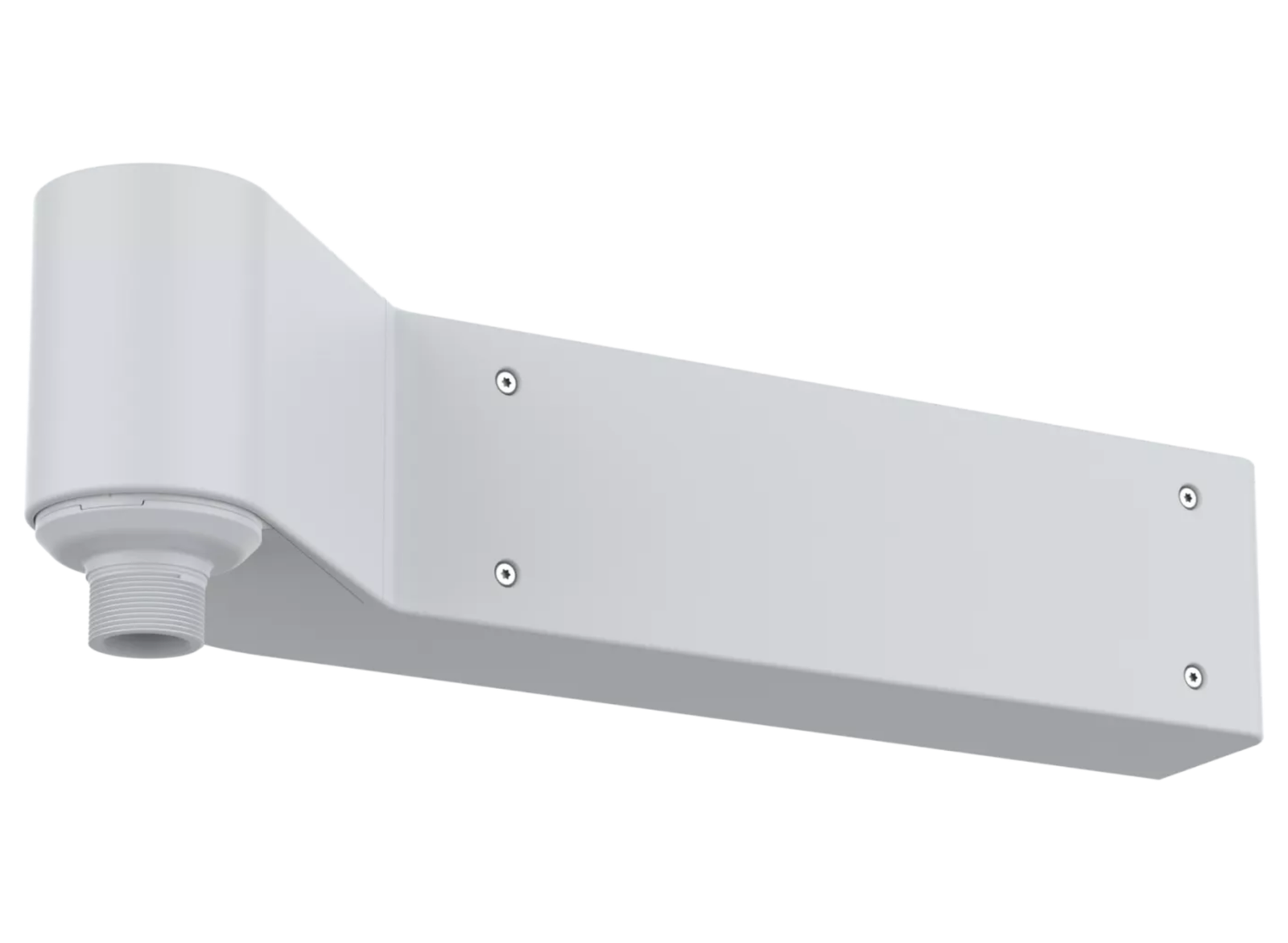

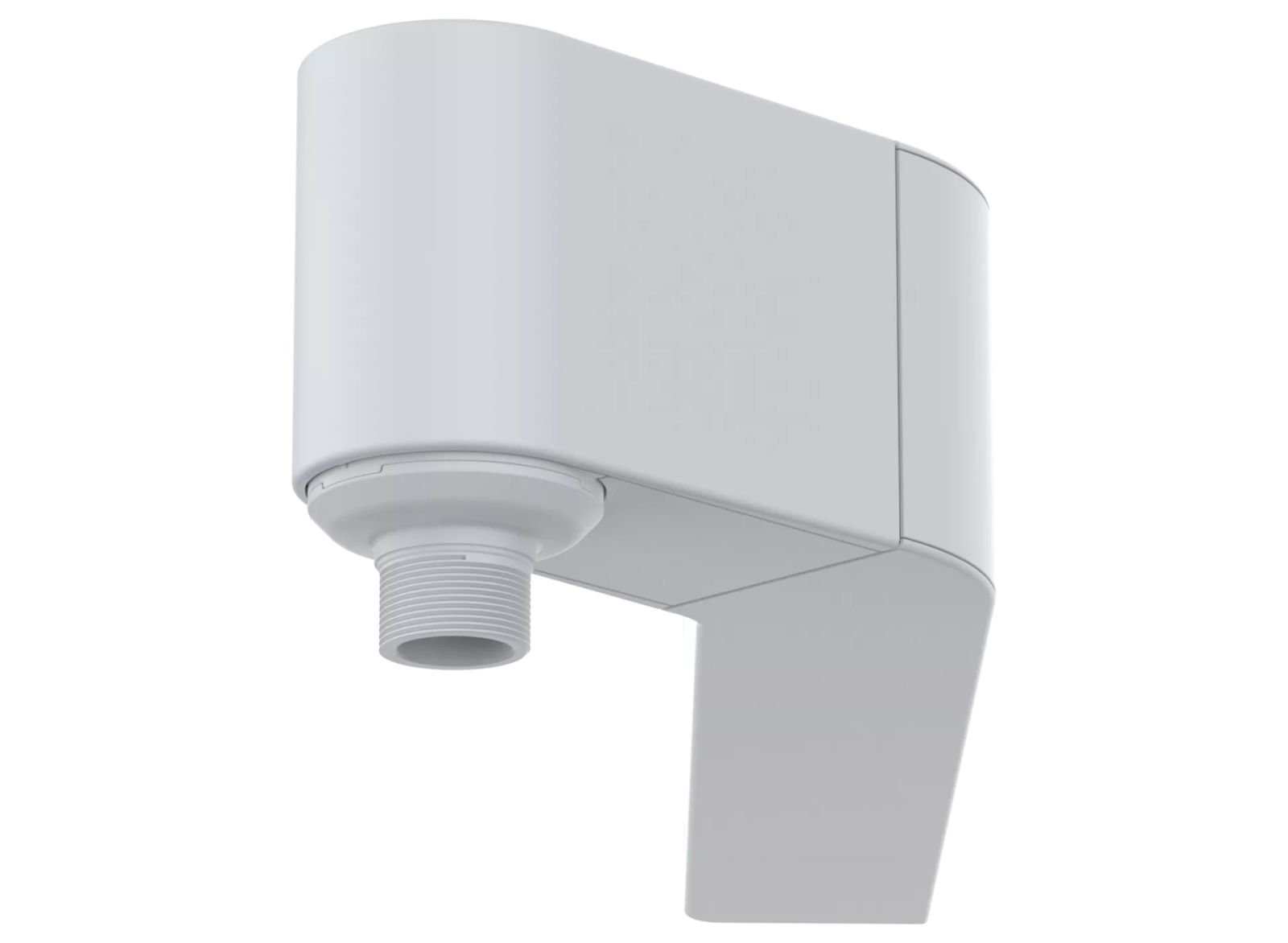

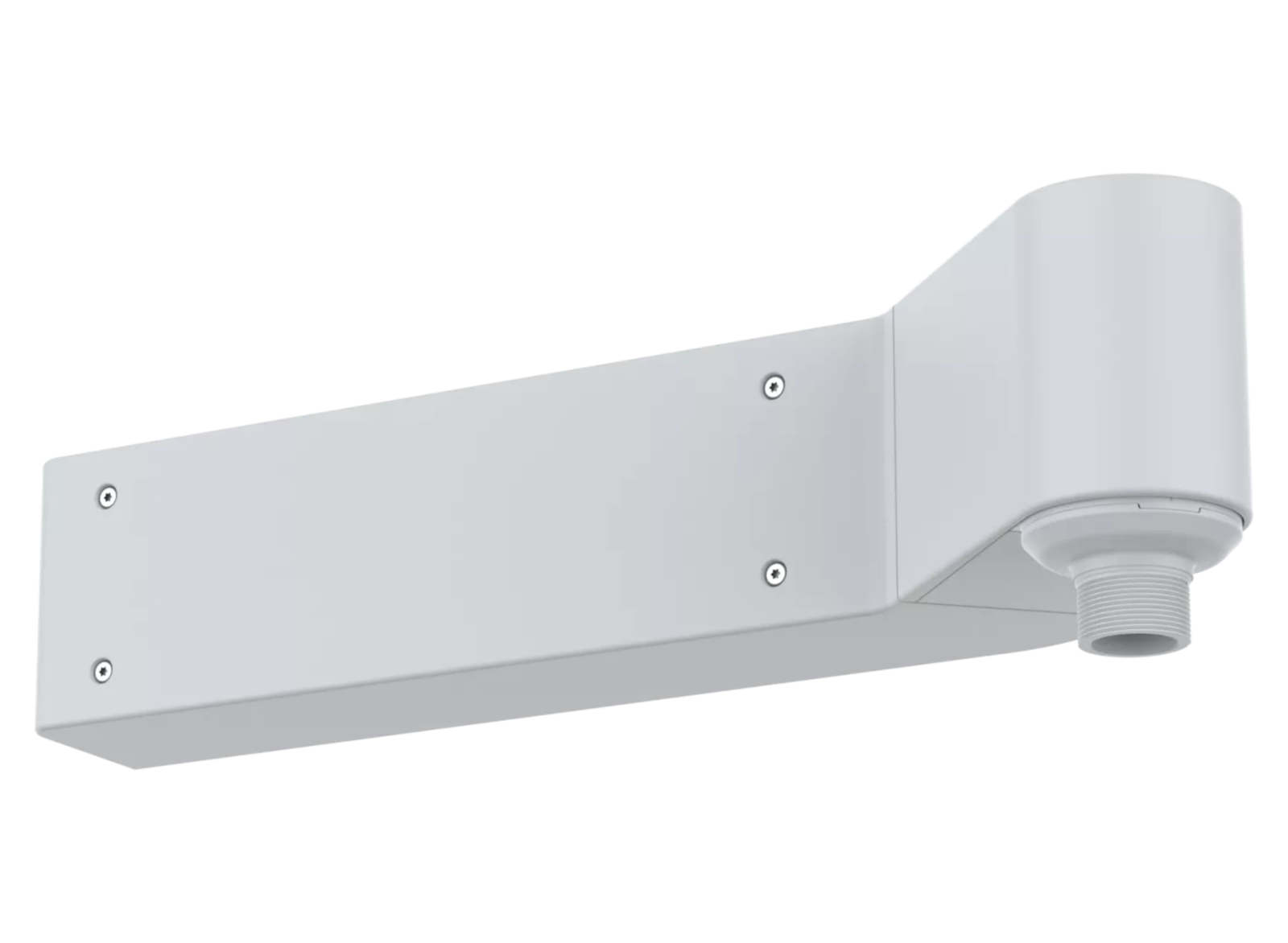

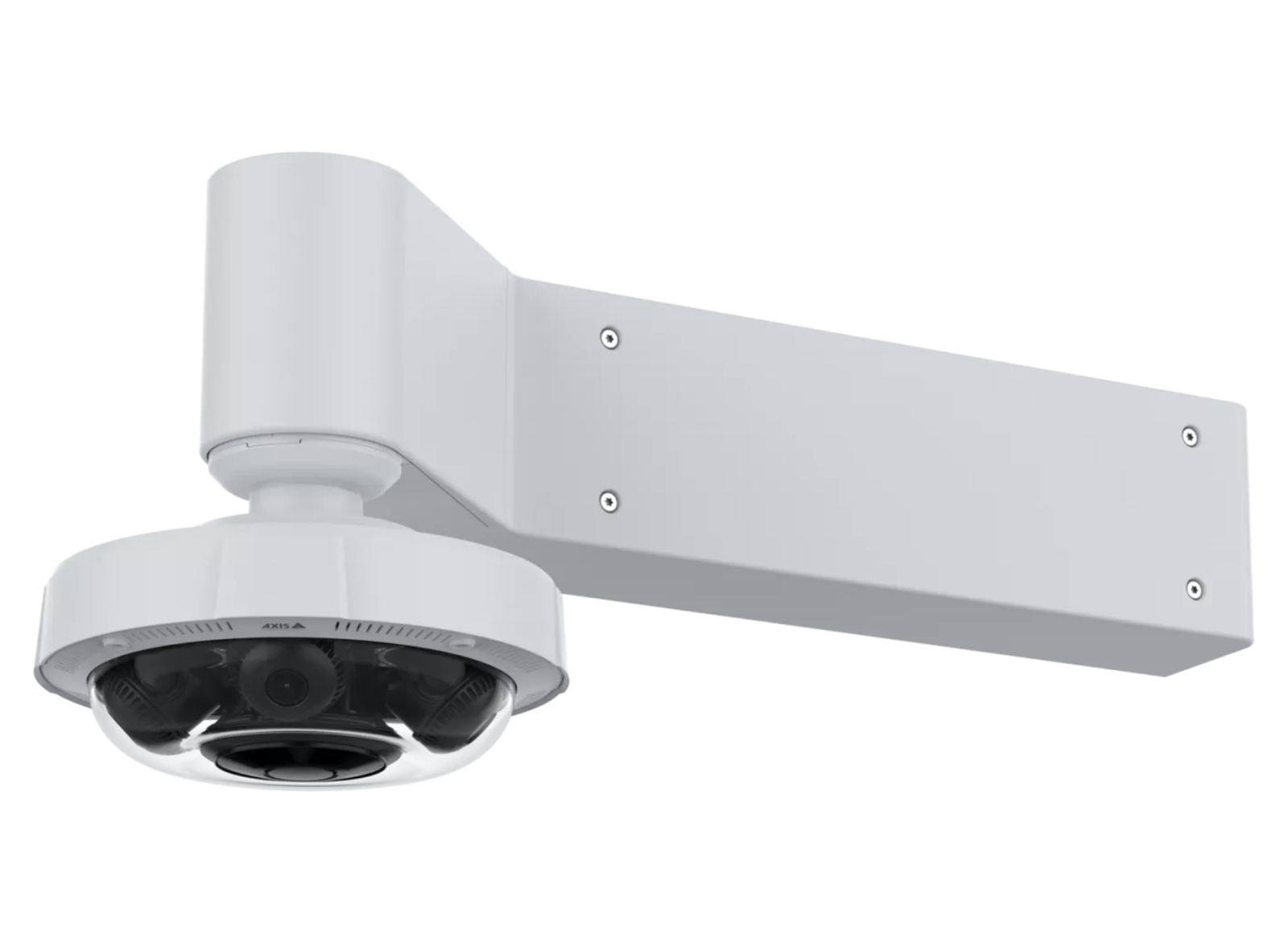

Axis TP3302-E Corner Mount for Dome & Panoramic Cameras
SKU: 03158-001
£469.28 (Excl. VAT)
- Description
- Specifications
- Downloads
-
Durable Corner Mount with IP66 Protection and IK10 Impact Rating
With a stylish design, this compact, all-in-one, outdoor-ready mount blends seamlessly into most indoor and outdoor environments. It offers flexible installation and can be mounted on either the left or right side to suit specific needs.
Stylish and robust
Designed to withstand impact and harsh weather, this outdoor-ready mount is ideal for a wide range of indoor and outdoor environments. With its stylish design, it blends perfectly into most buildings and it’s easily repaintable. This versatile mount allows you to flip the mounting bracket, making it possible to mount on either the left or right side. In addition, it’s built to last with a lifespan that matches the expected lifetime of several cameras. And with the flexibility to install various dome and panoramic cameras, this compact and robust mount helps ensure you preserve the value of your investment, making it a smart, future-proof choice.
Spacious compartment for protection and connectivity
This all-in-one device features an IP66-rated compartment designed to safeguard against water ingress and protect devices like midspans and media converters. Furthermore, a pre-mounted Ethernet cable enables quick and easy connection of power and data to a broad range of Axis dome and panoramic cameras.Installation compatibility overview
-
Environment Approvals IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 62262 IK10 Supported Products Cameras compatible with specific pendant kits with 1.5" NPS thread mount, such as AXIS T94K01D Pendant Kit, AXIS T94M01D Pendant Kit, AXIS T94N01D Pendant Kit, AXIS T94N02D Pendant Kit, AXIS T94T02D Pendant Kit, AXIS TP3103-E Pendant Kit, AXIS TQ3103-E Pendant Kit Compatibility Link For a complete list of compatible cameras, go to axis.com/products/axis-tp3302-e-cornermount#compatible-products Casing IP66- and IK10-rated plastic casing Color White NCS S 1002-B Repaintable This product can be repainted Repainting Information For repainting instructions, go to the product’s support page. For information about the impact on warranty, go to axis.com/warranty-implication-when-repainting. Mounting Back: Cable hole; Side: ¾” (M25) conduit side entries Connectors Output: IP66, RJ45 Ethernet (male); Input: RJ45 Ethernet (female), IDC Operating Conditions Temperature: -40 °C to 65 °C (-40 °F to 149 °F); Humidity: 10–100% RH (condensing) Storage Conditions Temperature: -40 °C to 65 °C (-40 °F to 149 °F); Humidity: 5–95% RH (non-condensing) Dimensions For the overall product dimensions, see the dimension drawing in this datasheet. Effective Projected Area (EPA): 0.35 m2 (1.15 ft2) Weight 4823 g (10.6 lb) Box Content Mount, installation guide, wall bracket, connector guard, cable ties Languages English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Polish, Traditional Chinese, Dutch, Czech, Swedish, Finnish, Turkish, Thai, Vietnamese Warranty 3-year warranty -
Description Downloads Datasheet Download
