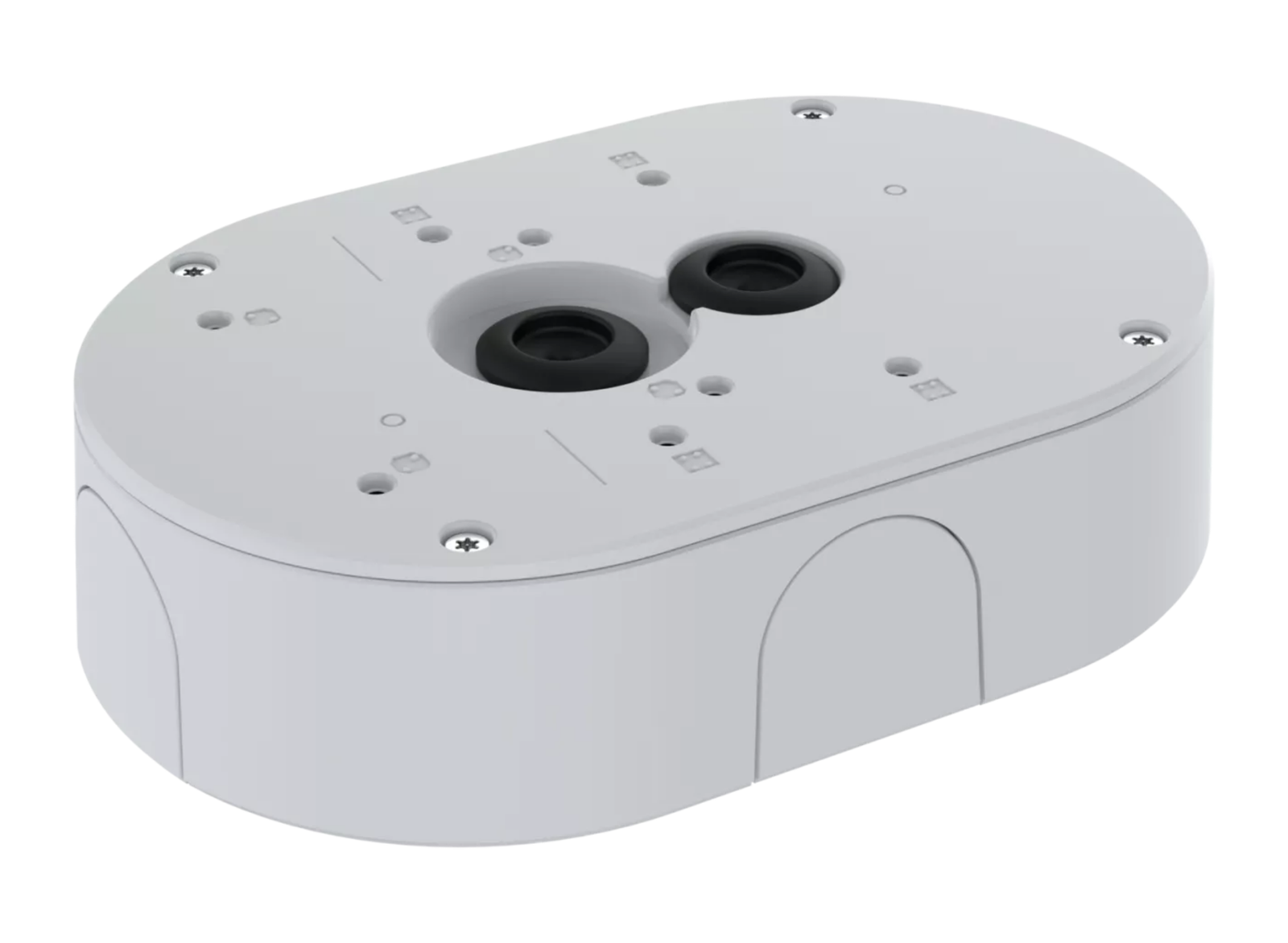

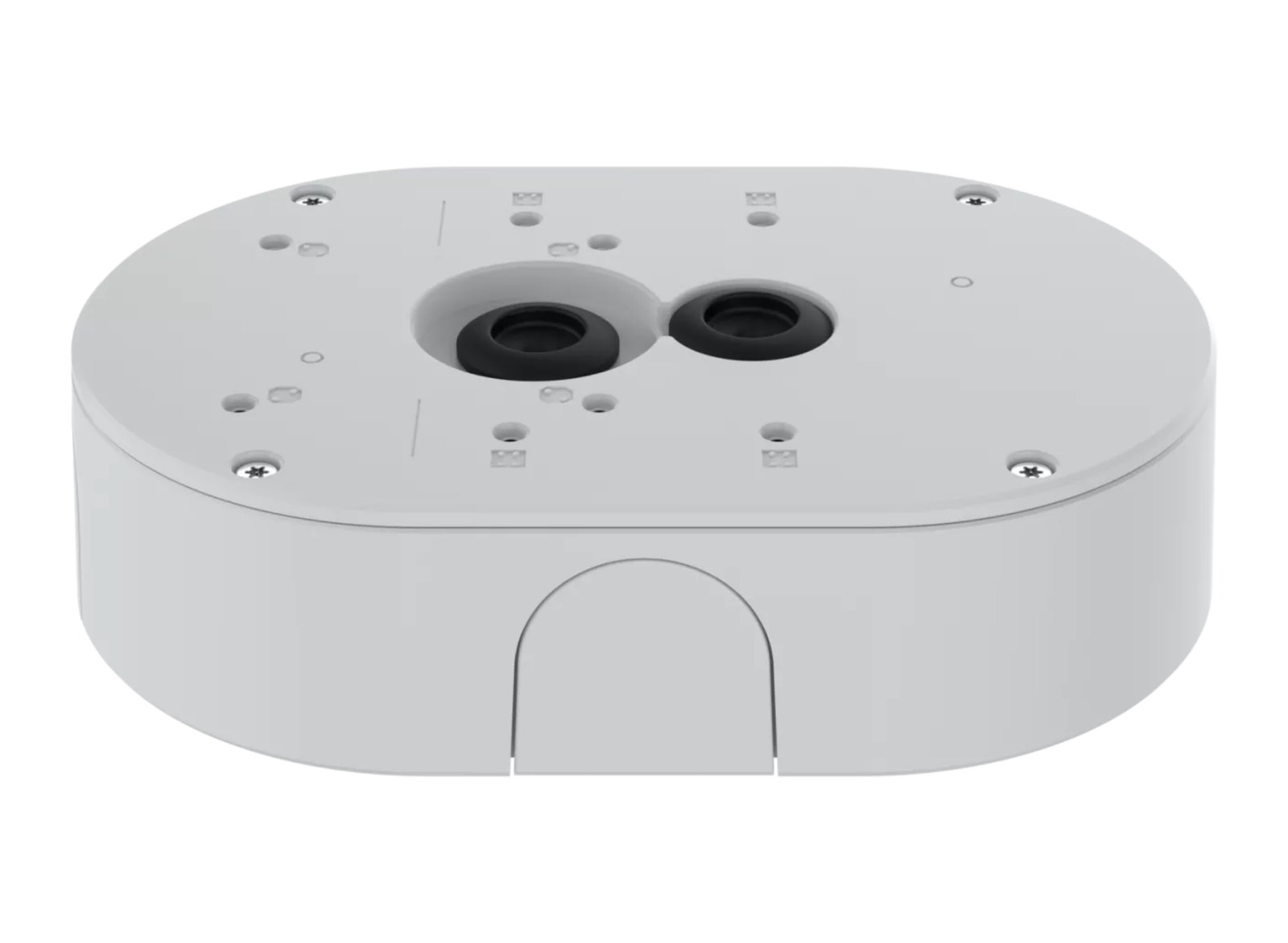

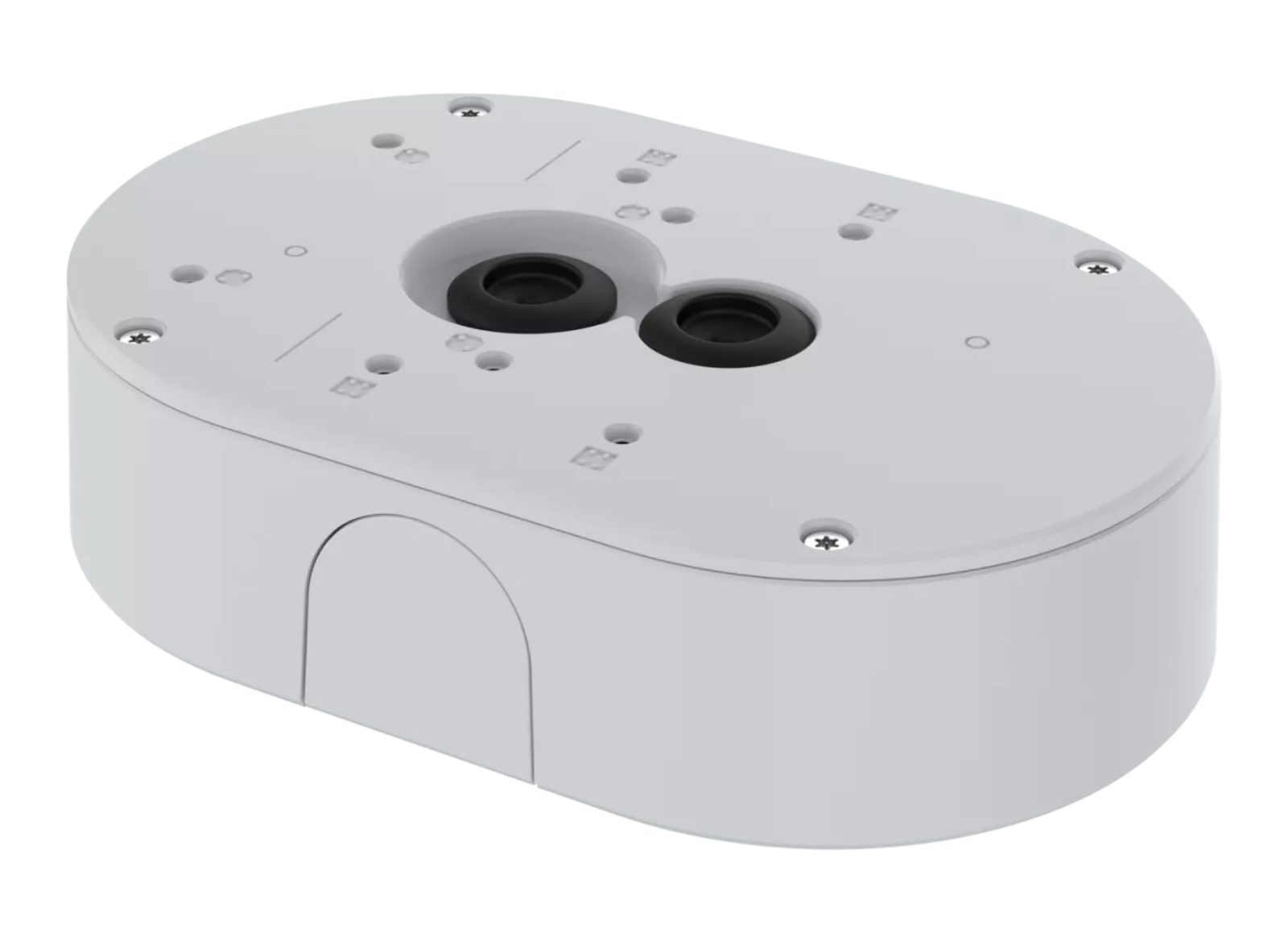

Axis TP4601-E IP66/67 Conduit Back Box for Outdoor Cameras
SKU: 02750-001
£159.60 (Excl. VAT)
- Description
- Specifications
- Downloads
-
Rugged IP66/67 Housing for Secure Outdoor Camera Installations
Available in white, impact resistant (IK11) for indoor and outdoor use, AXIS TP4601-E Conduit Back Box offers additional space needed for installation, cables, or other accessories. It´s carefully designed to store for example an IP-over-COAX adapter to re-use legacy cabling or a network cable copuler bridge between rigid and flexible network cables. 3/4" / M25 conduit interface from both side and back. The sealed compartment is IP66/67 rated to withstand challenging outdoor conditions and makes the finished installation aesthetically pleasing. Network cable and extra gaskets are included.
-

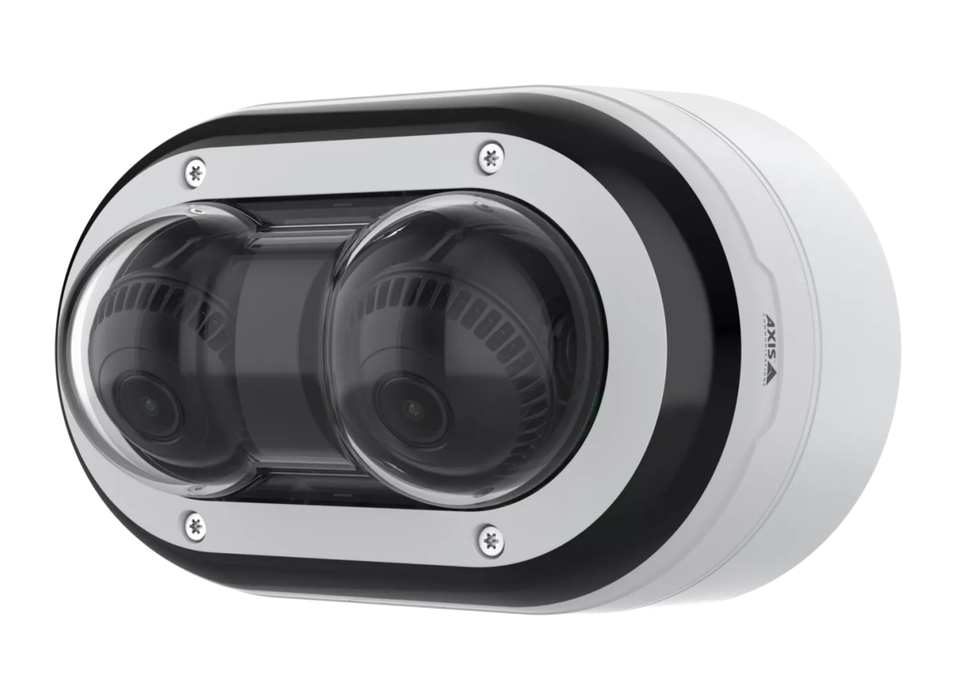

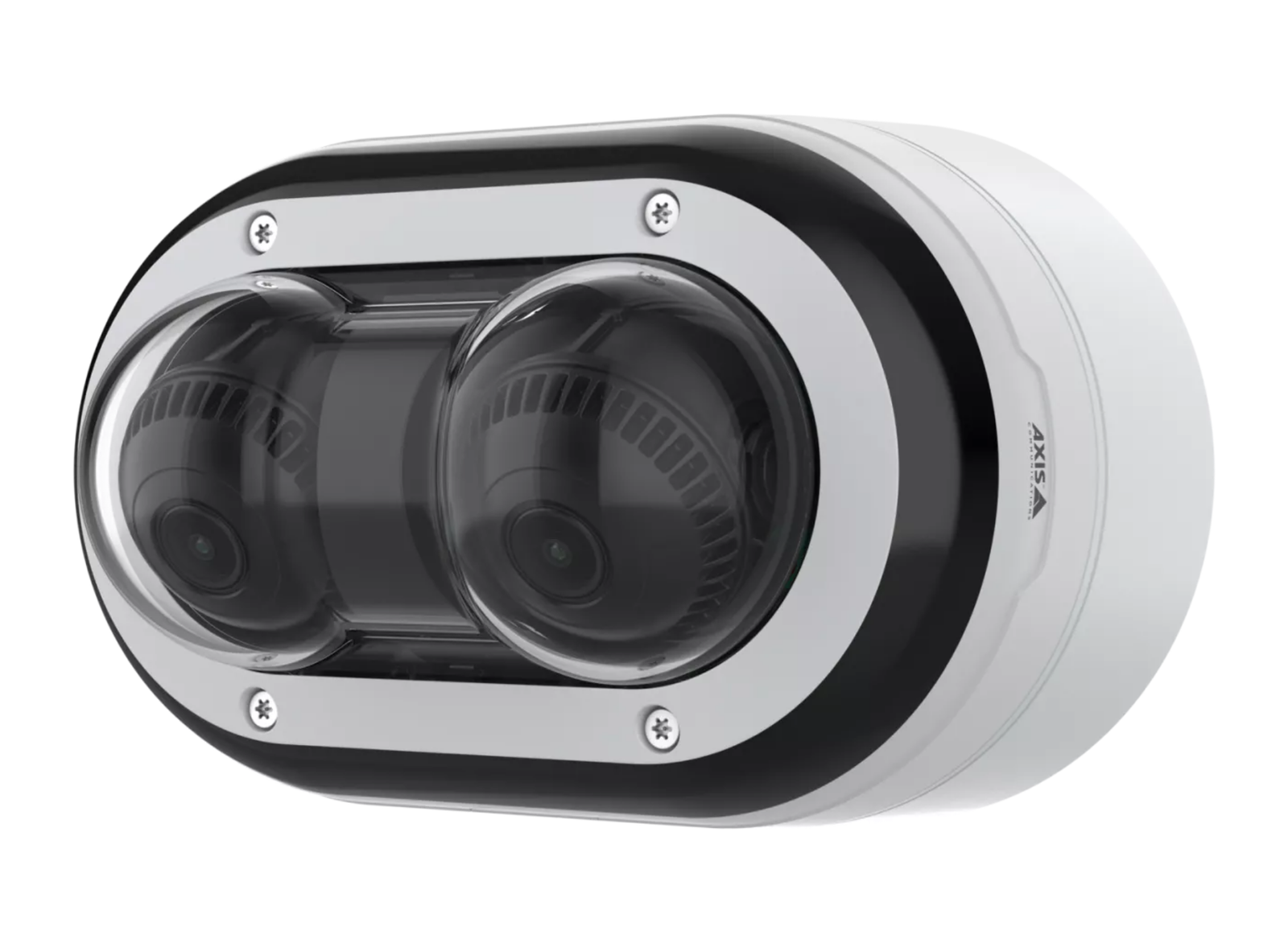

Supported Products AXIS P4705–PLVE Network Camera
AXIS P4707–PLVE Network CameraEnvironment Indoor/outdoor Mounting Double Gang Box
Single Gang Box
4” Octagon Junction Box
4” Square Junction BoxCasing Material: powder-coated aluminum casing, stainless steel screws (TX20)

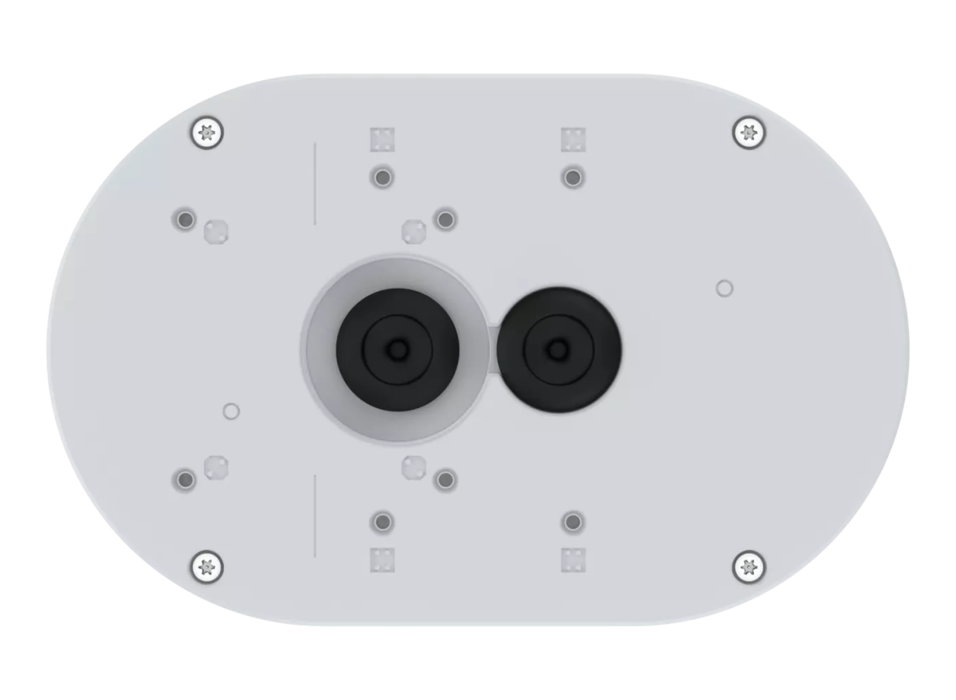

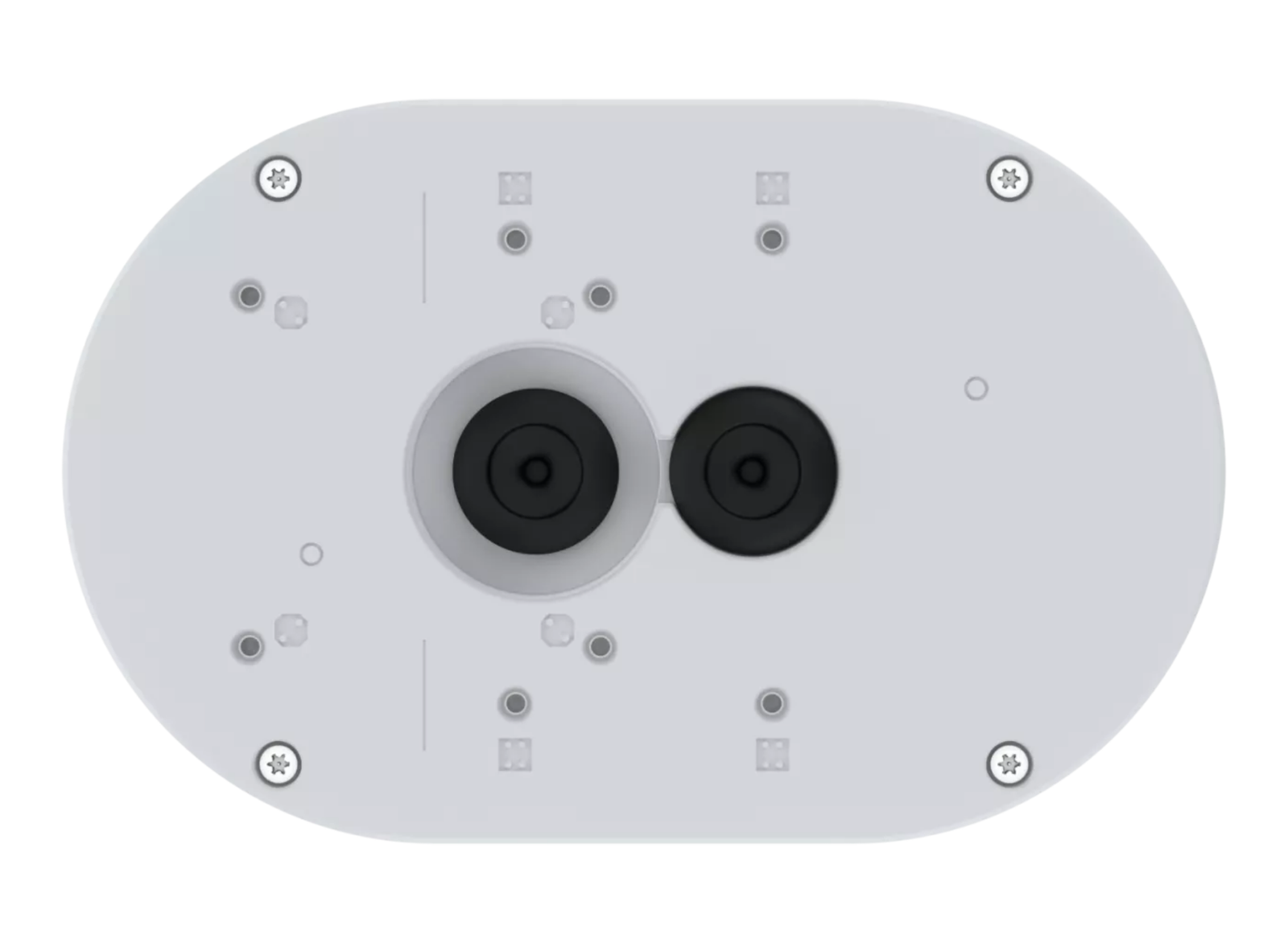

Color: white NCS S 1002–BCable Routing Back: 2 cable holes
Sides: 3/4” conduit entrances
Underside: 4x gaskets C M20 5–9.5 mm
Top cover: 2x gaskets C M20 5–9.5 mmMaximum Load 2.3 kg (5 lb) Dimensions Height: 53.5 mm (2.11 in)
Width: 140.4 mm (5.53 in)
Length: 215.1 mm (8.47 in)Weight 1.02 kg (2.25 lb) Sustainability PVC free Safety Approvals IEC/EN/UL 62368–1
IEC/EN/UL 60950–22Environmental Approvals IEC 60068–2–6
IEC 60068–2–27
IEC/EN 60529 IP66/IP67
NEMA 250 Type 4XImpact Approval IEC/EN 62262 IK11 Included Accessories Installation Guide
3x Gasket
Tool mounting RJ45
C M20 Cable 3–5 mm
4x Stainless steel screws (TX20) and washersOptional Accessories AXIS T91B47 Pole Mount
AXIS T94R01B Corner Bracket
AXIS ACI Conduit Adapter 3/4” U-Shape 30 mm
AXIS ACI Conduit Adapter 3/4” NPS
Network cable coupler indoor
Network cable coupler indoor slim
AXIS T6101 Mk II Audio and I/O Interface
AXIS T8645 PoE+ over Coax Compact KitWarranty 3-year warranty -
Description Downloads Datasheet Download
