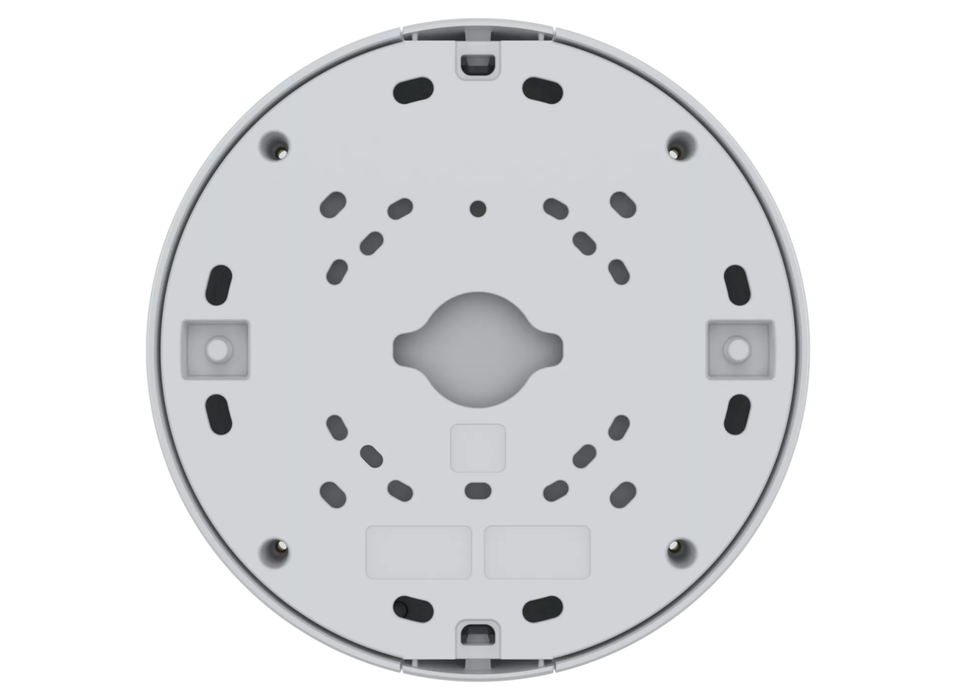

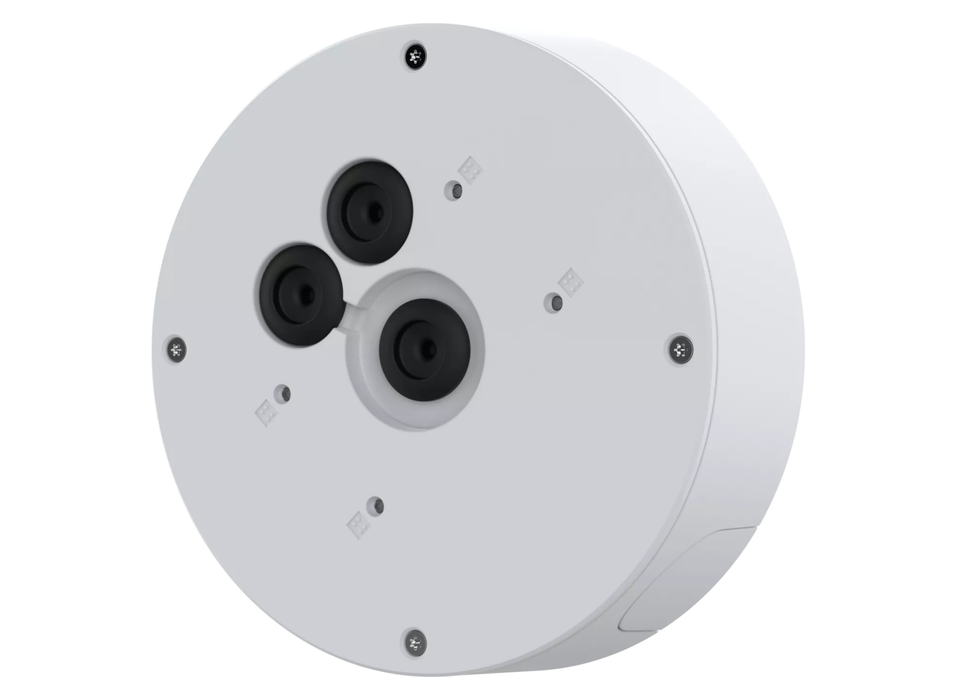

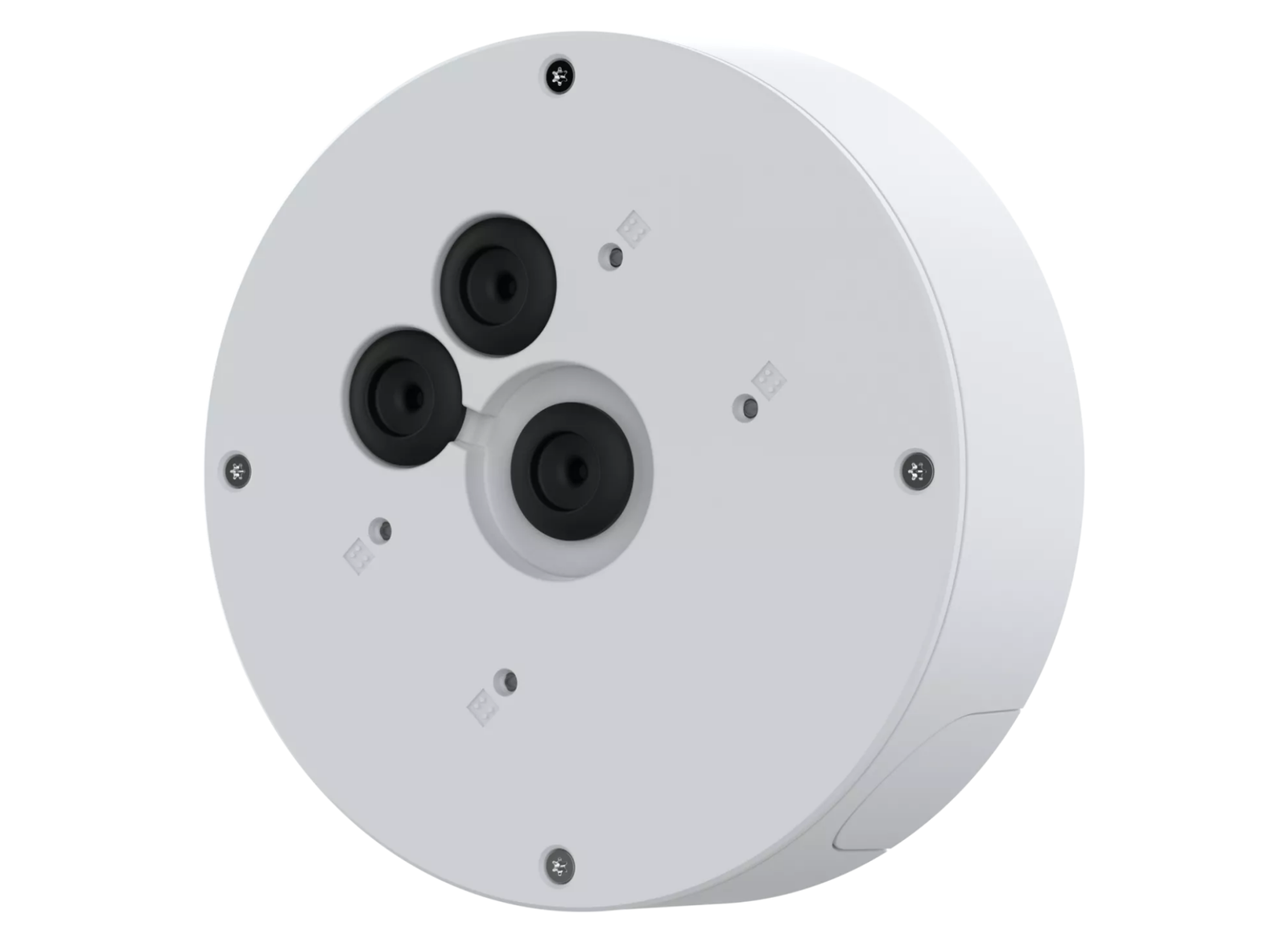

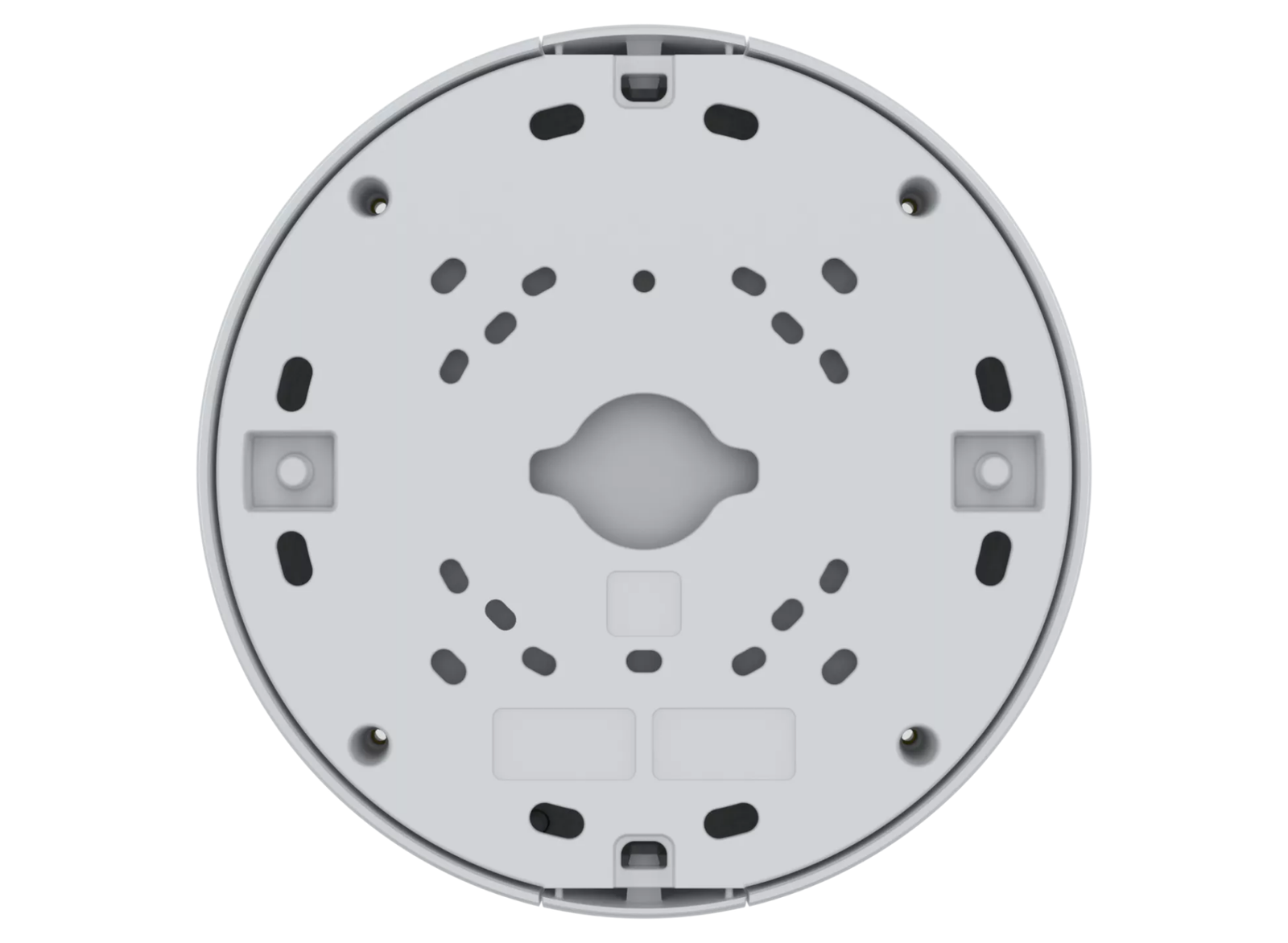

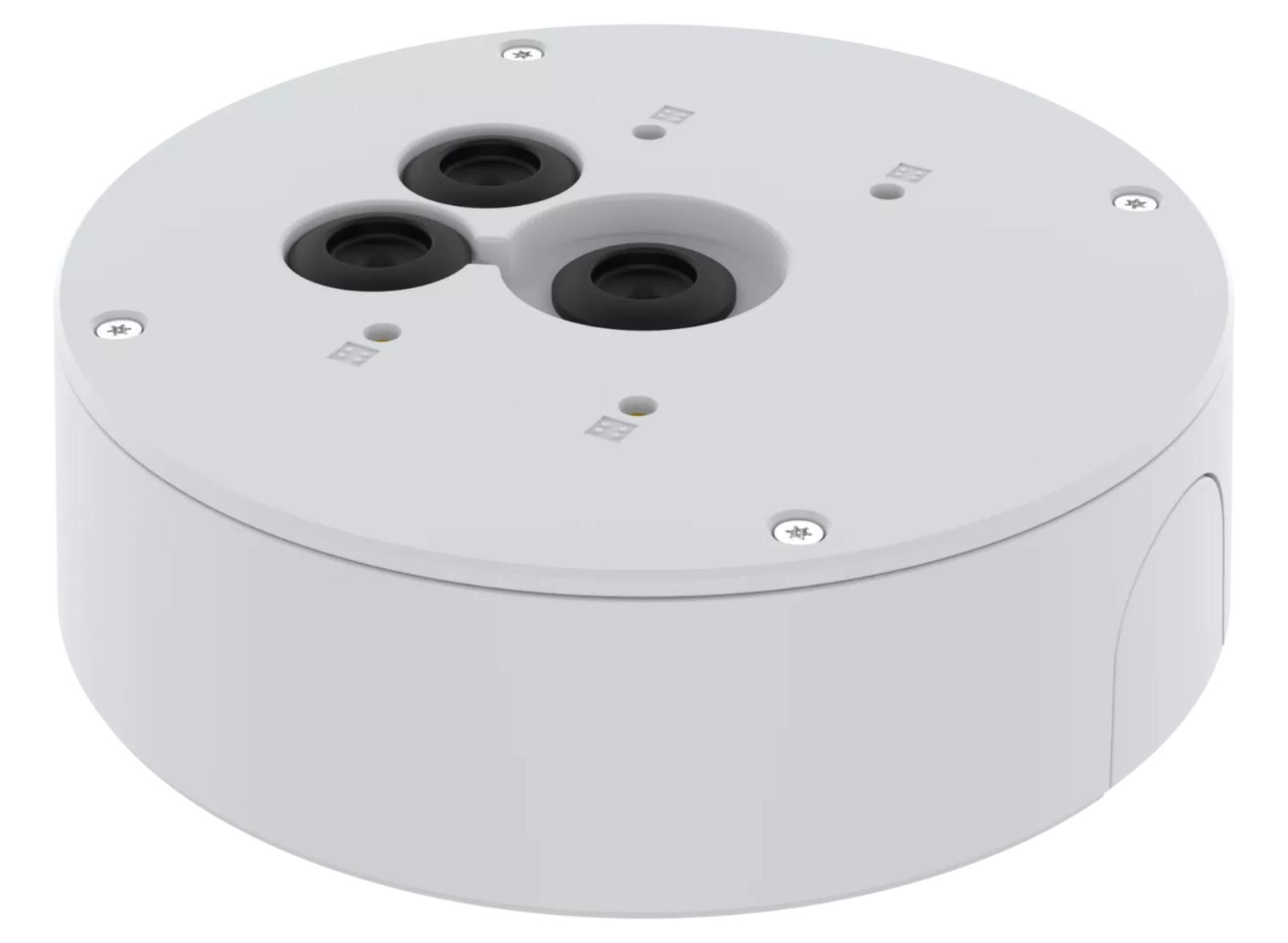

Axis TQ3601-E Heavy-Duty Conduit Back Box for Axis Cameras
SKU: 02913-001
£174.42 (Excl. VAT)
- Description
- Specifications
- Downloads
-
Secure Outdoor Back Box with Integrated Device Storage
Outdoor-ready conduit back box with an ingress-protected compartment for secure storage of connectivity devices.
Compatible with a wide range of Axis network cameras, AXIS TQ3601-E is specially designed for cameras with larger diameters between 184-198mm (7.2-7.8 in). Available in white, this IP66/67-rated back box can be installed indoors and can also withstand challenging outdoor conditions. It offers a sealed compartment for secure storage of connectivity devices. Furthermore, this impact-resistant (IK10) back box features a 3/4" / M25 conduit interface accessible from both the side and back, Plus, it comes with a network cable and extra gaskets.
-

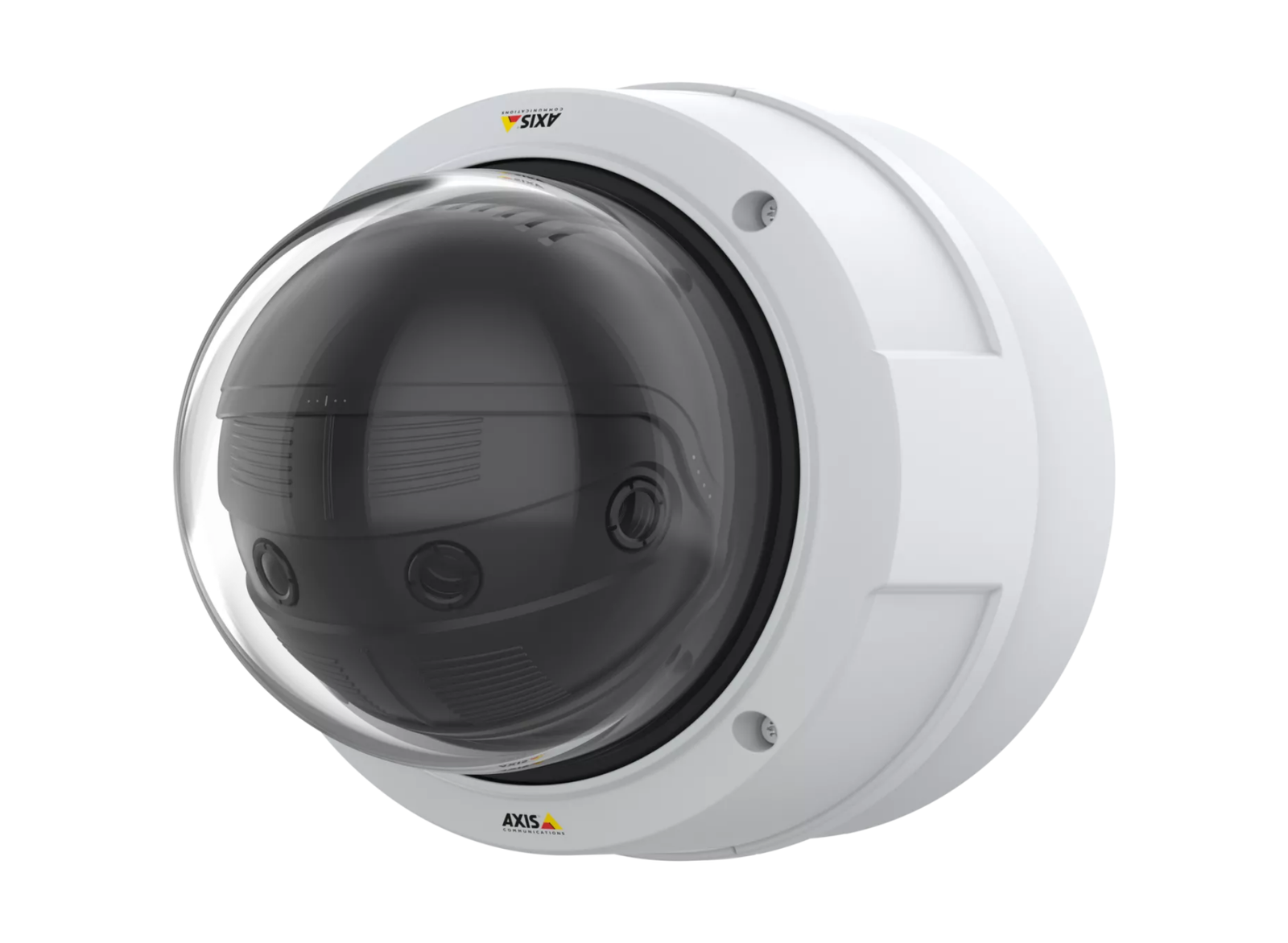

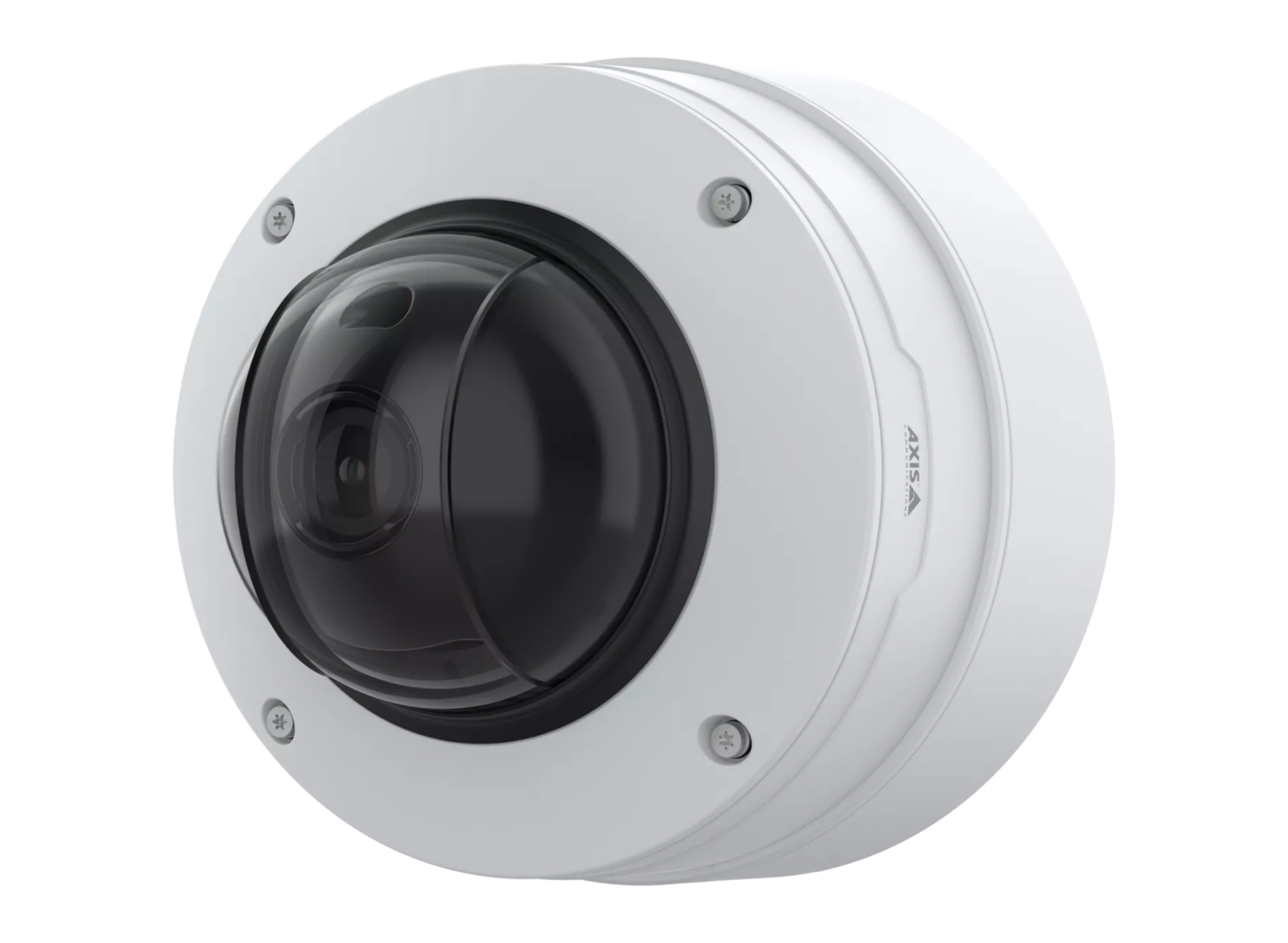

Supported Products AXIS Q35 Network Camera Series, AXIS Q36 Network Camera Series, AXIS Q38 Network Camera Series, AXIS P38 Network Camera Series Environment Indoor/outdoor Mounting Double Gang Box, Single Gang Box, 4” Octagon Junction Box, 4” Square Junction Box Casing Material: powder-coated aluminum casing, stainless steel screws (TX20) Color White NCS S 1002–B Cable Routing Back: 3 cable holes; Sides: 3/4” conduit entrances; Underside: 4x gaskets C M20 5–9.5 mm; Top cover: 3x gaskets C M20 5–9.5 mm Maximum Load 5 kg (11 lb) Dimensions Height: 58.5 mm (2.30 in), ø 197 mm (7.76 in) Weight 1.3 kg (2.87 lb) Sustainability PVC free Environmental Approvals IEC 60068–2–6, IEC 60068–2–27, IEC/EN 60529 IP66/IP67, NEMA 250 Type 4X Impact Approval IEC/EN 62262 IK10 Included Accessories Installation Guide, 3x Gasket, Tool mounting RJ45, C M20 Cable 3–5 mm, 4x Stainless steel screws (TX20) and washers Optional Accessories AXIS T91B47 Pole Mount, AXIS T94R01B Corner Bracket, AXIS ACI Conduit Adapter 3/4” U-Shape 30 mm, AXIS ACI Conduit Adapter 3/4” NPS, Network cable coupler indoor, Network cable coupler indoor slim, AXIS T6101 Mk II Audio and I/O Interface, AXIS T8645 PoE+ over Coax Compact Kit Warranty 3-year warranty -
Description Downloads Datasheet Download
