Axis TQ6501-E Outdoor Parapet Mount with Conduit Entry
SKU: 02110-001
£218.88 (Excl. VAT)
- Description
- Specifications
- Downloads
-
Robust Camera Mounting for Parapets, Poles, and Outdoor Sites

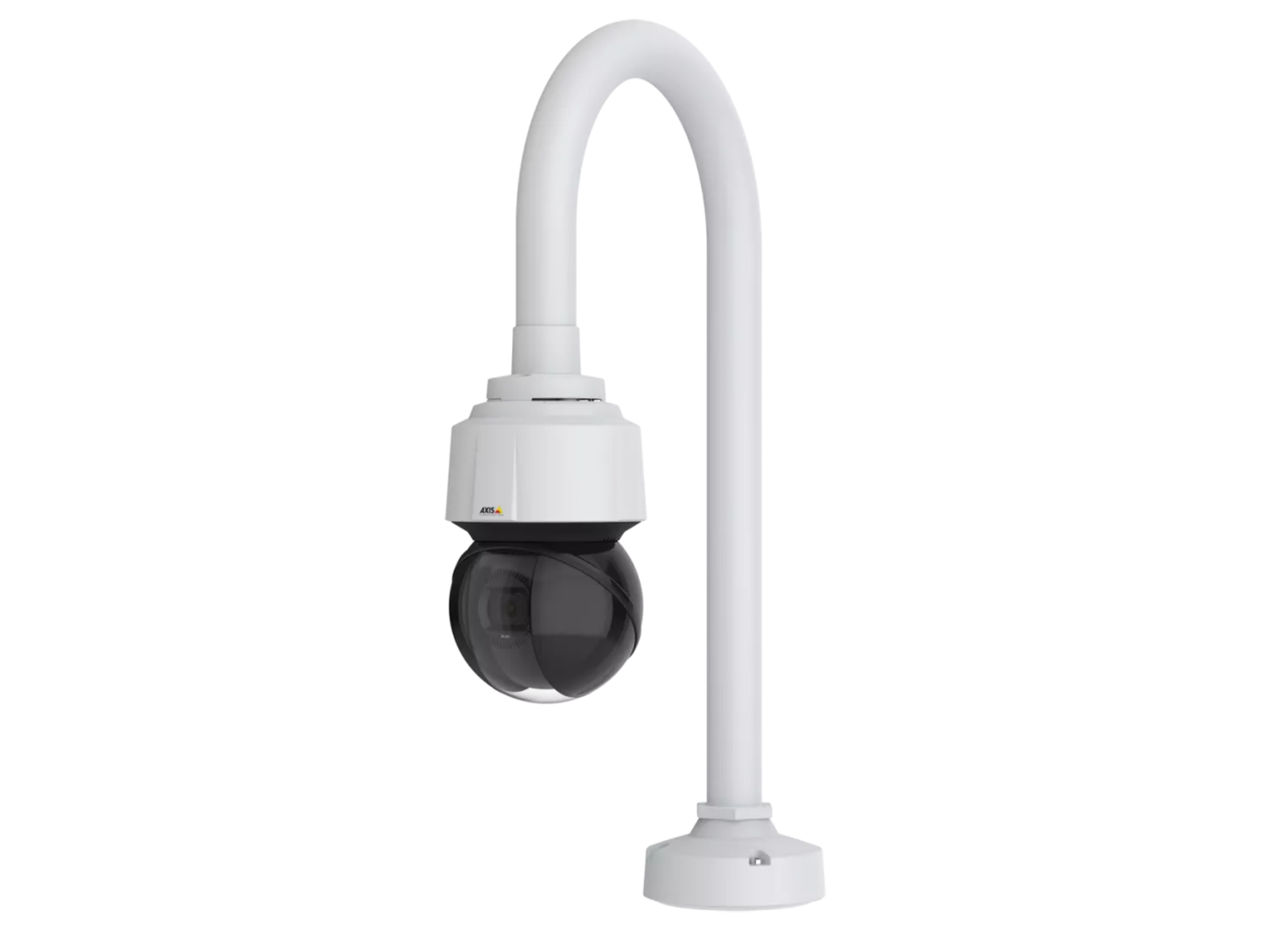

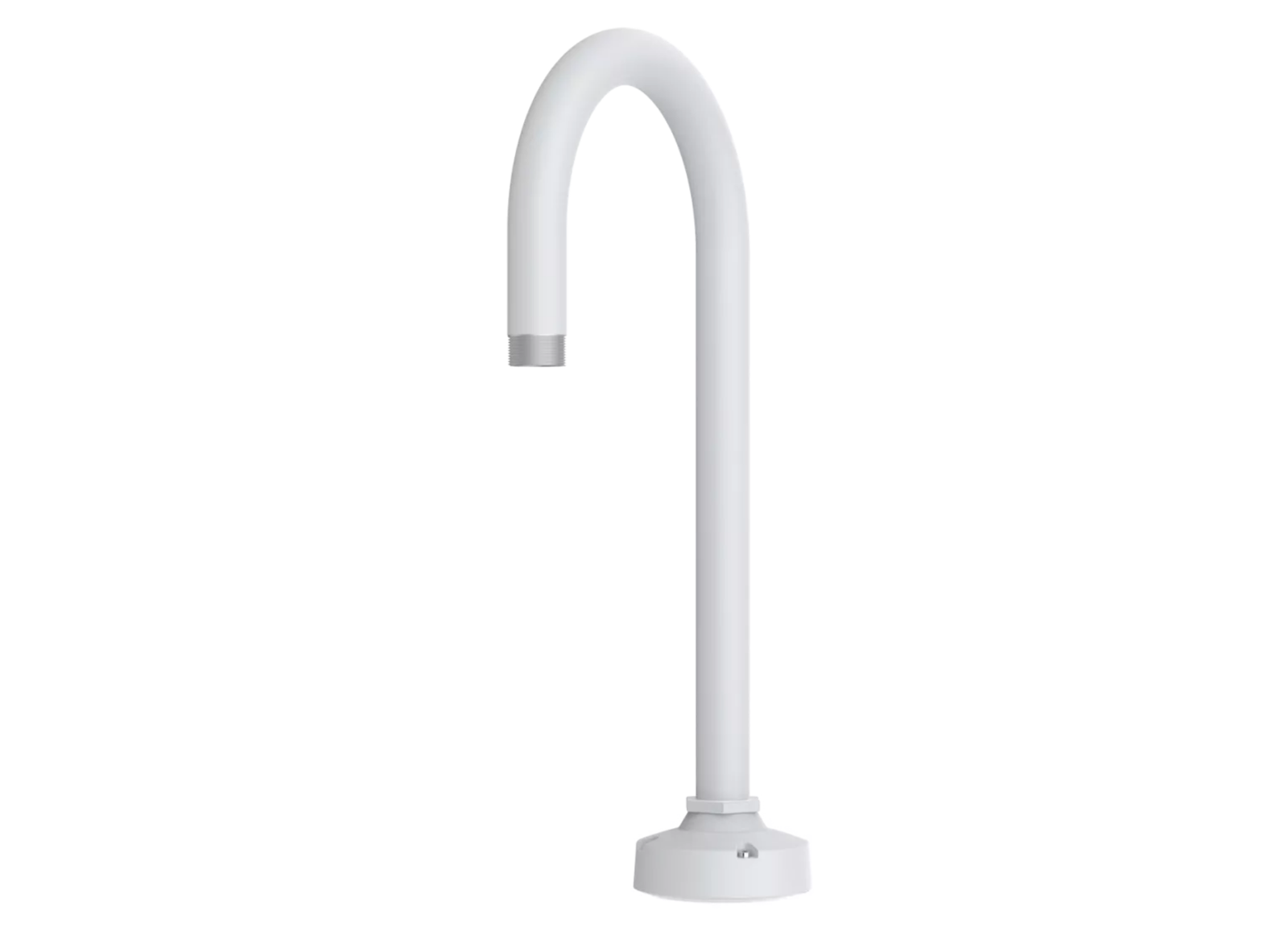

AXIS TQ6501-E Parapet Mount is a robust, outdoor-ready mount made of aluminum. The round base of the mount makes it easy to install as well as suitable for installations on poles. It’s compatible with Axis pendant kits with 1.5’’ NPS or NPT inner thread which enables mounting of several Axis cameras, and Axis ACI ¾’’ conduit adapters. Cables can be routed through the bottom, or from the side by using a conduit connection. AXIS TQ6501-E has four holes for standard pole mounted pan and tilt camera fixings, equi-spaced on 101.6 PCD.
-
Supported Products AXIS P56 Series, AXIS Q60 Series, AXIS Q61 Series, AXIS M5525-E Optional Accessories AXIS ACI Conduit Adapter 3/4” U-shape 30 mm, AXIS ACI Conduit Adapter 3/4” NPS, AXIS Bird Control Spike, AXIS T94A01D Pendant Kit, AXIS T94B02D Pendant Kit, AXIS T94F01D Pendant Kit, AXIS T94F02D Pendant Kit with Sunshield, AXIS T94K01D Pendant Kit, AXIS T94M01D Pendant Kit, AXIS T92M02D Pendant Kit, AXIS T94N01D Pendant Kit, AXIS T9402D Pendant Kit, AXIS T94T01D Pendant Kit, AXIS T94T02D Pendant Kit, AXIS T94V01C Dual Camera Mount, AXIS T94V01D Pendant Kit, AXIS T94V02D Pendant Kit Environment Outdoor, Indoor Maximum Load 40 kg (88 lb) Casing IK10-rated aluminium Color White NCS S 1002-B Repaintable This product can be repainted Cable Routing Bottom: Cable hole; Side: Cable conduit hole M20 (3/4”) Sustainability PVC free, halogen free Dimensions Height: 754 mm (29.69 in), Width: 160 mm (6.3 in), Depth/Length: 418 mm (16.46 in) Weight 2.5 kg (5.51 lb) Included Accessories Installation guide, AXIS T91A6 Pipe Seal Warranty Axis 3-year warranty -
Description Downloads Datasheet Download
