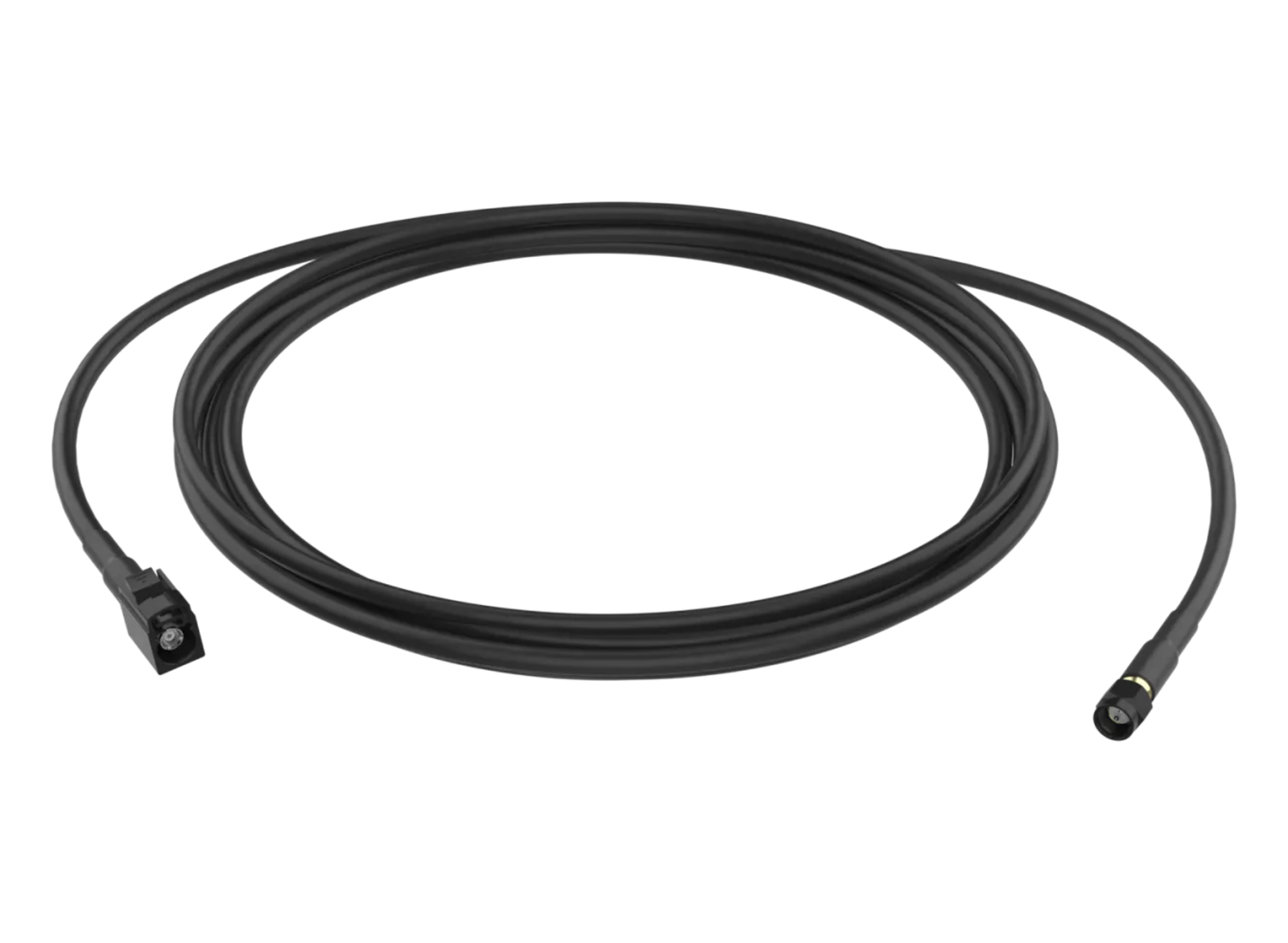

Designed for use with AXIS F Modular Camera Series main units and sensors, this robust and flexible indoor/outdoor cable has a 40mm (1,6in) bending radius. Compatible with AXIS F91 main units and AXIS F21, AXIS F72, and AXIS F41 sensor units. It’s available in 4 different lengths: 1m (3ft), 8m (26ft), 30m (98ft) and 20m (65ft). AXIS TU6004-E Cable can also be crimped to a desired length with AXIS TU6003 Connector Kit FAKRA. The cable can only be cut and re-crimped on the FAKRA connector end.
| Casing | IP66-, IP67- and IP6K9K-rated | Impedance | 50 Ohms |
| Frequency | 0–3 GHz | Connectors | SMA, FAKRA |
| Operating Temperature | -40 °C to 75 °C (-40 °F to 167 °F) | Operating Humidity | 10–100% RH, condensing |
| Approvals | UL CL2 Sunlight Resistant E335585-T, UN ECE R118 | Color | Black |
| Length | 1 m (3 ft), 8 m (26 ft), 30 m (98 ft) | Diameter | ø 5 ±0.1 mm (0.2 in) |
| Maximum Cable Length | 30 m (98 ft) | Bend Radius | 40 mm (1.6 in) |
| Weight 1 m | 40 g (0.09 lb) | Weight 8 m | 300 g (0.66 lb) |
| Weight 30 m | 1140 g (2.51 lb) | Compatible Products | AXIS F91 main units, AXIS F21 sensor units, AXIS F4105-LRE Dome Sensor, AXIS F7225-RE Pinhole Sensor |
| Optional Accessories | AXIS TU6003 Connector Kit FAKRA | Warranty | 3-year warranty |
| Description | Downloads |
|---|---|
| Datasheet | Download |
