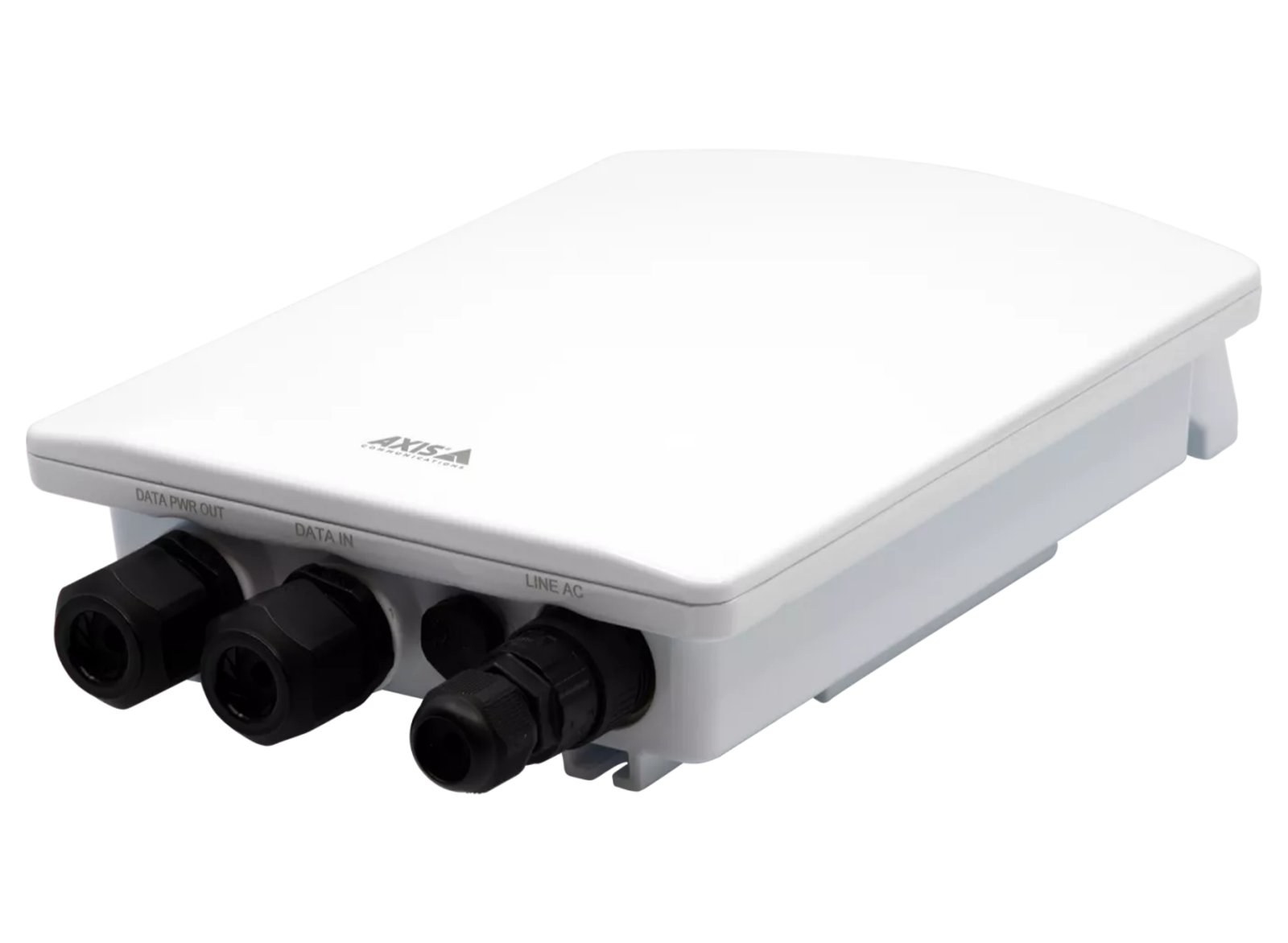

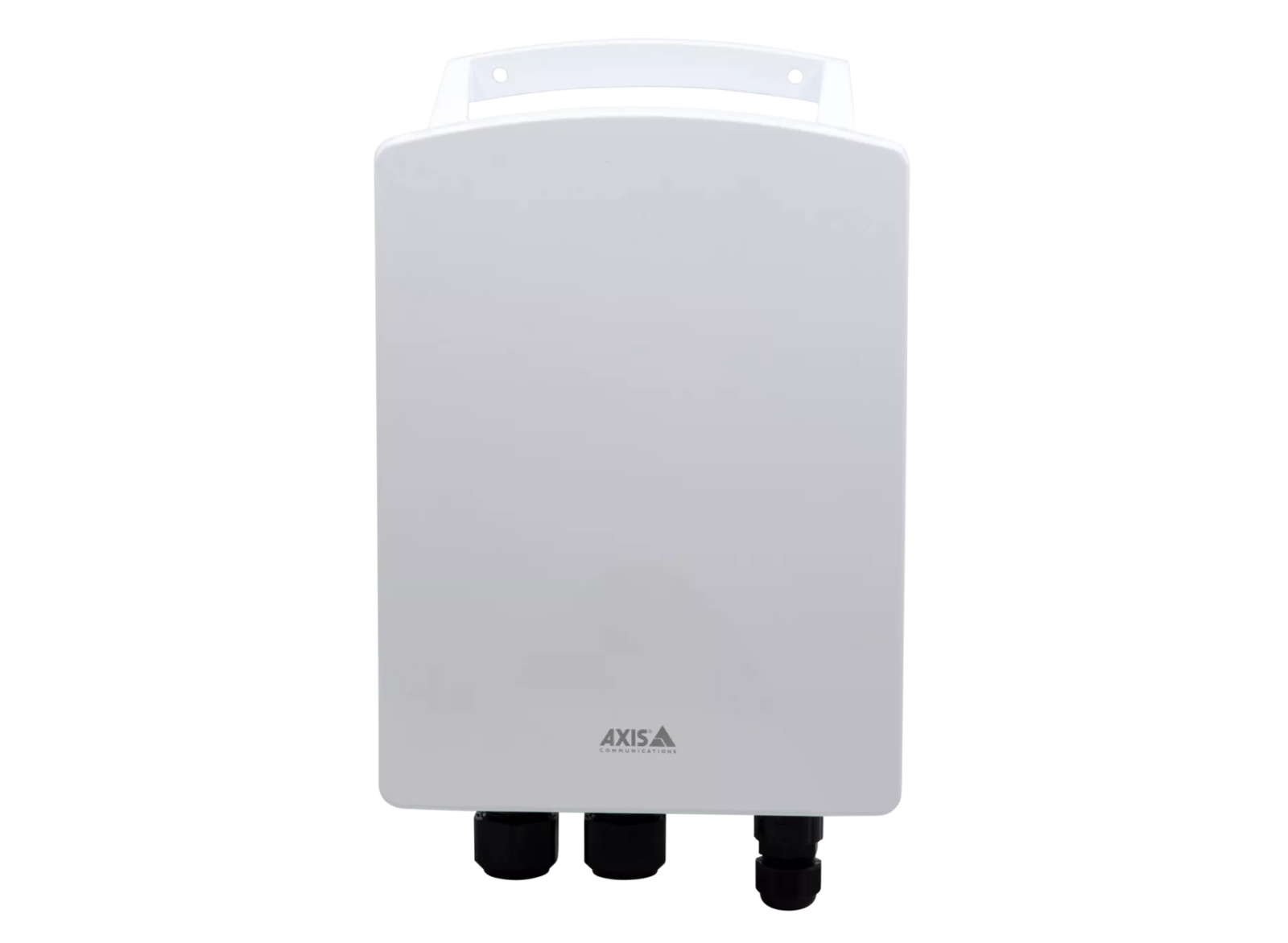

Axis TU8002-E High-Power PoE Midspan for Security Cameras
SKU: 02453-001
£292.43 (Excl. VAT)
- Description
- Specifications
- Downloads
-
90W Outdoor PoE Power Injector with IP66/IP67 Protection
AXIS TU8002-E is an outdoor-ready midspan with IP66/67 and NEMA TS2 rating. It has an extended temperature range from -40 °C up to 65 °C (-40 °F to 149 °F) at a certain power output. The midspan offers surge protection up to 6kV for both the AC and the PoE ports, ensuring the equipment is protected from surges. Thanks to the IP66/IP67-rated RJ45 connectors, there is no need to open the outdoor midspan, just connect the mains cable and the network video product. The 90 W midspan is compatible with IEEE 802.3af/at/bt and High PoE supported devices.
Typical setup
-
Function Data and power are fed to a network video product through an Ethernet cable. Use together with a PoE splitter for a network video product without built-in PoE support. Data Rate 10/100/1000/10000 Mbps Installation and Management Automatically detects PoE and High PoE-enabled devices and supplies inline power. Power At 15 W: IEEE 802.3af; At 30 W: IEEE 802.3at; At 60 W: HiPoE Dual signature; At 60 W to 90 W: IEEE 802.3bt Input AC input voltage: 100 to 240 V AC; AC frequency: 50–60 Hz Output 57 V DC (max 90 W) Connectors Shielded RJ45, EIA 568A and 568B; 3-pin AC connector Wiring Data over pairs 1/2 and 3/6 for 10/100 Ethernet, all four pairs for Gigabit Ethernet. Power over data pairs: 1/2 Return and 3/6 + (max 0.8A); 7/8 Return and 4/5 + (max 0.8A) Casing Color: white; Aluminum; IP66/IP67- and NEMA 4X-rated Sustainability PVC free; Halogen free Mounting Wall mount; Pole mount Operating Conditions 90 W: -40 °C to 55 °C (-40 °F to 131 °F); 75 W: -40 °C to 65 °C (-40 °F to 149 °F); Humidity 5–90% RH (non-condensing) Storage Conditions -40 °C to 70 °C (-40 °F to 158 °F); Humidity 5–90% RH (non-condensing) Safety IEC/EN/UL 62368-1 Environment IEC/EN 60529 IP66/IP67, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, NEMA 250 Type 4X, NEMA TS2 (2.2.7-2.2.9), MIL-STD-810G EMC EN 55024, EN 55032 Class B, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-4-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class B, RCM AS/NZS CISPR 32 Class B, VCCI Class B, EN 50121-4, IEC 62236-4 Dimensions 246 x 170 x 58.5 mm (9.68 x 6.69 x 2.30 in) Weight 2.12 Kg (4.67 lb) Included Accessories Installation guide, Drill template, 3-pin AC connector Optional Accessories AXIS Steel Straps TX30; For more accessories, see axis.com Warranty Axis 3-year warranty -
Description Downloads Datasheet Download
