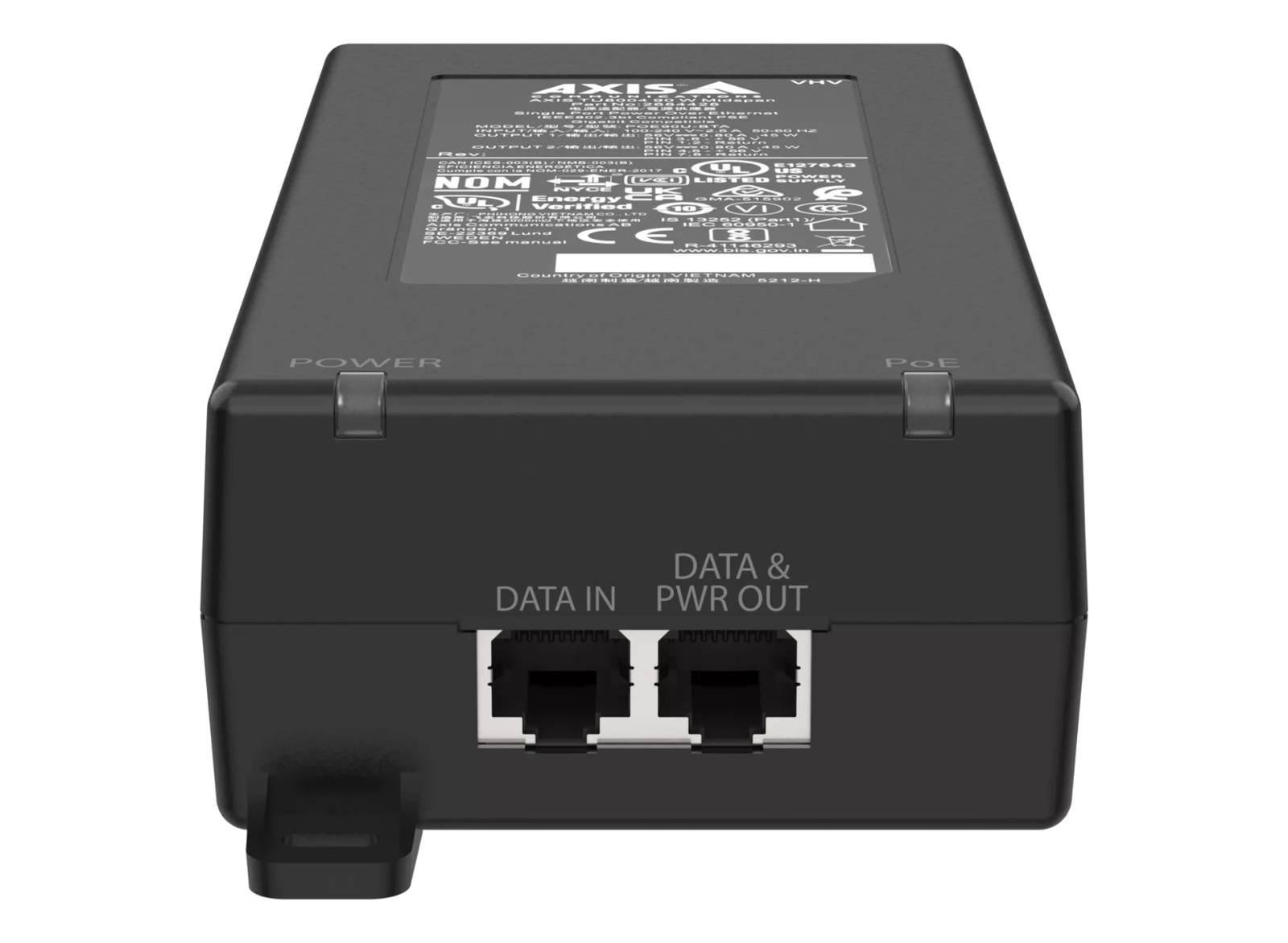

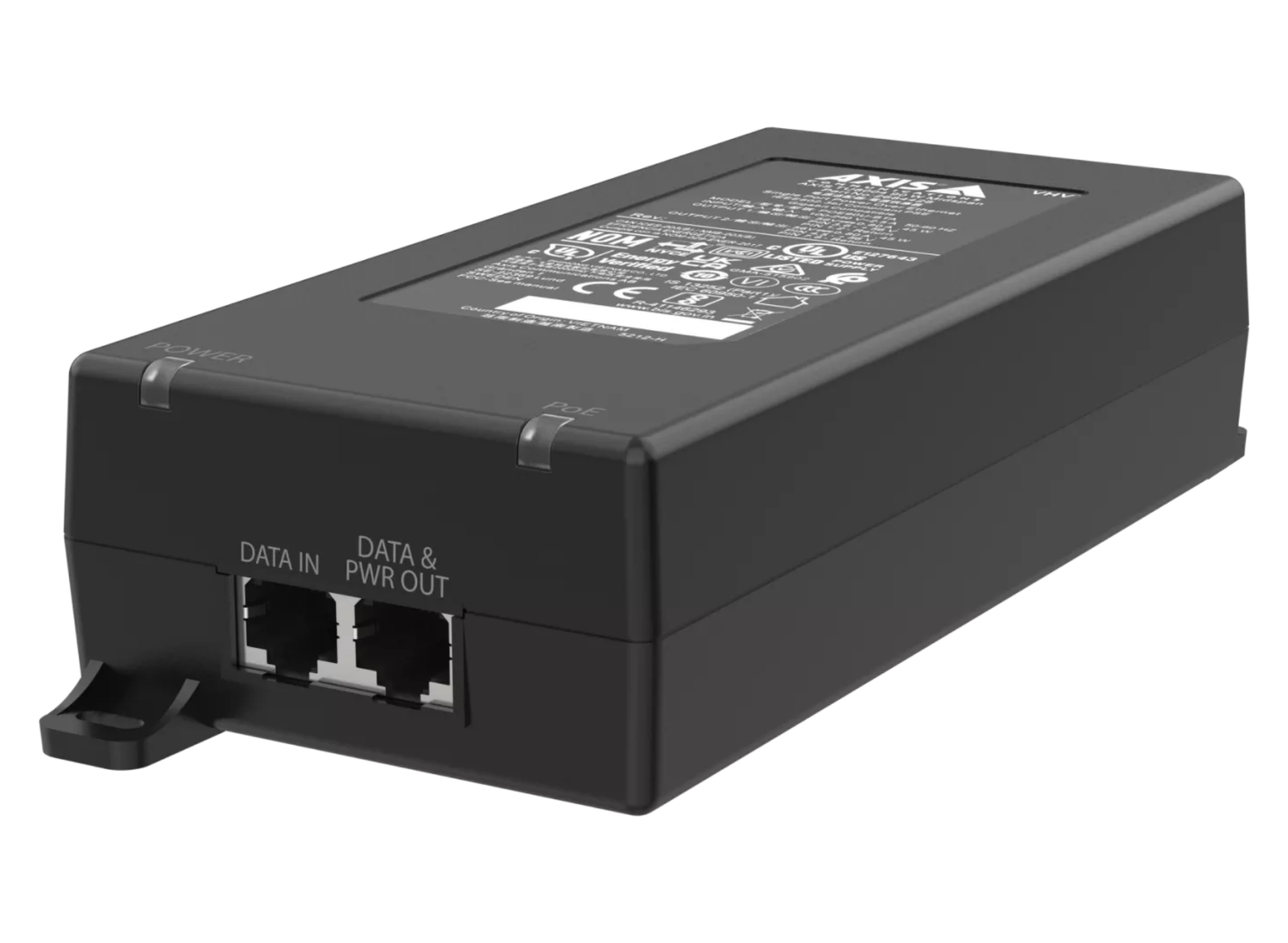

AXIS TU8004 is a single port 90 W midspan, compliant with IEEE 802.3bt and High PoE devices. Power over Ethernet (PoE) offers an easy, fast and cost-effective solution for powering network products. In a single network cable, a PoE midspan injects power and data to the network device with built-in PoE support. No need to replace existing Ethernet switches and cabling infrastructure. AXIS TU6011 Mains Cable is sold separately. The midspan can be installed on a wall, shelf or DIN rail with AXIS T91A03 DIN Rail Clip A.
Typical setup
| Function | Data and power are fed to a network video product through an Ethernet cable; use together with a PoE splitter for a network video product without built-in PoE support | Data Rate | 10/100/1000/2500/5000 Mbps |
| Installation and Management | Automatically detects PoE, PoE+, High PoE and PoE++ enabled devices and supplies inline power | Power | 15 W: IEEE 802.3af; 30 W: IEEE 802.3at; 60 W: High PoE Dual signature; 60 W to 90 W: IEEE 802.3bt |
| Input | AC input voltage: 100 to 240 V AC; AC frequency: 50–60 Hz | Output | 57 V DC (max 90 W) |

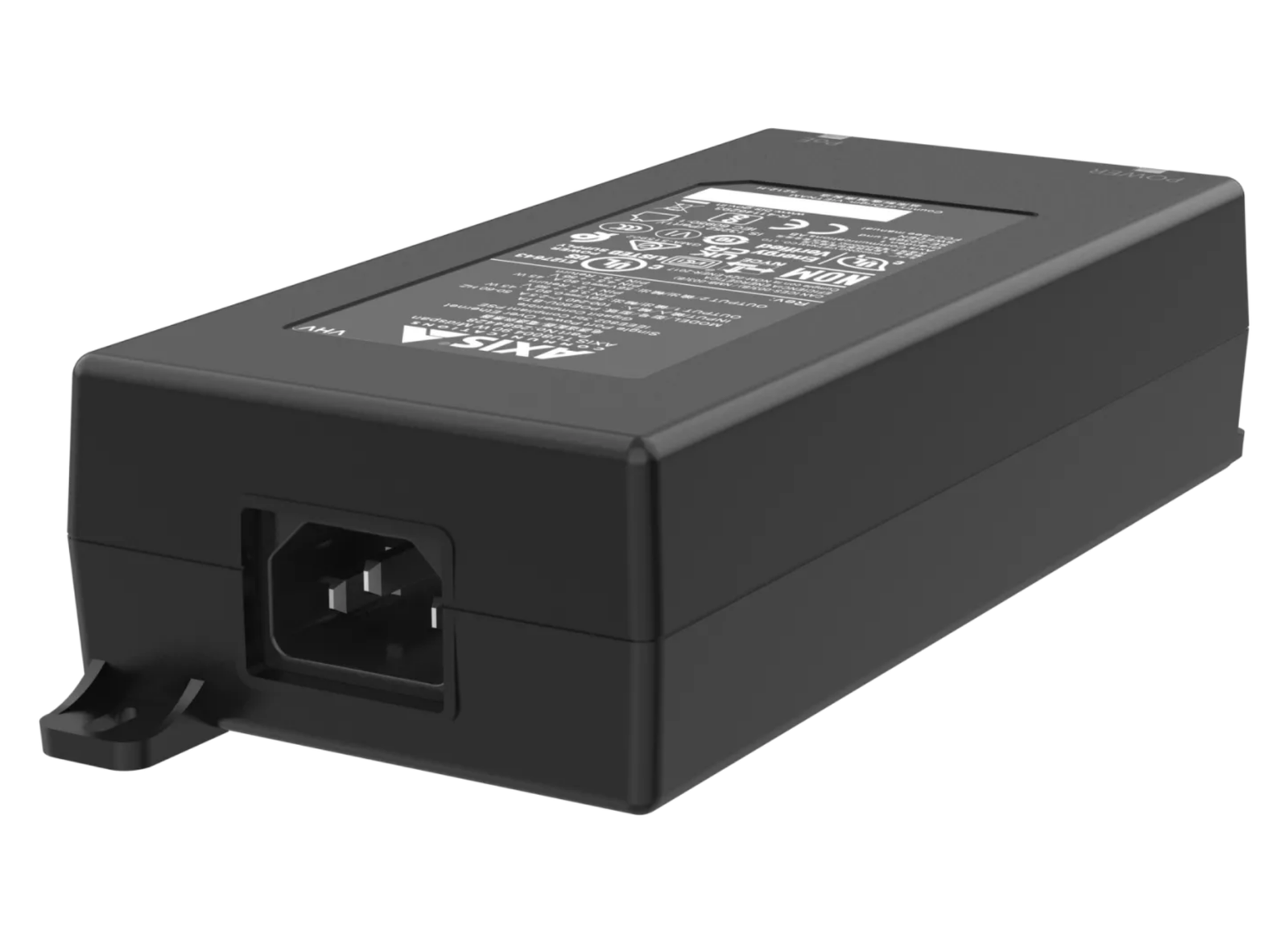

| Connectors | Shielded RJ45, EIA 568A and 568B; C14 connector | Wiring | Data over pairs 1/2 and 3/6 for 10/100 Ethernet, all four pairs for Gigabit Ethernet; power over data pairs 1/2 Return and 3/6 +, 7/8 Return and 4/5 + |
| Safety Approvals | IS 13252, IEC/EN/UL 62368-1, CCC | EMC Approvals | EN 55032 Class B, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Class B, RCM, VCCI Class B, EN 50121-4, IEC 62236-4 |
| Environment Approvals | IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78 | Casing | Plastic |
| Color | Black | Sustainability | PVC free, halogen free |
| Mounting | Wall mount, shelf mount, DIN rail | Display and Indicators | Power LED, PoE LED |
| Operating Conditions | 90 W: -20 °C to 40 °C; 60 W: -20 °C to 60 °C; 30 W: -20 °C to 65 °C; humidity 10–90% RH non-condensing | Storage Conditions | -20 °C to 70 °C (-4 °F to 158 °F); humidity 5–90% RH non-condensing |
| Power Consumption | No remote device: max 0.2 W; 15 W device: max 18.5 W; 30 W device: max 34.1 W; 60 W device: max 64.3 W; 90 W device: max 91.7 W | Dimensions | 166 x 80 x 44 mm (6.54 x 3.15 x 1.73 in) |
| Weight | 500 g (1.1 lb) | Box Content | Midspan, installation guide |
| Required Accessories | AXIS TU6011 Mains Cable | Optional Accessories | AXIS T91A03 DIN Rail Clip A |
| Warranty | Axis 3-year warranty |
| Description | Downloads |
|---|---|
| Datasheet | Download |
