Ideal for auditoriums, classrooms, indoor sports events, and places of worship, AXIS V5938 offers excellent video quality and broadcast-quality audio for professional webcasting.
Professional results made simple

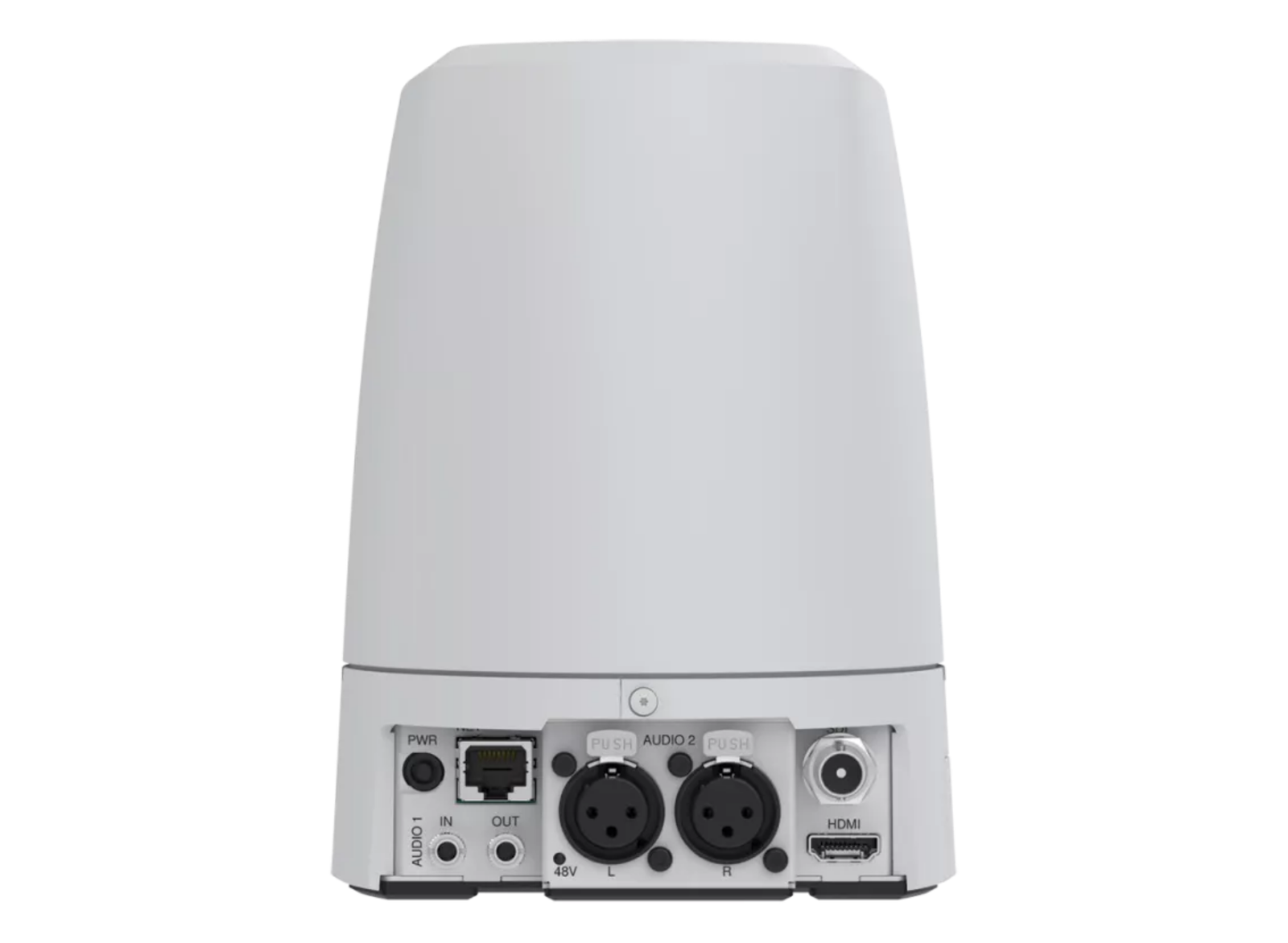

AXIS V5938 provides excellent image quality in outstanding 4K resolution at 30 fps and 20x optical zoom for all the details. It offers stage mode and sports mode, providing better PTZ control for the operator in different scenarios. Featuring professional balanced XLR inputs with 48V phantom power, it can be used with studio-grade microphones and 3,5 mm input/output for flexibility. Additionally, the powerful chipset allows for analytics to run directly on the camera.
Great compatibility
This highly versatile PTZ camera includes both HDMI and 3G-SDI outputs, allowing you to connect to most professional video switchers. With a VISCA RS-232 based control system, the camera can easily be integrated with your existing AV installations. And, with VISCA over IP it allows for remote control of multiple cameras via a LAN connection. Furthermore, for simple or mobile installations, the included 3-month Camstreamer trial license lets you live stream to streaming platforms such as YouTube and Facebook Live directly from the camera over an IP network. You can also use any major video management software or just connect it via a web browser.
Lower bandwidth and enhanced security
AXIS V5938 features Axis Zipstream technology with H.264 and H.265 to preserve all the important details while significantly reducing bandwidth and storage requirements. It’s packed with advanced security functionality to prevent unauthorized access and safeguard your system. Signed firmware and secure boot guarantee that the firmware hasn’t been compromised and ensure only authorized firmware is installed. And if needed, secure boot guarantees the camera is completely free of malware after a factory default.
| Camera - Image sensor | CMOS | Camera - Image sensor size | 1/2.5" |
| Camera - Lightfinder | - | Camera - Wide dynamic range | Dynamic Contrast |
| Camera - Min illumination/ light sensitivity (Color) | 1 lux | Camera - Min illumination/ light sensitivity (B/W) | 0.3 lux |
| Security - Signed OS | Yes | Security - Secure boot | Yes |
| Security - TPM | – | General - Built-in IR | – |
| General - OptimizedIR | – | General - Local storage (memory card slot) | Yes |
| General - Operating temperature | 0 to 40 °C | General - Outdoor Ready | – |
| General - Vandal rating | - | General - IP rating | - |
| General - Designed for repaint | – | Analytics - Autotracking version | Autotracking 2 |
| Analytics - Orientation aid | - | Video - Max video resolution | 3840x2160 |
| Video - Max frames per second | 60 | Video - Day and Night functionality | Yes |
| Video - Electronic image stabilization | Yes | Lens - Focal length | 4.4 - 88.4 mm |
| Lens - Horizontal field of view | 70.2-4.1 ° | Lens - Vertical field of view | 39.5-2.3 ° |
| Pan, Tilt, Zoom - Pan range | +/- 170 | Pan, Tilt, Zoom - Tilt range | -20 to 90 |
| Pan, Tilt, Zoom - Guard tour | - | Pan, Tilt, Zoom - Optical zoom | 20 |
| Pan, Tilt, Zoom - Digital zoom | 12 | Compression - Zipstream | Yes |
| Compression - H.264 | Baseline, High, Main | Compression - H.265 | Yes |
| Compression - AV1 | – | Audio - Audio Support | Yes |
| Audio - Built-in microphone | - | System Integration - Audio detection | Yes |
| System Integration - Active tampering | – | System Integration - Alarm inputs/outputs | 1/1 |
| Network - PoE Class | - |
| Description | Downloads |
|---|---|
| Datasheet | Download |
