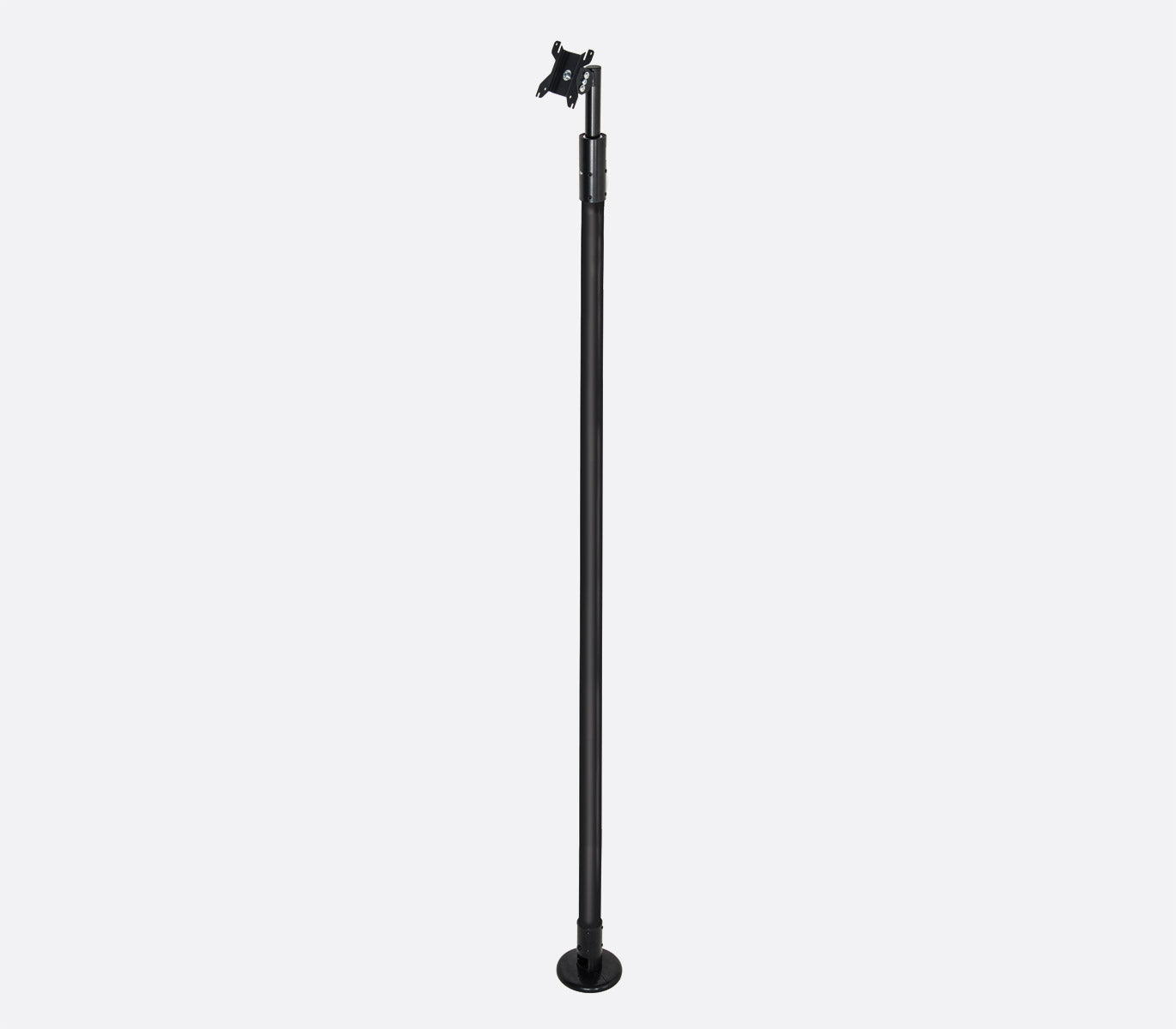

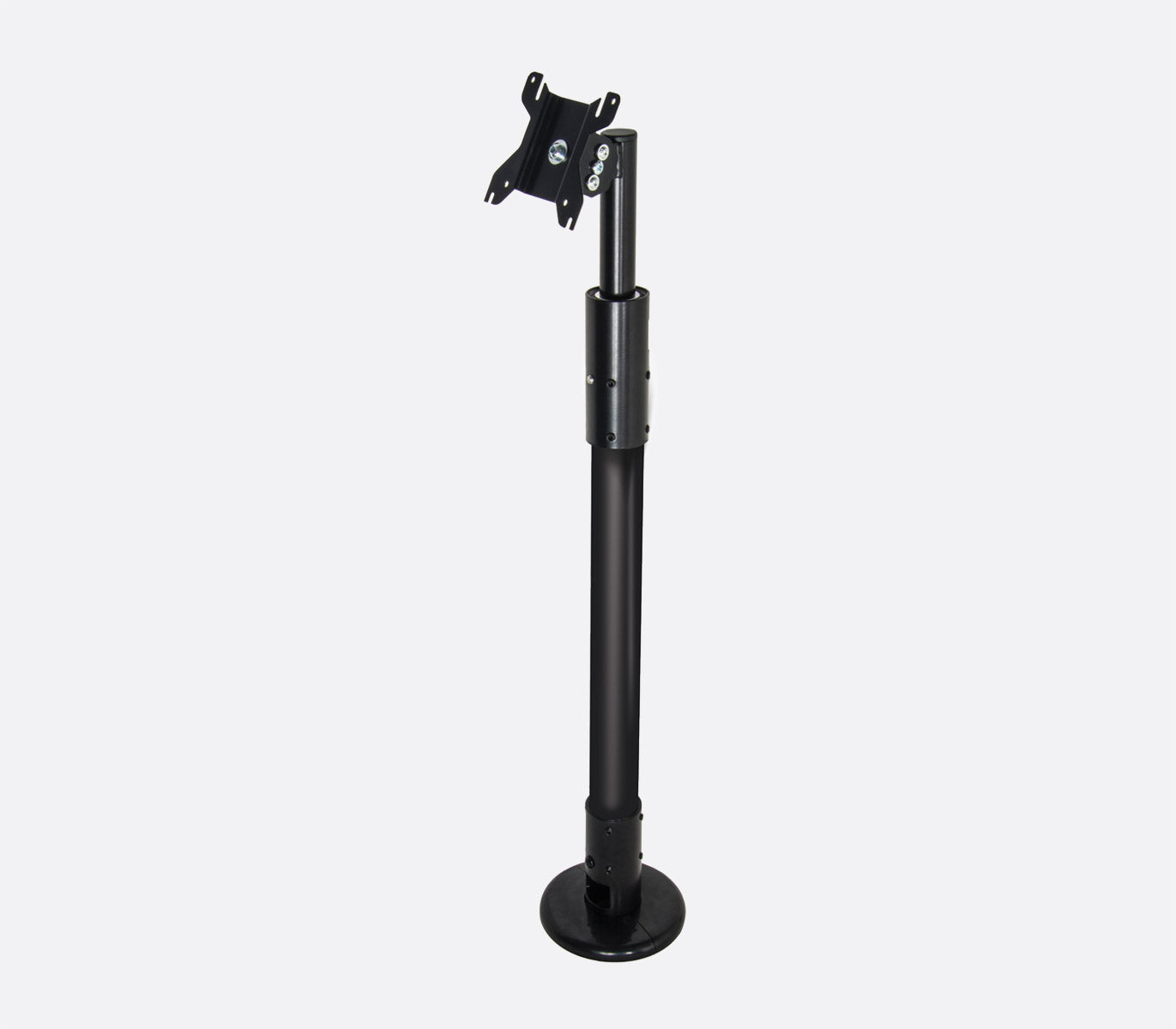

B-Tech 32" 0.5-2m Flat Screen Ceiling Mount With Tilt & Swivel
SKU: BT7553-050/BB
£164.37 (Excl. VAT)
Check display compatibility before you buy
Enter your screen SKU and we will instantly check whether this mount is suitable for your display based on VESA pattern compatibility.
- Warranty5 Year Warranty
- Mount ConfigurationMax 1 Screen
- Max Load (kg)20 kg per screen
- Mounting TypeCeiling Mounts
- Screen Sizes27" - 32"
- VESA Patterns100x100
- Description
- Specifications
- Downloads
- Warranty
-
- The BT7553 is a flat screen mounting solution which can be used to mount screens up to 23kg from the ceiling, floor, or to a desktop. With easy tool-less adjustment of tilt, swivel and screen rotation, this mount is ideal for landscape or portrait screen mounting and makes it quick and simple to switch between the two. The BT7553 is available with a choice of Black or Chrome poles in a variety of different lengths to suit your need.
- Mounts screens from the ceiling, floor or desktop
- Tool-less tilt and swivel adjustment
- Screen rotation allows screen to be positioned in a landscape or portrait orientation
- Supplied with a safety bolt for secure pole mounting
- Included grub screws allow micro-adjustment of pole angle
- Integrated cable management
- Simple ‘hook-on’ installation
-
- Recommended screen size: up to 32" (81.3cm)
- Max load: 23kg (50lbs)
- VESA® compatibility: 75mm x 75mm and 100mm x 100mm
- Tilt as a ceiling mount: +90° / -15°
- Tilt as a desk / floor mount: +15° / -90°
- Swivel: 360°
- Screen rotation: 360°
- Pole lengths available: 0.25m, 0.5m, 1m, 1.5m, and 2m
(9.8", 19.7", 39.4", 59", 78.7") - Colour poles / ceiling plate: Black, White or Chrome
- Colour interface plate: Black
-
Specification Sheet
Installation Guide
Technical Drawing
-
