B-Tech 37" - 65" Rotational Flip Mount with Tilt | BT7550/B
SKU: BT7550/B
£161.83 (Excl. VAT)
Check display compatibility before you buy
Enter your screen SKU and we will instantly check whether this mount is suitable for your display based on VESA pattern compatibility.
- Warranty5 Year Warranty
- Mount ConfigurationMax 1 Screen
- Max Load (kg)70 kg per screen
- Mounting TypeWall Mounts
- Screen Sizes37" - 65"
- VESA Patterns400x400
- Description
- Specifications
- Downloads
- Warranty
-
- The BT7550 Rotational Flip Mount allows a mounted screen to be easily rotated from landscape to portrait orientation. The tool-less rotation adjustment allows the users to freely rotate the screen from 0° to 90° while mounted or locked at a preferred angle using the built in angle guide before mounting. Additional features include optional negative tilt of 4.5°, ideal for touchscreen displays such as the Samsung Flip®*. The BT7550 can be mounted directly to the wall or attached to other mounts in the B-Tech range for additional features such as pop-out mounting. Pole mounting using System 2 collars or directly to System X solutions can also be done easily. *For Samsung Flip 2 use with BT7550-SF2 adapter arms
- Allows mounted screens to rotate from landscape to portrait orientation (or vice versa) - Ideal for the Samsung Flip® or other similar touch screens
- Use with BT7550-SF2 adaptors for mounting Samsung Flip 2 screens
- Tool-less, easy to use rotation adjustment can be set before or after installation
- Rotation can be stopped and fixed at any angle between 0° and 90°

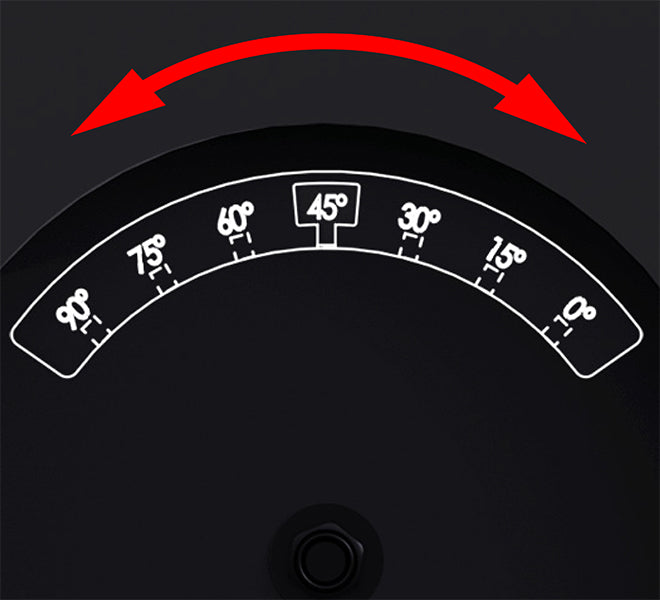

- Includes angle guides to help set the desired rotation of your screen
- Can be used to mount screens directly to walls
- Can also be mounted to standard B-Tech mounts, pole mounted using System 2 collars or directly to System X solutions

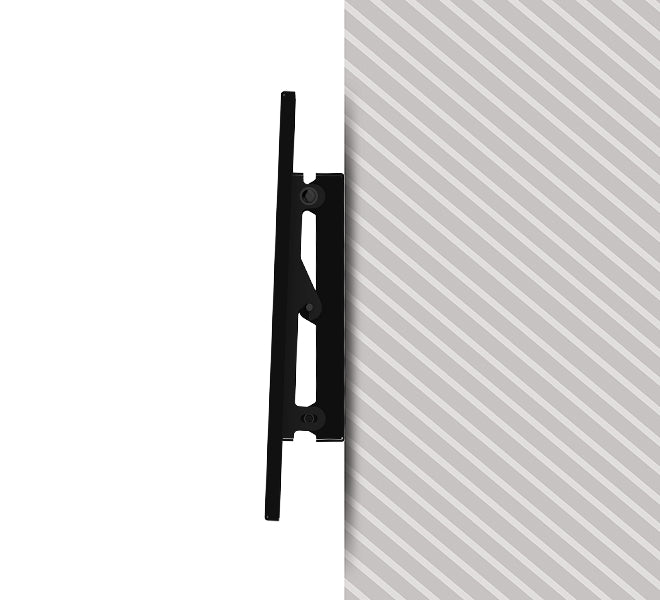

- Features a negative tilt of 4.5 degrees for easier use of touchscreens
(ideal for Samsung Flip) - Simple installation with all mounting hardware included
-
Feature Description Screen Size 37" (94 cm) – 65" (165 cm) Max Load 70 kg (154 lbs) Angle Adjustment Up to 90° VESA Compatibility 200 x 200 up to 400 x 400 Colour Black -
Specification Sheet
Karta Specyfikacji - Polskie (PDF)
Installation Guide
Technical Drawing
-
