B-Tech 42" - 120" Heavy Duty Pop-Out Flat Screen Wall Mount | BT8310XL/B
SKU: BT8310XL/B
£510.29 (Excl. VAT)
Check display compatibility before you buy
Enter your screen SKU and we will instantly check whether this mount is suitable for your display based on VESA pattern compatibility.
- Warranty5 Year Warranty
- Mount ConfigurationMax 1 Screen
- Max Load (kg)125 kg per screen
- Mounting TypeWall Mounts
- Screen Sizes42" - 100"
- VESA Patterns600x400
- Description
- Specifications
- Downloads
- Warranty
-

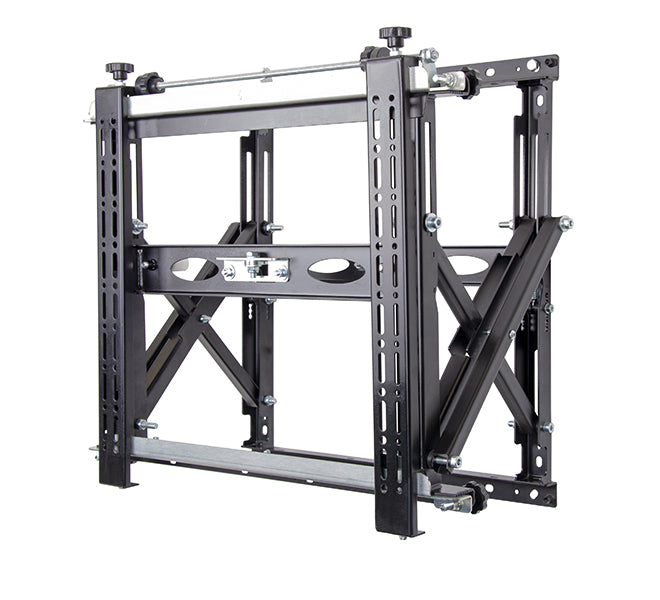

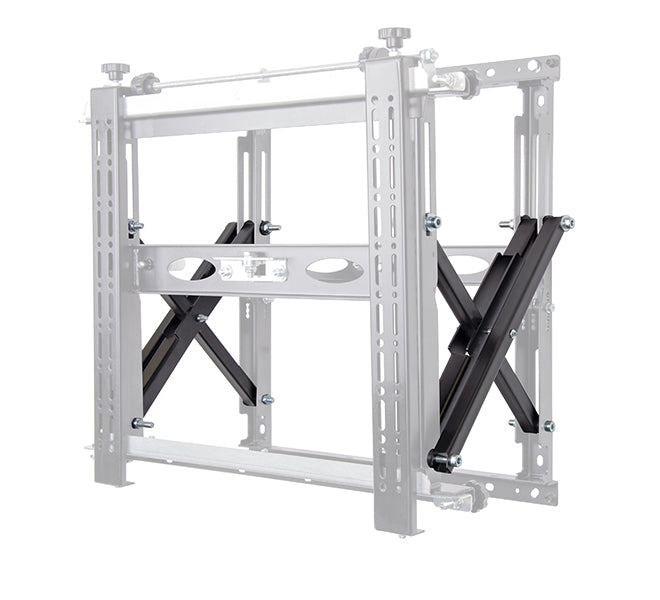

- Designed to mount extra-large screens, the heavy duty BT8310XL is capable of mounting screens up to 125kg in both landscape and portrait orientations. With reinforced scissor arms, this wall mount is ideal for mounting the largest sized screens and features an easy to use pop-out function and 8-point micro-adjustment, making installation and alignment into a recessed wall both quick and simple. Access to the rear or sides of the screen for maintenance or cabling is possible through the pop-out feature, with an additional locking kit accessory available (separately) to prevent unauthorised access if required.
- Perfect solution for mounting large heavy duty screens into a recessed wall
- Suitable for landscape or portrait screen mounting

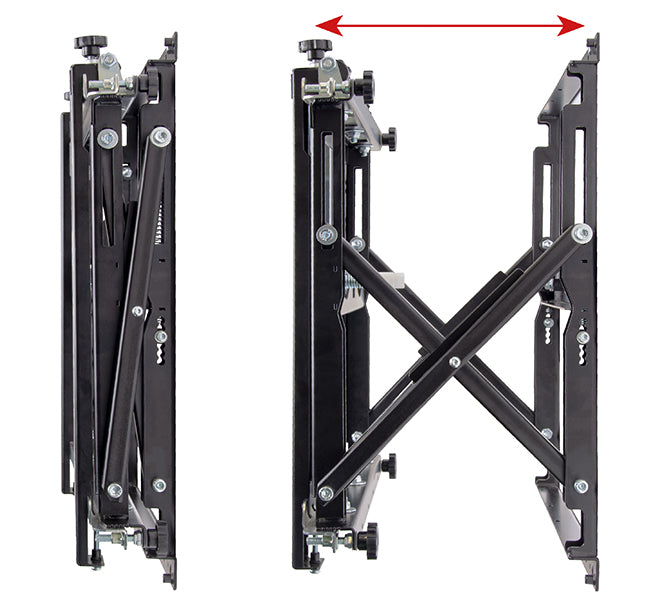

- Push to open / push to close system provides quick and easy service access
- Tool-less micro-adjustments at 8 points for seamless display alignment
- Suitable for both wall or pole mounting
- Integrated cable management
- Locking kit (BT8310-LK) to prevent accidental pop-out of mount is also available (separately)
- Safety screws help prevent unauthorised removal of screens

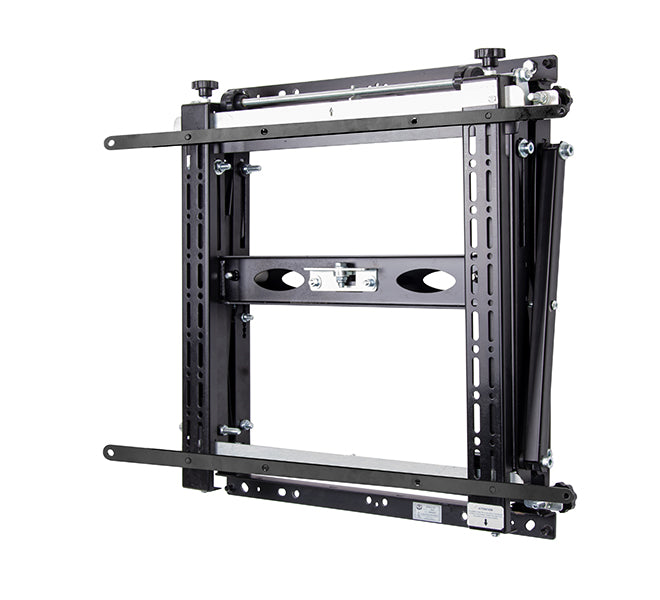

- Includes Interface Adaptor Arms for use with screens with VESA 600 x 400 fixings
(larger interface adaptor ams are available, contact us for more information) - All mounting hardware included
-
Feature Description Recommended Screen Size 42" (106 cm) – 120" (305 cm) Min / Max Load 70 kg (154 lbs) – 125 kg (275 lbs) VESA (Standard) 200 x 100 to 400 x 400 VESA (With Adaptor) Up to 600 x 400* Flat-to-Wall Depth 101 mm (4") ±7 mm with adjustment Popped-Out Depth 293 mm (11.5") ±7 mm with adjustment Colour Black Note Using 600 x 400 arms increases depth to 107 mm (4.2") flat, 299 mm (11.8") popped-out. -
Assembly Leaflet
Specification Sheets
Specification Sheet - English (PDF)
Specification Sheet - US Letter (PDF)
Spezifikationsblatt - Deutsch (PDF)
Thông số kỹ thuật - Tiếng Việt (PDF)
Technical Drawings
-
