B-Tech 42" - 75" Slimline Soft-Open Full Service Video Wall Mount | BT8312/BV2
SKU: BT8312/BV2
£306.66 (Excl. VAT)
Check display compatibility before you buy
Enter your screen SKU and we will instantly check whether this mount is suitable for your display based on VESA pattern compatibility.
- Warranty5 Year Warranty
- Mount ConfigurationMax 1 Screen
- Max Load (kg)50 kg per screen
- Mounting TypeWall Mounts
- Screen Sizes42" - 75"
- VESA Patterns600x400
- Description
- Specifications
- Downloads
- Warranty
-
-

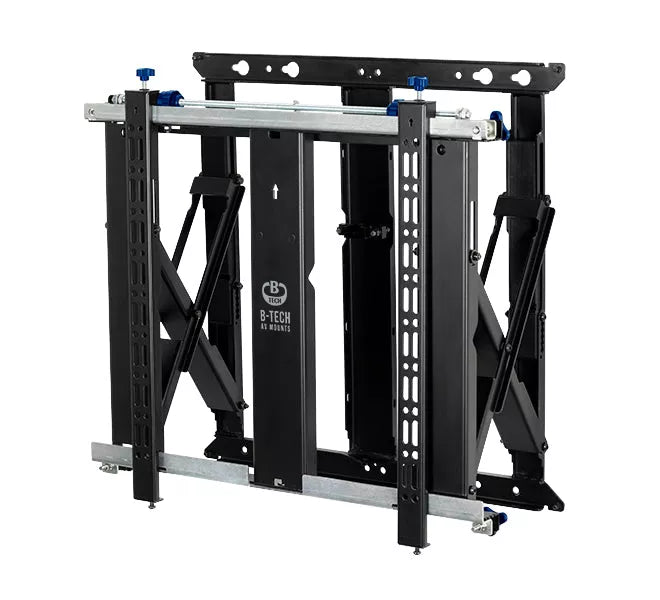

B-Tech BT8312 Video Wall Mount | 42"-75" Soft-Open

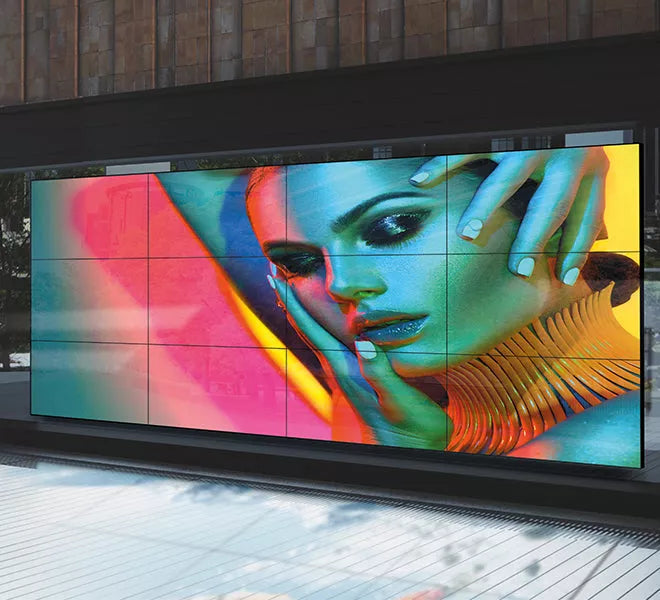

Designed to make video wall installations as quick and simple as possible, this modular video wall mount can be used to create unlimited video wall configurations in both landscape and portrait format. The BT8312 low profile design is ideal for mounting into walls with a shallow recess or when space in front of the wall is minimal. 8 points of micro-adjustment makes accurate screen alignment quick and easy and the soft opening features a controlled release enabling access to the rear of the mounted screen for servicing and maintenance. - Slim design ideal for low profile installs on walls or mounting in recesses

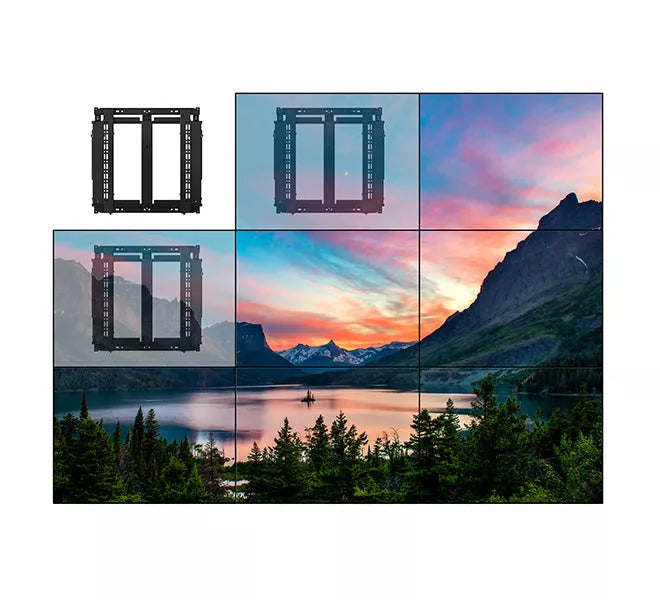

- Modular mount allows video wall assembly in an unlimited number of configurations
- Suitable for landscape or portrait screen mounting

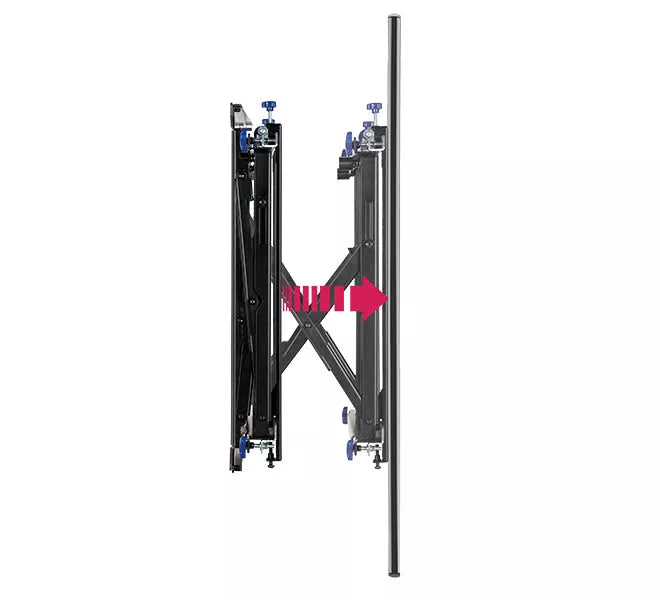

- Pop-out system with soft opening provides a safe and easy service access

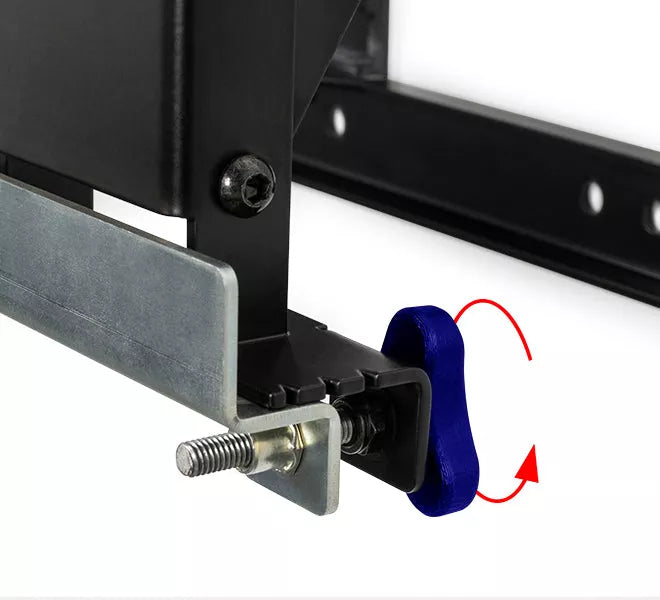

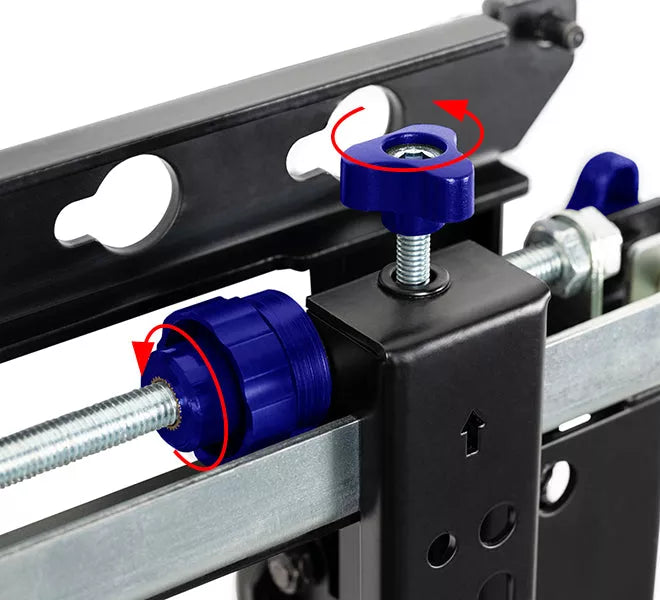

- Tool-less micro-adjustment of +/-7.5mm (0.3") at each corner for seamless display alignment

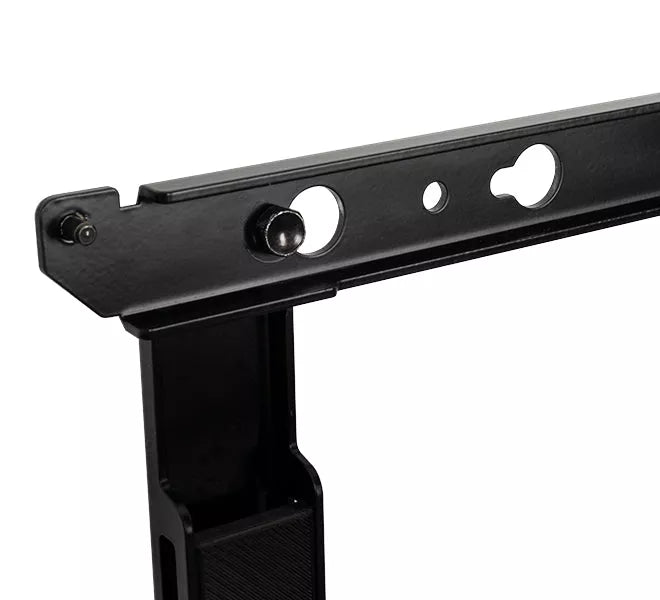

- Keyhole mounting for quick and easy installation
- Suitable for both wall or pole mounting
- Screen specific wall plate spacers kits are available (separately) to speed up installation times
- Integrated locking mechanism prevents accidental pop-out of mount
- Safety screws help prevent unauthorised removal of screens
- Adaptor arms for VESA 800 x 400 fixings (BT7565) available separately
-
-
Recommended Screen Size 42" (106 cm) – 75" (190 cm)

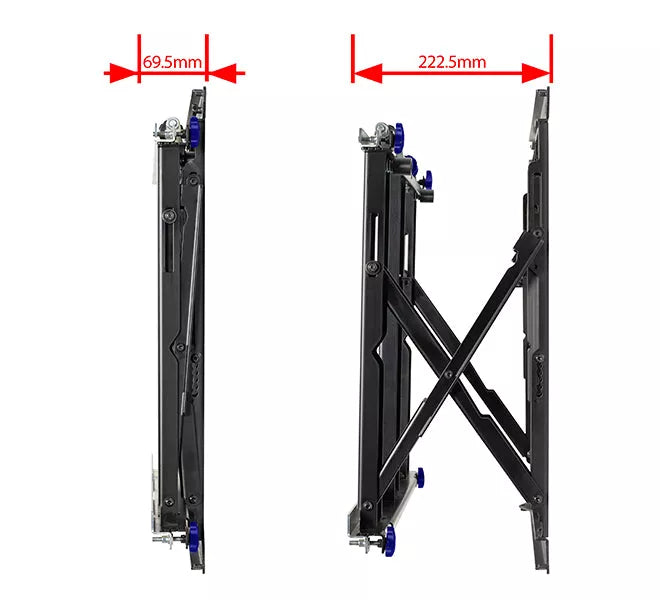

(46" – 75" in portrait)Max Load 50 kg (110 lbs) VESA® Compatibility (Standard) 200 × 100 to 400 × 400 mm VESA® Compatibility (With Adaptors) Up to 600 × 400 mm* Flat to Wall Depth 69.5 mm (2.7") ±7.5 mm (0.3") Popped Out Depth 225.5 mm (8.8") ±7.5 mm (0.3") Tool-less Micro-adjustment ±7.5 mm (0.3") per corner Screen Height Adjustment +15 mm (0.6") Note Using the included Interface Adaptor Arms for VESA 600 × 400 screens increases depth by 6 mm (0.2”), resulting in a total depth of 75.5 mm (3”) flat or 228.5 mm (9”) popped out. -
BT8312 Specification Sheets
Specification Sheet - English (PDF)
Specification Sheet - US Letter (PDF)
Hoja de Especificación - Español (PDF)
Technisches Datenblatt - Deutsch (PDF)
Specificatieblad - Nederlands (PDF)
Fiche de Spécifications - Français (PDF)
Karta Specyfikacji - Polskie (PDF)
Trang thông số kỹ thuật - Tiếng Việt (PDF)
BT8312 Installation Guide
BT8312 Technical Drawing
-
