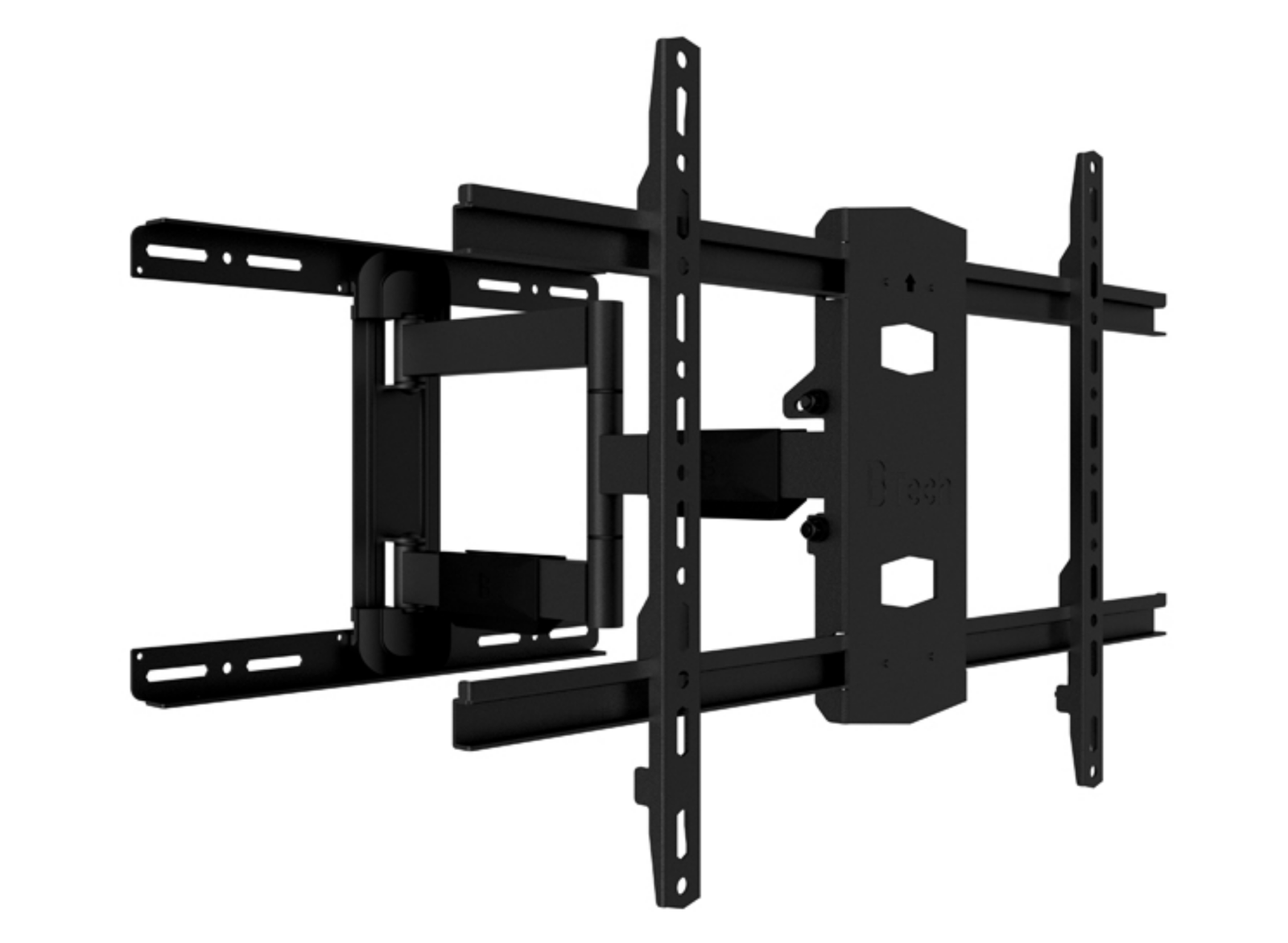

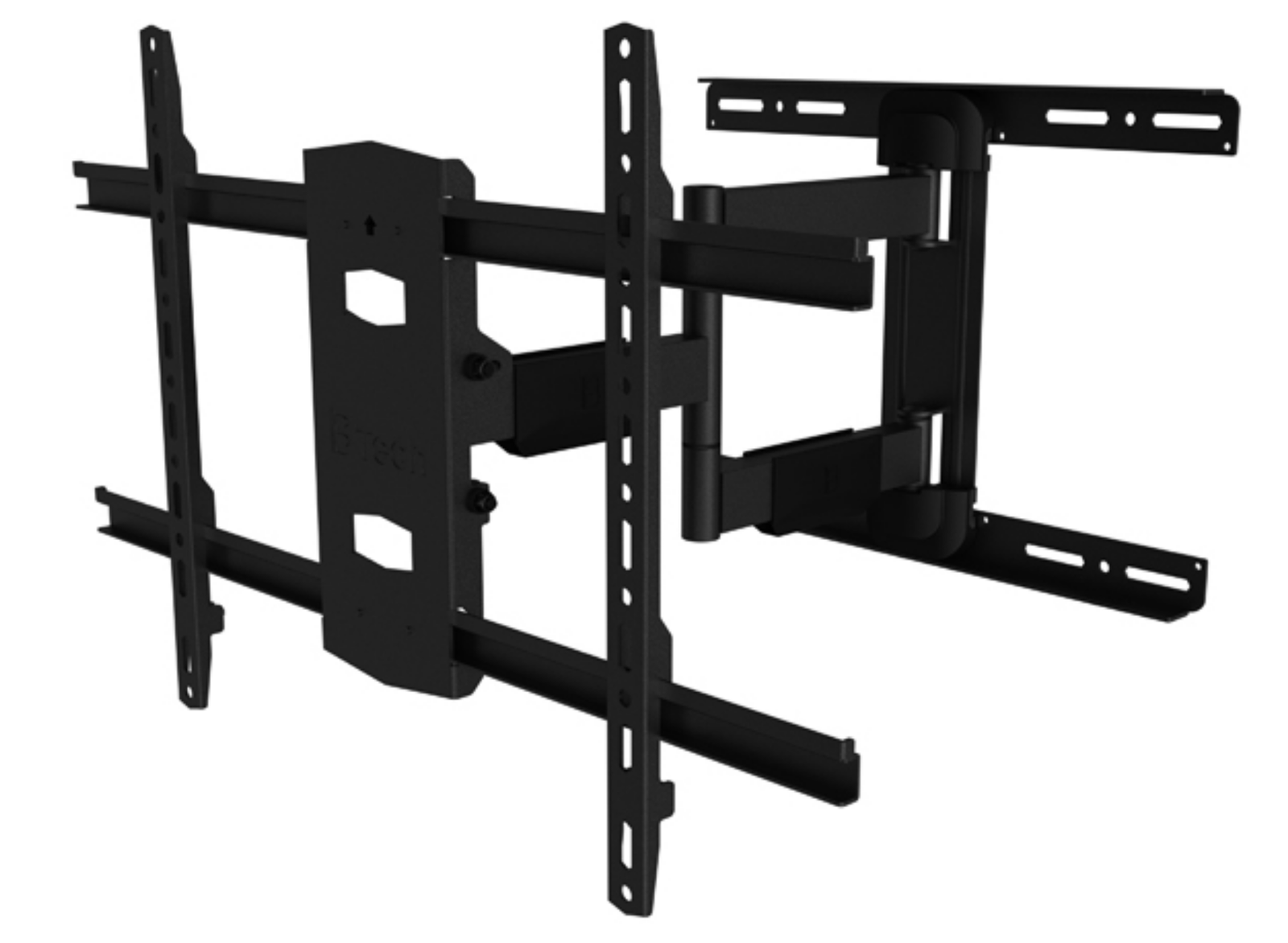

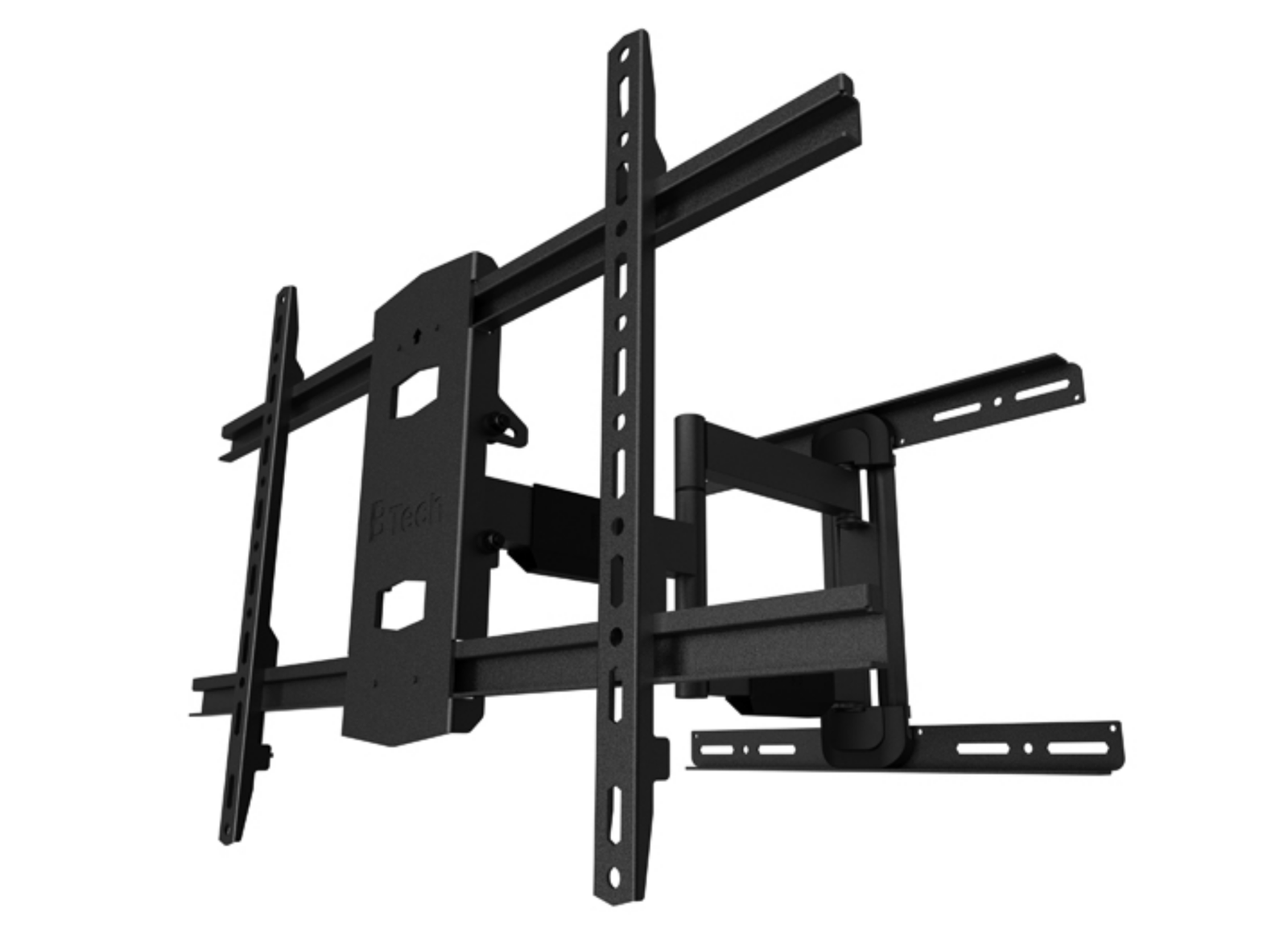

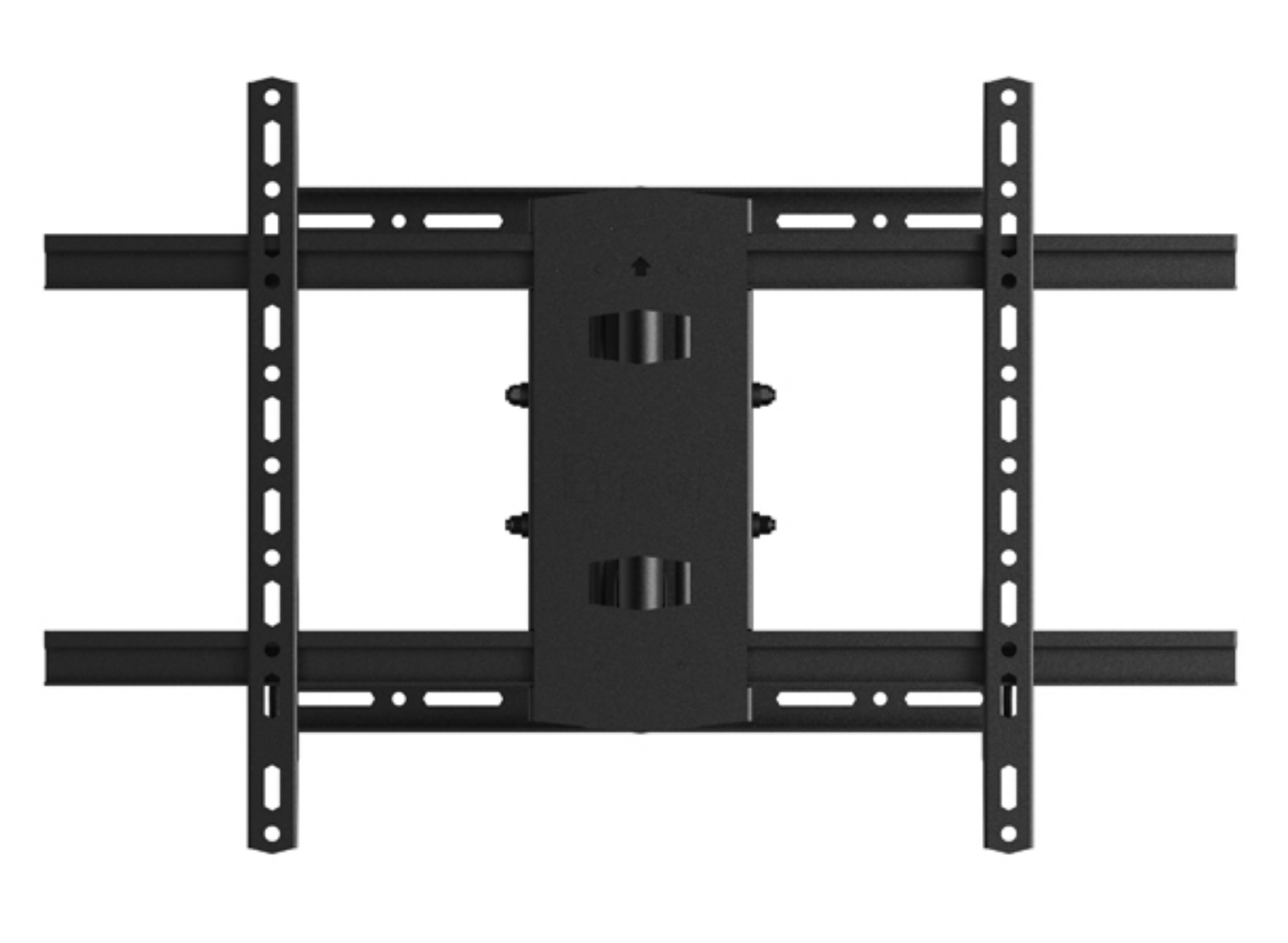

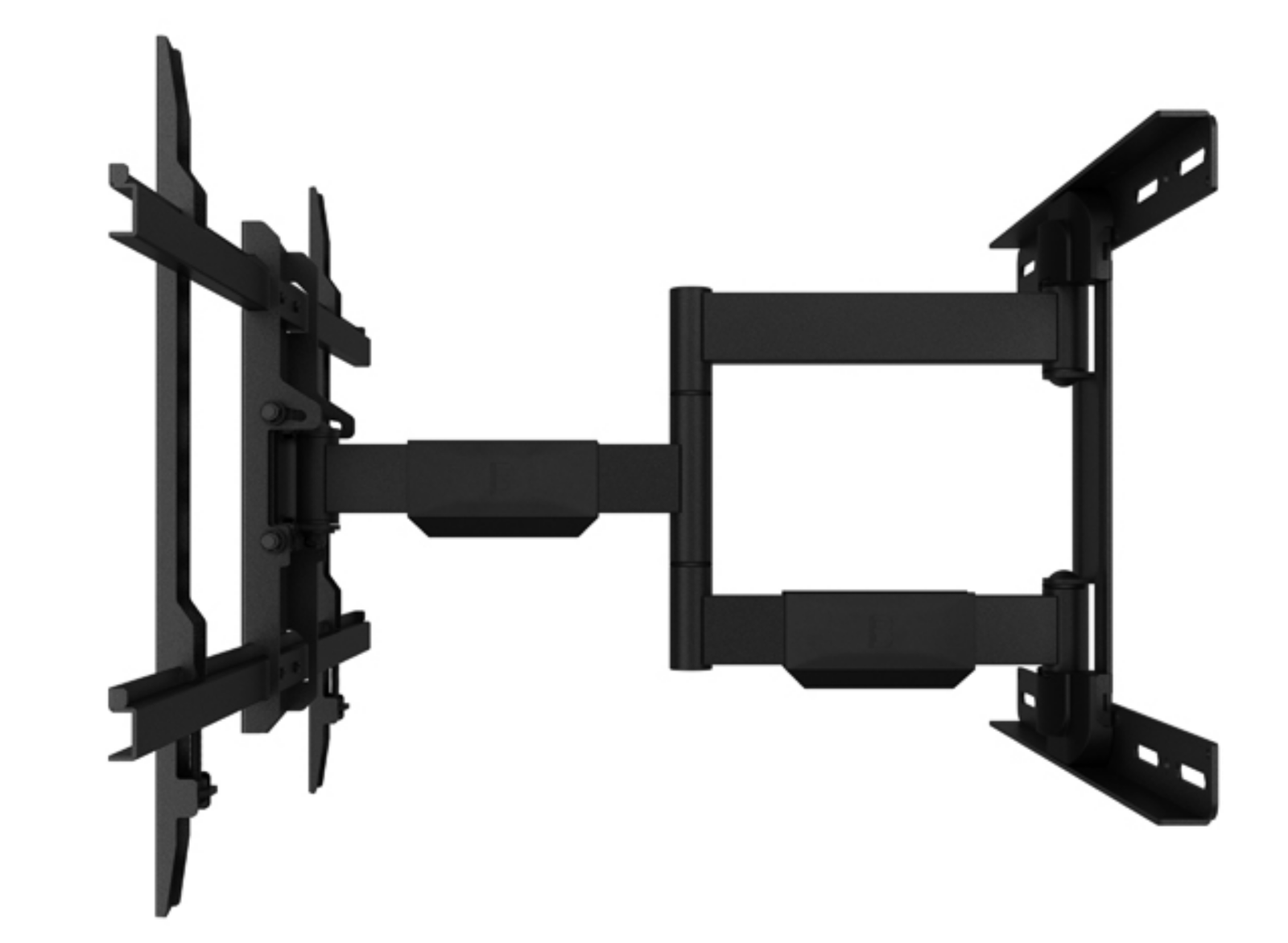

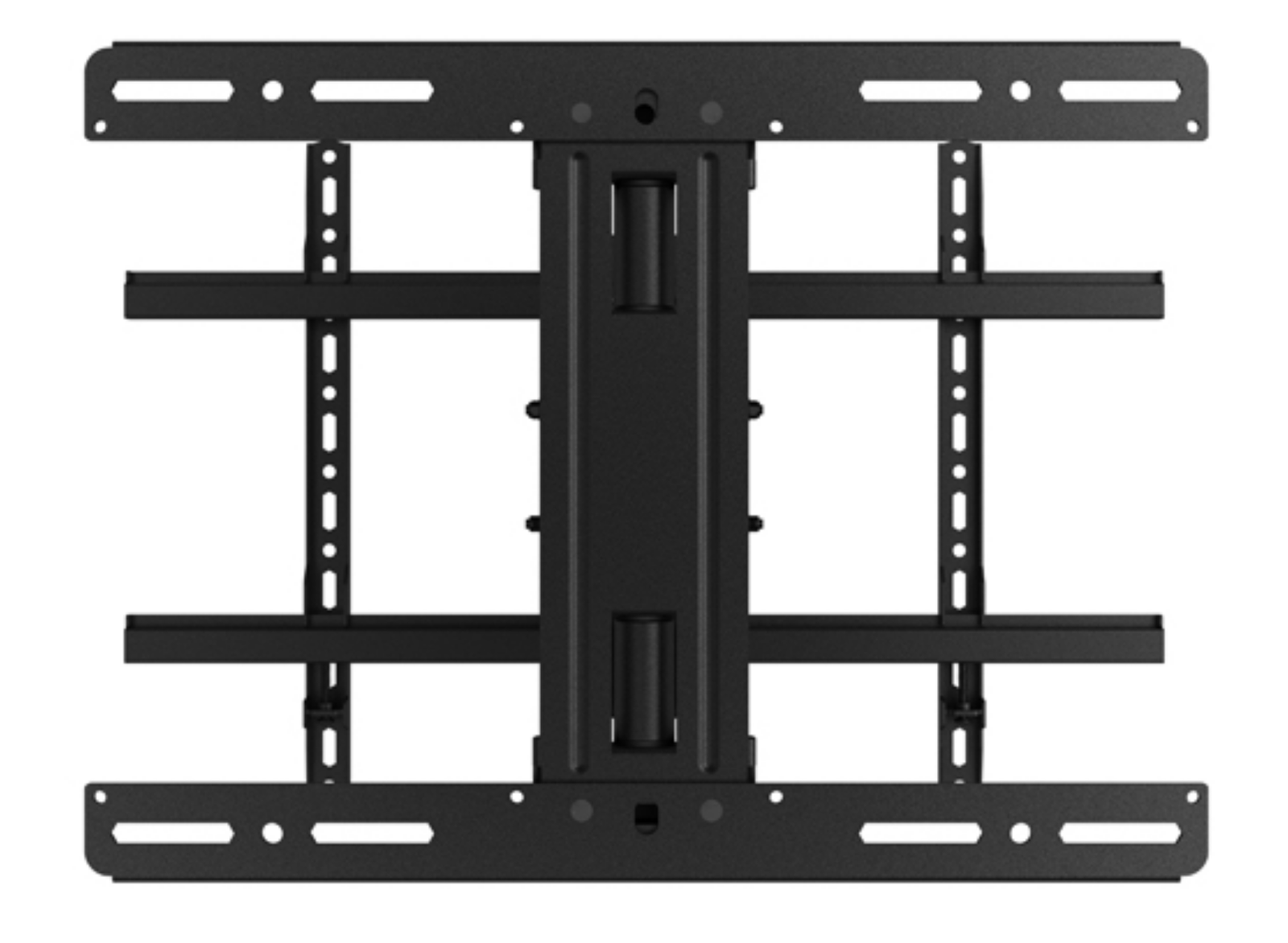

B-Tech BT5229/B Double Arm Wall Mount with Tilt & Swivel For Up to 65" Screens
SKU: BT5229/B
£90.80 (Excl. VAT)
Check display compatibility before you buy
Enter your screen SKU and we will instantly check whether this mount is suitable for your display based on VESA pattern compatibility.
- Mount ConfigurationMax 1 Screen
- Max Load (kg)35 kg per screen
- Mounting TypeWall Mounts
- VESA Patterns600x400
- Description
- Specifications
- Downloads
-
Double arm wall mount with tilt and swivel for 65” screens
Designed to mount medium / large screens, this articulating wall mount features an easy to tilt interface and three swivel points for quick, smooth repositioning of the screen - whether folded flat to the wall or at maximum extension. Suitable for mounting across 16" stud walls, the bracket also features cable management for a tidy mounting solution. The BT5229 is ideal for both commercial and home installations.
Features
Ideal for mounting across 16" stud walls
Slim-line design allows close-to-wall installation when folded flat

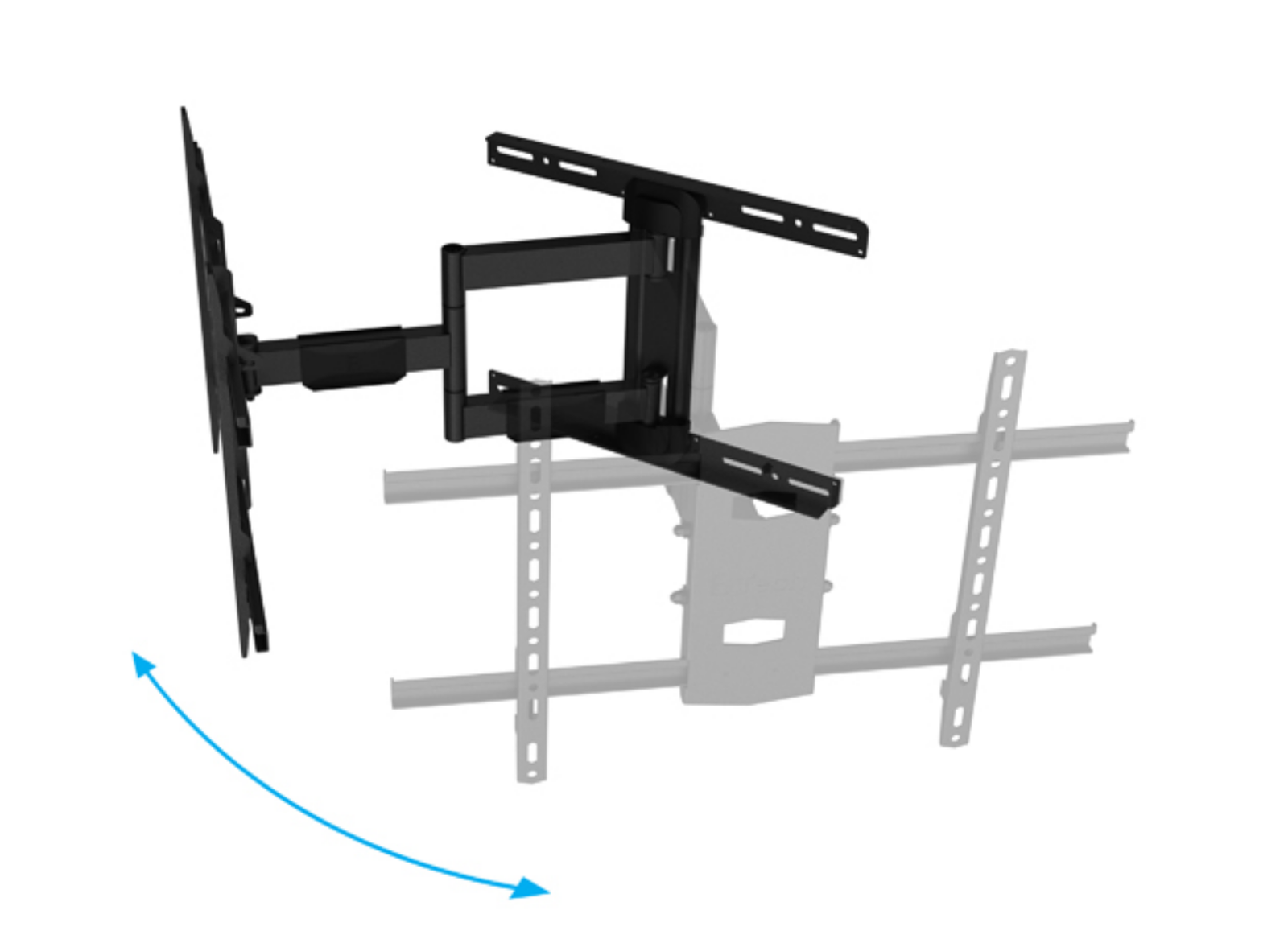

Easy tool- less tilt adjustment of the screen
Three points of swivel adjustments of the mount
Depth adjustment for close to wall and extension from the wall
Lateral adjustment of the screen once mounted
Suitable for portrait and landscape mounting
Screen levelling of up to 5° in either direction
Safety screws prevent unauthorised removal of screens
Cable management
Simple 'hook-on' installation with all mounting hardware included
100% plastic free packaging -
Recommended Screen Size Up to 65" (165cm) Max load 35kg (77lbs) VESA® compatibility Up to 600 x 400 Tilt 12° downward / 2° upward Screen levelling +/-5° Swivel 180° Distance from wall Min: 57.6mm (2.1") - Max: 497.8mm (19.5") Colour Black -
Description Downloads Specification Sheets Download Technical Drawings Download
