B-Tech BT8301/B Pop-Out Videowall Mount For Screens up to 35kg
SKU: BT8301/B
£239.16 (Excl. VAT)
Check display compatibility before you buy
Enter your screen SKU and we will instantly check whether this mount is suitable for your display based on VESA pattern compatibility.
- Mount ConfigurationMax 1 Screen
- Max Load (kg)35 kg per screen
- VESA Patterns600x400
- Description
- Specifications
- Downloads
-

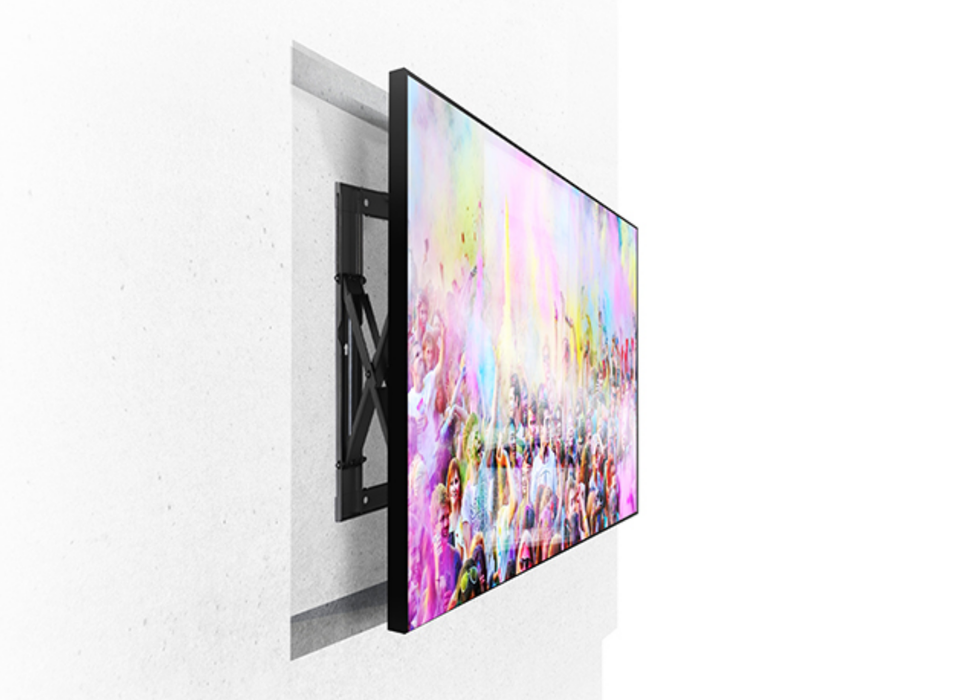

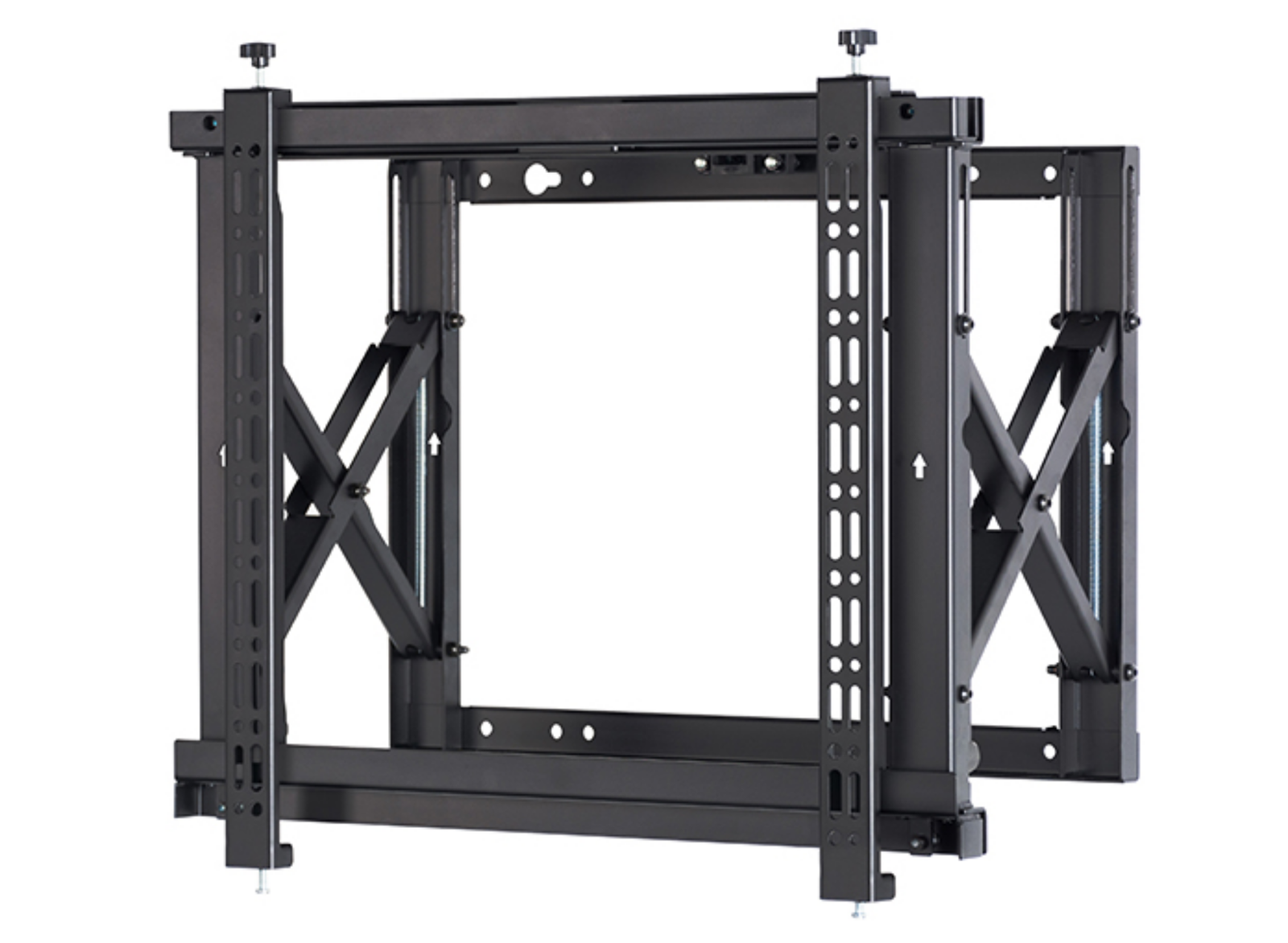

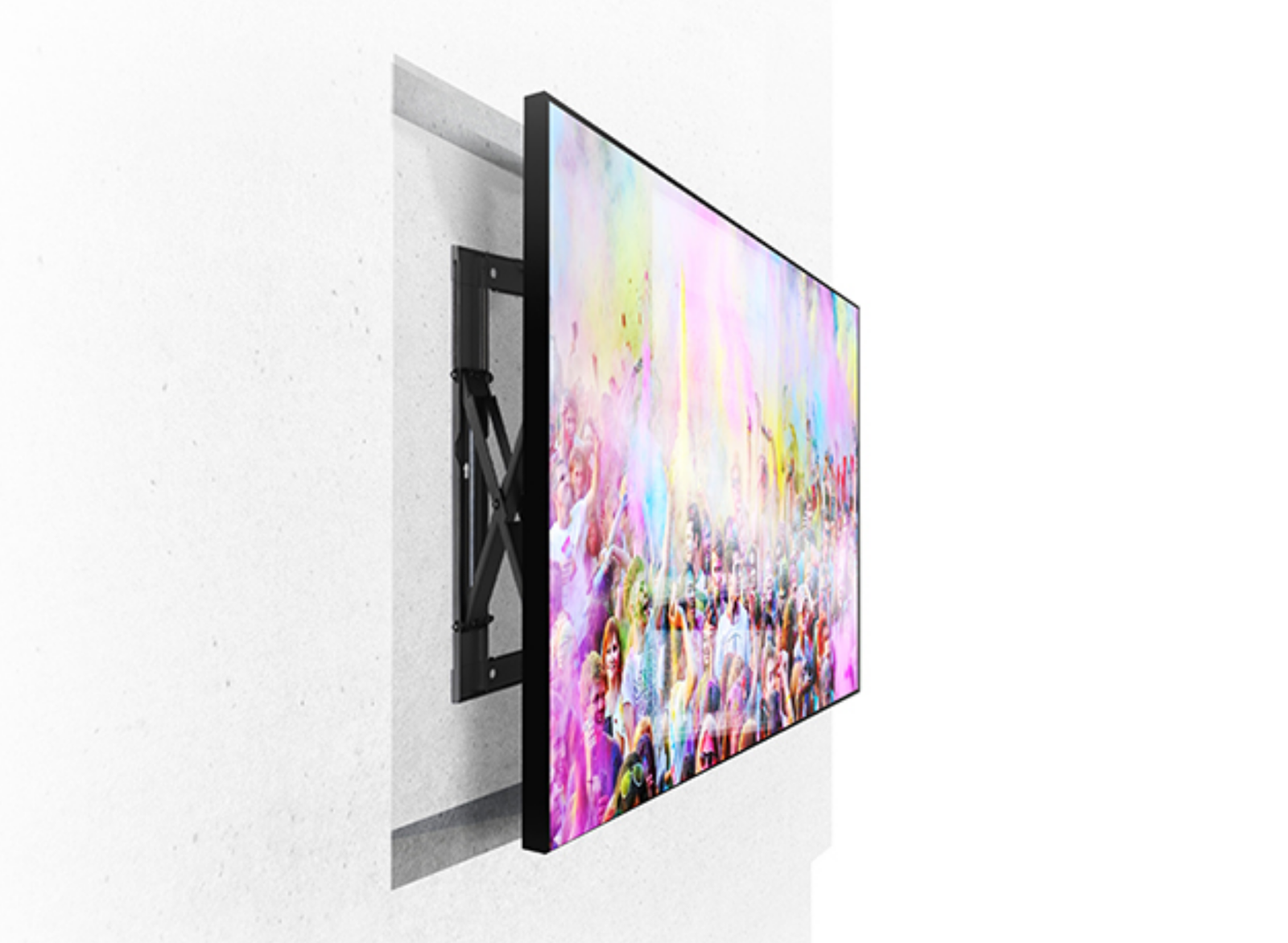

Modular videowall mount with pop-out access system
Designed to make videowall installations as simple as possible, this modular videowall mount can be used to create unlimited videowall configurations in both landscape and portrait format. The BT8301 has a low profile design which is ideal for mounting into walls with a shallow recess, a pop-out system enables a quick and easy access to the rear of the mounted screen for servicing and maintenance and +/-4mm micro adjustment makes accurate screen alignment quick and easy.
Features
Slim design ideal for low profile installs on walls or in shallow recesses
Modular mount allows videowall assembly in an unlimited number of configurations
Suitable for landscape or portrait screen mounting

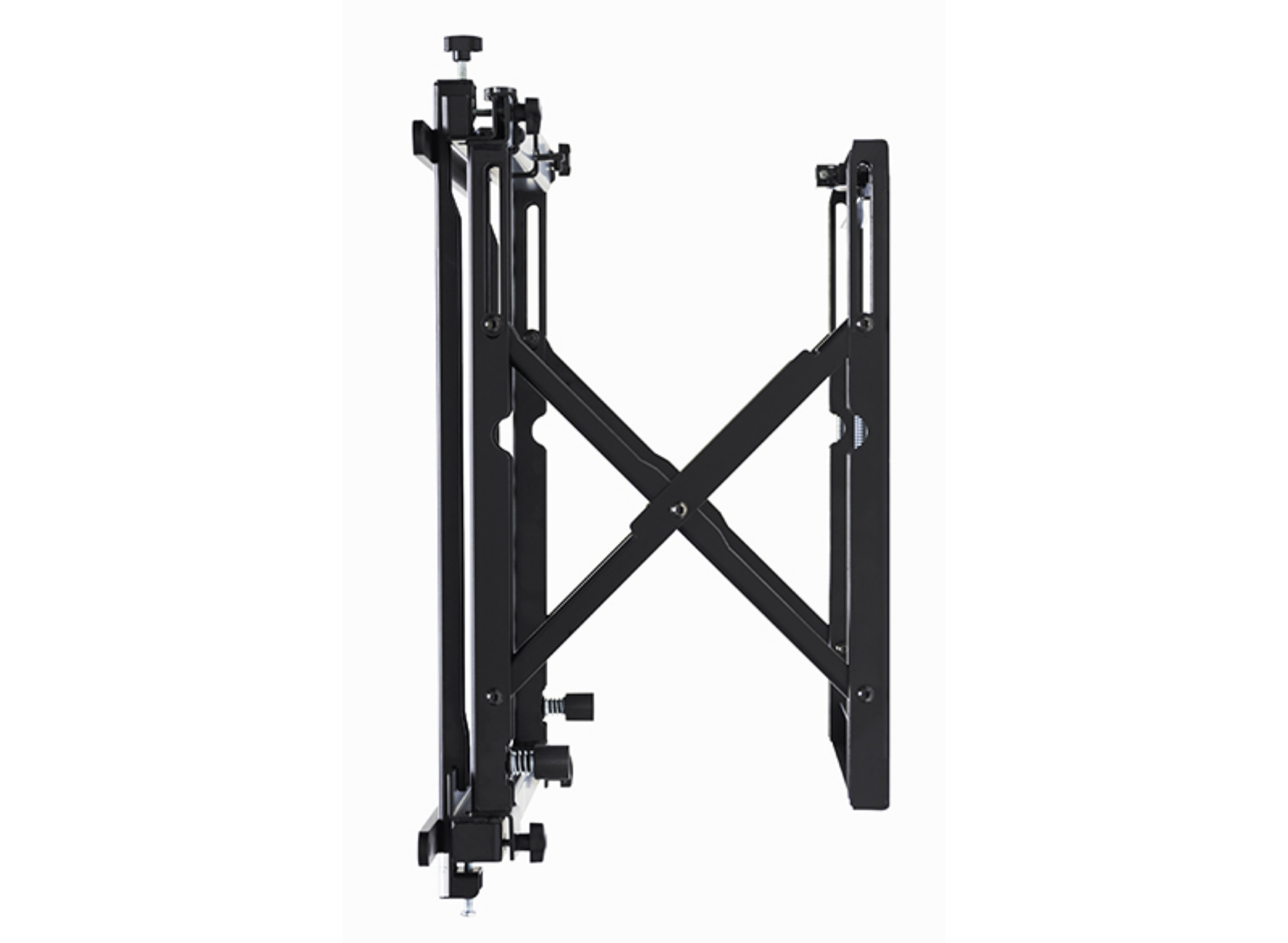

Push to open / push to close system provides quick and easy service access

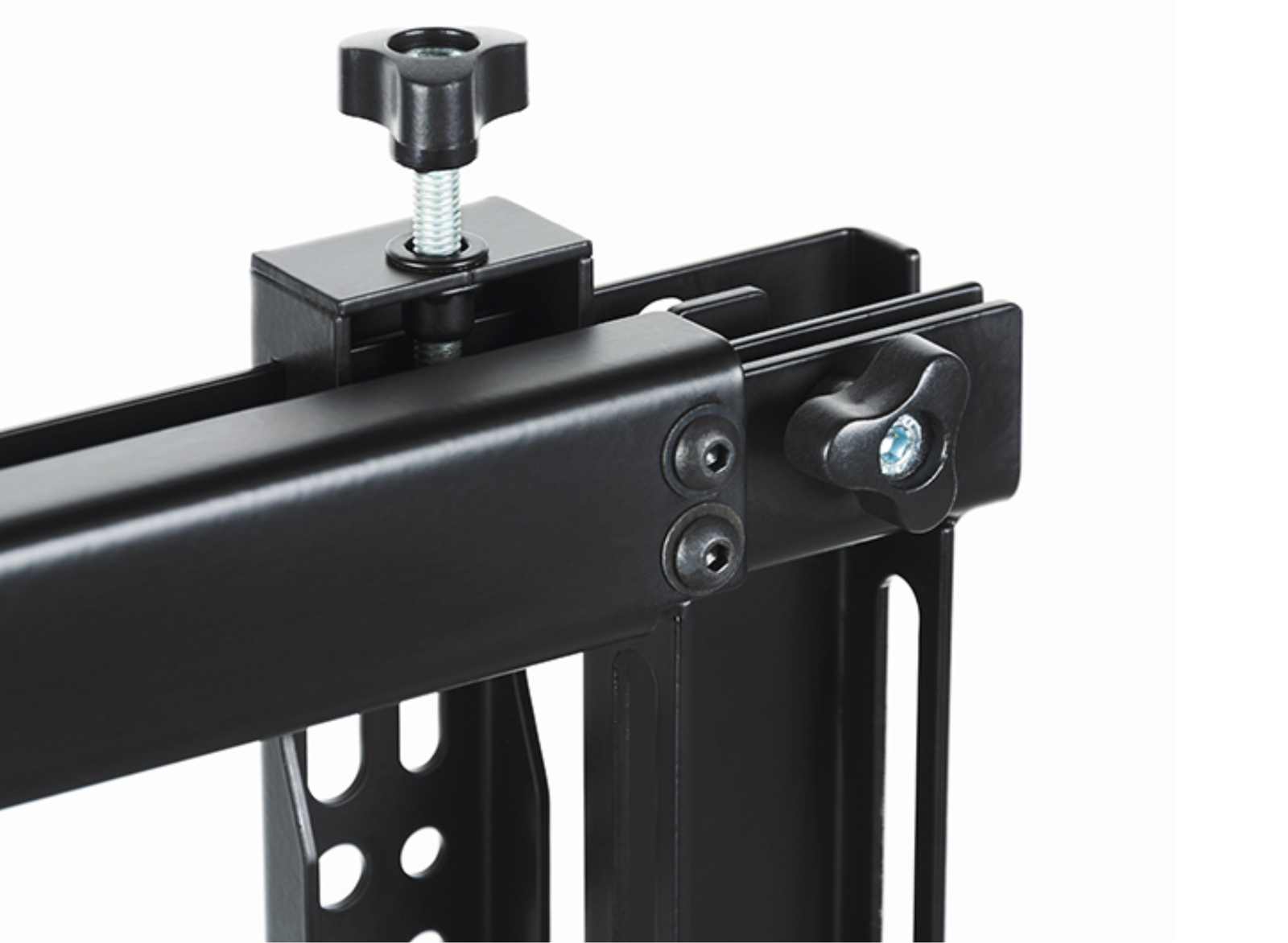

Tool-less micro-adjusment of +/-4mm at each corner for seamless display alignment
Lateral adjustment of screen once mounted
Compatible with B-Tech's collar and pole system for pole mounting screens
Safety screws help prevent unauthorised removal of screens
All mounting hardware included
-
For sreen sizes 42" (106cm) - 70" (177") Max load 35kg (77lbs) VESA® compatibility up to 600 x 400* Universal fixings up to 442 x 436mm (17.5" x 17") Depth flat to the wall 77.5mm* (3") (+/-4mm (0.16") with micro-adjustment) Depth popped out 260mm* (10.2") (+/-4mm (0.16") with micro-adjustment) Screen height adjustment +13mm (0.5") Note Using the included Interface Adaptor Arms to mount VESA 600 x 400 screens increases total depth by 6mm, for a total depth of 83.5mm, or 260mm whilst popped out (+/-4mm micro-adjustment). -
Description Downloads Specification Sheets Download Installation Guide Download Technical Drawings Download
