Enter your screen SKU and we will instantly check whether this mount is suitable for your display based on VESA pattern compatibility.

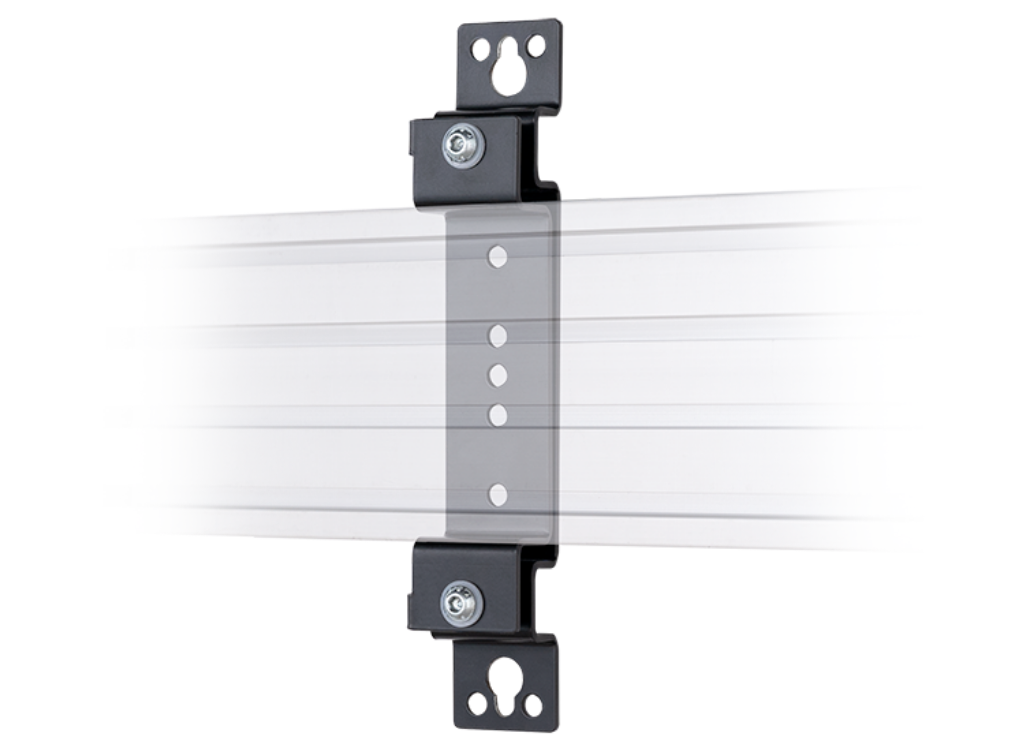

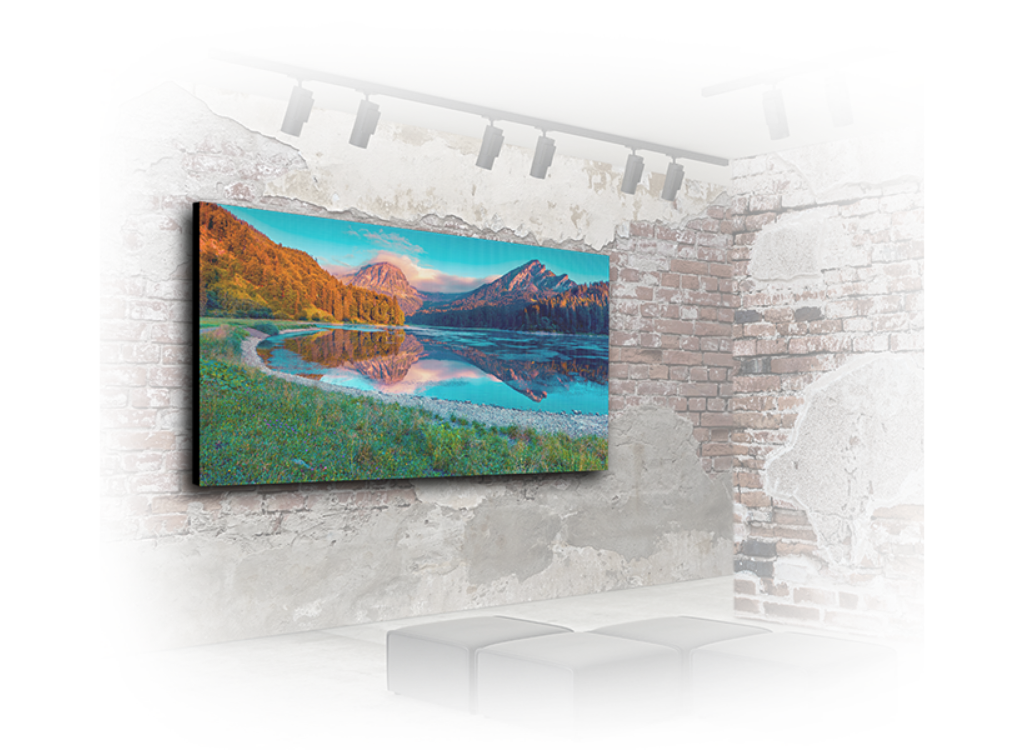

The BT8390-WFK5 is an adjustable bracket designed to fix BT8390 and BT8393 rails to uneven walls for a level installation. The BT8390-WFK5 is also compatible for pole and column mounting using B-Tech's System 2 and System X mounts. Ideal for DVLED mounting, the bracket features keyhole fixings for a quick installation and an easy to use rail depth adjustment.
Features
Designed to allow BT8390 horizontal and BT8393 vertical rails to be mounted to walls and poles

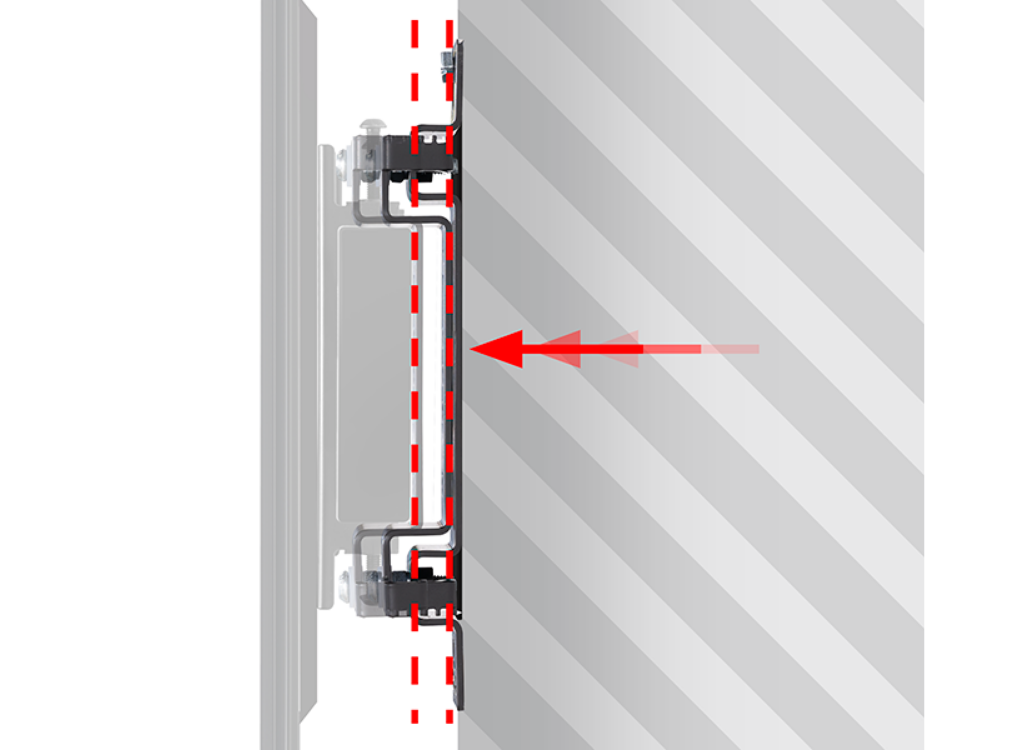

Mounts rail 13mm from the wall with a +/-5mm adjustable depth to ensure a flat to the wall installation
Can also be pole mounted using B-Tech accessory collars
Keyhole mounting for easy installation

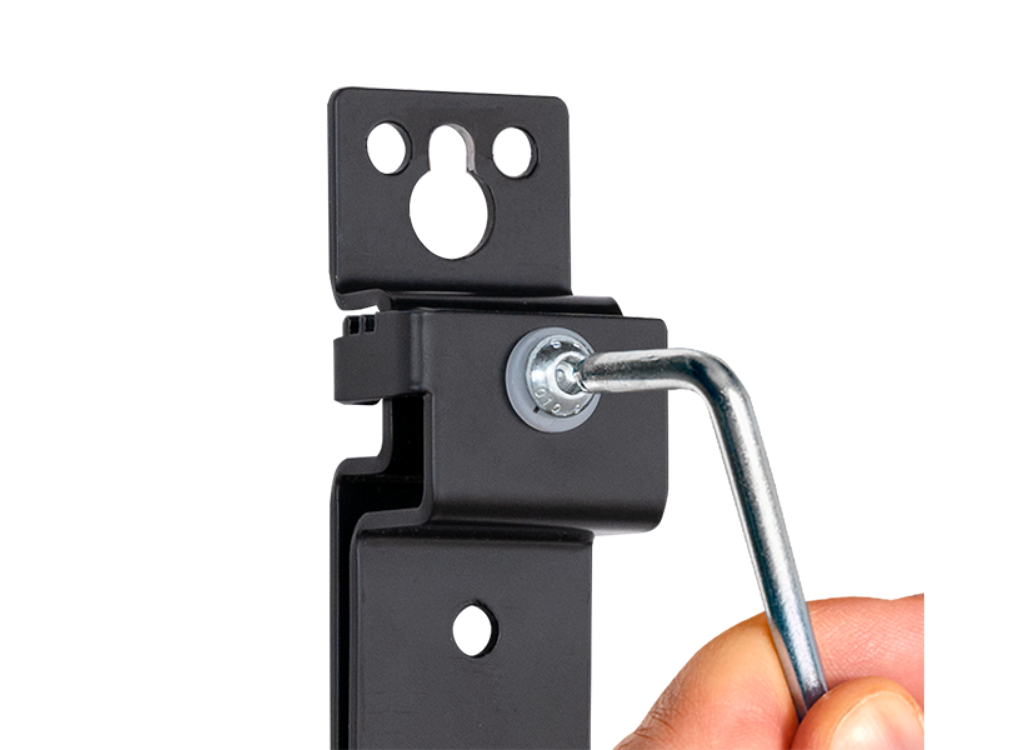

Easy adjustment of the depth of the rails with the use of the supplied Hex Key
Integrated adjustment guides help align rails
All mounting hardware included
TUV certified
| Feature | Description |
|---|---|
| Wall to Rear of Rail Distance | 13mm (0.5") (+/- 5mm) |
| Dimensions Min | W: 45mm (1.77") H: 270mm (10.6") D: 40mm (1.57") |
| Dimensions Max | W: 45mm (1.77") H: 270mm (10.6") D: 50mm (2") |
| Max Load (per pair) | 80kg (176.4lbs) |
| Brackets Supplied (per pack) | 1 |
| Colour | Black |
| Description | Downloads |
|---|---|
| Specification Sheets | Downloads |
| Installation Guide | Downloads |
