B-Tech BT893-FD025/BB 0.25M Fixed Drop Heavy Duty Projector Ceiling Mount - For Projectors Up To 70kg
SKU: BT893-FD025/BB
£407.21 (Excl. VAT)
Check display compatibility before you buy
Enter your screen SKU and we will instantly check whether this mount is suitable for your display based on VESA pattern compatibility.
- Description
- Specifications
- Downloads
-

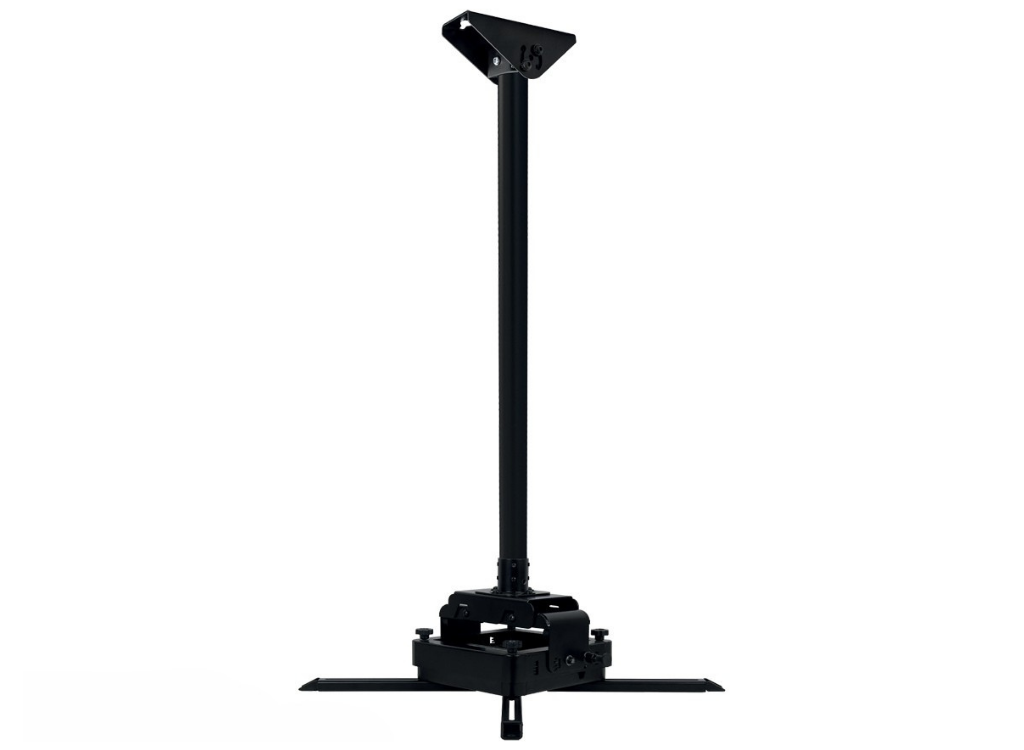

B-Tech BT893-FD025/BB 0.25M Fixed Drop Heavy Duty Projector Ceiling Mount - For Projectors Up To 70kg
Designed to mount projectors up to 70kg from the ceiling, the BT893-BB heavy duty projector is available in a range of fixed ceiling drop lengths and features an adjustable ceiling plate for use with angled ceilings. Easy adjustment of tilt, yaw and roll, with additional micro-adjustment at each corner makes alignment of projections quick and simple. The BT893 ideal for large scale and precision applications such as events and staging or for edge-blending and projection mapping.
Features
Designed to mount heavy duty projectors from the ceiling

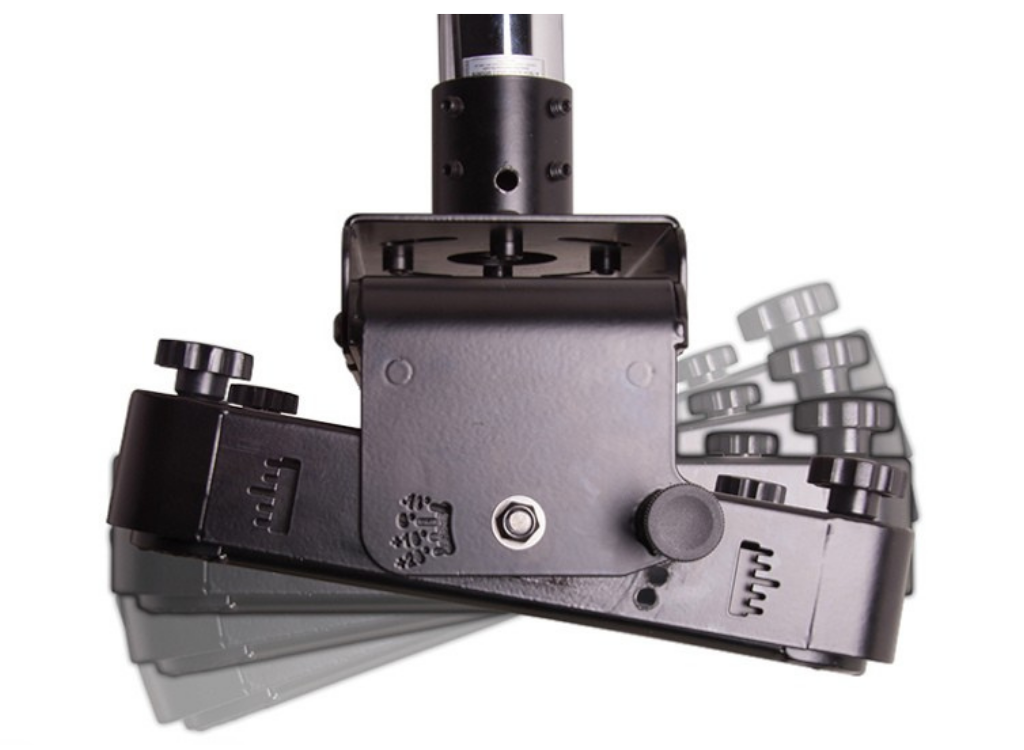

Features easy, incremented tilt adjustment

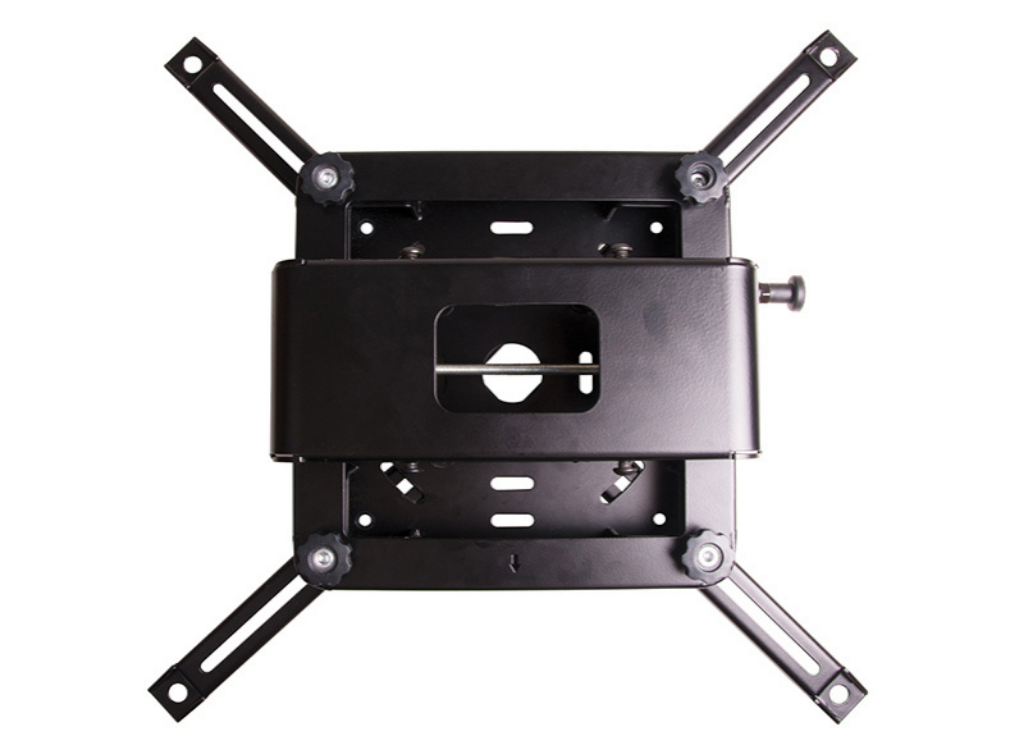

Extendable mounting plate features 4-point micro-adjustment for perfect
alignment of the projected images
Micro-adjustment is altered using thumbwheels for better grip and a more
controlled adjustment
Quick and easy assembly

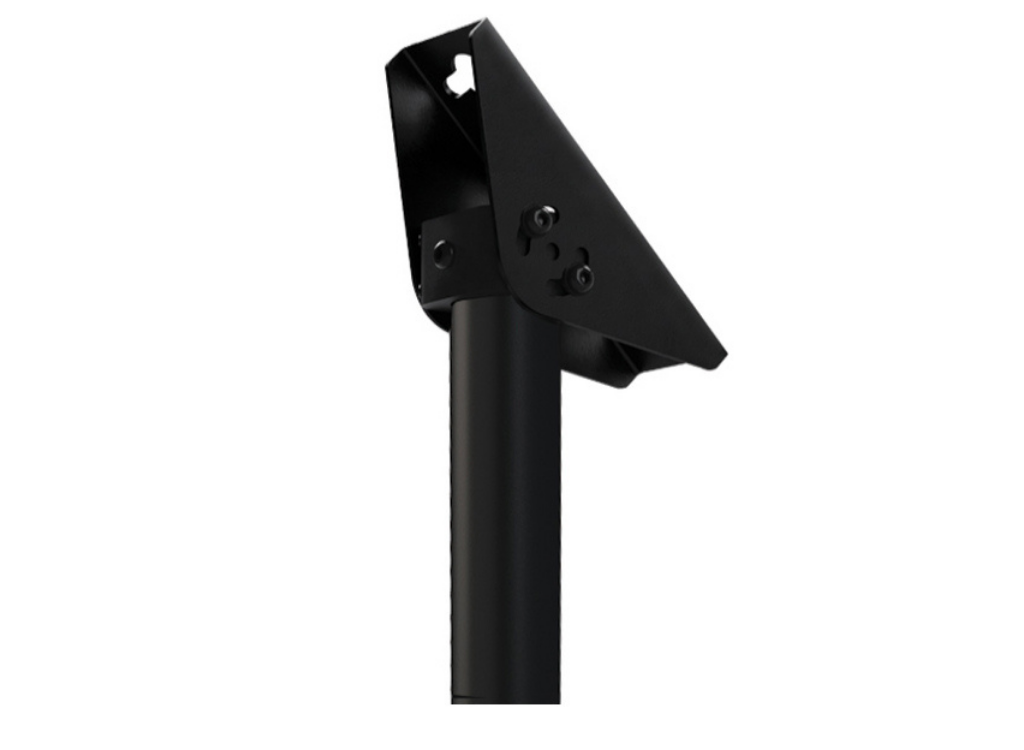

Adjustable ceiling plate suitable for angled ceilings
Optional extension legs can be used to accommodate larger fixing patterns
Ø50mm pole is internally unobstructed for cables to pass through easily
Suitable for projectors using M6, M8, M10 and M12 fixings -
Specification Details Colours Available Black, Silver, Chrome Custom Length Option Can be cut to length if required Cable Management Internally unobstructed for easy cable routing Safety Feature Safety bolt holes at top and bottom Pole Linking Compatible with BT7823 or BT7824 Joiners Included Accessory BT7057 pole ring included Max Weight Capacity 140 kg (308 lbs) -
Description Downloads Specification Sheet Downloads Installation Guide Downloads
