B-Tech BT893/W Heavy Duty Projector Ceiling Mount With Micro-Adjustment For Up To 70kg Projectors
SKU: BT893/W
£332.50 (Excl. VAT)
Check display compatibility before you buy
Enter your screen SKU and we will instantly check whether this mount is suitable for your display based on VESA pattern compatibility.
- Description
- Specifications
- Downloads
-
B-Tech BT893/W Heavy Duty Projector Ceiling Mount With Micro-Adjustment For Up To 70kg Projectors

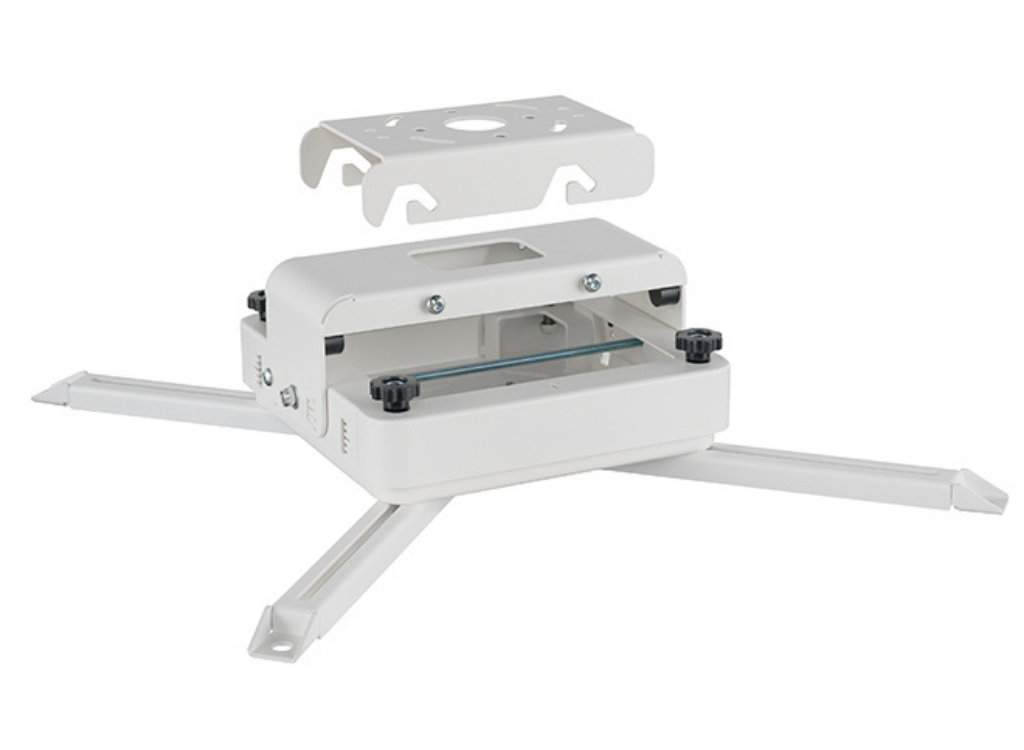

Designed to mount projectors up to 70kg, this heavy duty projector mount can be fixed directly to the ceiling or can be mounted to any B-Tech Ø50mm pole (ideal for installing in areas with high ceilings where a larger ceiling drop is required). The projector fixes to an extendable mounting plate, with optional extension legs included to accommodate larger fixing patterns. The mounting plate of the BT893 uses 4-point micro-adjustment for added flexibility, so that a perfectly aligned projection can be achieved.
Features
Designed to mount heavy duty projectors to the ceiling
Features easy, incremented tilt adjustment
Micro-adjustment thumbwheels at 4-points for controlled and precise adjustment of the projector
Ideal for use with projection mapping projectors
Quick and easy assembly
Can be mounted to the ceiling directly or to any B-Tech Ø50mm pole
Portrait and vertical mounting - Just add x2 BT7052 collars

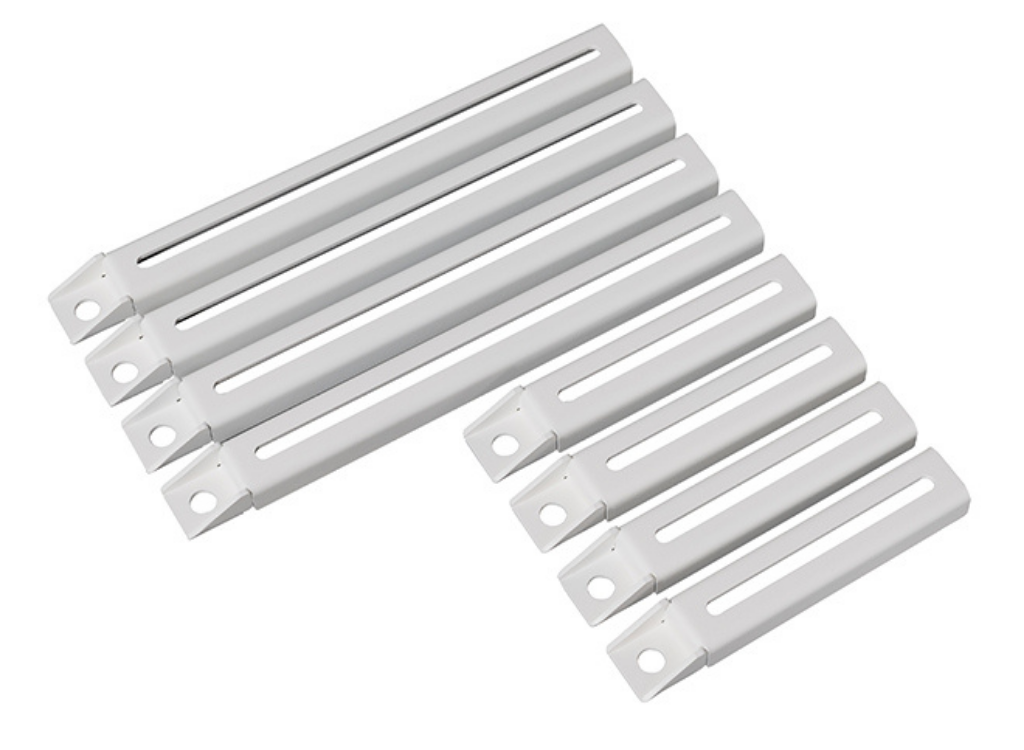

Optional extension legs can be used to accommodate larger fixing patterns
Suitable for projectors using M6, M8, M10 and M12 fixings
All mounting hardware included -
Specification Details Maximum Load 70 kg (155 lbs) Tilt (Pitch) +20° / -10° (+/-5° micro-adjust) Yaw (Ceiling Mounted) 25° Yaw (Pole Mounted) 45° Roll +/-5° Max Distance Between Fixings 873 mm (34.4") Max Distance (Square Fixing Pattern) 618 mm (24.3") Colour Options Black or White -
Description Downloads Specification Sheet Downloads Installation Guide Downloads
