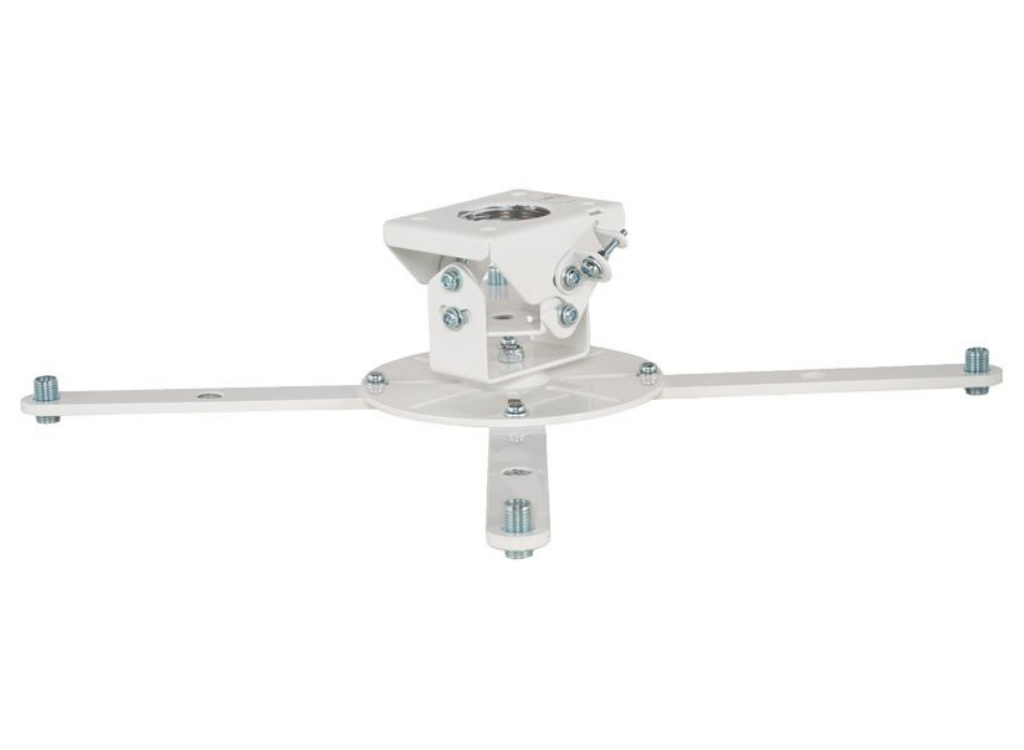

B-Tech BT899XL/W Extra-Large Projector Ceiling Mount With Micro-Adjustment For Up To 25kg Projectors

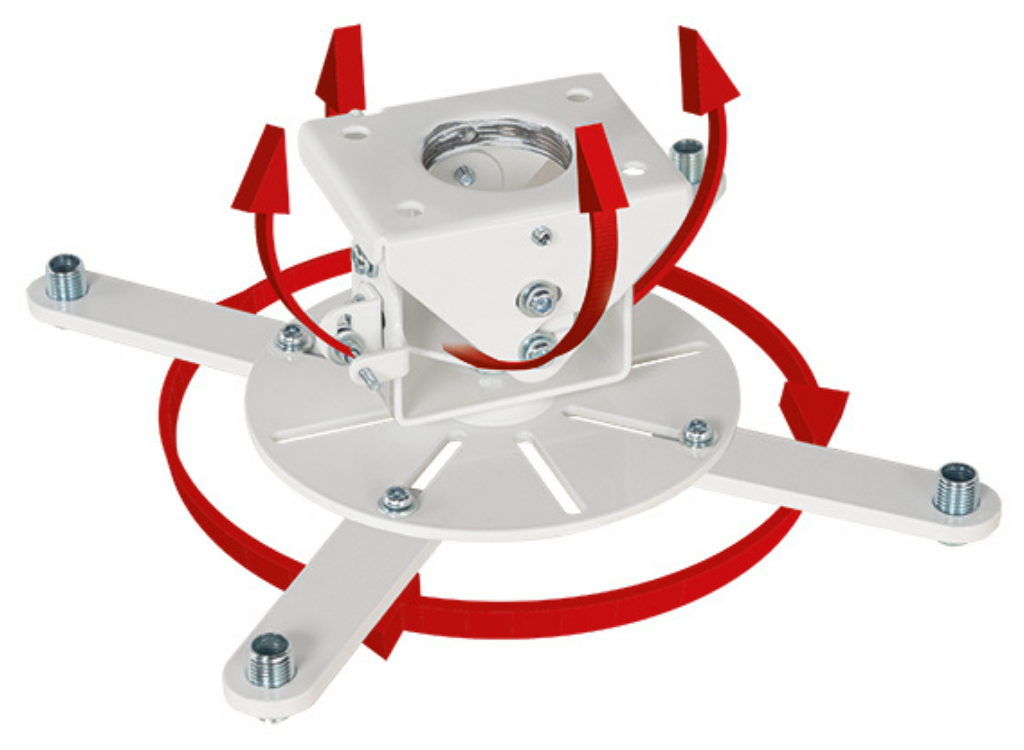

BT899XL is a universal projector ceiling mount designed to mount projectors up to 25kg. Compatible with B-Tech's System 2 professional range, this mount can be fitted flush to the ceiling or attached to BT7850 Ø50mm poles using the supplied pole adaptor. The Projector Mount is designed with easy adjustment of tilt, roll and swivel and optional micro-adjustment for short throw projectors making this mount the ideal solution for installing heavy duty projectors.
Features
Integrated cable management for smart installation
Can be mounted directly to the ceiling or onto a pole
The 52mm collar is compatible with 50mm (2") pole systems including
B-Tech System 2 and 1.5" NPT pipe systems
Pre-assembled for simple three step installation

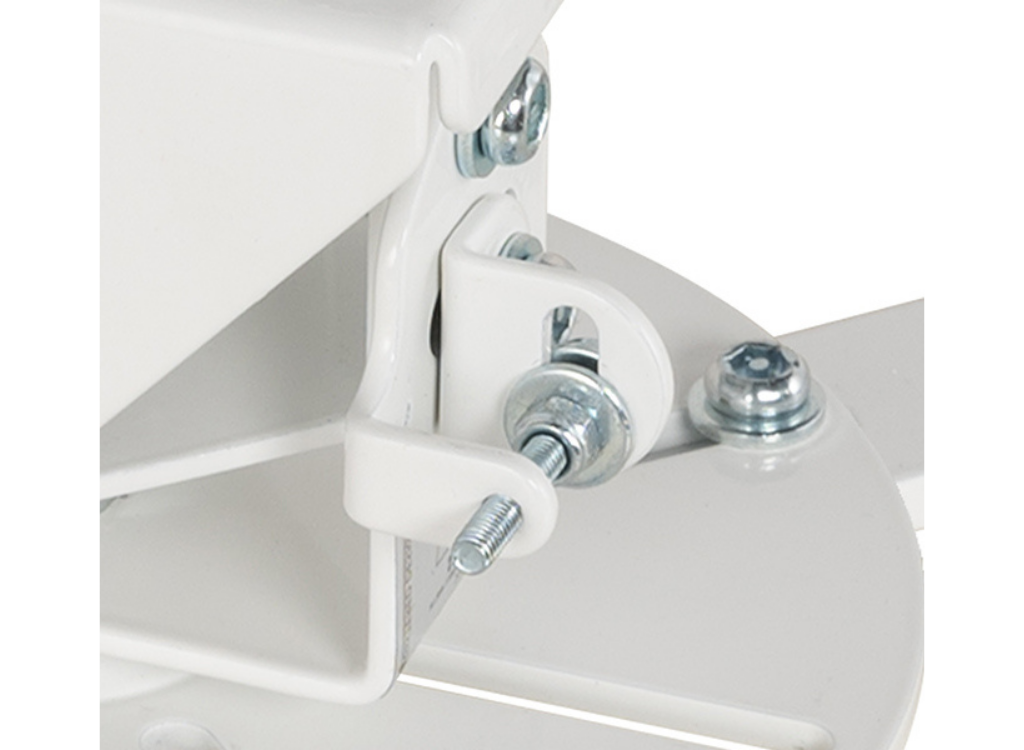

Micro-adjustment for short throw projectors
Security locking screws and allen key provided for a secure installation
Unique ‘Carousel’ mounting plate for universal compatibility
Suitable for projectors using M2.5, M3, M4, M5 and M6 fixings
All mounting hardware included
| Specification | Details |
|---|---|
| Max Load | 25 kg (55 lbs) |
| Tilt (Pitch) | +/-13° |
| Roll | +/-6° |
| Yaw (Swivel) | 360° |
| Ceiling Drop | 98.5 mm (3.9") |
| Max Distance Between Fixings | 493 mm (19.4") |
| Colour Options | Black, White, or Chrome Pole |
| Description | Downloads |
|---|---|
| Specification Sheet | Downloads |
| Installation Guide | Downloads |
