Enter your screen SKU and we will instantly check whether this mount is suitable for your display based on VESA pattern compatibility.

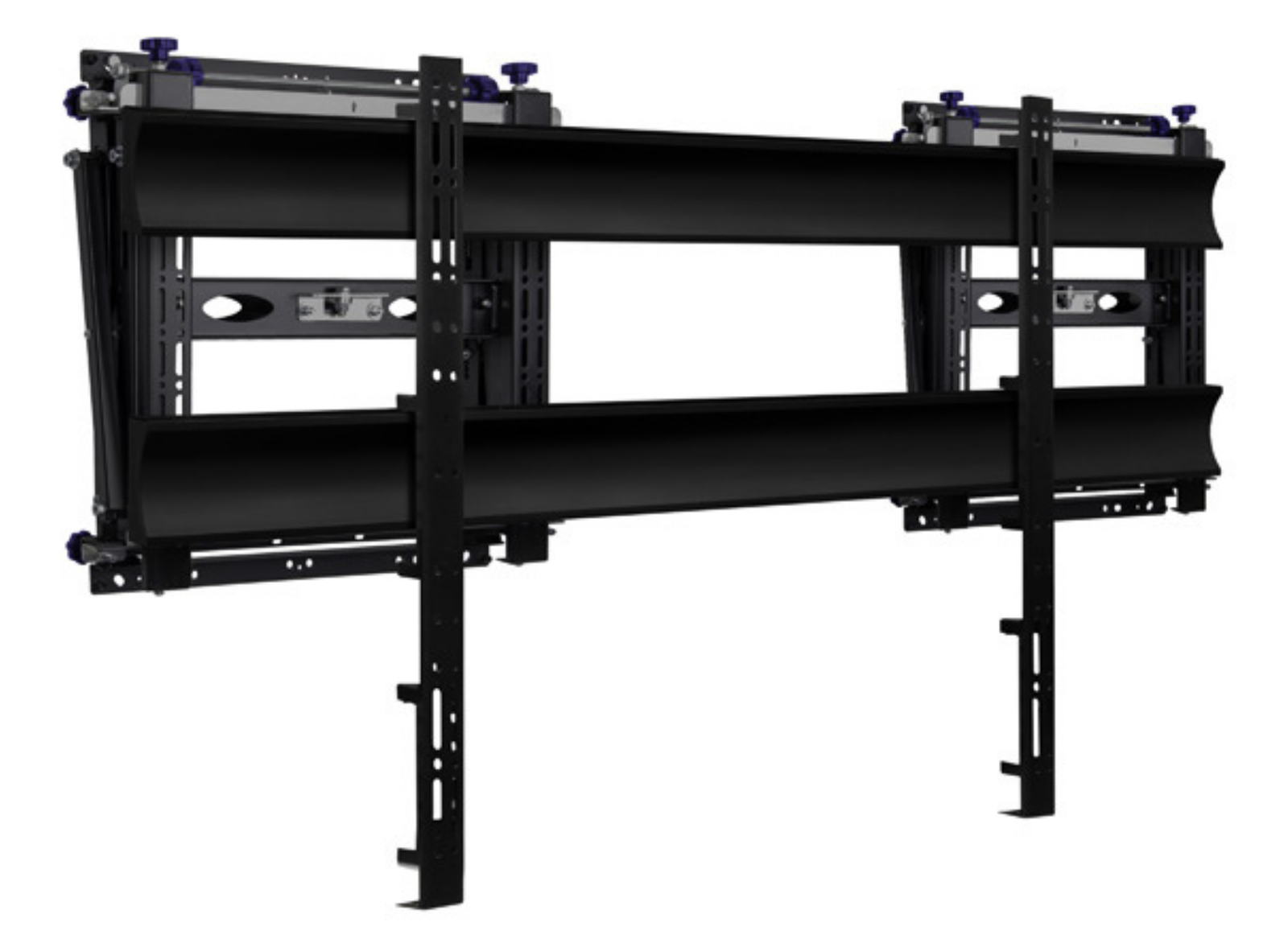

BT9926 is a dual rail, pop-out wall mount solution designed for extra large 21:9 ultra-wide signage displays. The screen is securely mounted across dual horizontal rails, for a straightforward hook-on installation. The mount features an easy to use push-to-release soft pop-out feature, which allows for easy access during servicing. Additionally, micro-adjustment thumb wheels enable precise screen alignment, ideal for recessed installations.
Features
Designed to wall mount 21:9 ultrawide signage displays
Universal design suitable for other extra-large screens over 80"

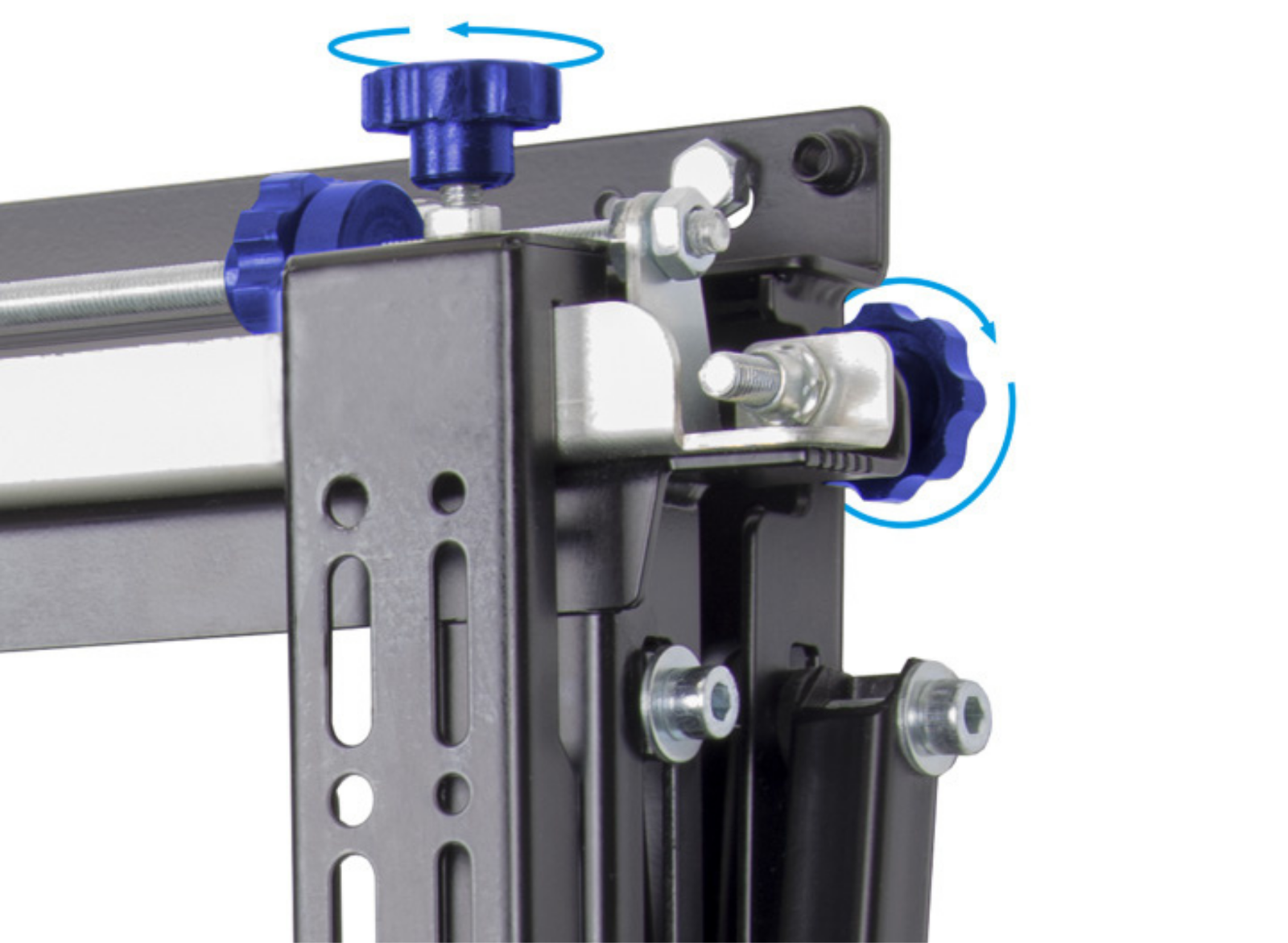

Tool-less micro-adjustment of +/-7mm

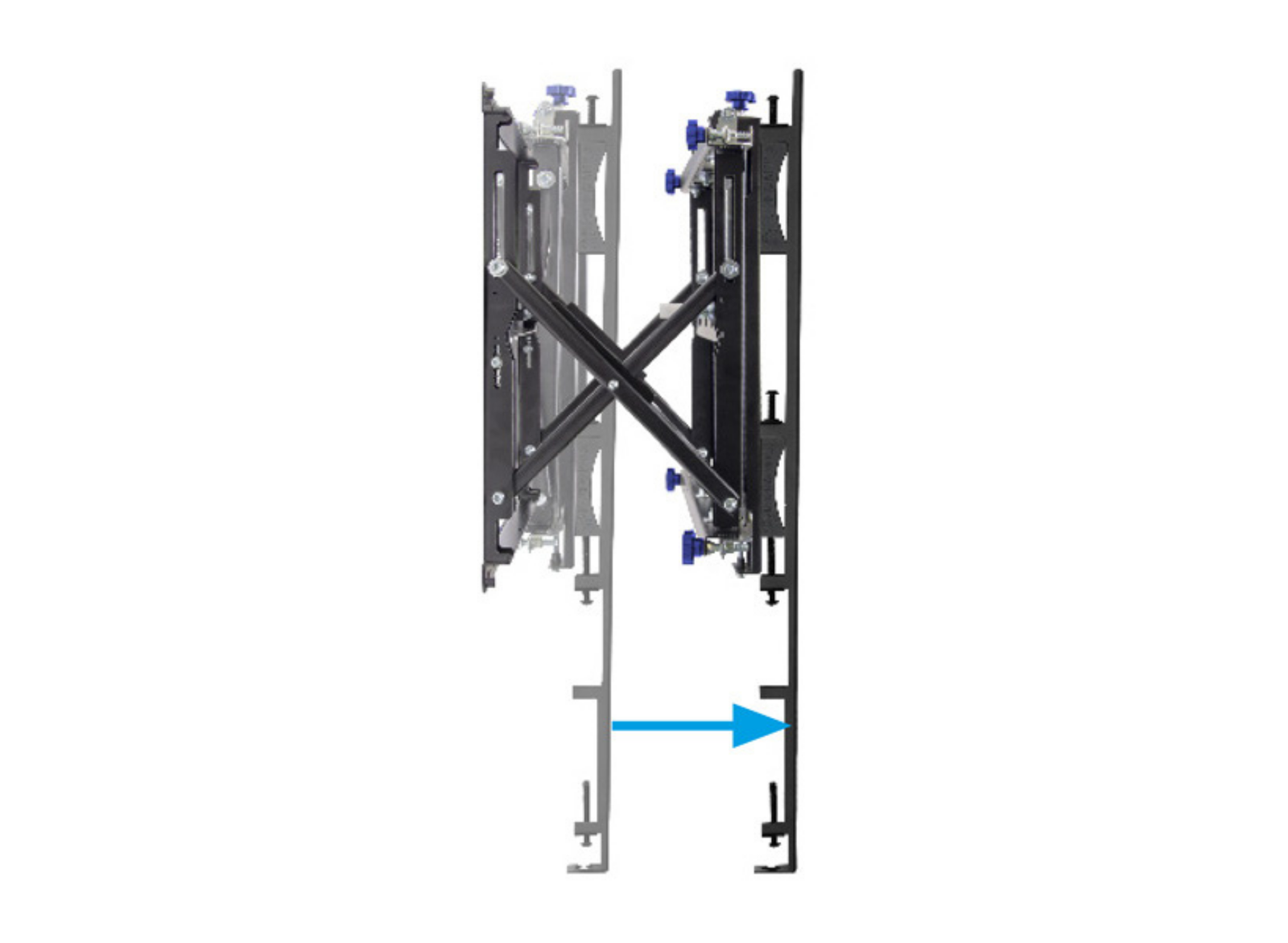

Pop-out system provides a safe and easy service access
Straightforward 'hook-on' installation

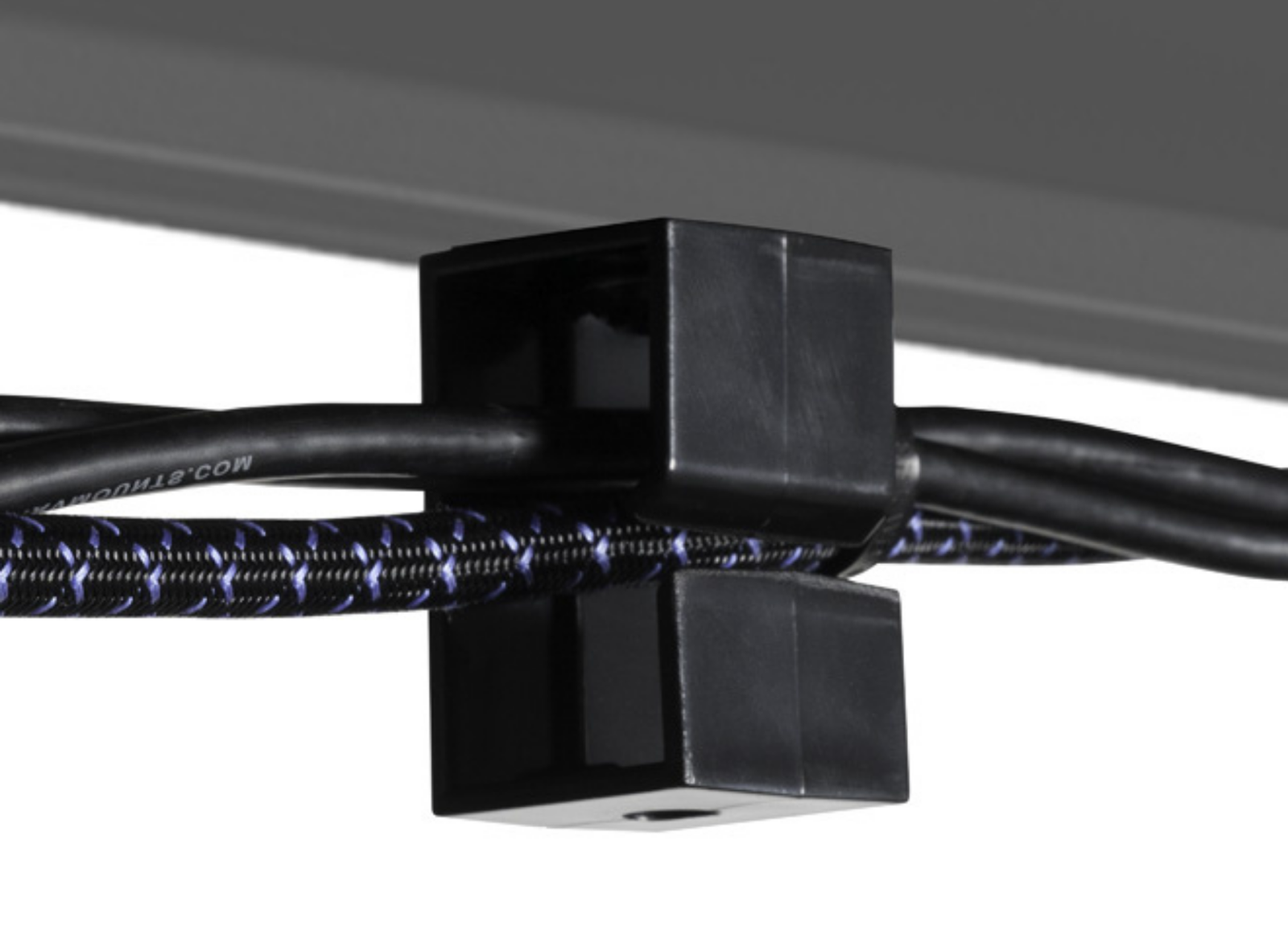

Cable management clips included to keep the installation tidy
Ideal for recess mounting
Features depth, height and lateral micro-adjustment
Keyhole fixings on wall plates for an easier installation
Safety screws help prevent unauthorised removal of screens
All mounting hardware included
Suitable use with: Jupiter Pana105T, Avocor AVL-1050-T & Viewsonic IFP105S displays
| Recommended screen size | 80” (203cm) up to 120" (305cm) | Max load | 200kg (440lbs) |
| VESA® and non-VESA Fixings | up to 1600 x 800mm | Flat to wall depth | 146.5mm (5.7") (+/-7.5mm with micro-adjustment) |
| Popped out depth | 338.5mm (13.3") (+/-7.5mm with micro-adjustment) | Tool-less micro-adjustment | +/-7.5mm per corner |
| Colour (mounting rail) | Black or Silver | Colour (VESA arms) | Black |
| Description | Downloads |
|---|---|
| Specification Sheets | Download |
| Installation Guide | Download |
| Technical Drawings | Download |
