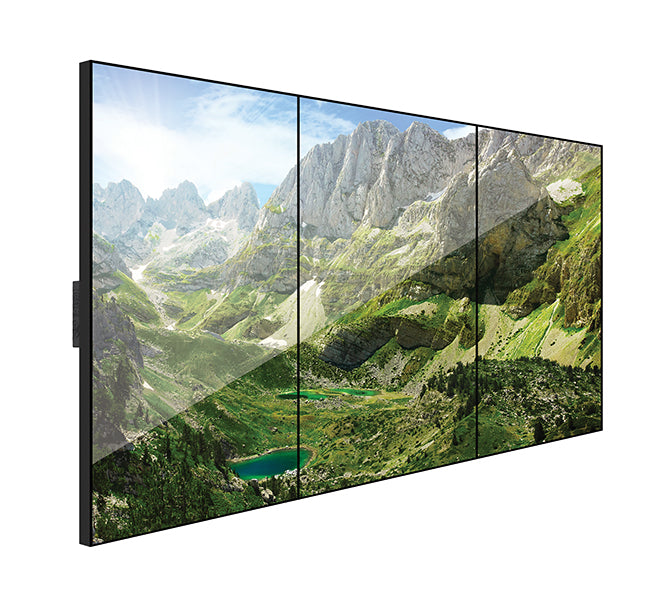

B-Tech Universal Menu Board Mounting System - Modular Wall Mount for Up to 3x 55” Screens
SKU: BT8330-WL3X1-55-T
£899.00 (Excl. VAT)
Check display compatibility before you buy
Enter your screen SKU and we will instantly check whether this mount is suitable for your display based on VESA pattern compatibility.
- Description
- Specifications
- Downloads
- Warranty
-
-

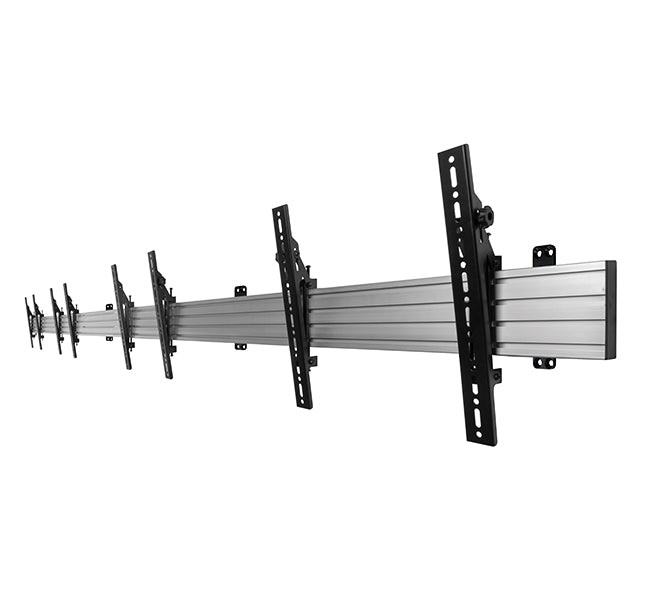

Elevate your menu board game with the BT8330, the ultimate modular wall mounting system designed to cater to your menu board installation needs. Whether you're a small coffee shop or a large fast-food chain, the BT8330 can be tailored to your unique requirements.
Featuring a versatile design, the BT8330 can mount screens in both landscape and portrait orientations, providing maximum flexibility for showcasing your menu items. The tilt adjustment feature, with an impressive range of up to +20°, ensures that your menu board is easily visible from all angles.
As part of the System X range, the BT8330 can be configured in thousands of different setups to cater to your specific needs. You can easily customize your order using B-Tech's online configuration tool to get the perfect fit for your establishment.
Upgrade your menu board and make a lasting impression with the BT8330's sleek design and advanced features, perfect for fast food restaurants and businesses of any size.
- Universal design suitable for all sized screens up to 50kg (per screen)
- High-end aesthetic quality
- Suitable for landscape or portrait mounting

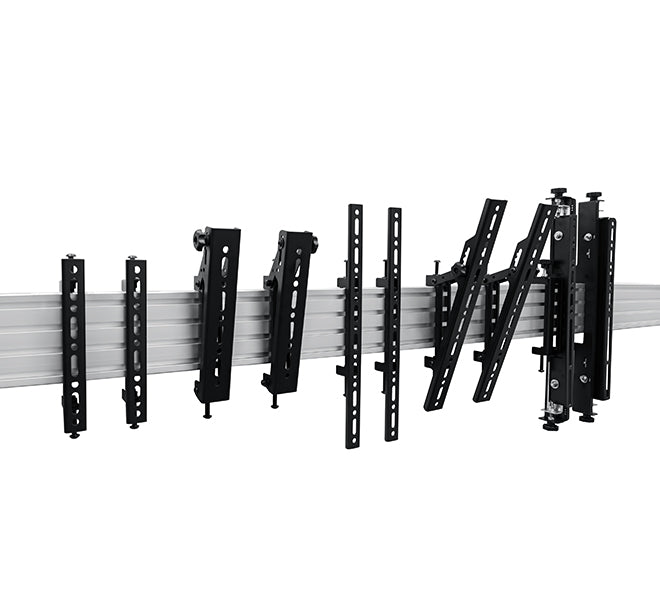

- Choice of fixed or tilting interface arms available to suit a range of installs
- Can be used with BT8390-VESA400MAF micro-adjusment arms if desired
- Can be used to mount XXL screens with vertical fixings of 800mm*
- All arms feature levelling screws to adjust the screen height
- Tilting arms feature up to +20° tilt adjustment for enhanced overhead visibility

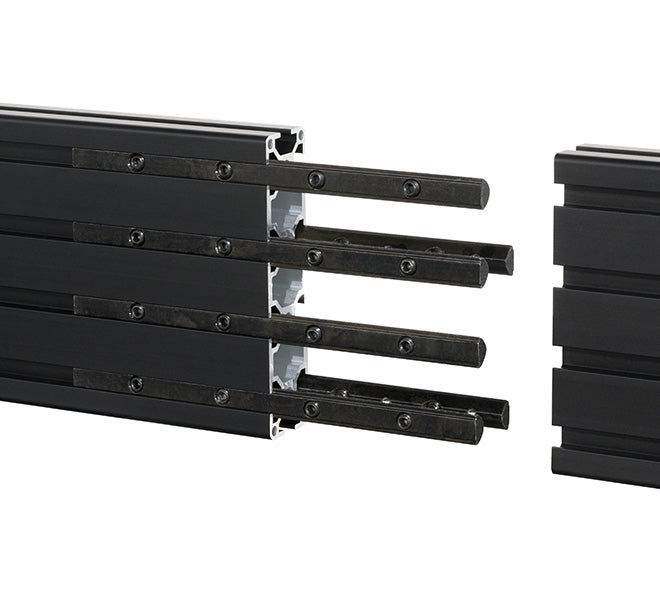

- Multiple rail lengths available (rails can be also be joined)
*Please see the BT8390-VESA800F interface arms on our website or
contact your local sales representative for more details.
-
-
- Recommended screen size: 32” (81.3cm) - 75" (190cm)
- Max load: 50kg (110lbs) (per screen)
- VESA® & non-VESA fixings: up to 900mm*
- Tilt (tilt arms only): +20°
- Distance from wall (fixed arms); 48mm (1.9")**
- Distance from wall (tilt arms): 58.4mm (2.3")
- Distance from wall (micro-adjustment arms):86mm (+/-10mm)
- Colour (VESA arms): Black
- Colour (horizontal rail): Silver or Black
*Refers to maximum vertical fixing dimension for a typical configuration. Correctly sized interface arms and adaptors will be supplied as necessary to suit the mounting pattern you require.
**Please see the BT8390-VESA800F interface arms on our website or contact your local sales representative for more details.
-
Specification Sheet Installation Guide Technical Drawing English (PDF) PDF PDF Français (PDF) - DXF Español (PDF) - - Deutsch (PDF) Montageanleitung - -
