B-Tech Universal Pop-Out Menu Board Mounting System – Modular Wall Mount for Up to 5x 55” Screens
SKU: BT8331-WL5X1-55-P
£2,290.43 (Excl. VAT)
Check display compatibility before you buy
Enter your screen SKU and we will instantly check whether this mount is suitable for your display based on VESA pattern compatibility.
- Description
- Specifications
- Downloads
- Warranty
-
-

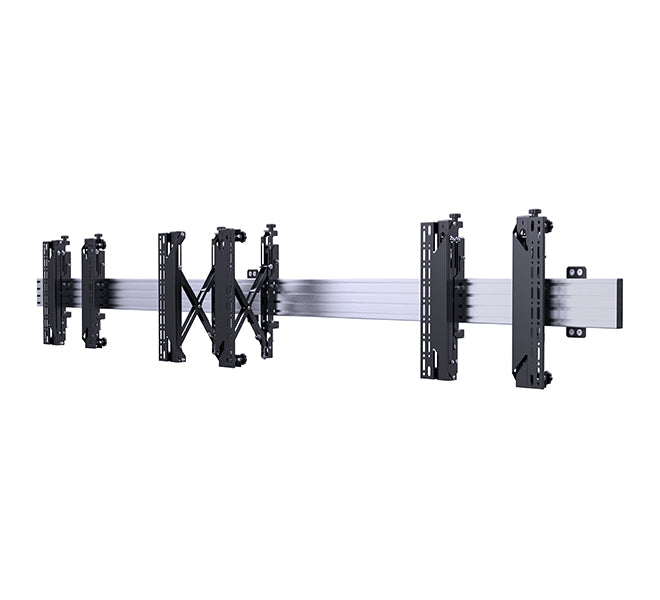

Introducing the BT8331, the ultimate modular wall mounting system for your menu board needs. Whether you're a small business or a large franchise, this system is designed to cater to your installation requirements.

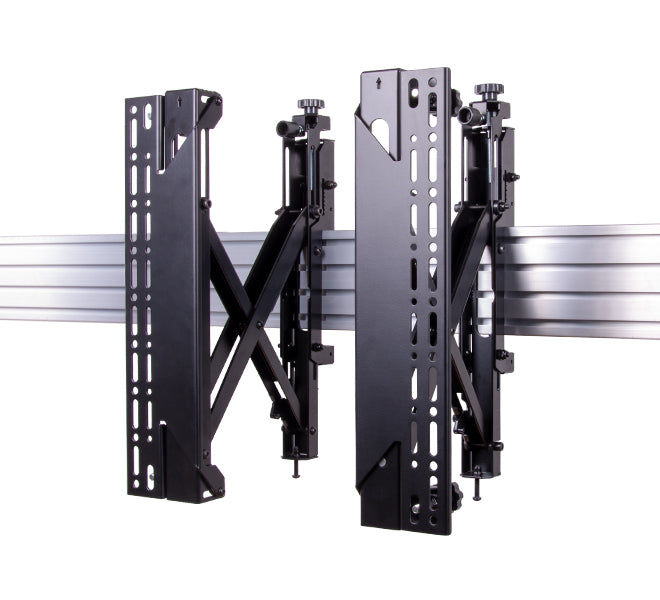

With pop-in, pop-out interface arms, the BT8331 makes installation and maintenance a breeze. No more struggling to access the back of your screens or taking down the entire board for repairs.
Part of the System X range, the BT8331 boasts a contemporary, lightweight design that is incredibly strong and durable, making it perfect for long-term use. Its high-end aesthetic quality adds a touch of elegance to your establishment.
Featuring micro-adjustment for seamless screen alignment, the BT8331 ensures that your menu board is perfectly aligned, providing a professional look and enhancing the customer experience.
Upgrade your menu board with the BT8331 and enjoy a hassle-free installation process with easy access for maintenance and a sleek, professional design.
- Universal design suitable for all sized screens up to 50kg (per screen)
- High-end aesthetic quality
- Suitable for landscape or portrait mounting
- Choice of fixed or tilting interface arms available to suit a range of installs
- Can be used with BT8390-VESA400MAF micro-adjusment arms if desired
- Can be used to mount XXL screens with vertical fixings of 800mm*
- All arms feature levelling screws to adjust the screen height
- Tilting arms feature up to +20° tilt adjustment for enhanced overhead visibility

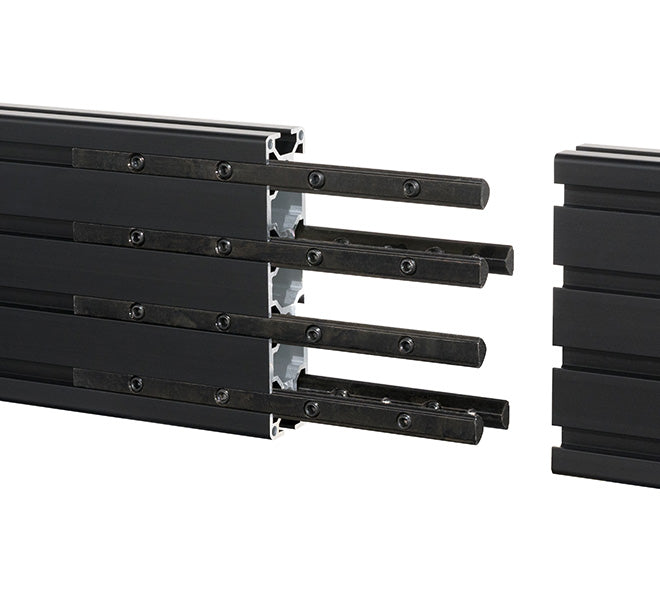

- Multiple rail lengths available (rails can be also be joined)
*Please see the BT8390-VESA800F interface arms on our website or
contact your local sales representative for more details.
-
-
- Recommended screen size: 32” (81.3cm) - 75" (190cm)
- Max load: 50kg (110lbs) (per screen)
- VESA® & non-VESA fixings: up to 900mm*
- Tilt (tilt arms only): +20°
- Distance from wall (fixed arms); 48mm (1.9")**
- Distance from wall (tilt arms): 58.4mm (2.3")
- Distance from wall (micro-adjustment arms):86mm (+/-10mm)
- Colour (VESA arms): Black
- Colour (horizontal rail): Silver or Black
*Refers to maximum vertical fixing dimension for a typical configuration. Correctly sized interface arms and adaptors will be supplied as necessary to suit the mounting pattern you require.
**Please see the BT8390-VESA800F interface arms on our website or contact your local sales representative for more details.
-
Specification Sheets
Specification Sheet - English (PDF)
Fiche de Spécifications - Français (PDF)
Hoja de Especificación - Español (PDF)
Spezifikationsblatt - Deutsch (PDF)
Installation Guide
Montageanleitung - Deutsch (PDF)
Technical Drawing
-
