B-Tech up to 65" Swivel Wall Mount Bracket | BT8226
Designed to mount medium to large sized screens, this universal double arm wall mount features an easy to tilt interface and three swivel points, for a quick, smooth repositioning of the screen - whether folded flat to the wall (at a depth of just 50mm) or at maximum extension. Cover plates and integrated cable management help hide all fixings for a neat and tidy mounting solution, ideal for both commercial and home installations.
Easy tilt and swivel adjustments
Slim-line design allows close to the wall installation when folded flat
Features three swivel points: 180° at wall & interface & 360° at central pivot
Tool-less tilt with option to lock in position

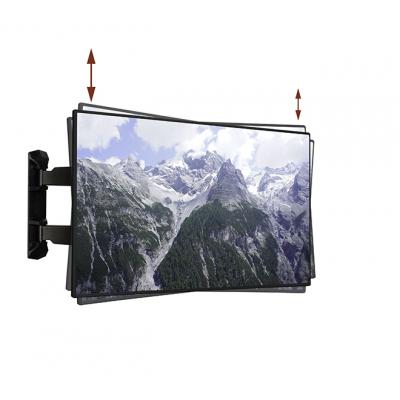

Screen levelling of up to 3° in either direction
Integrated cable management
Attractive cover plates included to hide fixings

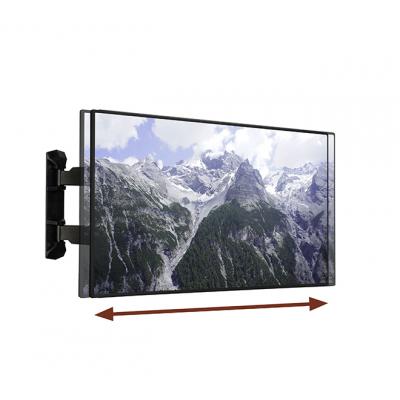

Lateral adjustment of screen once mounted
Keyhole mounting and drilling template for a quick and easy installation
Safety screws help prevent unauthorised removal of screens
Simple 'hook-on' installation with all mounting hardware included
| Specification | Value |
|---|---|
| Recommended Screen Size | up to 65" (165cm) |
| Max load | 35kg (77lbs) |
| VESA® compatibility | up to 600 x 400 |
| Tilt | +14°/-3° |
| Swivel | 180° at wall & interface, 360° at central pivot |
| Distance from wall | Min: 50mm (2") - Max: 574mm (22.6") |
| Colour | Black |
BTECH AV MOUNTS
5 Years Manufacturer Warranty
