Barco ClickShare C‑5 2nd Generation - For Huddle Spaces

The ClickShare C-5 brings simple, wireless collaboration to small meeting rooms and huddle spaces. You and your guests can easily share content to the room display, with just one click in the ClickShare App, from any laptop or mobile device. It offers a full BYOD experience, including screen mirroring with Airplay, GoogleCast and Miracast.

Easy content sharing for huddle and small spaces
Inspire and engage with wireless presentation to any screen
Add digital signage capabilities in any huddle space
Enhanced security, cloud managed and connected solution
ClickShare Button sold separately

Make the most out of ClickShare
Efficient management platform to maintain, manage and monitor your ClickShare fleet
The right tool to increase your meeting rooms´ ROI
Easy to stay up to date and act upon notifications
Secure environment that keeps your data safe

SmartCare so you can be carefree
Service package included with all ClickShare devices
Reliable service with direct vendor support
5-year warranty upon registering your ClickShare devices
5 years of analytics and insights via XMS Cloud to optimize working spaces and increase ROI

Designed with people and planet in mind
Made with non-paint plastics & halogen-free PCB
Lighter, ecological packaging choices and designed for recycling
Energy efficient to reduce your power consumption
Carbon neutral or with a Barco ECO label: A++

Specification	Details
Dimensions (HxWxD)	34 mm x 135 mm x 135 mm
Power supply	Standard 110/220 V AC plug or USB-C (only Gen2)
Power consumption	Operational: 5-10W, 24W Max
Weight	900 gr
Operating system	Windows 10 and higher, macOS 11 (BigSur) and higher, Android v9 and higher (ClickShare App), iOS 12 and higher (ClickShare App)
Video outputs	4K UHD (3840*2160) @ 30Hz. HDMI 1.4b or USB-C DisplayPort 1.2 (only Gen2)
Audio output	HDMI, USB (1 X USB-A, 1 X USB-C)
ClickShare Buttons	0
ClickShare App	Desktop & Mobile
Native protocols	Airplay, Google Cast, Miracast
Maximum simultaneous connections	32
Noise Level	Max. 25dBA @ 0-30°C, Max. 30dBA @ 30-40°C
Authentication protocol	WPA2-PSK in stand-alone mode, WPA2-PSK or IEEE 802.1X using ClickShare Button in network integration mode
Wireless transmission protocol	IEEE 802.11 a/g/n/ac and IEEE 802.15.1
Reach	Adjustable with signal strength modulation; max. 30m (100 ft) between ClickShare Button and ClickShare Base Unit
Frequency band	2.4 GHz and 5 GHz

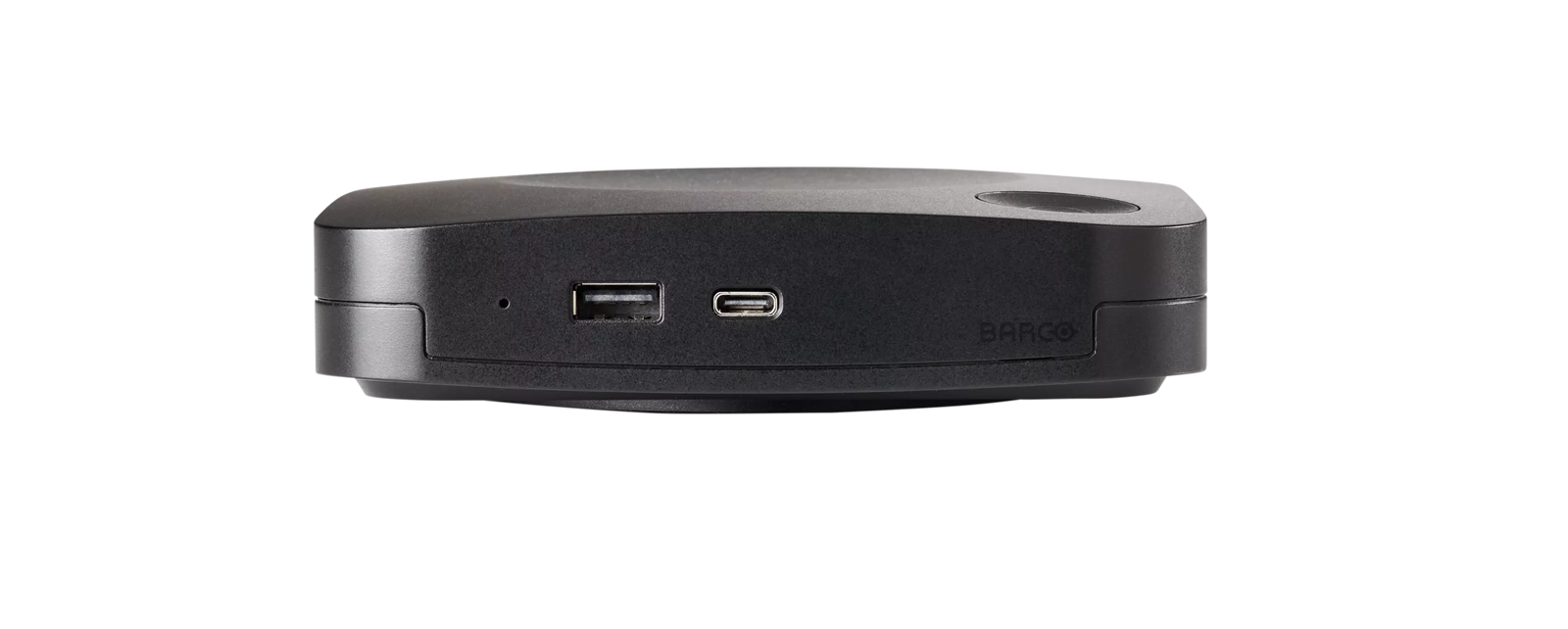

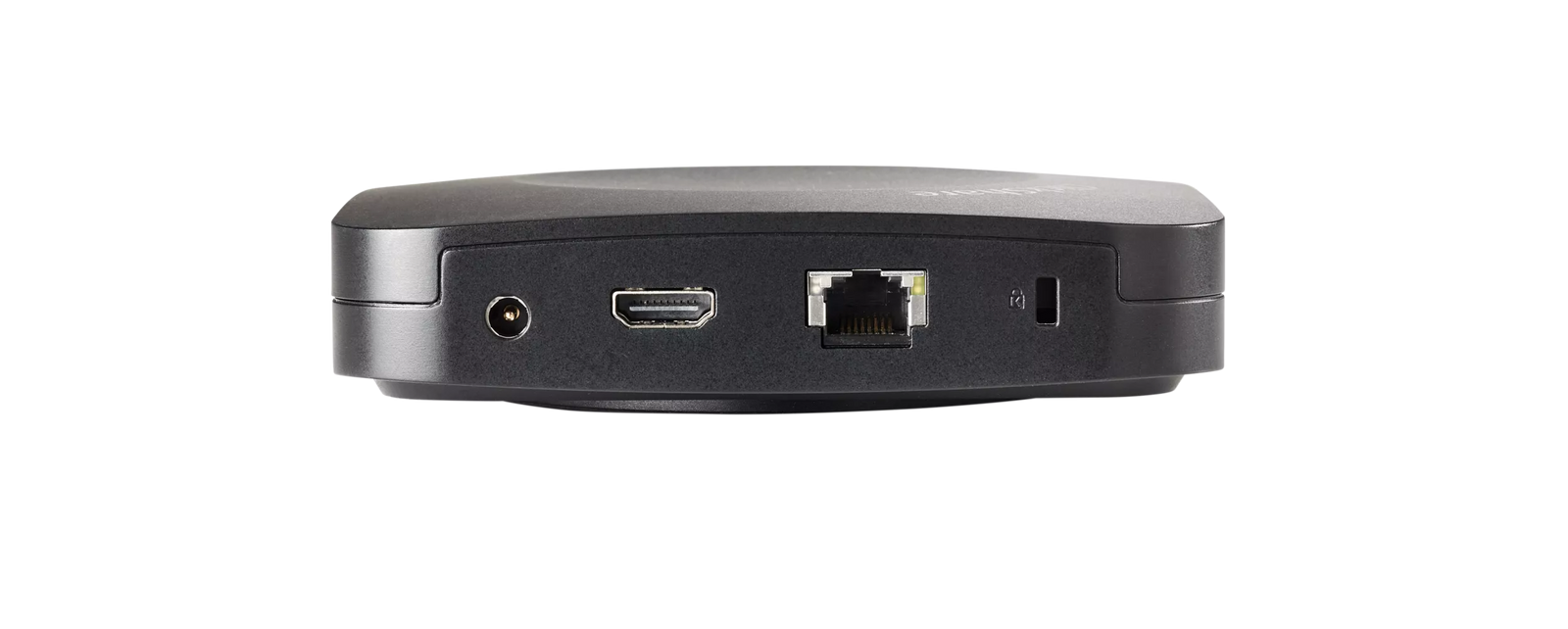

Connections	1x Ethernet LAN 1Gbi, 1x USB-C 2.0 (front); 1x USB-A 2.0 (front) - only Gen2: 1x USB-C 3.0 (front); 1x USB-A 3.0 (front)
Temperature range	Operating: 0°C to +40°C (+32°F to +104°F), Max: 35°C (95°F) at 3000m, Storage: -20°C to +60°C (-4°F to +140°F)
Humidity	Storage: 0 to 90% relative humidity, non-condensing, Operation: 0 to 85% relative humidity, non-condensing
Anti-theft system	Kensington lock
Certifications	FCC/CE
Touch screen support & Interactivity	/
Room Dock (peripheral support)	No
Local view	Local view of the room display only
Network connection	LAN & WiFi
Management and reporting	Yes
Warranty	1 year standard. 5 years coverage via SmartCare
