Barco ClickShare CX‑50 2nd Generation - For Large Meeting Spaces And Boardrooms
SKU: R9861622EUB2
£2,829.32 (Excl. VAT)
£2,829.32 (Excl. VAT)
ClickShare CX-50 enables wireless conferencing in large meeting spaces and board rooms. When you walk into the meeting room, ClickShare automatically connects you to room devices like cameras, mics, speakers, sound bars and displays.
Start a meeting from your laptop within seconds, using your preferred video conferencing platform. Make hybrid meetings easy, with just one click on the ClickShare Button or the ClickShare App, both for employees and guests.
More engaging video collaboration
Allows up to 2 users, including guests, to share content simultaneously to the room display
Interactive features like annotation, blackboarding and touchback function on a 4K canvas
Automated start and advanced sharing options for more intuitive meetings
A user-friendly experience and enhanced security
Designed for enterprise rollouts, it offers enhanced security and the widest range of network and AV integrations
Works seamlessly with a large selection of peripherals and digital signage solutions
Use it as a standalone product or integrated into any meeting room, including Microsoft Teams Room or Zoom Room
Make the most out of ClickShare
Efficient management platform to maintain, manage and monitor your ClickShare fleet
The right tool to increase your meeting rooms´ ROI
Easy to stay up to date and act upon notifications
Secure environment that keeps your data safe
SmartCare so you can be carefree
Service package included with all ClickShare devices
Reliable service with direct vendor support
5-year warranty upon registering your ClickShare devices
5 years of analytics and insights via XMS Cloud to optimize working spaces and increase ROI
Designed with people and planet in mind
Made with non-paint plastics & halogen-free PCB
Lighter, ecological packaging choices and designed for recycling
Energy efficient to reduce your power consumption
Carbon neutral or with a Barco ECO label: A++
| Feature | Details |
|---|---|
| Dimensions (HxWxD) | 39mm x 200mm x 202mm |
| Power supply | Standard 110/220 V AC plug |
| Power consumption | Operational: 50W (max) Standby: <8W (networked standby), < 0.5W (deep standby mode) |
| Weight | 900 gr |
| Operating system | Windows 10 or higher, macOS 11 (BigSur) and higher, Android v11 and higher (ClickShare App), iOS 14 and higher (ClickShare App) |
| System requirements | Minimum: Intel i3 dual-core processor / 8GB RAM / OS : Windows 10 latest build or Mojave latest build Recommended: Intel i5 4-core processor / 8GB RAM / OS: Windows 10 latest build or Mac OS latest build |
| Video outputs | 4K UHD (3840*2160) @ 30Hz. HDMI 1.4b |
| Video inputs | 1920x1080 @30Hz. HDMI 1.4b |
| Audio output | USB, SPDIF, jack, HDMI |

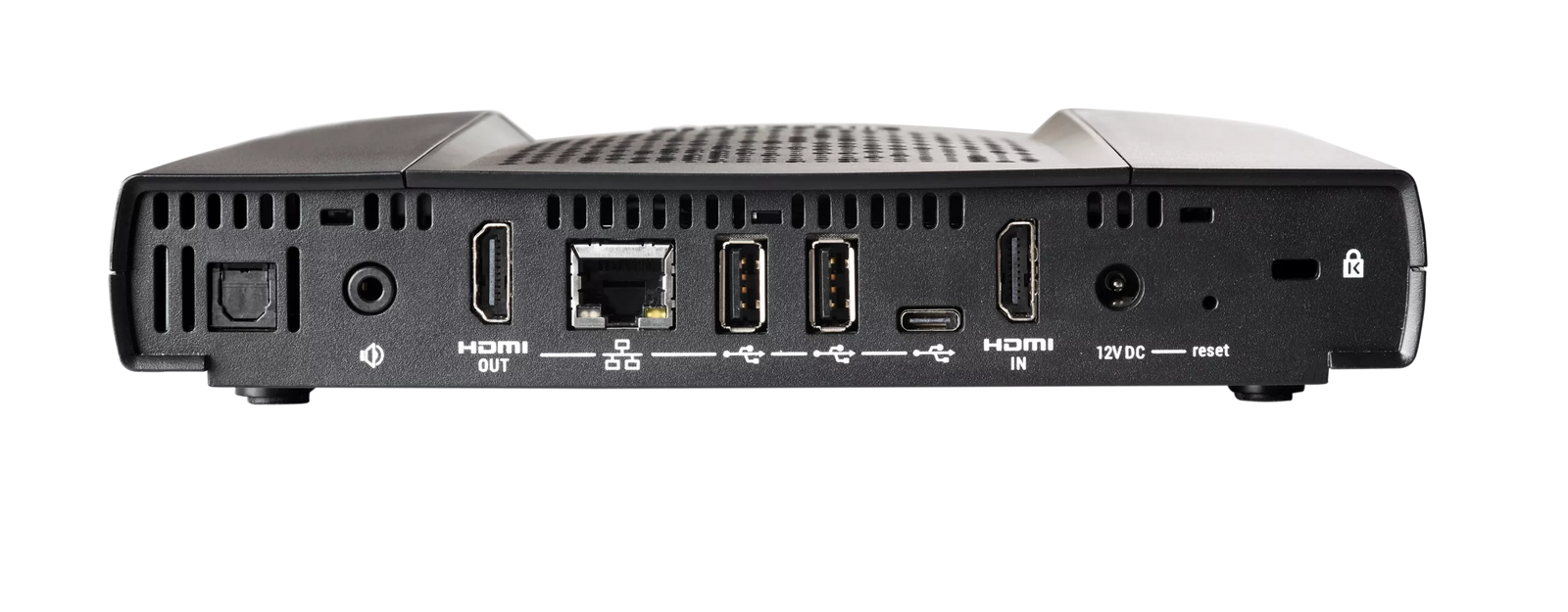

| Connections | 1x Ethernet LAN 1Gbit 1x USB-C 2.0 (back); 2x USB-A 2.0 (back); 1x USB -A 2.0 (front) Audio analog line out on mini jack socket (3.5mm), digital S/PDIF |

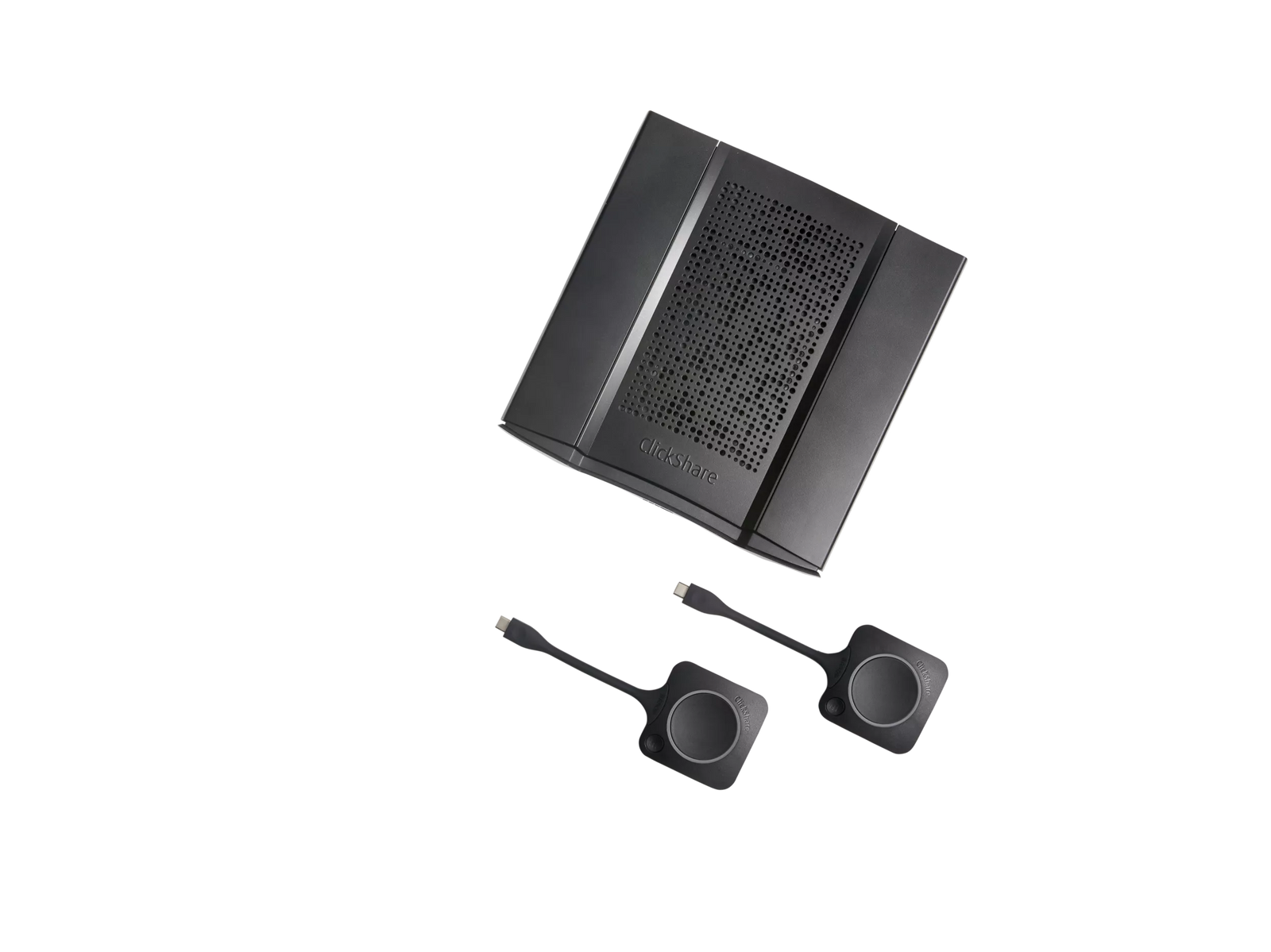

| ClickShare Buttons | 2 |
| ClickShare App | Desktop & Mobile |
| Native protocols | Airplay, Google Cast, Miracast |
| Maximum simultaneous connections | 32 |
| Noise Level | Max. 25dBA @ 0-30°C Max. 30dBA @ 30-40°C |
| Authentication protocol | WPA2-PSK in standalone mode WPA2-PSK or IEEE 802.1X using the ClickShare Button in network integration mode |
| Wireless transmission protocol | IEEE 802.11 a/g/n/ac and IEEE 802.15.1 |
| Reach | Max. 30m (100 ft) between ClickShare Button and ClickShare Base Unit |
| Frequency band | 2.4 GHz and 5 GHz (DFS channels supported in select number of countries) |
| Temperature range | Operating: 0°C to +40°C (+32°F to +104°F) Max: 35°C (95°F) at 3000m Storage: -20°C to +60°C (-4°F to +140°F) |
| Humidity | Storage: 0 to 90% relative humidity, non-condensing Operation: 0 to 85% relative humidity, non-condensing |
| Anti-theft system | Kensington lock |
| Certifications | FCC/CE |
| Touch screen support & Interactivity | Yes |
| Wireless conferencing | via App or Button |
| Local view | High quality |
| Network connection | LAN & WiFi (dual) |
| Management and reporting | Yes |
| Warranty | 1 year standard. 5 years coverage via SmartCare |
| Description | Downloads |
|---|---|
| Datasheet | Downloads |
