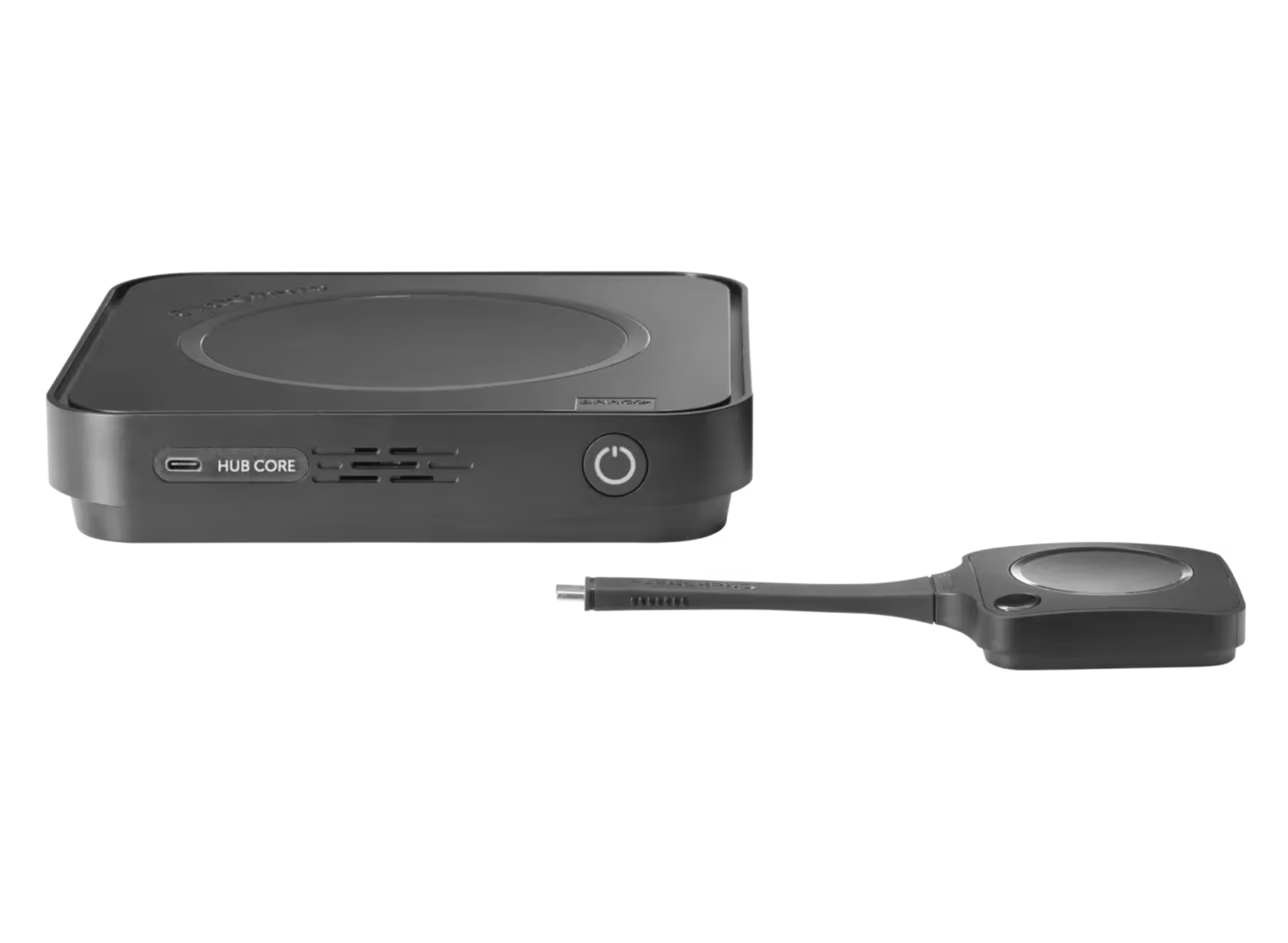

Barco ClickShare Hub Core R9861711EUB1 - Wireless Conferencing System with 1 Button
SKU: R9861711EUB1
£1,621.34 (Excl. VAT)
- Description
- Specifications
- Downloads
-
Effortless 4K Wireless Collaboration for Microsoft Teams Rooms
Modular video conferencing room system for effortless hybrid meetings in Microsoft Teams Rooms
Wireless presentation: 4K content sharing with 1 Button

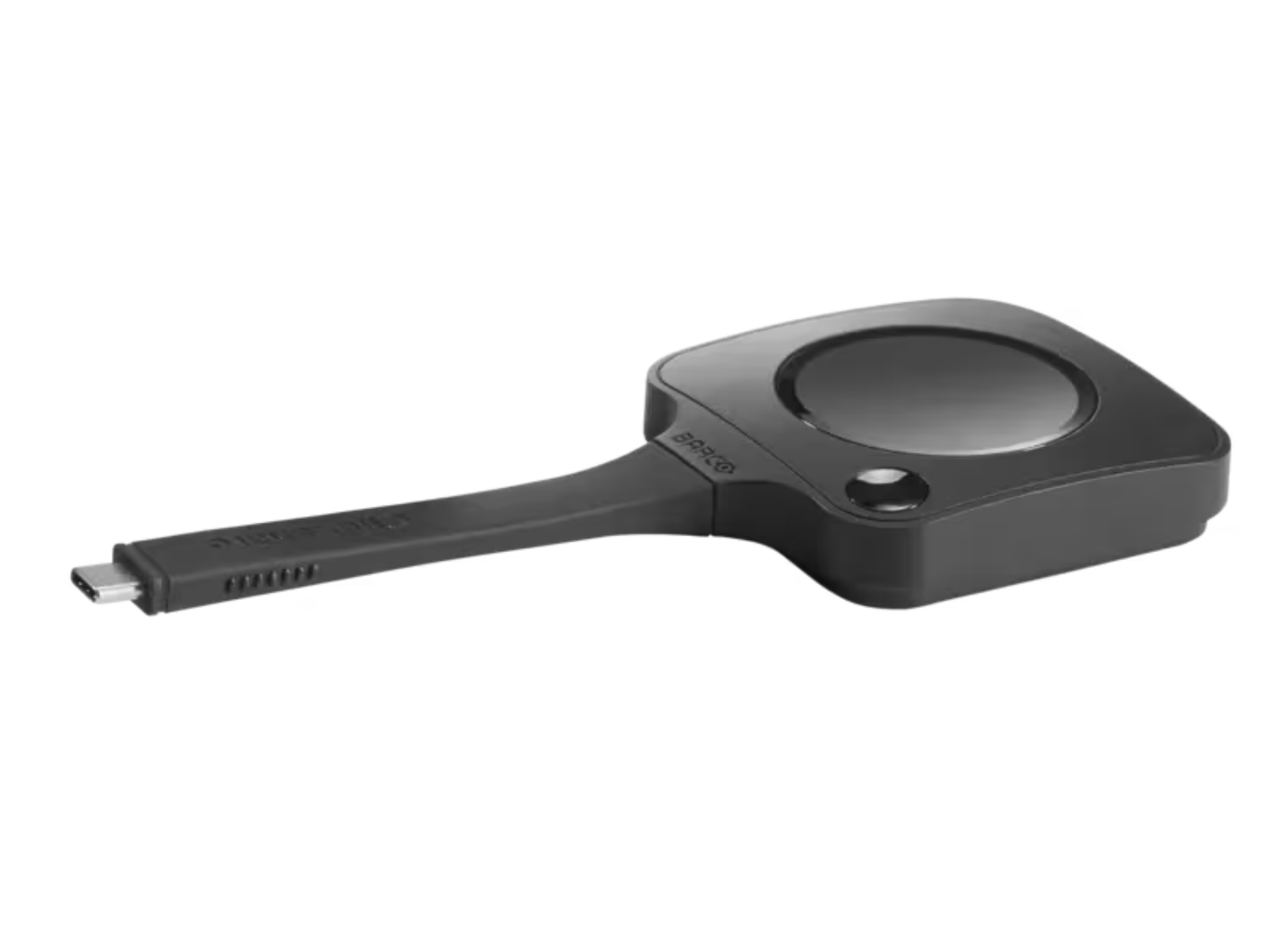

Next-gen ClickShare Button with Wi-Fi 6E support and USB-C DisplayPort™
Wireless BYOD for Microsoft Teams Rooms to run other videoconferencing platforms (Zoom, WebEx, Google Meet, etc.)
Secure, cloud-managed, and built on the Microsoft Device Ecosystem platform (MDEP)
Sustainable product with Barco Eco label A+
Works as part of a room system bundle certified for Microsoft Teams
-

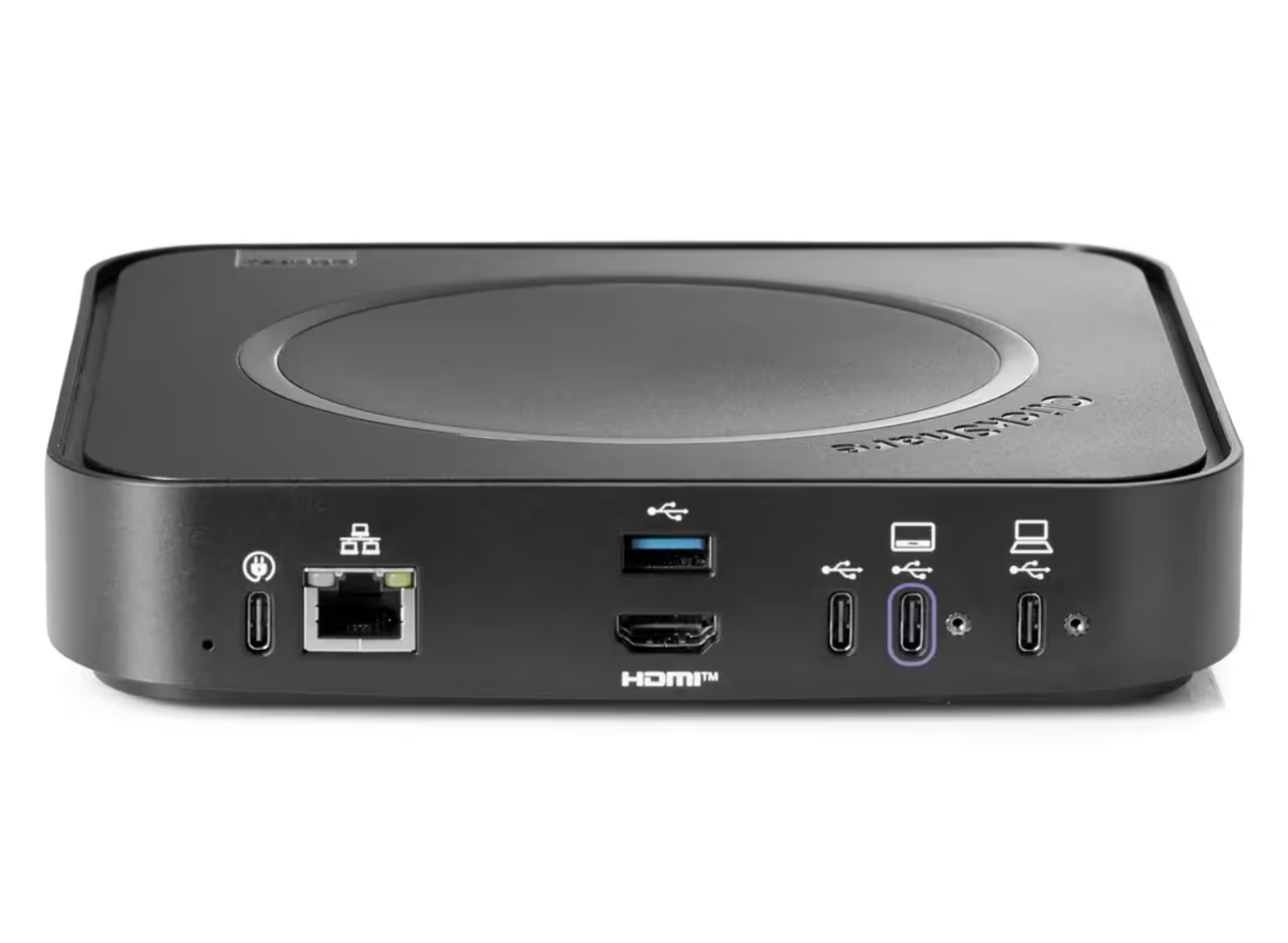

Operating System Android (MDEP) Microsoft Teams Rooms License Required Yes Minimum System Requirements For ClickShare App: Intel Core i3 or AMD Ryzen 5, 8GB RAM, Windows 10 20HS; Intel Core i3 or Apple Silicon M1, 8GB RAM, macOS 11 Big Sur Recommended System Requirements Intel Core i5/Ultra 5 or AMD Ryzen 7, 8GB RAM, Windows 11 latest build; Apple Silicon M3, 8GB RAM, macOS latest build Video Outputs HDMI: UW5K WUHD (5120×2160) @30Hz HDMI 2.0; eDP (Control Panel): HD (1280×800) @60Hz DP 1.4 Video Inputs 4K UHD (3840×2160) @30Hz HDMI 2.0 Audio Output USB-A 2.0/3.0, USB-C 2.0/3.0, HDMI 2.0 ClickShare Buttons 1 × ClickShare Button 5th Generation ClickShare App Desktop Maximum Sources on Screen 1 Noise Level Maximum 25 dBA @ <30°C; Maximum 30 dBA @ >30°C Wireless Transmission Protocol IEEE 802.11 a/b/g/n/ac/ax/be and IEEE 802.15.1 BT 5.3 Reach Max. 30m (100ft) between ClickShare Button and ClickShare Base Unit Frequency Band 2.4GHz, 5GHz and 6GHz DBS/HBS (DFS channels supported in select number of countries) Rear Connections 1× Ethernet LAN 1Gbit, 1× USB-C Power Delivery 3.1 EPR for power adapter, 1× HDMI 2.0 output, 1× USB-A 2.0/3.0, 1× USB-C 2.0/3.0, 1× USB-C 2.0/3.0 Device + USB-C DisplayPort™ output, 1× USB-C 2.0 + USB-C DisplayPort™ output Front Connections 1× USB-C 2.0/3.0 Temperature Range Operating: 0°C to +40°C (+32°F to +104°F), max 35°C (95°F) at 3000m; Storage: -20°C to +60°C (-4°F to +140°F) Humidity Storage: 0 to 90% relative humidity, non-condensing; Operation: 0 to 85% relative humidity, non-condensing Anti-Theft System Kensington lock Certifications FCC/CE Network Connection LAN Management and Reporting Yes, XMS Cloud Warranty 3 years standard Dimensions (HxWxD) 37 × 180 × 180 mm Power Consumption Operational: 140W max; Standby: <7W Eco mode, <0.5W Deep Sleep mode Power Supply External USB-C charger 100W (PD3.0 SPR), 180W (PD3.1 EPR) Weight 720g Box Content ClickShare Hub Core Base Unit, 1 ClickShare Hub Button 5th Gen, Mounting disc, Safety manual, Quick setup guide -
Description Downloads Datasheet Download
