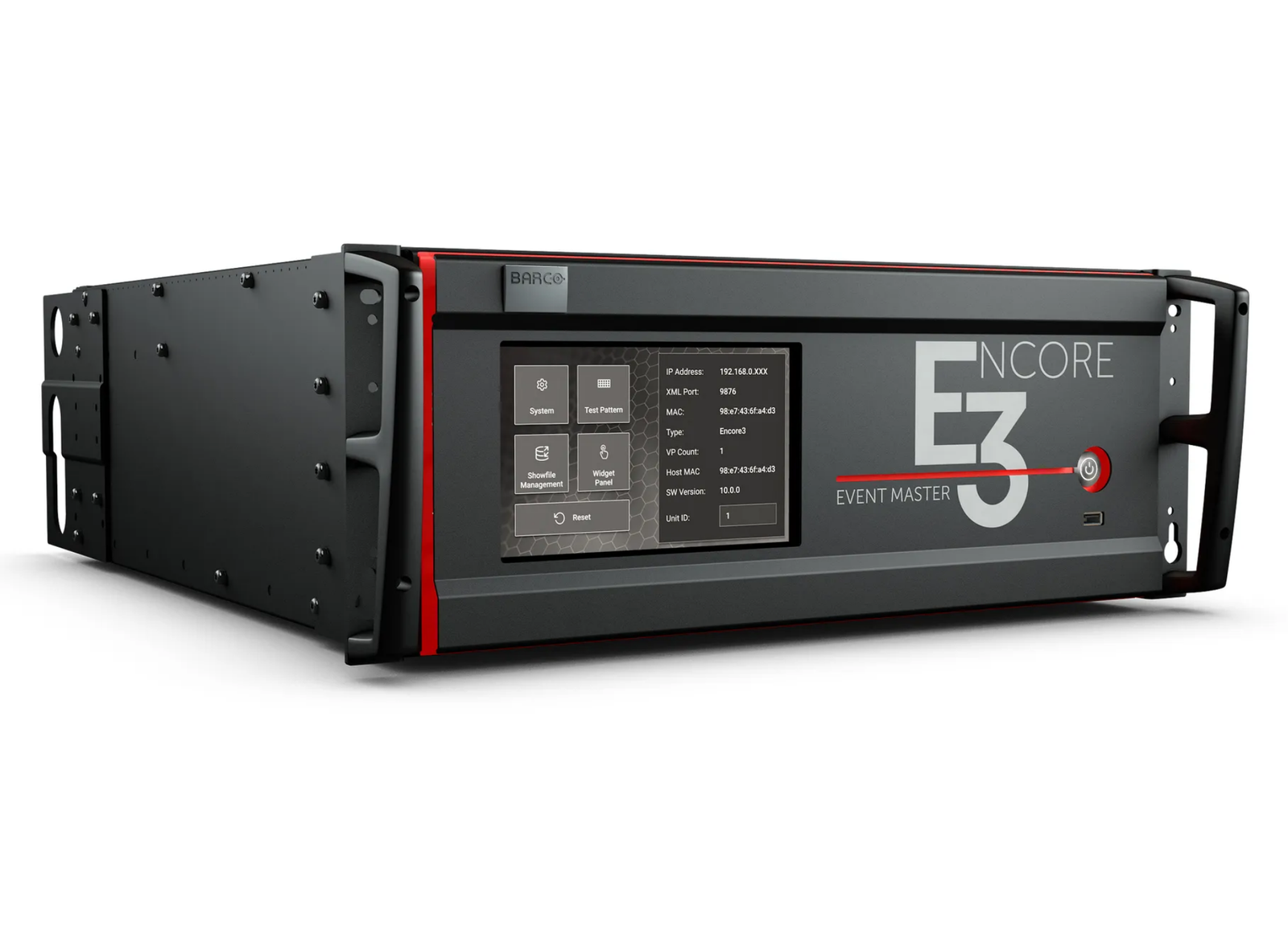

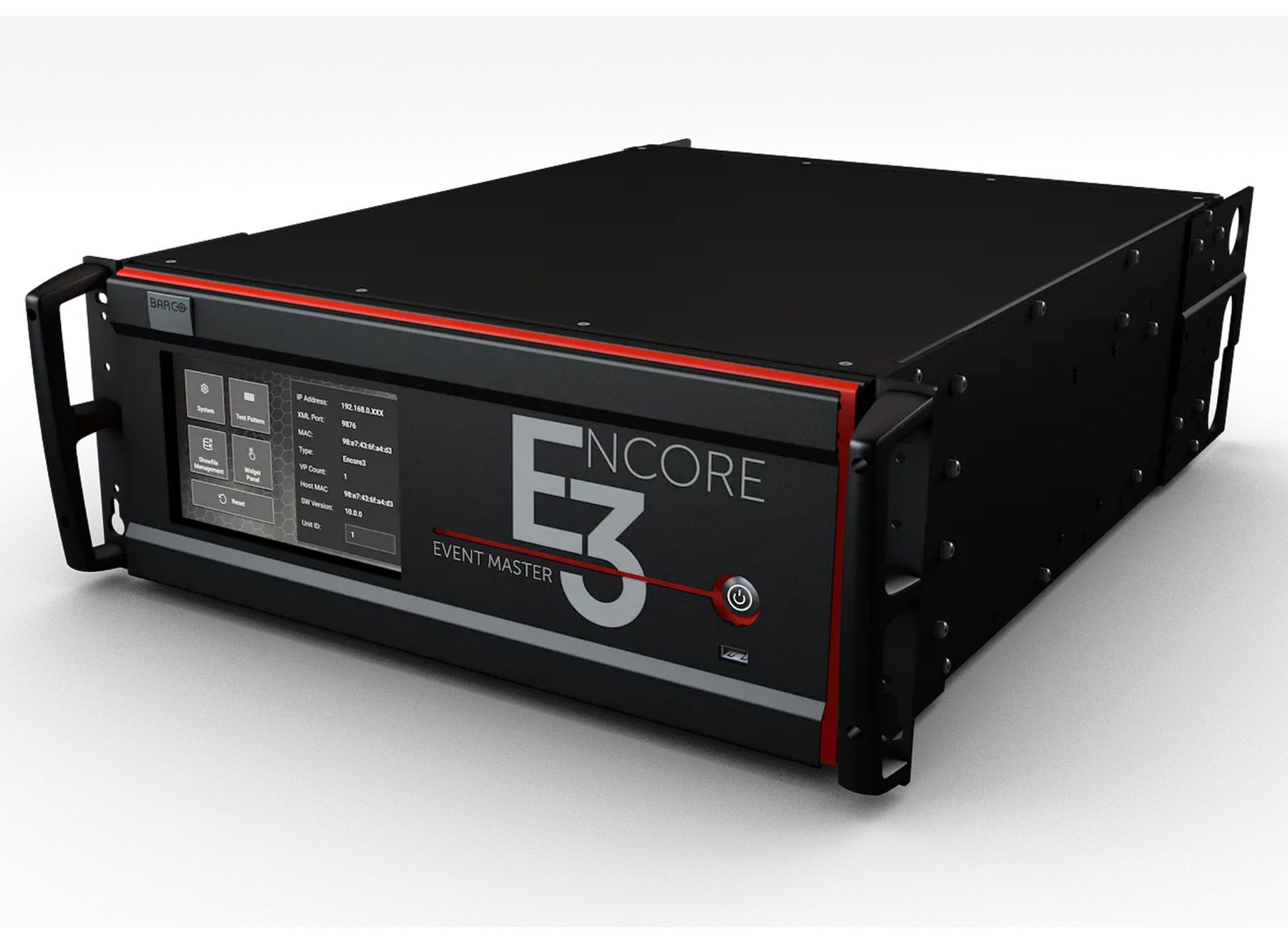

Barco ENCORE3 4K Event Master Image Processor
SKU: R9011360BF
£64,650.00 (Excl. VAT)
- Description
- Specifications
- Downloads
-
Professional Live Event Video Processing and Screen Management Solution
Better, Faster, Stronger
The Barco Encore3 image processing platform is nothing short of a game-changer. We’re giving every live event AV professional broader canvas space, expanded system resources by easy linking, and advanced transition between layers during runtime. High-quality 4K processing with unrivaled flexibility. All boxed into one future-proof solution, for premium peace of mind.The Encore3 supports a boundless canvas with 8x 4K60 PGM outputs at 12 bits 4:4:4 processing with always available 8x 4K60 layers per screen. Call on embedded audio, screen composition for layered videos, Multiviewer as a source and the ability to manage all your screens.
Build your own configuration

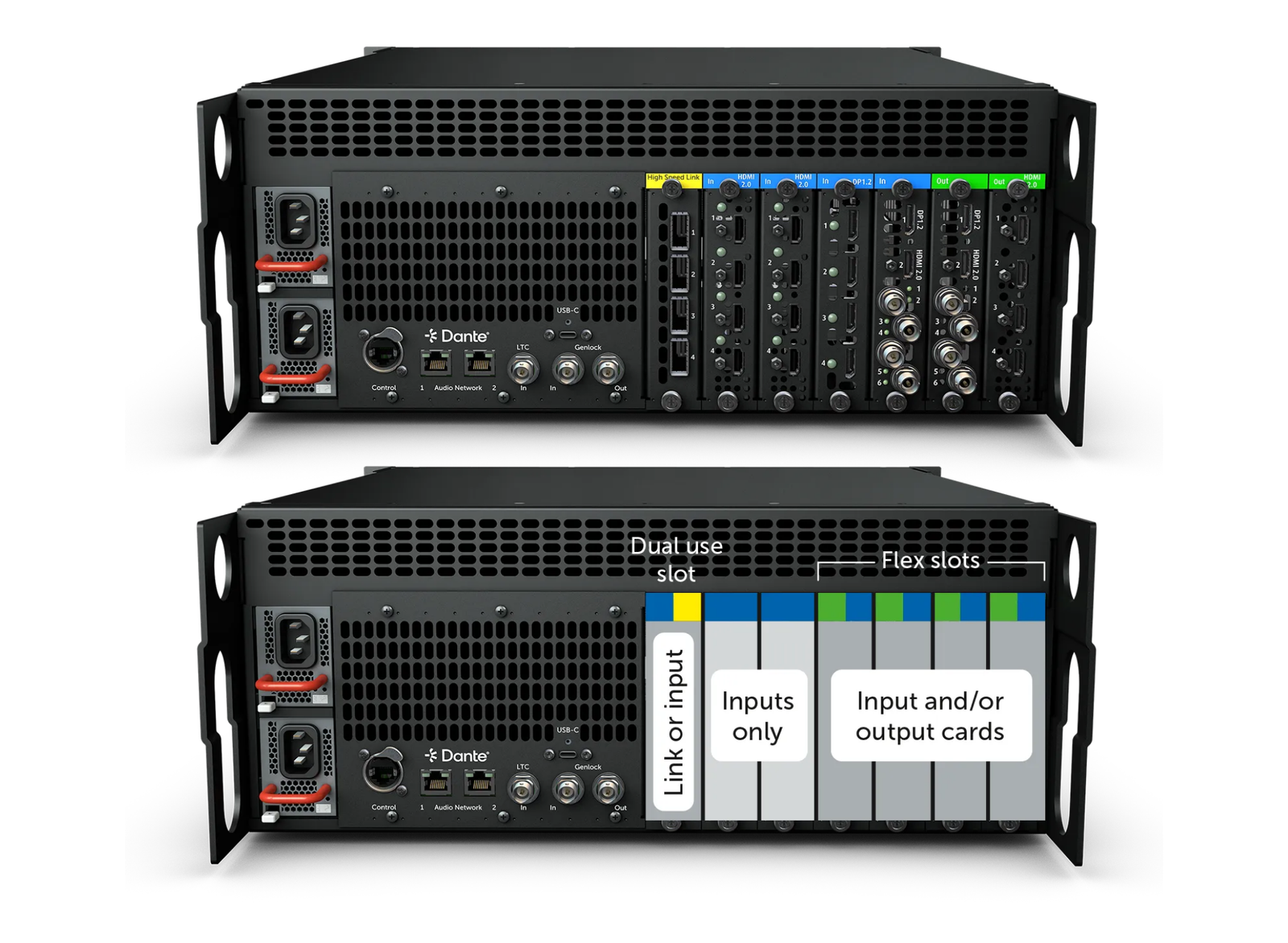

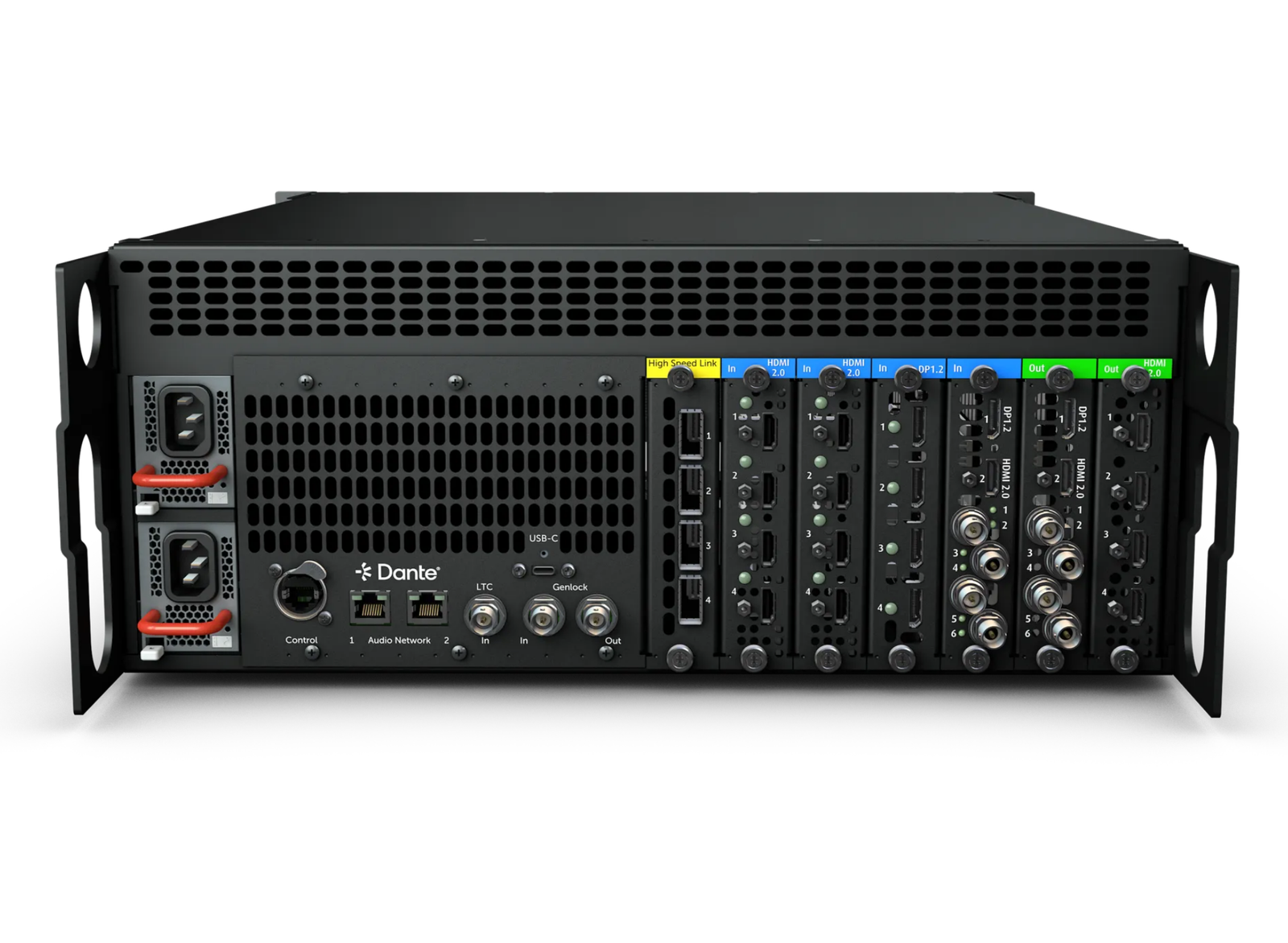

Event Master Encore3 will have a standard, finished and stocked configuration. But as it’s a scalable and modular system, it will also be available as BTO - “Build To Order” - system.Inputs Up to 7 input capable card slots, each input card supports up to 4x 4K@60p inputs
Outputs Up to 4 output capable card slots, each output card supports up to 4x 4K@60p outputs
At first release, the system offers the flexibility to include up to two chassis linked together
-
Live Effects Canvas Boundless canvas with 8x 4K60 PGM outputs Video Inputs Up to 7 input capable card slots to occupy with Event Master Gen2 cards Input Card Support Each input card supports up to 4x 4K @60p inputs Standard Input Configuration 16x 4K @60p inputs SDI Input Connectors Up to 4x HD/3G/6G/12G SDI connectors HDMI Inputs Up to 9x HDMI™ 2.0, up to 4096x2160 @60Hz DisplayPort Inputs Up to 5x DisplayPort 1.2, up to 4096x2160 @60Hz Video Outputs Up to 4 output capable card slots to occupy with Event Master Gen2 cards Output Card Support Each output card supports up to 4x 4K @60p outputs Standard Output Configuration 8x 4K@60p outputs SDI Output Connectors Up to 4x HD/3G/6G/12G SDI connectors HDMI Outputs Up to 5x HDMI™ 2.0, up to 4096x2160 @60Hz DisplayPort Output Up to 1x DisplayPort, up to 4096x2160 @60Hz Genlock Analog reference input/output on BNC connectors; bi-level and blackburst at SD and tri-level at HD Program Output Up to 8 program outputs configurable as single screens or tiled/blended widescreens Program Output Resolution Configurable for up to 8x 4096 x 2160 @60p Edge Blending Independent edge blending/feathering control for all four sides Scaled AUX Outputs User definable for up to 8x 4096 x 2160 @60p AUX Output Support Each output card supports up to 2x AUX outputs Background Mixer Positionable non-scaled background mixer per output screen Transitions Independent layer transitions or full Preview/Program transitions PIP / Key Layers Pre-assigned 4 mixable / 8 single, up to 16 mixable / 32 single scalable PIP/key layers per output screen Still Stores Storage of up to 2160 MB, approximately 60 4K60 active still images Still Image Resolution Supports up to 65536 pixels horizontal or 43560 vertical dimensions, up to 140 megapixels per still image Layer Effects Borders hard, soft, halo and drop shadows Color Effects Luma, chroma and Cut/Fill keys PIP Moves PIP moves via Keyframes Multiviewer 2x 4K @60p MultiViewer as source that can be sent to any output or layer Multiviewer Layouts Flexible user-definable layouts Monitoring Monitor all inputs and screens PVW & PGM Expansion Link Card 1x Quad 100G High Speed Expansion Link Card for system expansion Link Card Support Each link card supports 15x 4K60 in & out per card DAC Cables 2x 100G QSFP28 2 meter DAC cables Chassis Linking Encore3 ships with the ability to link 2 chassis for expansion at first release Expansion Applications Link units to increase available inputs and outputs for larger tiled/blended widescreen applications QSFP28 Expansion Expandable for larger display applications via 4x QSFP28 link connection; quad 100G High Speed Expansion Link Card required HDCP HDCP compliance determined by installed cards Control Software Event Master Toolset V10.x or later for PC or MAC Controllers Event Master controllers WebUI WebUI control Ethernet Ethernet RJ-45, 1000/100/10 Mbps autosense I/O Cards Field-serviceable I/O cards, not hot-swappable Power Supplies Hot-swappable dual-redundant power supplies Height 175.5 mm / 6.9 in, 4 RU rackmount Width 431.8 mm / 17.0 in without chassis handles, 485.3 mm / 19.1 in with chassis handles attached Depth 590.54 mm / 23.3 in from front panel to rear panel without handles or connector protectors, 672.29 mm / 26.5 in overall Standard Configuration Weight 29 kg / 64 lb Shipped Weight with Flight Case 48.5 kg / 107 lb Empty Chassis Weight 26.3 kg / 58 lb Input Power 100-240Vac, 50/60Hz, 12-5A x2, 1,100 W Power Supply Type Dual-redundant, hot-swappable power supplies Environmental Temperature 0-40° C / 32-104 F Non-Operating Humidity 0-95% non-condensing Operational Humidity 0-85% non-condensing Warranty 3 years parts and labor -
Description Downloads Datasheet Download
