Barco PDS-4K 4K Presentation Switcher for Live Events
SKU: R9009650
£6,390.00 (Excl. VAT)
- Description
- Specifications
- Downloads
-
Professional 4K Switching for Live Presentations
The PDS series is designed to meet today’s requirements for a high-quality, easy-to-use and fast seamless switcher with more digital inputs at an affordable price. It is the perfect fit for mid-sized live events, breakout sessions, seminar rooms and boardrooms.
4K for you
The PDS-4K enables single screen, dual screen and quad screen switching with high-quality 4K processing, and it can also support Dante® audio with the addition of an optional interface card. It includes six HDMI™ 2.0 inputs and four fully seamless mixing program outputs at up to 4K resolution. Benefit from the ultra-low latency processing (≤ 2 frames delay @60Hz), smooth video display and seamless transitions between inputs to maximize audience engagement. Additionally, you can increase interactivity by showing up to two live inputs simultaneously with the available PiP layers. And the Event Master AthenaTM scaling technology guarantees superior signal clarity and minimum scaling artifacts.
PDS: pretty darn simple

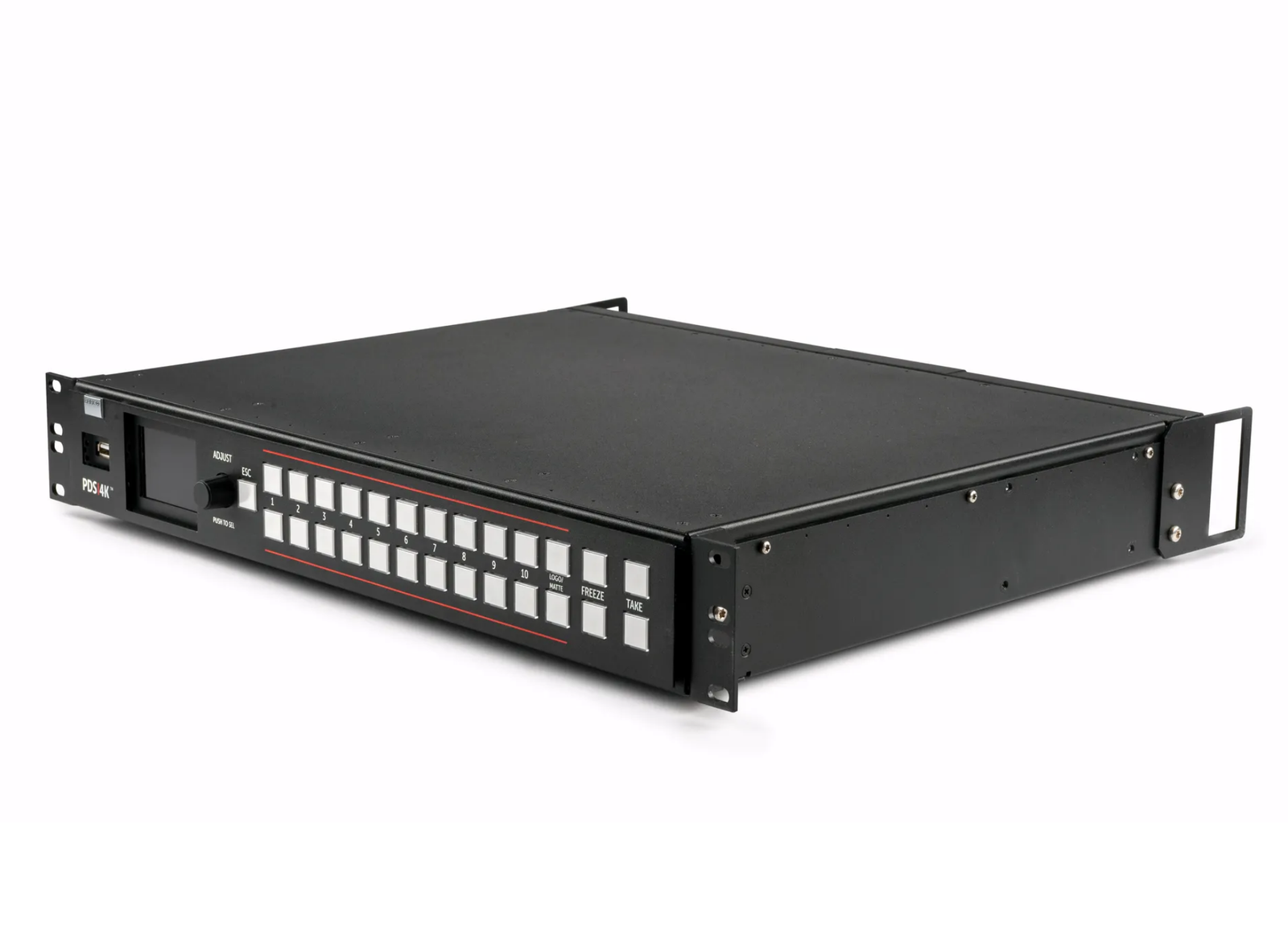

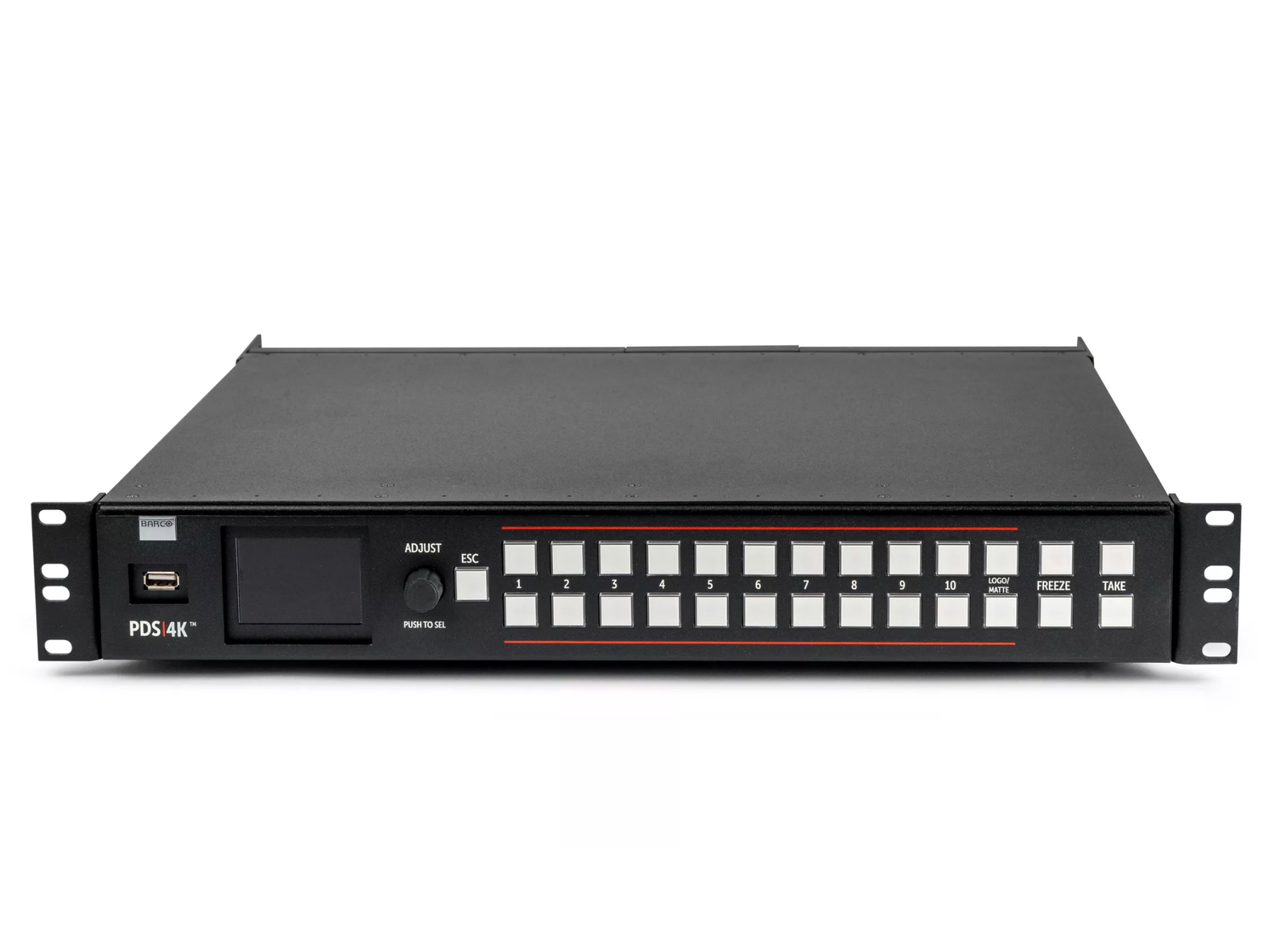

The PDS-4K switcher guarantees unsurpassed performances and outstanding visual experience while also being exceptionally easy to operate. With just one simple press on the buttons of the intuitive front panel interface, you can switch easily between the input sources and preconfigured layouts. What’s more, the PDS-4K is compatible with all the familiar Barco visualization solutions and presentation devices (e.g. ClickShare) without compromising on video quality. The PDS-4K can be controlled with Event Master Toolset, and thanks to the API it can also be combined with other third- party control panels.The PDS-4K is built for applications requiring the highest availability and uptime. The switcher also proves to be a smart investment well into the future with option cards to ensure expandability and future-proof upgradability.
Premium 4K visuals
Simple setup and easy to operate
Compatibility for smooth integration -

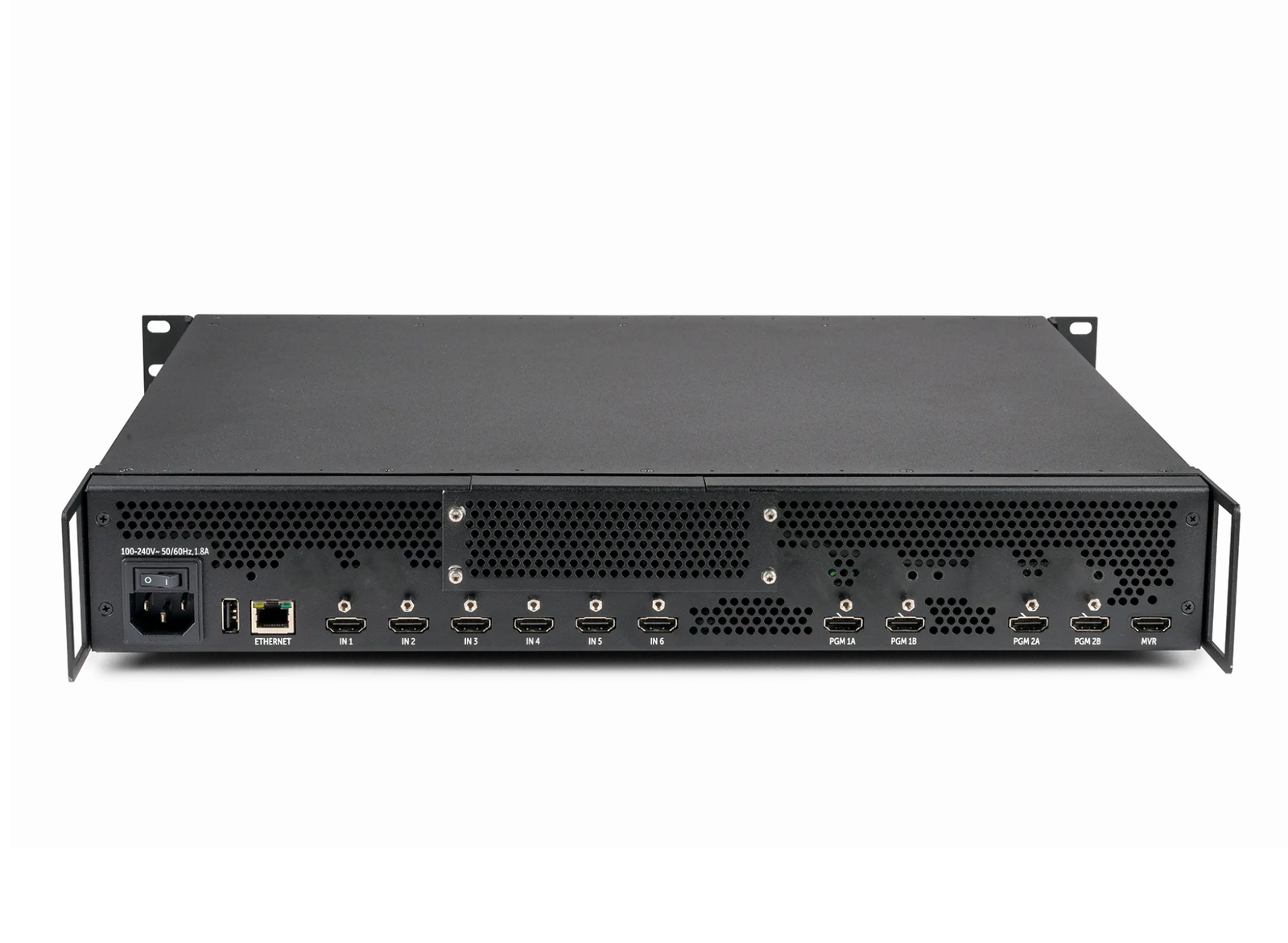

Notes Option Card slot to support additional video input connectors, embedded audio processing and Dante® Audio Live Effects Canvas 2× outputs up to 4K60 or 4× outputs up to 4K30, each with single mixing PiP or two non-mixing PiPs on a still background Video Inputs 6× HDMI™ 2.0 connectors Video Outputs 4× HDMI™ 2.0 connectors Program Output Two UHD @60 PGM or Four UHD @30 / FHD @60 PGM Keying/Mixing Luma and Chroma on non-mixing PiPs Mixers 1 mixer per PGM output Still Stores Eight stills, up to 4K each Multiviewer 1× UHD@60 output with user definable layouts consisting of inputs plus PVW and PGM for each screen Expandability Option card slot for other video connector types and/or Dante® audio HDCP HDCP 1.x and 2.2 Dimensions (HxWxD) 6.62 cm (2.605 in) × 48.41 cm (19.06 in) × 40.9 cm (16.1 in) Control Front panel mappable buttons, Event Master screen management software for PC or Mac, Event Master controllers, WebUI, Ethernet RJ-45 1000/100/10 Mbps autosense Noise Level 37 dB in a room temperature environment (23°C/73°F) Weight 6.21 kg (13.7 lbs) Power Input power: 100-240 VAC 50/60Hz 151W Environmental Temperature 0-40°C (32-104°F) Environmental Humidity 0-95% non-condensing, non-operating; 0-85% non-condensing, operational Warranty 3 years parts and labor -
Description Downloads Datasheet Download
