BenQ BH2801N Bar-type 28" Stretch Digital Signage - Smart Signage
SKU: BH2801N
£806.39 (Excl. VAT)
- Description
- Specifications
- Downloads
-
BenQ BH2801N 28" Bar-type Stretch Digital Signage - Smart Signage
High Brightness
At 1000 nits brightness, striking colors and clarity still can be provided even in brightly lit environments, which allows BH2801N to fully support your indoor and semi-outdoor applications.
24/7 Non-Stop Operation
A 55,000-hour lifespan and industrial-class performance make BH2801N far more economical than consumer display models. Built especially for business use with advanced panel technology, BH2801N can provide reliable 24/7 non-stop performance for years and years.

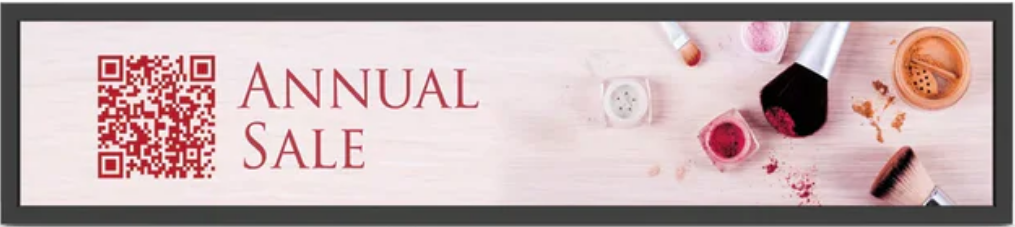

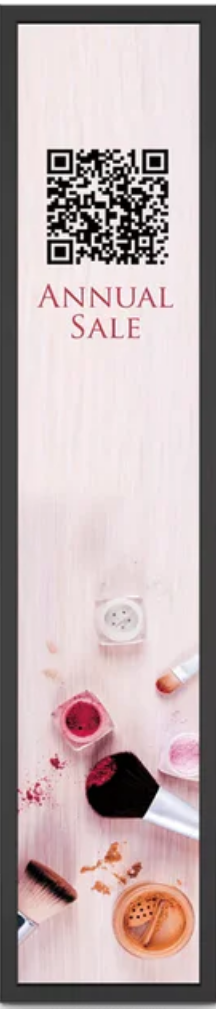

Flawless Display in Portrait and Landscape View
Unlike anything else available on the market, BenQ Bar Type displays are built to ensure flawless portrait and landscape view. This choice between vertical and horizontal installation greatly increases flexibility when operators are designing and arranging their stores.
X-Sign Designer
BenQ’s X-Sign 2.0 takes the hassle out of designing signage content. Included with BH2801N, BenQ’s exclusive X-Sign software provides content templates that are especially designed for long-and-narrow stretch displays, making it easy for operators to quickly design and roll out new promotional material. The templates also let operators add images, videos, and scrolling text to their marketing materials. The long-size templates let operators create marketing content easily while the ability to enrich materials with media content will boost the store’s bottom line.
Centralized Remote Display Management
X-Sign’s intuitive interface makes it easy for operators to monitor and manage all remote displays from a central, off-site location. With X-Sign, operators can keep tabs on display performance in real-time and receive instant alerts about any issues. Loaded with functionality, X-Sign also allows operators to see what content is playing on each display, manage updates, restart displays, and manage screen on/off and volume settings. -
Feature Specification Screen Size 28" Backlight / Lightsource E-LED Contrast Ratio (Typical) 3000:1 Display Orientation Landscape / Portrait Usage (Hour/Day) 24/7 Active Area (H × V) (mm) 699.4 x 133.0 Resolution (Pixel) 1920 x 360 Brightness (Typical) 1000 nits Light Life (Typical) 55,000hrs Aspect Ratio 16:3 Platform Solution OS: Android System Memory (GB) 2GB Storage (GB) 32GB Glass Tempered Glass: No Input/Output HDMI In/Out: x1 / N/A RJ45 Port In/Out: x1 / N/A USB Port (Type A): x2 / N/A RS232 In/Out: x1 / N/A Internal Speaker (Amp): 1W x 2 Mechanical Weight (Without / With Packing) (kg) Dimension (W×H×D) (mm) 725.8 x 159.4 x 42.5 Bezel Width (T/B/L/R) (mm) 13.2 / 13.2 / 13.2 / 13.2 Wall Mounting (VESA) (mm) 400 x 100 (4 holes) 4 - M4 x 10L Environment Operation Temperature Storage Temperature Language On-Screen Display Languages SW Support X-Sign: Yes Multiple Display Control (MDA) Supp Package/Accessory Remote Control: Yes Power Cord (By Region): Yes Quick Start Guide: Yes User’s Manual (electronic file): Yes HDMI Cable: Yes RS232 Cable/RS232 Loop Cable: Yes/No Power AC/DC In: DC Voltage: 100V ~ 240V, 50Hz / 60Hz Power Consumption (typical/standby): -
Description Downloads BenQ BH2801N Bar-type Stretch Digital Signage Downloads
