Interactive signage that makes a difference
Impress shoppers with stunning digital signage that is both interactive and informative. While most displays look blurry from up close, the 4K UHD resolution of the IL01 Series will always show your content in fine detail.
Protect users at every touch point
A safer way to engage
The IL01 Series displays come with germ-resistant screens coated with a proprietary nano-ionic silver formula that ensures long-lasting protection against common germs. Its 99.9% efficacy is certified by TÜV Rheinland.
Attract more attention
With 4K UHD images and anti-glare screen, 9H tempered glass, and a smooth touch experience, the IL01 Series is the ultimate interactive signage solution for any business.
Crystal clear images
The 4K UHD 400 nit display comes with an anti-glare screen that guarantees bright and detailed images, making the IL01 Series a perfect fit for any indoor setting.
Stunning content in any way

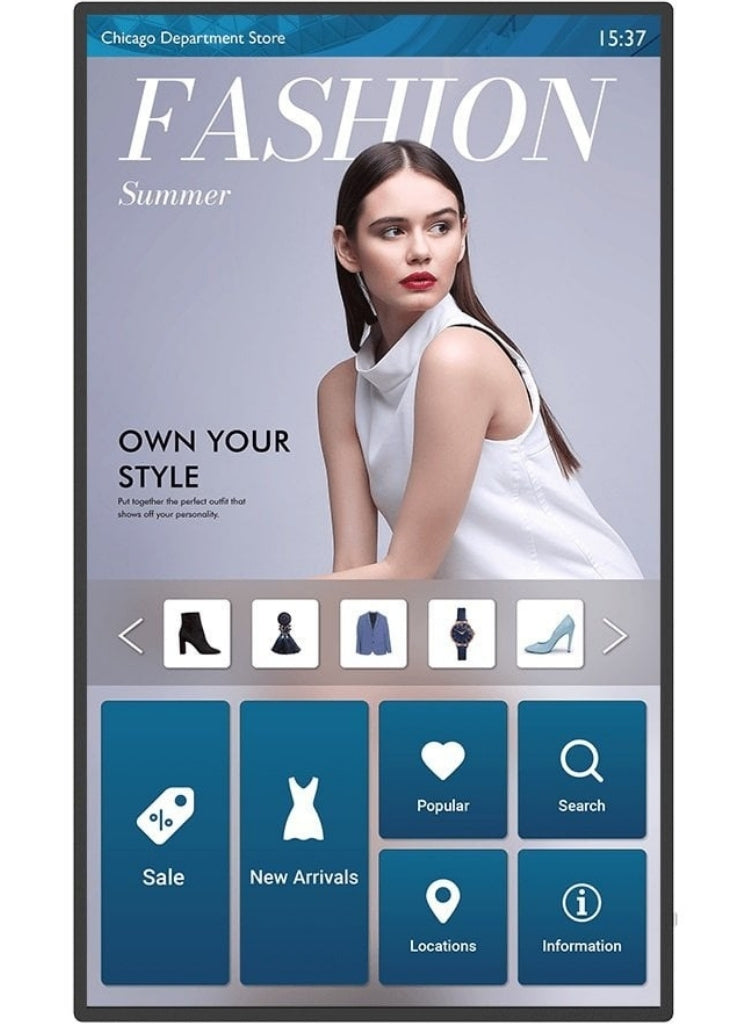

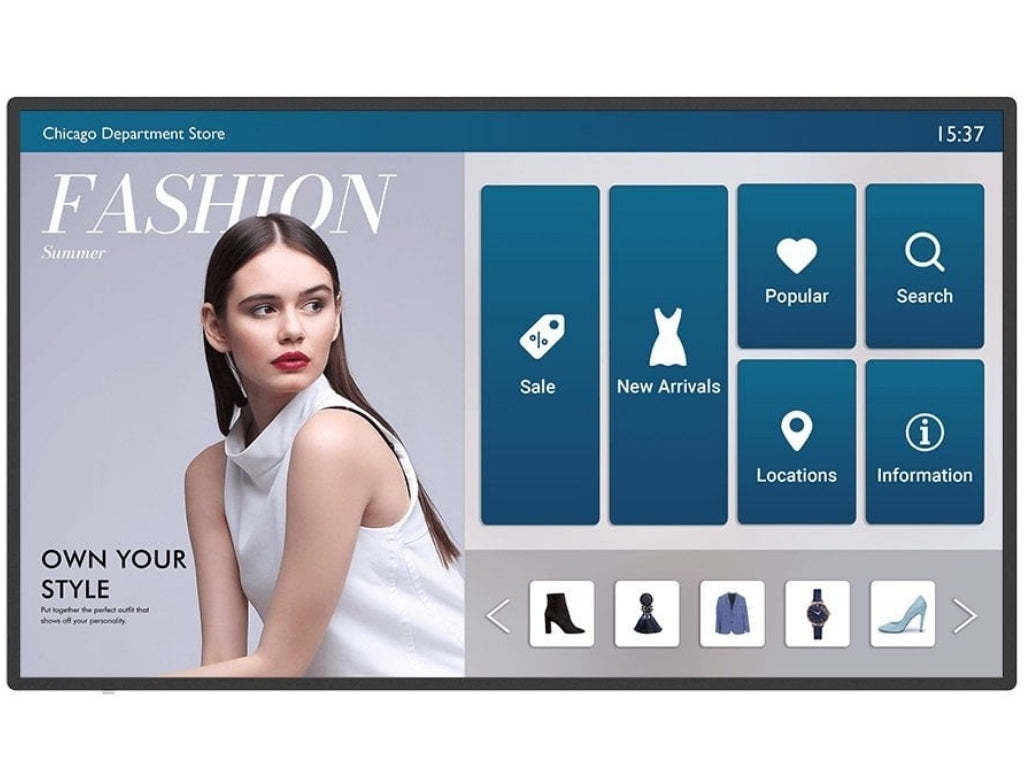

Display the IL01 Series in landscape or portrait mode to get the best fit for your business. Its 1.66 cm slim bezel looks elegant and sleek no matter where it’s placed.
All-in-one digital signage solution
Attract, inform, and engage customers with a display that comes with a built-in OS, wide-reaching speakers, and the freedom to showcase your brand without the need for any peripherals. Run promotions directly from X-Sign, play content directly from a USB drive, or display your website in Kiosk Mode.
Streamlined delivery from design to display
Effortless content creation
Choose from a growing gallery of digital signage templates to easily create interactive content for your brand and receive access to Pantone digital colors for true-to-life images.
Centralized management and deliver
Manage all your content remotely with X-Sign. You can easily schedule promotions on multiple displays and receive usage reports to better understand customer preferences.
Convenient display management
Managing your displays has never been more convenient. BenQ’s ecosystem makes it easy for you to monitor and update all your devices at any time, from any location.
Centrally manage all your displays
Manage all your BenQ displays from the comfort of your desk with BenQ Device Management Solution (DMS). Install apps, monitor devices, and update multiple displays at a time.
Always up to date
Ensure all your BenQ displays are equipped with the latest features and security patches with Over-the-Air (OTA) updates.
| General | |
|---|---|
| Product Type | LED-backlit LCD flat panel display |
| Energy Class | Class G |
| Power Consumption (Max) | 230 Watt |
| Power Consumption Operational | 111 Watt |
| Diagonal Class | 55" |
| Commercial Use | Yes - digital signage |
| Combined With | Touchscreen (multi touch) |
| Series | IL01 Series |
| Operating System | Android OS 8.0 |
| TV Tuner | No tuner |
| Video Interface | HDMI |
| HDMI Ports Qty | 2 ports |
| PC Interface | VGA (HD-15), DisplayPort |
| Modes | Portrait mode, landscape mode, kiosk mode |

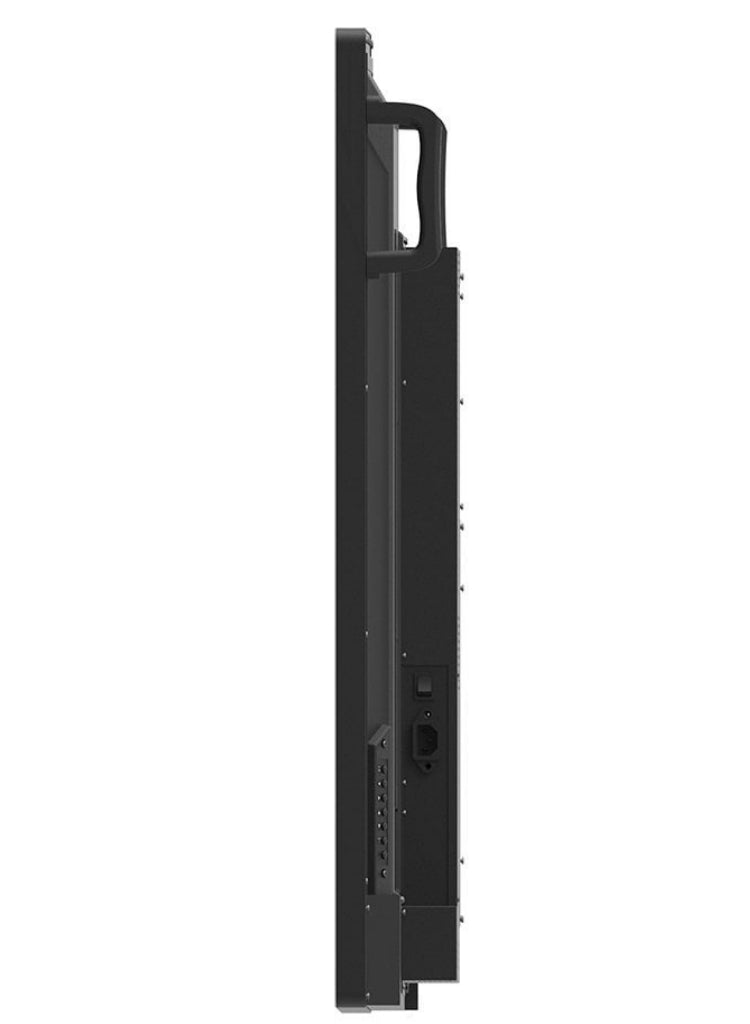

| Design | 16.6mm bezel |
| Protection | Tempered glass protection, germ-resistant |
| Dimensions (W x D x H) | 128.41 cm x 9.26 cm x 75.49 cm |
| Weight | 29.1 kg |
| Display | |
| Pixel Pitch | 0.315 mm |
| Resolution | 3840 x 2160 |
| Display Format | 4K UHD (2160p) |
| Image Aspect Ratio | 16:9 |
| Frame Rate | 60 Hz Frame Rate |
| LCD Backlight Technology | Direct LED |
| Coating | Anti-glare, 3% haze |
| Image Contrast Ratio | 1300:1 |
| Brightness | 400 cd/m² |
| Viewing Angle | 178 degrees |
| Touchpoints Qty | 40 |
| Response Time | 9 ms |
| Backlight Life | 50,000 hour(s) |
| Operation Hours / Days | 24 / 7 |
| Features | Infrared multitouch technology, Over-the-Air Update (OTA), Display Management System (DMS), OPS Slot |
| Stands & Mounts | |

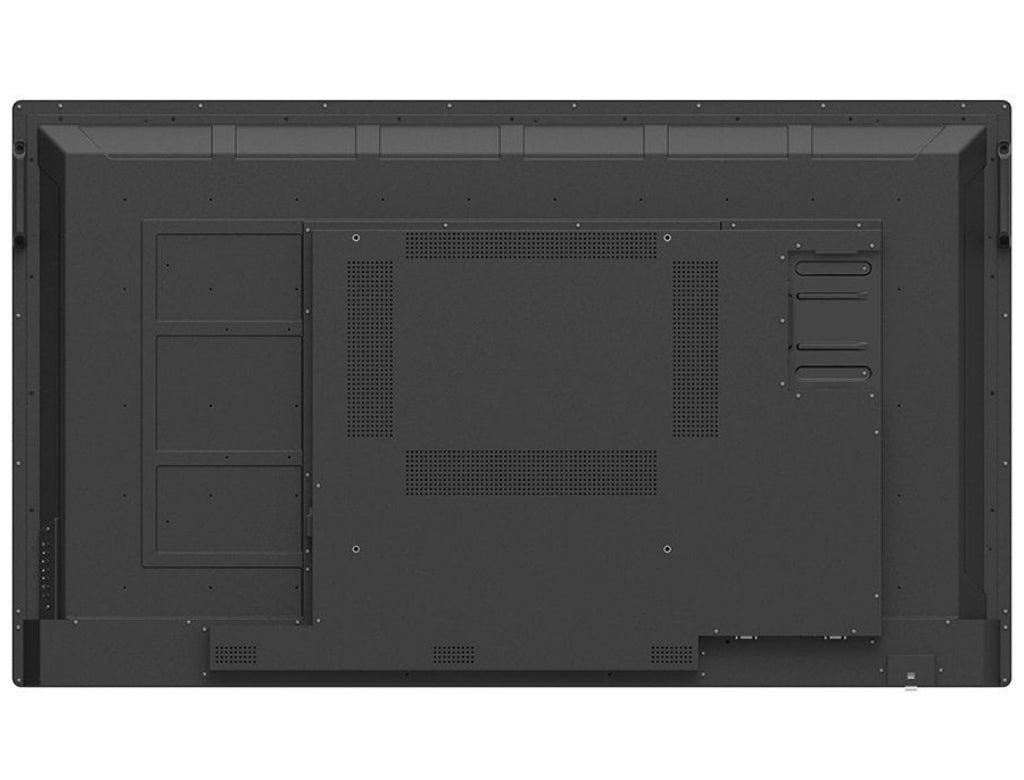

| Flat Panel Mount Interface | 400 x 400 mm |
| VESA Compatibility | Yes |
| Media Player | |
| USB Port | Yes |
| USB Ports Qty | 2 |
| Remote Control | |
| Type | Remote control |
| Battery Form Factor | AAA type |
| Battery Included | Yes |
| Battery Included Qty | 2 |
| Audio System | |
| Speaker System | 2 speakers |
| Output Power / Total | 20 Watt |
| Network & Internet Multimedia | |
| Connectivity | LAN |
| LAN Protocol | Fast Ethernet |
| Connections | |
| Connector Type | VGA input - bottom |
| 2 x HDMI input - side | |
| HDMI output - side | |
| DisplayPort input - side | |
| SPDIF output - side | |
| 2 x USB 2.0 - side | |
| 2 x LAN - bottom | |
| Serial input - bottom | |
| Infrared input - side | |
| Audio line-in - bottom | |
| Audio line-out - bottom | |
| Touch | |
| Miscellaneous | |
| Included Accessories | X-Sign Software, InstaShare |
| Cables Included | VGA cable - 1.5 m |
| HDMI cable - 1.5 m | |
| DisplayPort cable - 1.5 m | |
| USB touch cable - 1.5 m | |
| Compliant Standards | TUV Rheinland |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
| ENERGY STAR Version | 8.0 |
| Power | |
| Power Device | Power supply |
| Input Voltage | AC 100-240 V (50/60 Hz) |
| Power Consumption Stand by | 0.5 Watt |
| Shipping Dimensions & Weight | |
| Width (Shipping) | 140 cm |
| Depth (Shipping) | 17.5 cm |
| Height (Shipping) | 84.5 cm |
| Weight (Shipping) | 35.2 kg |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 20 - 85% RH (non-condensing) |
| Description | Downloads |
|---|---|
| BenQ IL5501 55” 4K UHD Smart Datasheet | Downlaods |
