BenQ TH685P Theater Projector

3500 Lumens, 16:9 Full HD 1080p

Description
Specifications
Downloads

BenQ Home Cinema Projector
TH685P | 1080p HDR 3500lm Home Theater Projector

Full HD Cinema Enjoyment for Bright Rooms
Treat your eyes to the brilliance of Full HD 1080p visuals, with amazing detail clarity and sharpness for exceptional home cinematic experiences in well-lit environments.

Overpowered Gaming Visuals

Low Input Lag Performance
Ultra-fast 16ms* low input lag conveys your sights, hearings, and thoughts into actions with zero delay. (*Input lag is 33ms:4K@60Hz)

Black Detail Enhancement
Detect and react one step quicker to approaching dangers by easily mapping out details in the dark with BenQ-exclusive Black Detail Enhancement, which accentuates fine details in dark scenes without sacrificing color performance in brighter areas.

Flexible Installation
Digital Lens Shift
Digital lens shift provides perfectly straight-edged images, allowing more flexible installation and placement options.

Auto Vertical Keystone
Auto vertical keystone self-adjusts for squared images, letting you easily project aligned images from various angles.

Projection Distance
1.3x zoom maximizes available space with a range of throw distances for big-screen entertainment without the hassle of complicated installation.

Universal Connectivity

Game Console

Handheld Game Console

Laptop

Blu-ray Player

Category	Specification
Display
Brightness (ANSI lumens)	3500
Native Resolution	1080P (1920x1080)
Native Aspect Ratio	16:9
Contrast Ratio (FOFO)	10,000:1
Display Color	30-bit (1.07 billion colors)
Light Source	Lamp
Light Source Life	a. Normal 4000 hrs, b. ECO 10000 hrs, c. SmartEco 8000 hrs, d. LampSave 15000 hrs
Optical
Throw Ratio	1.127~1.46
Zoom Ratio	1.3x
Lens	F/#=1.94~~2.07;f=11.9~~15.5 mm
Projection Offset (Full-Height)	105%
Keystone Adjustment	1D, (Auto) Vertical ± 40 degrees
Rec. 709 Coverage	95%
Picture Modes	3D, Bright, Cinema, Game, HDR, HLG, Living Room, Sports, User 1, User 2
Compatibility
Input Lag	16.7 ms (1080p@60Hz), 33.4 ms (4K@60Hz) *downscaling to 1080p, 8.3 ms (1080p@120Hz)
Resolution Support	VGA (640 x 480) to 4K UHD (3840 x 2160)
Horizontal Frequency	15K~102KHz
Vertical Scan Rate	23~120KHz

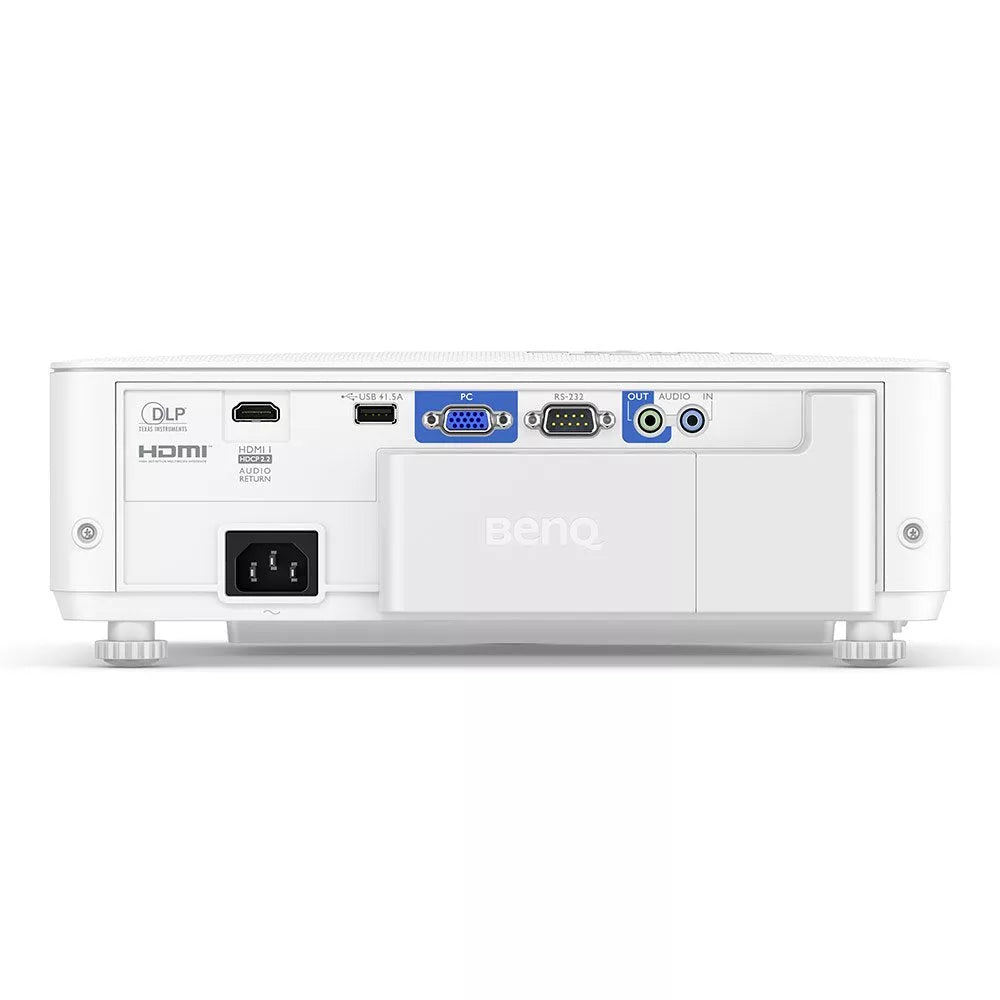

I/O Interface
HDMI in	(x2), HDMI-1 (2.0b/HDCP2.2), HDMI-2 (2.0b/HDCP2.2)
USB Type A	(x1), USB Type A-1 (2.0/Power Supply1.5A)
RS232 in (DB-9pin)	(x1)
Audio
Speaker	(x1), 5W Chamber
Audio in (3.5mm Mini Jack)	(x1)
Audio out (3.5mm Mini Jack)	(x1)
Environment
Operating Temperature	0~40℃
Power Supply	AC 100 to 240 V, 50/60 Hz
Typical Power Consumption (110V)	297W/110V
Stand-by Power Consumption	<0.5W
Acoustic Noise (Typ./Eco.)(dB)	35/29 dB
Accessories
Remote Control w/ Battery	RCV013
Power Cord (by region)	x1 (1.8M)
3D Glasses (Optional)	DGD5
Quick Start Guide	(x1) 21L
Warranty Card (by region)	Yes
Dimension & Weight
Dimensions (WxHxD) (mm)	312 x 110 x 225
Net Weight (kg)	2.79
Dimensions (WxHXD) (inch)	12.2 x 4.3 x 8.8
Net Weight (lb)	6.15
Projection System
Projection System	DLP

Category Download

Quick Start Guide Download

User Manual Download

CAD Download
