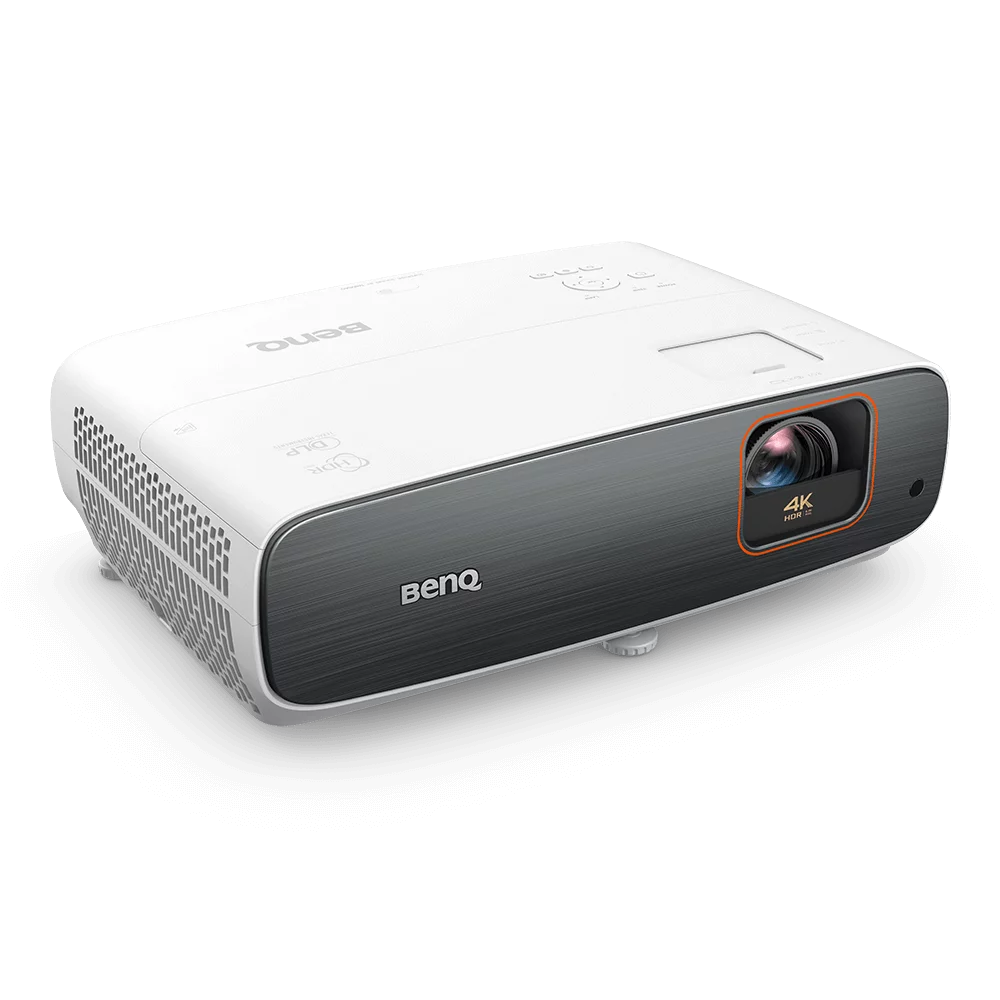

BenQ TK860 4K Ultra HD Home Theater Projector - 3300 Lumens
Behold Cinematic Details in Bright Rooms
In pursuit of perfect picture quality, pioneering BenQ HDR-PRO technology overcomes brightness constraints to provide authentic HDR performance.
HDR-PRO Intensifies Contrast Day and Night
Leading Local Contrast Enhancement
Dividing images into 1,000+ zones, Local Contrast Enhancer analyzes each segment’s brightness and adjusts gamma independently for greater dark and bright detail definition and enriched 4K image depth.
Dynamic Black Technology
Through the use of Active Iris and Dynamic Black technology, BenQ cinema-optimized Enhanced Tone Mapping increases contrast to preserve details in dark areas of projected images.
Exclusive Color Temperature Tuning
For ultimate color accuracy, BenQ high-end cinema projectors provide advanced color temperature tuning with 11 leading levels of white balance controls between high to low brightness, enabling content fanatics to adjust the most accurate mid-tone colors.
24P Playback Support
Most movies are shot at 24 frames per second (fps). In order to display movies exactly as directors intended, TK860 supports 24P playback of high-definition sources at 24 fps without judder in HDR mode to preserve the purity of the original image.
Motion Enhancer
Inserting 36 interpolated frames between sequences to produce seamless, vivid 60 frames-per-second videos, Motion Enhancer eliminates laggy images, jittery playback, and blurry shadows.
Indulge in Immersive Sound
TK860’s treVolo 5Wx2 chambered speakers employ acoustic and psychoacoustic sciences for deep bass and soaring highs, also providing exclusive EQ algorithms used by Hollywood studios for pure clarity and sensual sound quality.
Universal Connectivity
TK860 connects you to all kinds of entertainment with universal ports including three HDMI 2.0b (HDCP 2.2)*, SPDIF, and eARC for 7.1 channel and Dolby Atmos audio pass through, transmitting original full-resolution audio signals to your sound system via one HDMI cable.
Flexible Installation
Vertical Lens Shift
Vertical lens shift provides 10% physical movement range for perfectly straight-edged images without loss of resolution, allowing more flexible installation and placement options.
Aligned 2D Keystone
Countering the trapezoid effect from off-center projector placement such as a tabletop, the auto vertical and manual horizontal keystone provides professionally squared images from a variety of locations.
Projection Distance
1.3x zoom maximizes available space with a range of throw distances for big-screen entertainment without the hassle of complicated installation.
| Display | |
|---|---|
| Brightness (ANSI lumens) | 3300 |
| Native Resolution | 4K UHD (3840×2160) |
| Native Aspect Ratio | 16:9 |
| Contrast Ratio (FOFO) | 50,000:1 |
| Display Color | 30-bit (1.07 billion colors) |
| Light Source | Lamp |
| Light Source Life | a. Normal 4000 hrs, c. SmartEco 15000 hrs, b. ECO 10000 hrs |
| Optical | |
| Throw Ratio | 1.13~1.47 |
| Zoom Ratio | 1.3x |
| Lens | F/# = 1.9 - 2.47, f = 12 - 15.6 mm |
| Projection Offset (Full-Height) | 100% |
| Keystone Adjustment | 2D, (Auto) Vertical ± 30 degrees; Horizontal ± 30 degrees |
| Lens Shift Vertical | +10% |
| Picture | |
| Rec. 709 Coverage | 98% |
| Picture Modes | 3D, Bright, Cinema, Game, HDR Game, HDR10, HLG, Living Room, Sport, User |
| Compatibility | |
| Input Lag | 17.9ms (1080P 60Hz), 17.9ms (4K 60Hz), 21ms (1080p120Hz), 8.7ms (1080P 240Hz) |
| Resolution Support | VGA (640 x 480) to 4K UHD (3840 x 2160) |
| Horizontal Frequency | 15K~135KHz |
| Vertical Scan Rate | 23~120Hz |
| I/O Interface | |
| HDMI in | (x3), HDMI-1 (2.0b/HDCP2.2), HDMI-2 (2.0b/HDCP2.2), HDMI-3 (2.0/HDCP2.2) (4K 120Hz *downscaling to 1080p120Hz) |
| USB Type A | (x2), USB Type A-1 (3.0/Power Supply1.5A), USB Type A-3 (2.0/Power Supply2.5A) |
| USB Type Mini B | (x1), USB Type Mini B-1(service) |
| RS232 in (DB-9pin) | (x1) |
| DC 12V Trigger (3.5mm Jack) | (x1) |
| Audio | |
| Speaker | (x2), 5W Chamber |
| Audio out (3.5mm Mini Jack) | (x1) |
| HDMI Audio Return | Yes, eARC, Dolby Atmos |
| S/PDIF | Multi-Channel, RAW |
| Environment | |
| Operating Temperature | 0~40℃ |
| Power Supply | AC 100 to 240 V, 50/60 Hz |
| Typical Power Consumption (110V) | 330W |
| Stand-by Power Consumption | <0.5W |
| Acoustic Noise (Typ./Eco.)(dB) | 30/28 |
| Accessories | |
| Remote Control w/ Battery | RCV017 |
| Power Cord (by region) | x1 (1.8M) |
| 3D Glasses | DGD5, (Optional) |
| Quick Start Guide | (x1) 21L |
| Warranty Card (by region) | Yes |
| Lens cover | Yes |
| Universal Ceiling Mount | CM00G3, (Optional) |
| Dimension & Weight | |
| Dimensions (WxHxD) (mm) | 380 x 127 x 263 |
| Net Weight (kg) | 4.2 |
| Dimensions (WxHXD) (inch) | 14.96 x 4.99 x 10.35 |
| Net Weight (lb) | 9.25 |
| Projection System | |
| Projection System | DLP |
| Description | Downloads |
|---|---|
| User Manual | Downloads |
| Quick Start Guide | Downloads |
