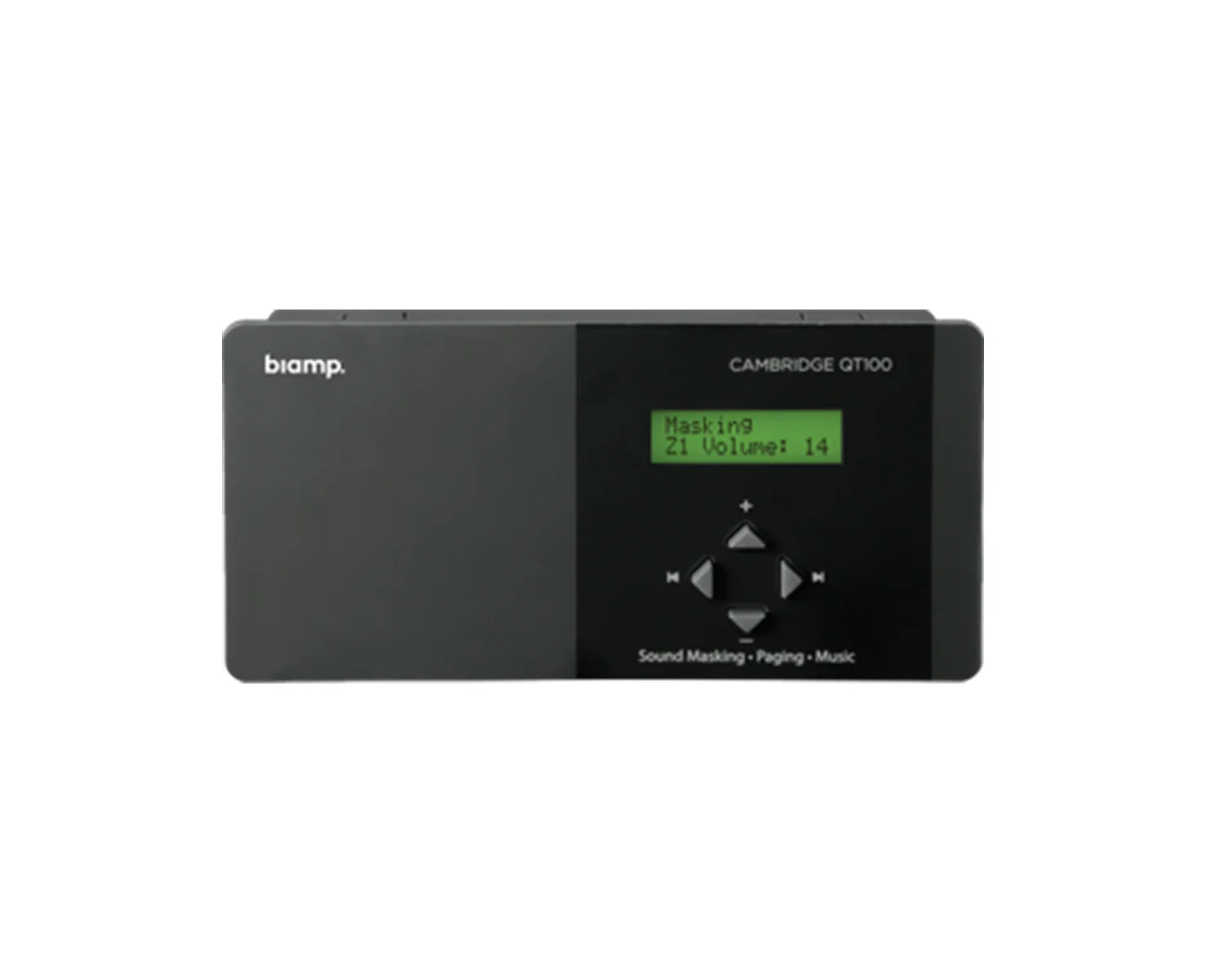

The Qt 100 for sound masking is ideal for single zone spaces of up to 12,000 square feet (1,115 square meters) using Standard Emitters. The Qt 100 is easily controlled from the module’s front panel, making volume adjustments quick and easy.
Qt 100 generates sound masking, often misunderstood as white noise. Sound masking is at a frequency range more tuned to the frequency of human speech and is more acoustically pleasant than white noise.
The Qt 100 complies with the United States Trade Agreement Act (TAA), allowing it to be included in GSA Schedule contractors’ sales bids for the U.S. federal government.
Key Features
1 zone, up to 120 Standard Emitters
1 audio input for paging or music
Contact closure integrates with fire alarm systems
Front panel control with LCD
Surface mount only
CE marked, ETL listed, and RoHS compliant
Covered by Biamp Systems’ five-year warranty
Manufactured in the U.S.A.
GSA eligible
Compliant with the US Trade Agreement Act (TAA)
Met Works with WELL licensing criteria for sound masking.
5-year warranty
| Height | 3.5 in. (89 mm) | Width | 7 in. (179 mm) |
| Depth | 0.875 in. (23 mm) | Weight | 6 oz. (170 g) |
| Included Accessories | ACT Hole Saw | Required Accessories | Standard Emitters |
| Operating Temperature | 40–104 °F (4–40 °C) | Humidity | 0–95% RH, non-condensing |
| Operating Voltage | 100–240VAC, 50/60Hz | Power Consumption | Max 7W (24VDC) |
| Current Draw | 0.6 A | Power Output | 24VDC @ 1A |
| Control | Remote control via captive screw terminal, contact closure (NO), 1 input / 1 output | Connectivity | Captive screw terminal & coax power plug (center positive) |
| Sound Masking Sources | 4 non-correlated | Masking Zones | 1 zone (2 cable runs per zone) |
| Masking Level Adjustment | 0.5 dB steps | Emitter Capacity | Up to 60 Qt Emitters or Room Controls per cable run |
| Max Cabling Distance | 1000 ft (300 m) per run | Audio Output Connections | (2) RJ-45 |
| Audio Input | 1 input (Stereo/Mono), captive screw terminal, +4dBu (2VRMS max), adjustable in 1dB steps, 5kΩ impedance | Output Impedance | Min. 2Ω per channel |
| TAA Compliant | Yes | Certifications | FCC Part 15B, ETL (USA/Canada), CE (Europe), RoHS, Green Spec, WELL criteria compliant |
| Description | Downloads |
|---|---|
| BIAMP Cambridge Dynasound QT-100 Sound Masking Control Module | 913.0823.900 DataSheet | Download |
