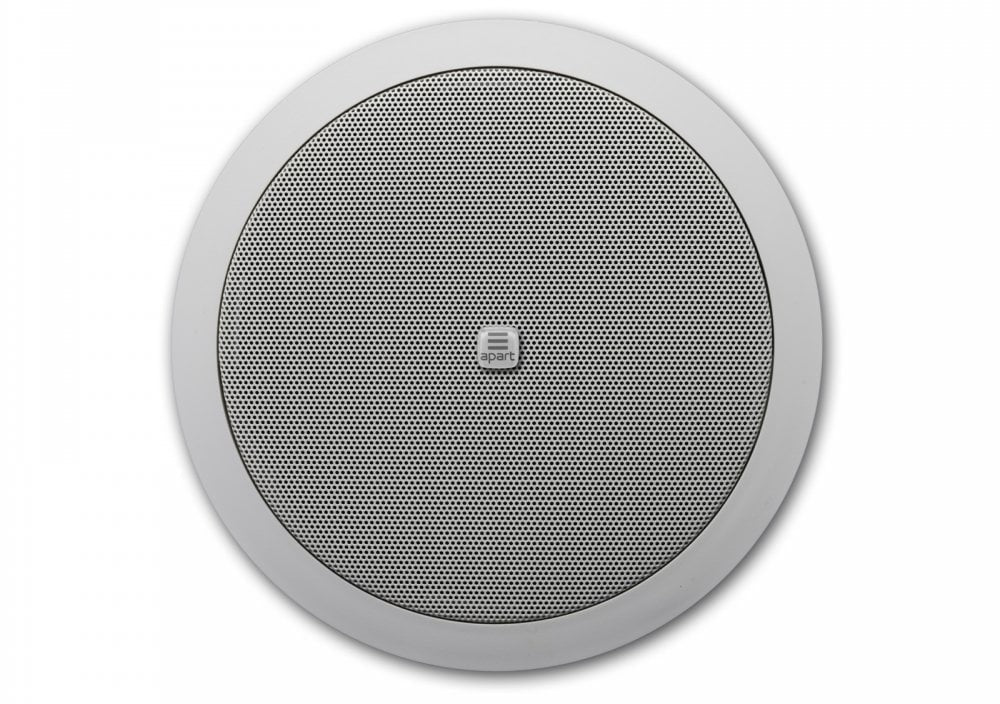

The CM20T two-way built-in loudspeaker can be used as a 16 ohms or 100 volt loudspeaker. In 16 ohms use, you can connect up to 4 loudspeakers in parallel on each channel of a standard 4 ohms amplifier. For 100 volt use, the CM20T is equipped with a high-quality 20 watts 100 volt transformer with several power tappings (20 – 10 – 5 – 2.5 watts). Therefore it can be used in projects with high ceilings or places with background noise where a little more power is needed.
The loudspeaker has a 6.5” enforced polypropylene woofer what results in a very low distortion. To complete the sound, a 1” tweeter has been integrated. It makes the CM20T very suitable for the distribution of microphone calls and background music.
The housing is made of high quality ABS. The woofer is made out of enforced polypropylene, what makes it moisture-proof. The aluminium grille makes CM20T humidity proof and ideal to be used in bathrooms, kitchens.
.. The loudspeaker is easy to install, due to its simple, quick mounting system with only 3 screws. These screws are hidden behind the loudspeaker grill, what gives the loudspeaker a modern and striking design.
This loudspeaker is now updated with a new Quick Fix connector and transformer tapping sticker for an even faster and easier installation.
Versatile for almost every market around the globe due to the addition of the 70 / 100 volt connection, the CM series is bound to stay the standard installer’s choice in the fixed install market.
The complete redesign of the CM Series is done according to the corporate Apart identity. Apart blue speaker clamps and product sticker, an Apart marked transformer and loudspeaker basket.
The CM20T loudspeakers can be painted in any colour.
| Feature | Specification |
|---|---|
| Outside Diameter in mm | 205 |
| Cutout in mm | 186 |
| Loudspeaker System | 2-way |
| Woofer Cone Material | Polypropylene |
| Mounting System | 3 screws |
| 100V Transformer Power Taps in Watts | 20 - 10 - 5 |
| Impedance in Ohms | 16 |
| Low Impedance RMS Power in Watts | 30 |
| Max SPL 1m in dB | 104 |
| Main Construction Material | ABS Plastic |
| IP Rating | 54 |
| Applicable in 100V | Yes |
| Closest RAL Colour (Subject to Deviations) | RAL9010 (W) / RAL9011 (BL) |
| Depth in mm | 80 |
| Installation Grip Range in mm | 2 - 25 |
| Woofer Size in Inch | 6.5 |
| Tweeter Size in Inch | 1 |
| Colour | White / Black |
| 70V Transformer Power Taps in Watts | 20 - 10 - 5 - 2.5 |
| Low Impedance Dynamic Power in Watts | 60 |
| SPL 1W/1m in dB | 86 |
| Frequency Response in Hz | 60 - 20K |
| Grille Main Material | Aluminium |
| Applicable Low Impedance | Yes |
| Vertical Dispersion Angle 1000 Hz | 180° |
| Net Weight Product in kg | 1.40 |
