FEATURES
• Requires only 6.2" (157 mm) mounting depth
• High speech intelligibility coupled with full-range music reproduction
• Thin-edge, magnetically attached grille
• Tap switch allows for 70V/100V or 16Ω low impedance operation
• Tuned bass reflex port for optimized low frequency performance
• Loudspeaker overload protection for 24/7 failsafe operation
• ETL listed to conform with UL Std 1480A and UL 2043; Certified to CSA C22.2#62368-1
APPLICATIONS
·Conference Rooms
·Hallways
·Training Rooms
·Multipurpose Rooms
·Lunch Rooms
·Manufacturing Areas
·Offices · Waiting Rooms
DESCRIPTION

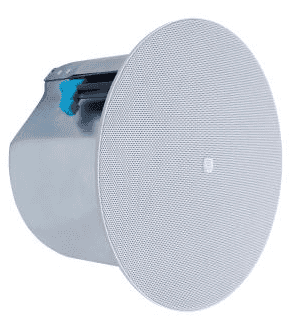

The Desono CM60DTD two-way 6.5" ceiling loudspeaker delivers crystal clear audio for all your public address and background music needs. Its 6.5” coated paper woofer and 1” tweeter results in a high SPL and extremely low distortion, ensuring exceptional clarity over the entire frequency spectrum.
The CM60DTD utilizes a 5-position switchable transformer ranging from 3.75W to 60W with low-impedance bypass for constant-voltage operation, making it an excellent choice for large areas of BGM.
Designed with the installer in mind, they can be blind-mounted from below the ceiling, and feature a magnetic grille for easy toolless installation and removal that can also be painted to match the room decor. Additionally, the tap switch is located on the face of the loudspeaker, so adjustments can be made without requiring ceiling access.
Desono CM60DTD loudspeakers are an ideal choice for a multitude of environments that demand superior speech intelligibility and full range music reproduction.
| Feature | Specification |
|---|---|
| Operating Mode | Passive |
| Operating Environment | Indoor |
| Operating Range (-10dB) | 75 Hz to 22 kHz |
| Nominal Beamwidth (H x V) | 150° conical |
| Transducers | LF: 1 x 6.5" (165 mm) coated paper cone |
| HF: 1 x 1" (25 mm) soft dome | |
| Continuous Power Handling @ Nominal Impedance | 31V 60W @ 16Ω (240W peak) |
| Nominal Sensitivity @ 1m | @ 1W: 86 dB |
| @ 2.83V: 83 dB | |
| Nominal Maximum SPL @ 1m | Peak: 110 dB |
| Continuous: 104 dB | |
| Transformer | 70V: 60W, 30W, 15W, 7.5W, 3.75W |
| 100V: 60W, 30W, 15W, 7.5W | |
| Protection | 3-step self-resetting protection |
| Recommended Amplifiers | 60W - 120W @ 16Ω (31V - 44V) |
| Input Connection | (1) 4-way Euroblock connector with permanent pass-through |
| Mounting Provisions | 2 mounting clamps with grip range of 0.2" - 2.6" (3 - 65 mm) |
| Cover plate with 0.75" (22 mm) NPT knockout for conduit connectors | |
| Safety Features | 2 hang points |
| Compliance | ETL listed to comply with UL 1480A and UL 2043; Certified to CSA C22.2#62368-1; Suitable for use in air handling spaces per NFPA 70, NFPA 90 |
| Dimensions H x Dia. | 6.2" x 10.2" (157 mm x 258 mm) |
| Cutout Diameter | 9.1" (232 mm) |
| Weight | 8.8 lbs (4.0 kg) |
| Finish | Refer to the Technical Drawings (page 3) |
| Accessories (included) | Tile rails; tile rail spacers; cutout template |
| Options Accessories | SQGR square grille |
