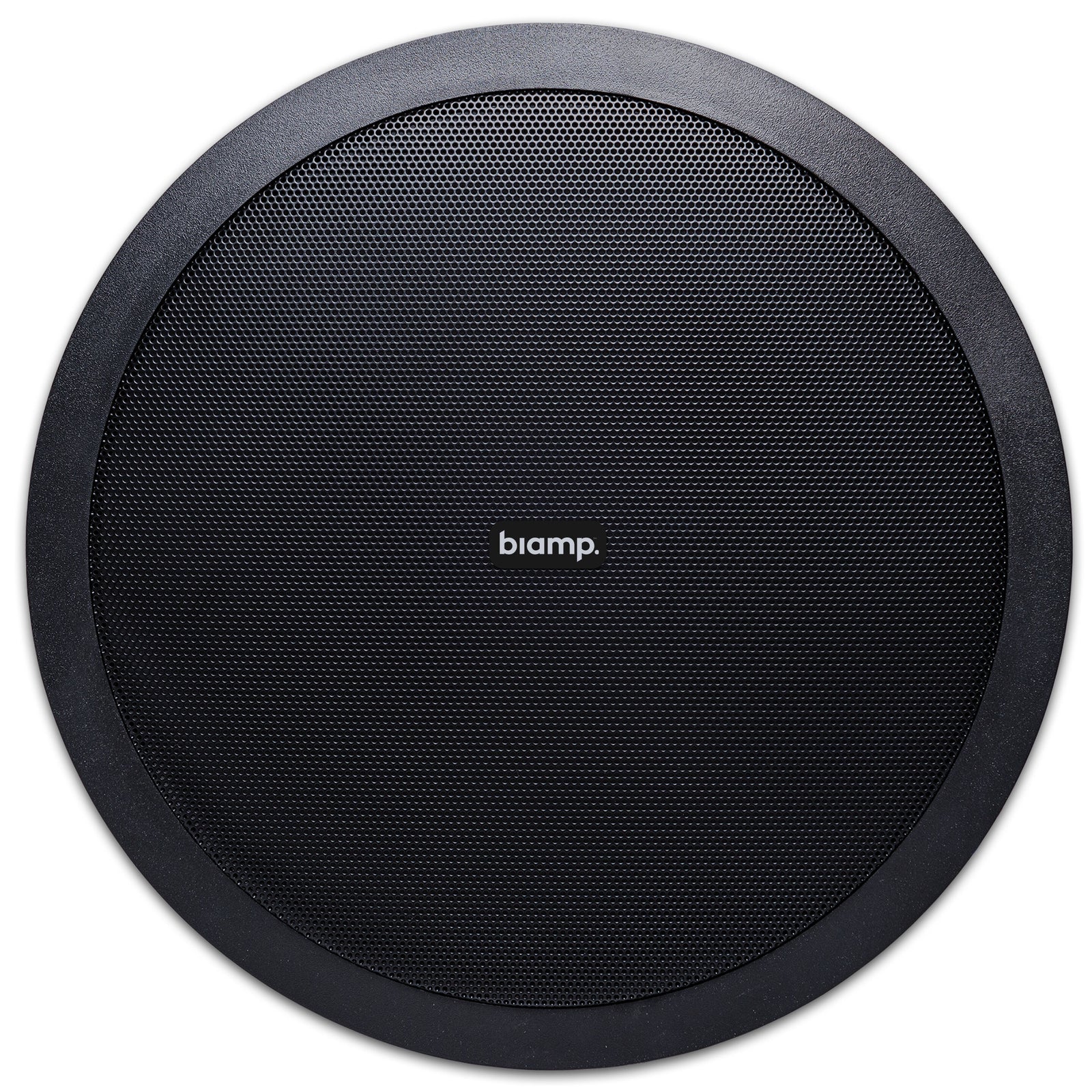

Black, 2-way built-in loudspeaker.
Key Features
Low distortion due to 8-inch enforce polypropylene woofer & 1-inch tweeter
ABS plastic housing & aluminum grille
Humidity & moisture proof
Use in 16 ohms or 100V
Not available in US and Canada
5-year warranty
CMX20T-BL is a black, 2-way built-in loudspeaker produces a warm and deep sound ideal for speech and music. The CMX20T-BL loudspeaker has an 8-inch enforced polypropylene woofer and 1-inch tweeter. Due to this enforced woofer, the loudspeaker has a very low distortion. It makes the CMX20T-BL very suitable for the distribution of microphone calls and background music at a higher volume level.
The housing is made of high-quality ABS. The woofer is made of enforced polypropylene with a rubber edge, making it moisture-proof. The aluminum grill makes CMX20T-BL humidity proof and suitable for use in bathrooms and kitchens.,
In 16 ohms use, you can connect up to 4 loudspeakers in parallel on each channel of a standard 4 ohms amplifier. For 100-volt use, the CMX20T is equipped with a high-quality 20 watts 100 volt transformer with several power tappings (20 – 10 – 5 – 2.5 watts).
This loudspeaker is easy to install, due to its simple, quick mounting system with only 3 screws. These screws are hidden behind the loudspeaker grill, what gives the loudspeaker a modern and striking design. The CMX20T-BL loudspeakers can be painted any color.
| Depth | 3.4 inches (87 mm) | Diameter | Bezel Diameter: 9.6 inches |
| Cutout Diameter | 8.8 inches (223 mm) | Weight | 3.09 lbs (1.4 kg) |
| Power | 50W Continuous / 200W Peak | Loudspeaker Type | Two-way 8-inch 70V/100V ceiling loudspeaker |
| Operating Range | 50 Hz – 20 kHz | Transformer | 70V: 20W, 10W, 5W, 2.5W 100V: 20W, 10W, 5W |
| Sensitivity (1W/1m) | 88 dB | Dispersion | 180° conical |
| Drivers | LF: 1 x 8" enforced polypropylene HF: 1 x 1" |
Impedance | 16Ω |
| Maximum Output | 108 dB (114 dB Peak) | Environmental Ratings | IP54 |
| Description | Downloads |
|---|---|
| BIAMP CMX20T-BL 2-Way Ceiling Loudspeaker | 911.1586.900 DataSheet | Download |
