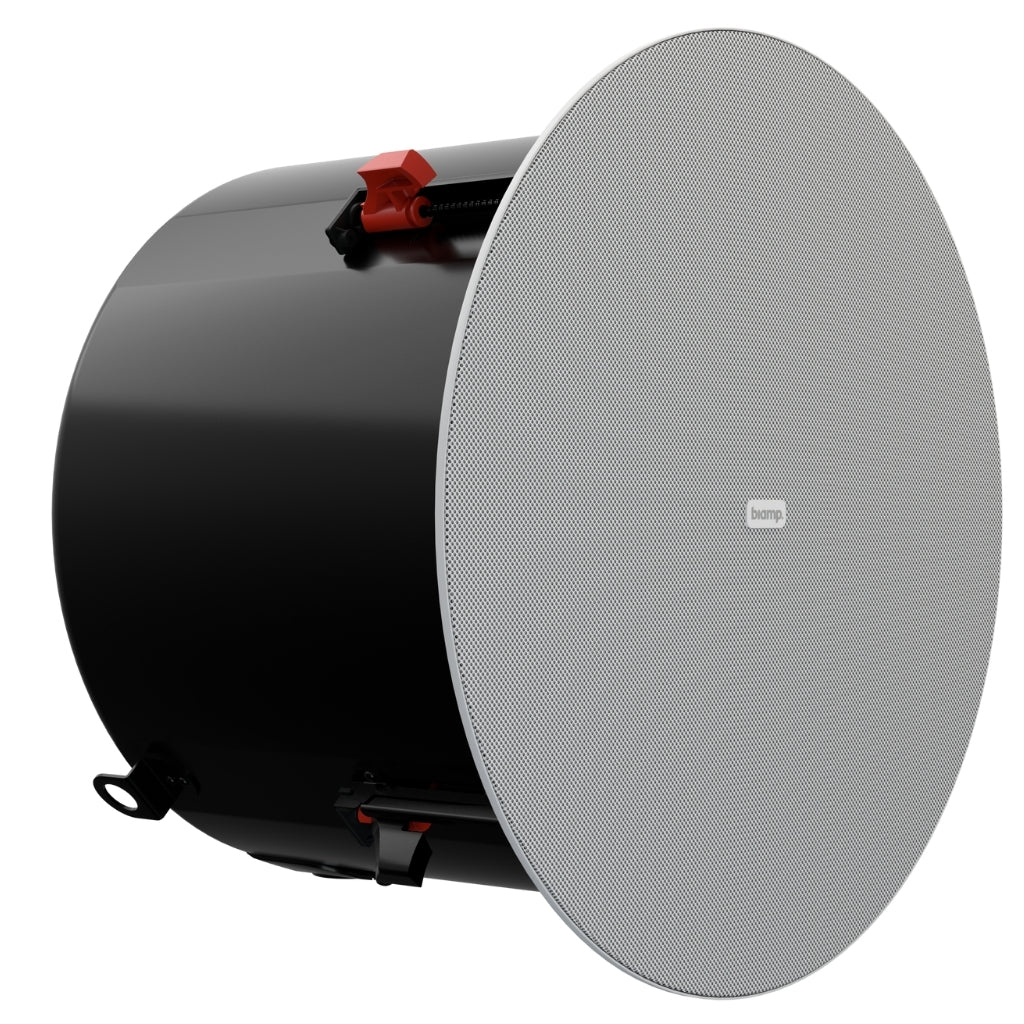

The Desono DX-IC10SUB ceiling mount subwoofer provides a powerful, high-impact bass response intended to augment any combination of Desono DX full-range models. By including a complement of DX-IC10SUBs into a distributed system, musical results that equal or exceed that of much larger and more costly surface-mount systems can readily be achieved. The DX-IC10SUB’s clean, clear bass response provides a compelling attraction for shoppers in a retail environment, and a memorable experience for bar, pub, and restaurant patrons.
Dependent on program content and the size of the full-range DX models, the ratio of DX-IC10SUBs to full-range models may vary from as few as 1:6 to as many as 1:1. For example, one DX-IC10SUB will provide strong supporting bass response for six DX-IC4s, while four DX-IC10SUBs will better complement six of the more powerful DX-IC8s or DX-IC10s.
Patent-pending SpringLock™ clamps allow singlehanded placement to speed installation and reduce labor time. The SpringLock spring-loaded clamps support the back can on the included tile rails and snap-on C-ring, so that the installer can just tighten the clamps, securing it in the ceiling.
A magnetic grille and front-face wattage selector switch enables quick adjustment of tap levels, while the high-power internal autoformer permits full power output with 70V or 100V lines. A variety of installation accessories are available to accommodate different ceiling materials.
Key Features
Zoom Certified
High intelligibility with exceptional uniform coverage
High-impact bass response
Fast installation with SpringLock™ mounting clamps
Attractive edgeless magnetic grille design
Conduit knock-outs on the input cover meet Chicago plenum air space requirements
5-year warranty
| Feature | Specification |
|---|---|
| General | |
| Depth | 10.37 in (263 mm) |
| Diameter | 15.51 in (394 mm) |
| Cutout Diameter | 14.17 in (360 mm) |
| Weight | 22.1 lbs (10.0 kg) |
| Finish | White RAL 9016 |
| Included Accessories | C-Ring supporting plate, tile support bridge rails, grille, paint mask, cut-out template |
| Environmental | |
| Operating Environment | Indoor |
| Power | |
| Power | 200 W Continuous / 800 W Peak |
| Loudspeaker | |
| System | Passive with DSP |
| Type | Indoor, 10″ ceiling subwoofer |
| Operating Range | 39 Hz – 200 Hz |
| Transformer | 70V: 200W, 100W, 50W, 25W 100V: 200W, 100W, 50W |
| Sensitivity | 88 dB (1W/1m) |
| Dispersion | Omni-directional |
| Drivers | LF: 1 × 10″ |
| Audio | |
| Impedance | 8 Ω |
| Maximum Output | 111 dB @1m / 123 dB Peak |
| Certified Solutions | |
| Zoom | Zoom Certified |
| Compliance | |
| Certifications | UL1480, UL2043, CSA62368-1, NFPA70, NFPA90 |
| Description | Downloads |
|---|---|
| Biamp Desono DX-IC10SUB-W In-Ceiling Subwoofer DataSheet | Download |
