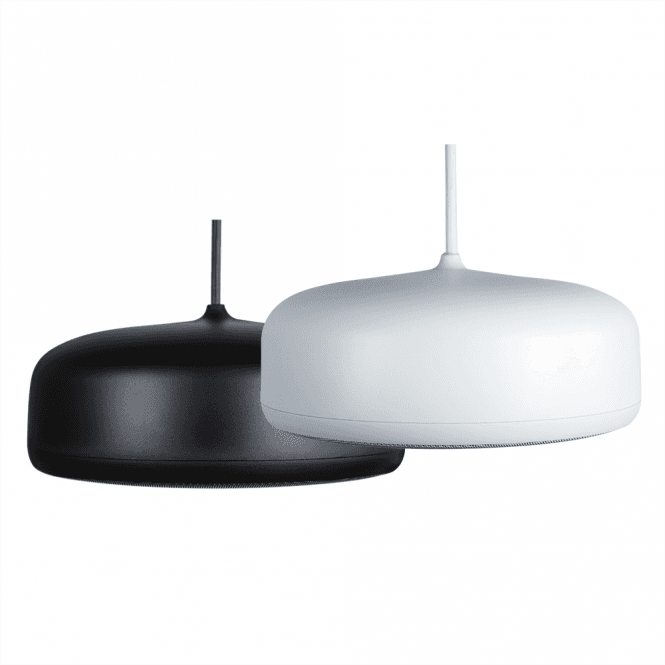

BIAMP Desono P6-SM Two-Way 6.5" Pendant Mount Loudspeaker
FEATURES
• Bold, low-profile “sunshine” form factor
• Bridge-mounted soft dome tweeter mechanically isolated from the low frequency driver for enhanced audio output
• Magic Cable is pre-terminated inside the pendant to ensure no exposed connections at the loudspeaker; contains two hardened stainless steel cables and two audio conductors
• Designed for outdoor splash applications such as patios or concourses
• 6-position 70V/100V tap (60W, 30W, 15W, 7.5W, 3.75W, 1.875W) with low impedance bypass
• ETL listed to comply with UL1480A
• Covered by Biamp Systems’ seven-year warranty
APPLICATIONS
DISTRIBUTED
· Bars and Restaurants
· Hotels
· Casinos
· Shopping Malls
· Health and Fitness Clubs
· Houses of Worship
· Exhibit Halls
· Corporate Meeting Rooms
· Auditoriums
DESCRIPTION
Desono™ P6-SM is a low-profile, two-way passive coaxial loudspeaker intended for full range music reproduction in distributed audio applications. It delivers high intelligibility coupled with a wide coverage area, allowing system designers to use fewer speakers while maintaining acceptable levels of speech intelligibility.
The P6-SM utilizes a 6-position switchable transformer ranging from 1.875W to 60W with low-impedance bypass for constantvoltage operation, making it an excellent choice for large areas of BGM.
Designed with the installer in mind,the P6-SM also comes pre-terminated with Magic Cable, a composite cable comprised of two aircraft cables, two audio conductors jacketed separately, and two ripcords for slicing through the cable jackets.
Desono P6-SM is designed for outdoor splash applications such as patios or concourses, and an ideal choice for both indoor and outdoor distributed audio applications that demand superior speech intelligibility and full range music reproduction.
-
| Category |
Specification |
| Operating Mode |
Passive with DSP |
| Operating Environment |
Indoor/Outdoor (splash applications only) |
| Operating Range (-10dB) |
75 Hz to 18.5 kHz |
| Nominal Beamwidth (H x V) |
90°, conical |
| Transducers |
LF: 1 x 6.5" (165 mm) polypropylene cone<br>HF: 1 x 1" (25 mm) soft dome |
| Continuous Power Handling @ Nominal Impedance |
19V 60W @ 6Ω (240W peak) |
| Nominal Sensitivity @ 1m @ 1W |
87 dB<br>@ 2.83V 88 dB |
| Nominal Maximum SPL @ 1m |
Peak: 111 dB<br>Continuous: 105 dB |
| Transformer |
70V: 60W, 30W, 15W, 7.5W, 3.75W, 1.875W<br>100V: 60W, 30W, 15W, 7.5W, 3.75W |
| Required Accessories |
80 Hz, 12dB/Oct high pass filter |
| Recommended Amplifiers |
60W - 120W @ 6Ω (19V - 27V) |
| PHYSICAL |
Input Connection: Pre-terminated inside housing<br>Controls: Power tap / low impedance selector switch<br>Mounting Provisions: Two pre-terminated aircraft cables (one as primary support, one as a safety cable), and Griplock cable fasteners; 4.3 m (14 ft) of pre-terminated Magic Cable<br>Compliance: ETL listed to comply with UL 1480A, Certified to CSA C22.2#62368-1 and CSA C22.2#60950-22<br>Cable listed to comply with UL 13, Class 3 Indoor/Outdoor rated<br>Suspension system and Griplock cable fasteners listed per UL1598 and UL2239, TUV and CSA Class 3426-01 and Class 3426-8<br>Dimensions (H x Dia): 139 mm x 292 mm (5.5" x 11.5")<br>Weight: 5 kg (11 lbs)<br>Finish: Refer to the Technical Drawings (page 2) |
| Accessories (included) |
Two Griplock cable fasteners<br>Magic Cable<br>(2) Aircraft Cables: 1.6 mm (0.0625") dia. stainless steel, 7x7 stranding, safe working load per cable 218 kg (480 lbs), meets US Fed Standard RR-W-410H<br>(2) Electrical Conductors: copper, 0.75 mm2 (AWG 18), 19/30 stranded<br>Outer Jacket: UV & moisture resistant PVC, WL-1 fire-rated<br>General: O.D. 8.5 mm (0.33"), minimum bend radius 51 mm (2"), meets UL13 requirements for indoor/outdoor use |
| OPTIONS |
Accessories: MC-SK10 inline splice kits; MC-PHK16-12PK pendant hang kits |
- 911.0923.900 : Datasheet
