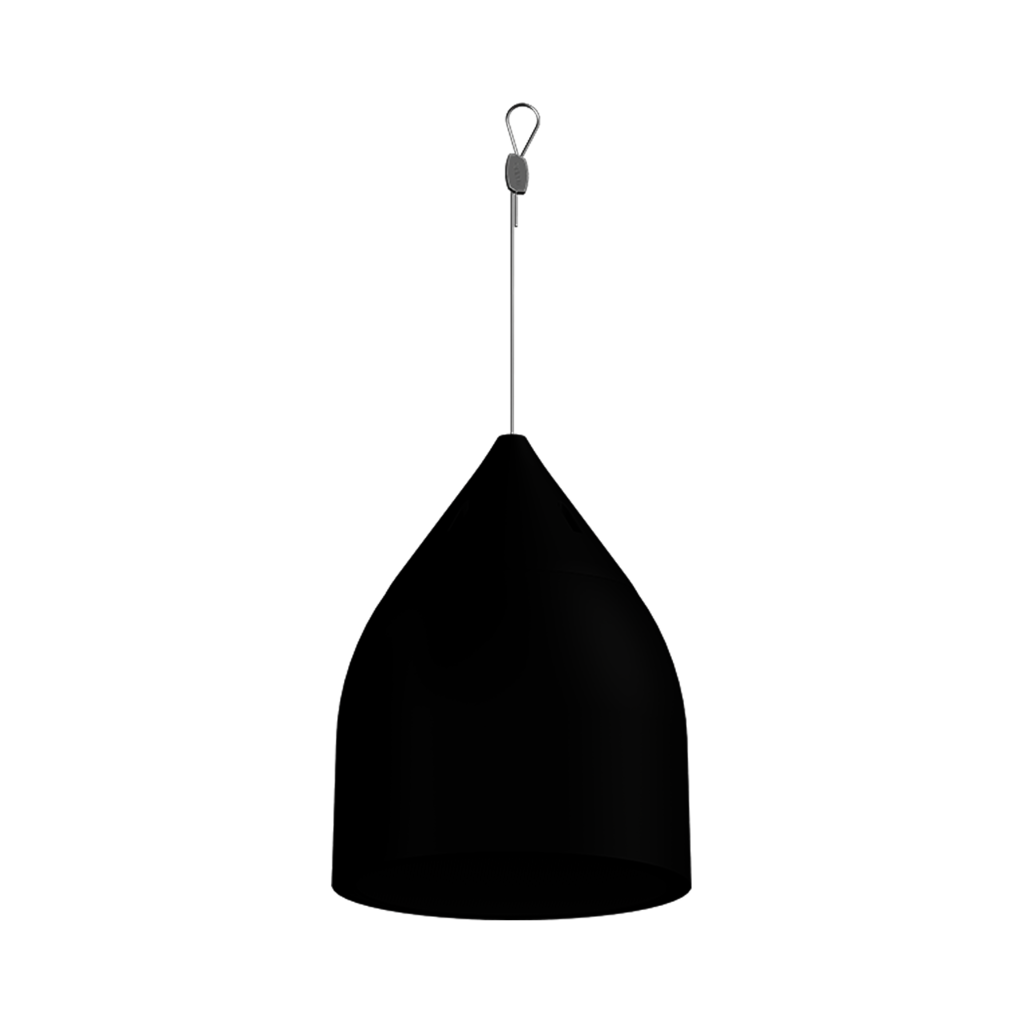

Biamp DP6-B 6.5" Pendant Loudspeaker | 911.0550.900
SKU: 911.0550.900
£294.97 (Excl. VAT)
- Description
- Specifications
- Downloads
-
Biamp DP6-B Pendant Loudspeaker | 6.5" 2-Way, 100W, 70/100V, Zoom Certified
The DP6 is a high performance 6.5-inch pendant loudspeaker designed for open architecture spaces or any location where a stylish pendant form factor is desired. Featuring high power handling, high sensitivity and realistic sound reproduction, D SERIES pendant loudspeakers can be used in a wide variety of speech and music applications. They are equipped with a built-in autoformer, supporting low impedance or 70V/100V operation. Uniform voicing means that the DP6 can be combined with other ceiling and surface mount models in the C or D SERIES family without compromising consistency from zone to zone. The genuine coaxial design uses separate magnets for the LF and HF drivers for reduced distortion and industry-leading sensitivity, thereby permitting 3 dB to 6 dB greater output level while requiring half the amplification power of competing products. An easy-access selector switch is conveniently located on the face of the loudspeaker for selectable 8 ohm or 70V/100V operation, while an integrated rear cover hides all wiring and hanging hardware for an aesthetically pleasing installation.
-
Category Feature Specification GENERAL Height 14.73 inches (374.2 mm) high enclosure Width 11.22 inches (285 mm) face diameter Weight 11.8 lbs (5.4 kg) Finish Black Material Grille: Powder coated steel, black or white, paintable Mounting Two PHK-15 pendant hang kits, 15ft (4.5m) cables, Gripple™ fasteners Accessories Two PHK-15 pendant hang kits Enclosure ABS plastic rear cover Rear cover ingress weather plug Required Accessories: Electronic high pass filter CONTROLS & INDICATORS Control Front-face wattage / low impedance selector switch AMPLIFIER Distortion 500 Hz: 1.74% 2nd Harmonic, 1.19% 3rd Harmonic 2 kHz: 1.18% 2nd Harmonic, 0.35% 3rd Harmonic 8 kHz: 0.77% 2nd Harmonic, 0.04% 3rd Harmonic LOUDSPEAKER Loudspeaker Type Two-way, full-range, coaxial pendant mount loudspeaker Operating Range 65 Hz - 22 kHz Crossover Crossover Frequency: 1.2 kHz Transformer 70V: 60W, 30W, 15W, 7.5W and low impedance; 100V: 60W, 30W, 15W Sensitivity 94 dB SPL (125 Hz to 12.5 kHz), 92 dB SPL (250 Hz to 4 kHz) Coverage 115º conical (1 kHz to 6 kHz), 125º conical (500 Hz to 6 kHz) Signal Processing 65 Hz high pass filter Drivers LF: 1 x 6.5-inch, HF: 1 x 1-inch exit compression driver Driver Protection Self-resetting solid state circuit breaker AUDIO Audio Input Connection Two 2-position Euroblock connectors Impedance Nominal: 8 ohms; Minimum: 6.9 ohms @ 210 Hz Maximum Input 100W continuous, 250W program, 28 volts RMS, 63 volts momentary peak Maximum Output 114 dB SPL / 120 dB SPL (peak 8 ohm) Frequency Response 80 Hz - 20 kHz (±5 dB) CERTIFIED SOLUTIONS Zoom Zoom Certified COMPLIANCE Safety Features Safety cable with SWL of 99 lbs (45 kg) Safety Agency Ratings EETL listed to comply with UL1480 and CSA60065 Suspension system listed per UL1598, UL2239, TUV, CSA NOTES Specification Notes Baffle: Reflex loaded UL 94V-0 rated ABS Axial Q / DI: 4.7 / 6.7, 500 Hz to 6 kHz -
Description Downloads Spec Sheet Downloads Manuals Downloads
