Biamp Impera Connect-X MP6 | 910.0275.900

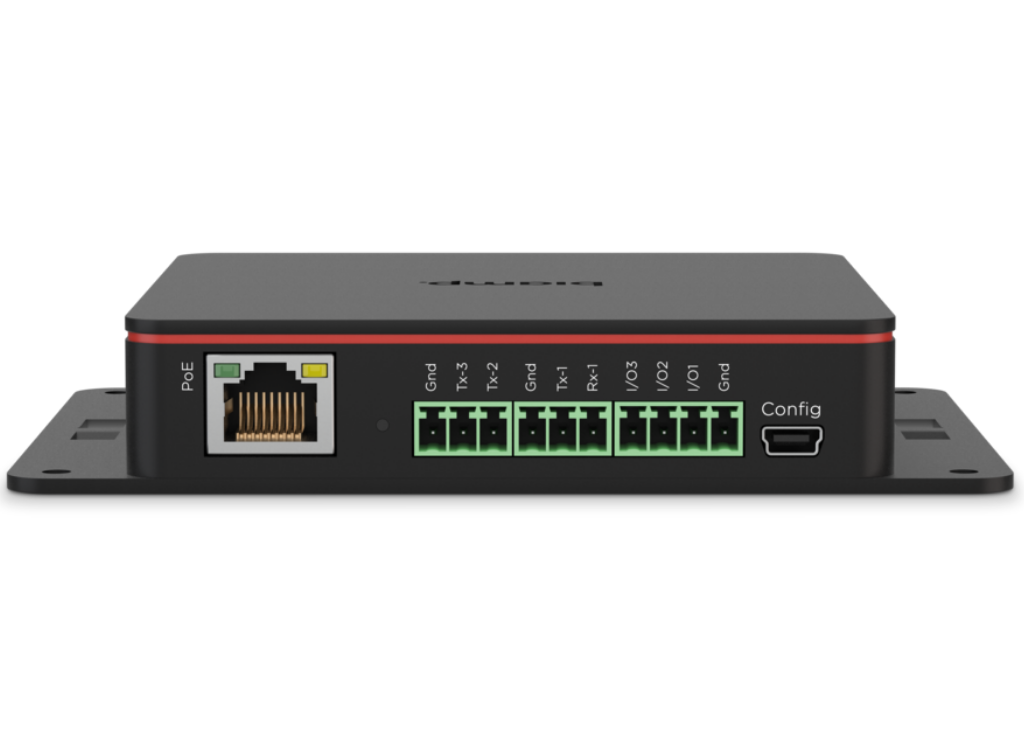

Ethernet connected multi-port control extender, 1 bidirectional RS-232, 2 unidirectional RS-232/IR, 3 GPIO.

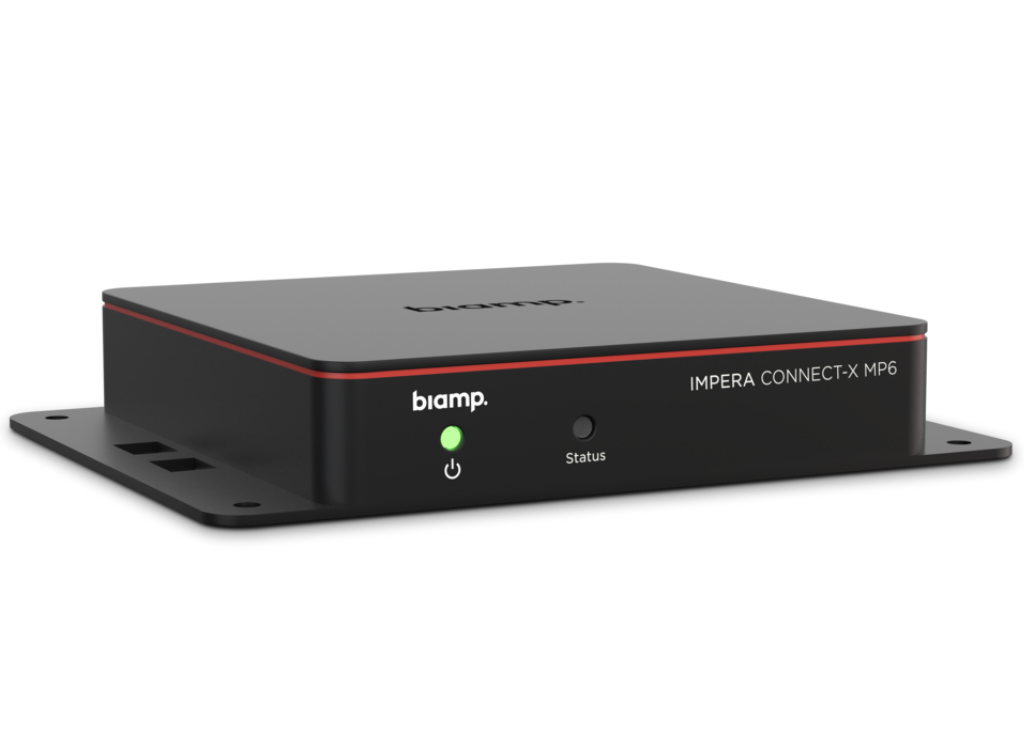

The Impera Connect-X MP6 is a lightweight peripheral that easily extends the versatility of Impera controllers, control pads, and Apprimo Touch 8i control panels by adding serial, IR, GPIO and LAN control to Impera controllers connected to local area networks. Each LAN-connected Impera controller can host up to eight Connect-X MP6 multiport extenders without consuming any LAN ports. The Connect-X MP6 bridges the local area network and conventional AV ports, letting installers use the convenience of Ethernet cabling to bring AV ports directly to devices. At less than one-quarter pound (110g), the Connect-X MP6 is easily mounted using screws, double sided tape, or zip ties.
Key Features
1 bidirectional RS-232/IR control port with feedback
2 unidirectional RS-232/IR control ports
3 GPIO ports
LAN control of 2 additional IP devices
PoE powered (IEEE 802.3at Class 1, 4W) for simple, single CAT5e/CAT6 cable installation
Lightweight design less than one quarter pound (110g)
Mounted with screws, zip ties or double-sided tape
5-year warranty
-
Category |
Feature |
Specification |
General |
Height |
0.86 inches (22 mm) |
|
Width |
5 inches (127.2 mm) with flange |
|
Depth |
3.8 inches (92.2 mm) |
|
Weight |
0.24 lb (110 g) |
|
Accessories |
Mounting screws and zipties |
Power |
Power |
PoE (IEEE 802.3at Class 1, 4W) |
|
Power Consumption |
Each I/O can draw up to 24DC / 500mA |
Network |
Network Connection(s) |
Ethernet Port Speed: 10/100 Mbps |
|
Autosense |
Yes |
|
Number of 3rd-party devices supported |
2 |
RS-232 |
Number of Ports |
1 (bidirectional), 2 (unidirectional) |
-
