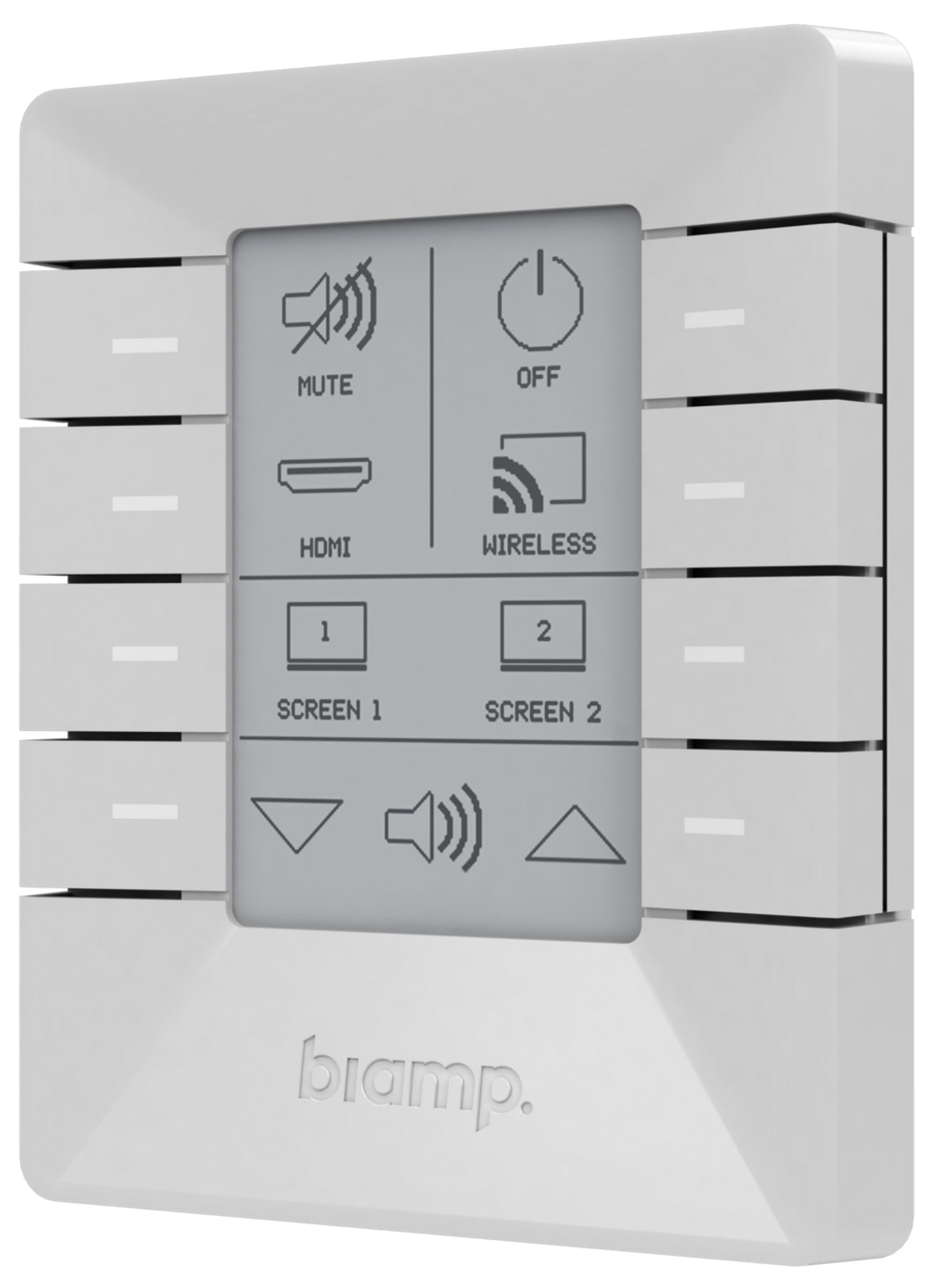

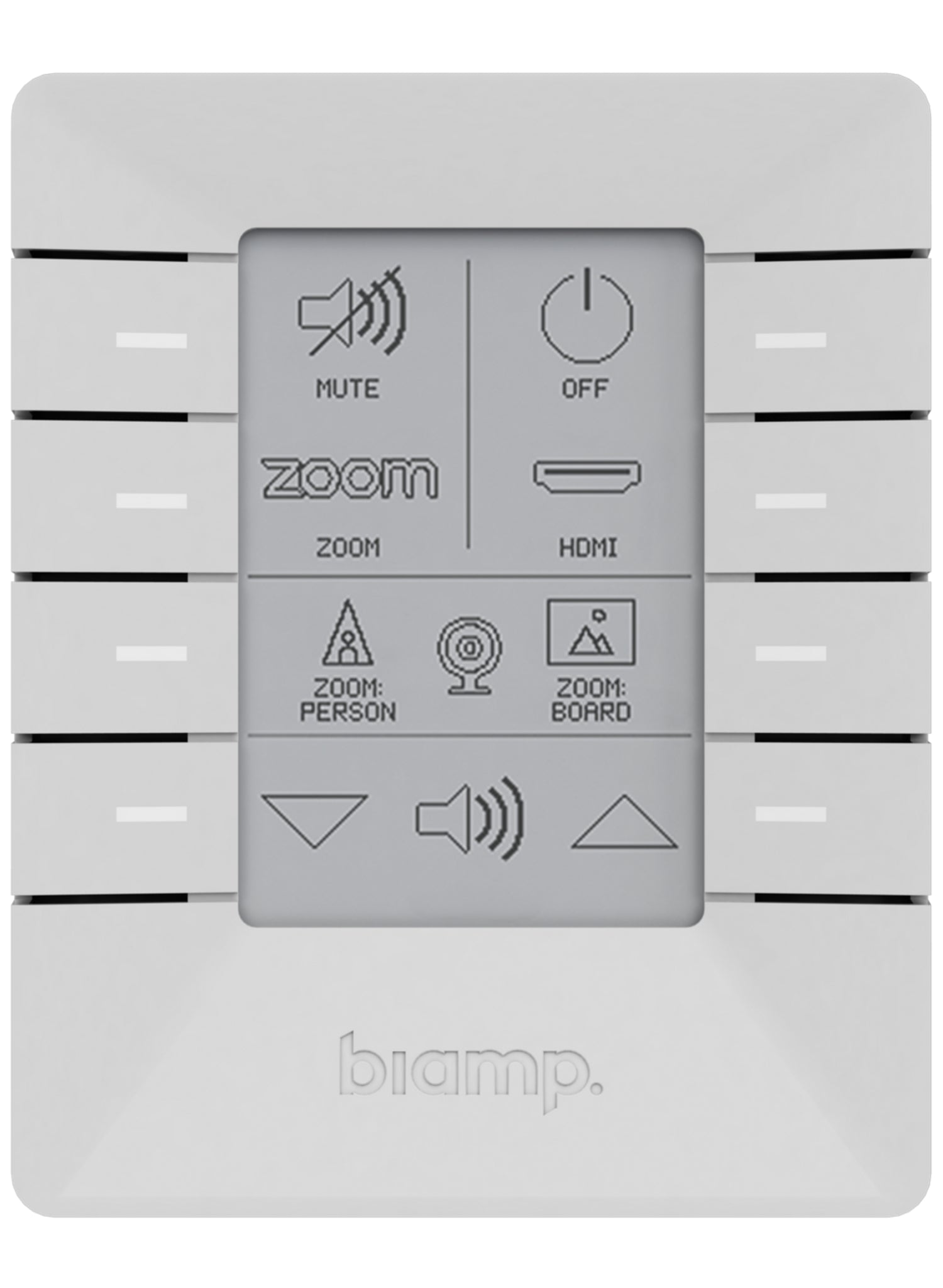

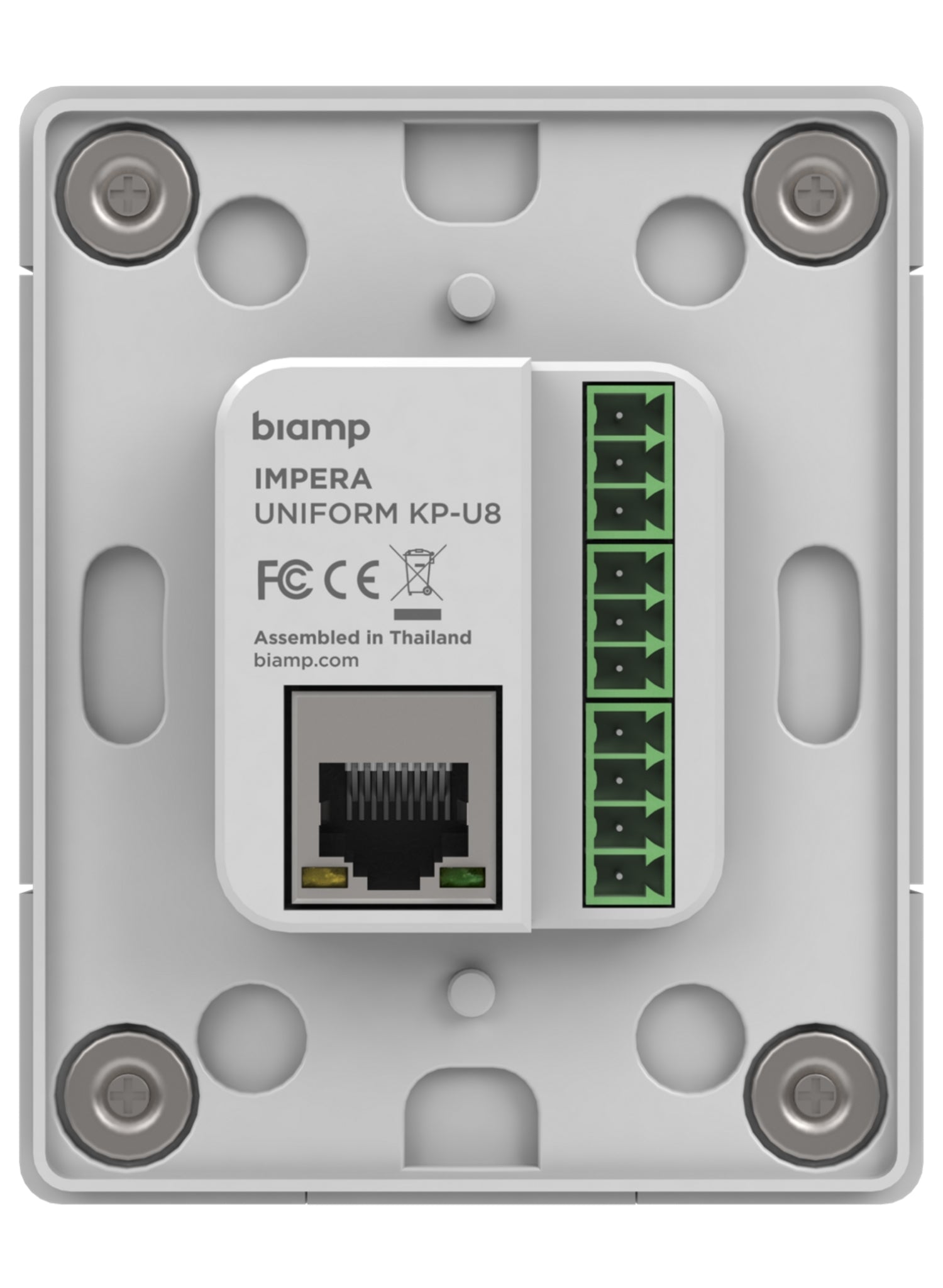

Biamp Impera Uniform 8U 8-Button E Ink Control Pad with Ethernet
SKU: 910.1870.900
£369.60 (Excl. VAT)
£369.60 (Excl. VAT)

Key Features
Supports up to eight software-configurable buttons
2.7 inch high contrast E Ink display
Includes onboard controller; no external processor required
One bidirectional RS-232 port for third-party control with feedback
Two unidirectional RS-232 ports for third-party control
Three GPIO ports
Supports email notifications for lamp/filter hours and warnings
Micro USB connection for system configuration and maintenance
Expansion Bus supports up to eight additional devices (keypads and port expanders)
PoE powered (IEEE 802.3at Class 1, 4 watts) for simple, single CAT5e/CAT6 cable installation
5-year warranty
The Impera Uniform control pad is a compact, highly customizable audiovisual control suitable for wall mounting. It provides a simple and intuitive interface for presentation spaces, learning environments, and conference rooms, regardless of the type of equipment installed.
Equipped with a software-configurable E Ink display, the Uniform can be quickly programmed and customized within Project Designer as the needs of the room change over time, making the Uniform a very flexible and cost-effective control solution.
| Category | Details |
|---|---|
| Height | 3.7 inches (94 mm) |
| Width | 3 inches (76 mm) |
| Depth | 0.6 inches (15 mm) |
| Weight | 0.2 lbs (84 g) |
| Display | 2.7” e-ink, 264x172 pixels, Black/white |
| Accessories | In-wall mounting bracket, screws, plugs |
| Operating Temp | 32 - 104°F (0 - 40°C) |
| Humidity | 10-90% RH (non-condensing) |
| Altitude | 0-6,600 ft (0-2000m) MSL |
| Power | PoE (IEEE 802.3at Class 1, 4W max) |
| Controls | 8 mechanical buttons, 7-color LED, RS-232/IR |
| GPIO I/O | 3 ports, 24VDC max, 0.5A max current |
| Compliance | CE Marked, RoHS Directive (Europe) |
| Ethernet | 10/100 Mbps, Autosense |
| Supported Devices | 2 third-party, 8 Biamp devices |
| Description | Downloads |
|---|---|
| Biamp Impera Uniform 8U 8-Button E Ink Control Pad with Ethernet DataSheet | Downloads |
