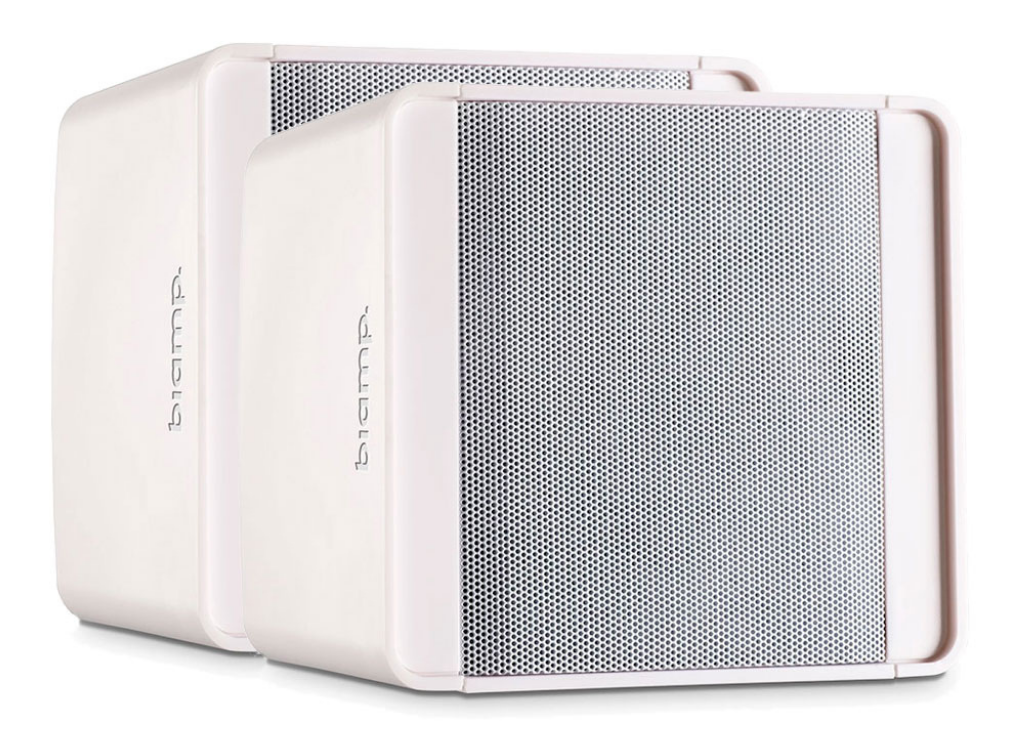

Biamp KUBO5T-W Compact Design Two-way Loudspeaker
SKU: 911.0690.900
£148.84 (Excl. VAT)
- Description
- Specifications
- Downloads
-
Biamp KUBO5T-W Compact Design Two-way Loudspeaker
The Desono KUBO5T two-way 5.25" surface mount loudspeaker is the result of increasing demand for more stylish yet subtle audio products. Designed to blend into any background, the KUBO5T delivers crystal clear sound for all your background music needs, while the bass reflex port provides a fast and dynamic bass response.
Available in black or white, the 140° range of motion allows the KUBO5T to be installed on walls or ceilings in either horizontal or vertical orientation. The audio connections and bracket hardware are hidden under magnetically attached end caps, providing a refined look for high visibility locations. For retail applications, optional accessories are available that allow the KUBO5T to be attached directly to many types of track lighting rails.
The KUBO5T utilizes a 5-position switchable transformer ranging from 1.5W to 30W with low-impedance bypass for constant-voltage operation, making it an excellent choice for large areas of BGM.The Desono KUBO5T is an excellent choice for indoor audio applications that demand superior speech intelligibility and full range music reproduction.
-
Feature Specification Operating Mode Passive Operating Environment Indoor Operating Range (-10dB) 94 Hz to 20 kHz Nominal Beamwidth (H x V) 80° x 80° Transducers LF: 1 x 5.25" (133 mm) coated paper cone, HF: 1 x 1" (25 mm) soft dome Continuous Power Handling @ Nominal Impedance 28V 50W @ 16Ω (200W peak) Nominal Sensitivity @ 1m @ 1W 87 dB, @ 2.83V 84 dB Nominal Maximum SPL @ 1m Peak: 110 dB, Continuous: 104 dB Transformer 70V: 30W, 15W, 7.5W, 3W, 1.5W; 100V: 30W, 15W, 6W, 3W Protection 3-step self-resetting protection Recommended Amplifiers 50W - 100W @ 16Ω (28V - 40V) Input Connection (2x) 2-way Euroblock connectors for daisy-chaining; connectors accept up to 12 AWG (2.5 mm²) conductors Controls Power tap / low impedance selector switch Mounting Provisions U-bracket Environmental IP40 per IEC 60529 Dimensions (H x W x D) 155 mm x 164 mm x 136 mm (6.1" x 6.4" x 5.3") Weight 2 kg (4.4 lbs) Finish Refer to the Technical Drawings (page 3) Accessories (included) U-bracket; safety cable Optional Accessories LRABAS(-BL/-W): Basic light rail adaptor, black or white; LRAPRE(-BL/-W): Premium light rail adaptor, black or white -
Description Downloads Spec Sheet Downloads
