INPUTS |
|
Number of Inputs |
Emergency (line level with contact): 1 |
|
Paging Mic (mic level with contact): 1 |
|
Mic/Line (balanced): 1 |
|
Stereo Line (unbalanced): 2 |
Input Priority Levels |
4 |
Priority Input Contact |
Yes |
Chime |
Yes |
Tone Control |
Yes |
Wall Panel Controls |
Yes |
Music Level Control |
Yes |

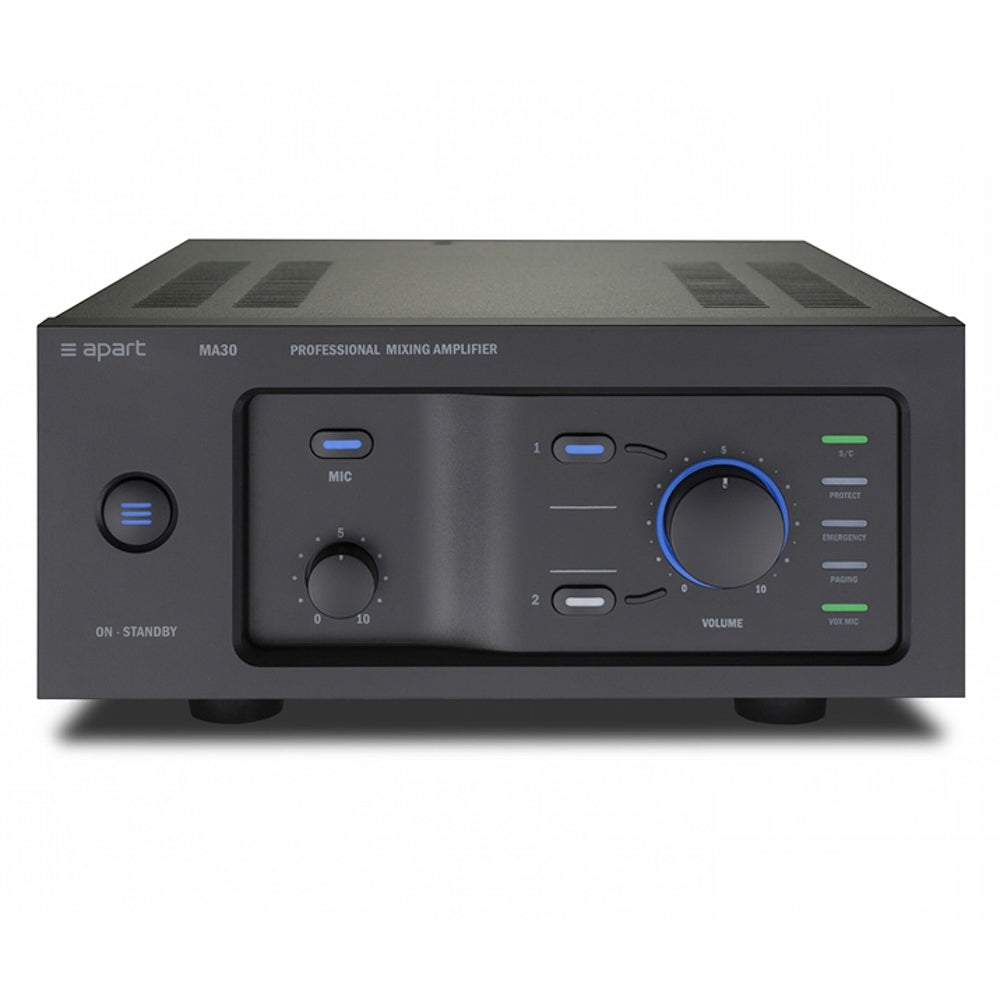

Front Panel Indicators |
Signal present, clipping, overload condition, emergency mode active, paging active, VOX active |
Emergency Input |
|
Nominal Input Sensitivity |
0 dBV (1 Vrms) |
THD+N (Pre-Out, @ -6dB) |
< 0.5% |
Frequency Response (-3dB) |
100 Hz – 20 kHz |
Input Impedance |
5 kΩ |
Paging Mic |
|
Nominal Input Sensitivity |
-45 dBV (5.6 mVrms) |
THD+N (Pre-Out, @ -6dB) |
< 0.4% |
Frequency Response (-3dB) |
Balanced Mic: 165 Hz – 20 kHz |
|
Unbalanced, Balanced Line: 20 Hz – 20 kHz |
Gain |
-15 to +15 dB |
Chime Length |
2 sec |
Input Impedance |
2 kΩ |
Mic |
|
Nominal Input Sensitivity |
Balanced Mic: -45 dBV (5.6 mVrms) |
|
Balanced Line: -12 dBV (250 mVrms) |
|
Unbalanced Line: -12 dBV (250 mVrms) |
THD+N (Pre-Out, @ -6dB) |
< 0.2% |
Frequency Response (-3dB) |
Balanced Mic: 165 Hz – 20 kHz |
|
Unbalanced, Balanced Line: 20 Hz – 20 kHz |
Phantom Power (balanced only) |
+48VDC (7mA/input) |
VOX Attenuation (Mic, Inputs 1-2) |
30 dB |
Input Impedance |
2 kΩ |
Inputs 1-2 |
|
Nominal Input Sensitivity |
Unbal. Line: -12 dBV (250 mVrms) |
THD+N (Pre-Out, @ -6dB) |
< 0.1% |
Frequency Response (-3dB) |
20 Hz – 20 kHz |
Input Impedance |
10 kΩ |
OUTPUTS |
|
Number of Output Channels |
1 |
Output Connectors |
4-pin, 0.3 inch (7.6 mm) Euroblock |
70V/100V Mode |
Yes |
Low Impedance Mode |
Yes |
Priority Output Contact |
Yes |
Minimum Operational Load |
4Ω |
Amplifier Topology |
Class D |
RMS Output Power (1% THD) |
30 W |
Dynamic Power |
35 W |
SNR (1% THD) |
> 90 dB |
THD+N (@ -6dB) |
< 0.5% |
Protection |
Temperature, overcurrent, overvoltage, undervoltage |
Priority Output Voltage |
24V |
Max Current |
0.5A |
Pre-Out Nominal Output Level |
0 dBV |
Standby Wakeup Sensitivity |
Inputs 1-2: -44 dBV (6 mVrms ± 10%) |
|
Mic (RCA): -46 dBV (5 mVrms ± 10%) |
|
Mic (Balanced, VOX off): -70 dBV (0.3 mVrms ± 10%) |
Time to Auto Standby |
10 min |
Power Consumption |
Normal Operation: 60W |
|
Idle Operation: 4.5W |
|
Standby Mode: 0.5W |
Fuse |
1AL |
Cooling |
Convection |
Overall Dimensions |
|
Height (without feet) |
3.5 inches (89 mm) |
Width |
8.5 inches (216 mm) |
Depth |
9.8 inches (250 mm) |
Weight |
5.3 lbs (2.4 kg) |
Environmental |
|
Ambient Operating Temperature Range |
32 - 95° F (0 – 35° C) |
Humidity |
0-95% relative humidity (non-condensing) |
Altitude |
0-6,600 ft (0-2000m) MSL |
Compliance |
|
|
FCC Part 15B (USA) |
|
UL listed (USA and Canada) |
|
CE Marked (Europe) |
|
RoHS Directive (Europe) |
